SPI 34-495-2 M16x1.5-6g GO Metric Thread Ring Gauge
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

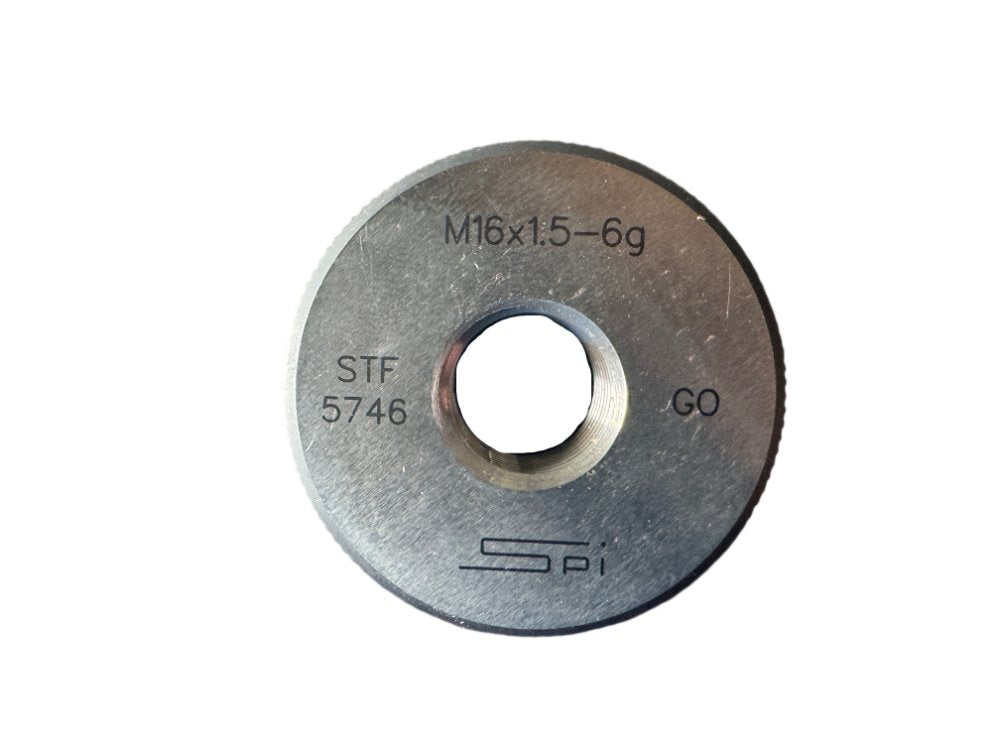

This is a new SPI (Swiss Precision Instruments) GO thread ring gauge, part number 34-495-2, serial number STF 5746, designed to inspect external (male) metric threads to the M16x1.5-6g tolerance class per ISO 1502. The gauge is hardened steel construction and conforms to ISO 1502 standard gauge-making requirements; it is NIST-traceable (NIST vide 21-53922-B) and ships with a Certificate of Inspection dated 13-10-2021 confirming actual pitch diameter of 14.9797 mm (specified 14.9857 ±0.0090 mm) and minor diameter of 14.3382 mm (specified 14.3442 ±0.0090 mm). The GO member verifies that a threaded workpiece can be fully assembled — a part that passes the GO gauge is confirmed to be within the maximum material condition limit for 6g tolerance class, which is the standard medium-fit external thread tolerance used for the vast majority of metric fastener applications. This gauge is suited for use in production inspection and quality control environments where M16x1.5 fine-pitch threads must be verified on bolts, studs, shafts, and other externally threaded components.
Product Specifications
| Brand | SPI (Swiss Precision Instruments) |
| Part Number | 34-495-2 |
| Serial Number | STF 5746 |
| Gauge Type | GO Thread Ring Gauge |
| Thread Size | M16 x 1.5 mm pitch |
| Tolerance Class | 6g (ISO external thread) |
| Thread Form | Metric (ISO 68-1) |
| Standard | ISO 1502 |
| Major Diameter (Min) | 16.087 mm (min, cleared) |
| Pitch Diameter Specified | 14.9857 ±0.0090 mm |
| Pitch Diameter Actual | 14.9797 mm |
| Minor Diameter Specified | 14.3442 ±0.0090 mm |
| Minor Diameter Actual | 14.3382 mm |
| NIST Traceability | NIST vide 21-53922-B |
| Certificate of Inspection | Included, Cert No. 236621 |
| Date of Inspection | 13-10-2021 |
| Condition | New |
