SPI 61R-8-.0001 8in 0.0001in/10in Cast Iron Precision Block Level
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

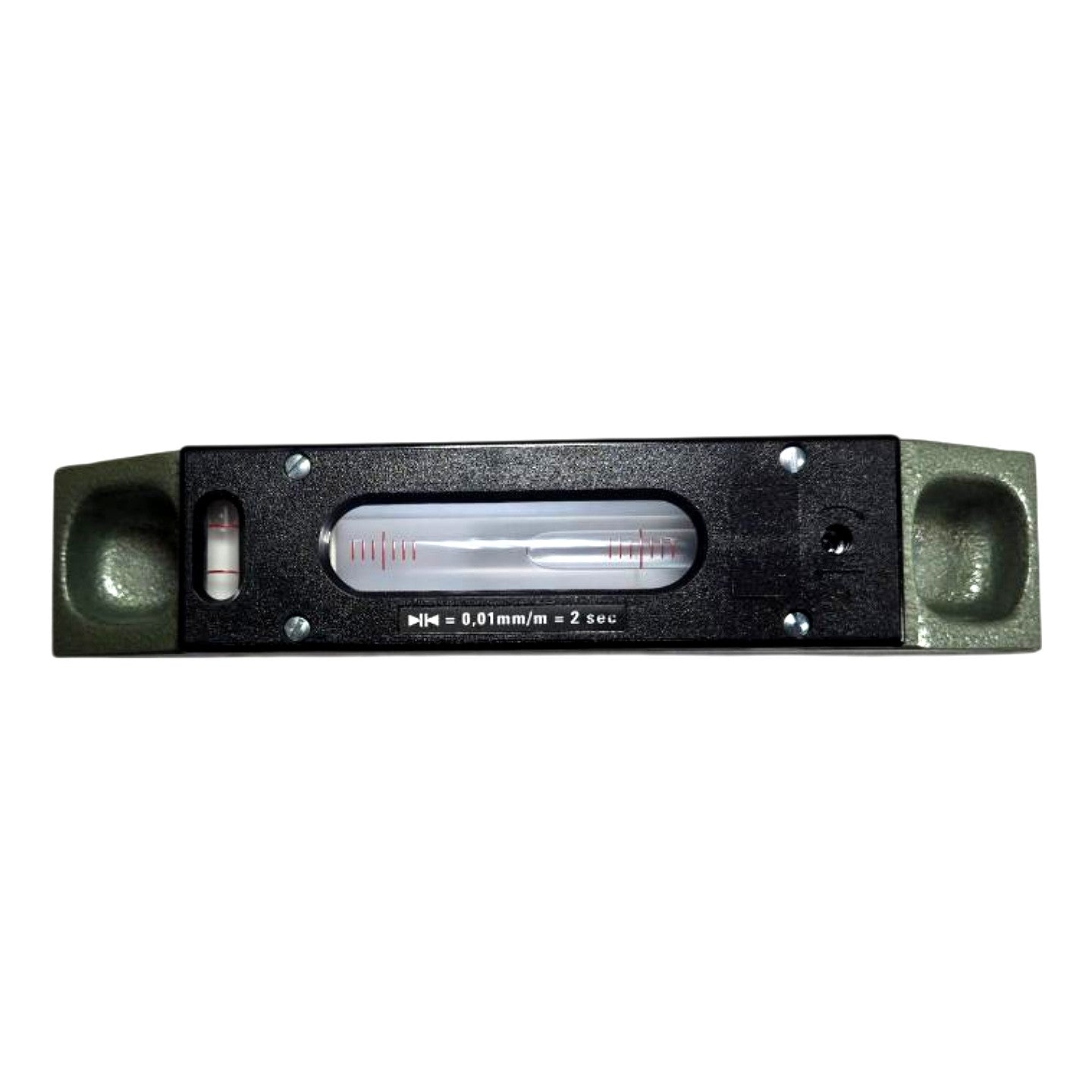

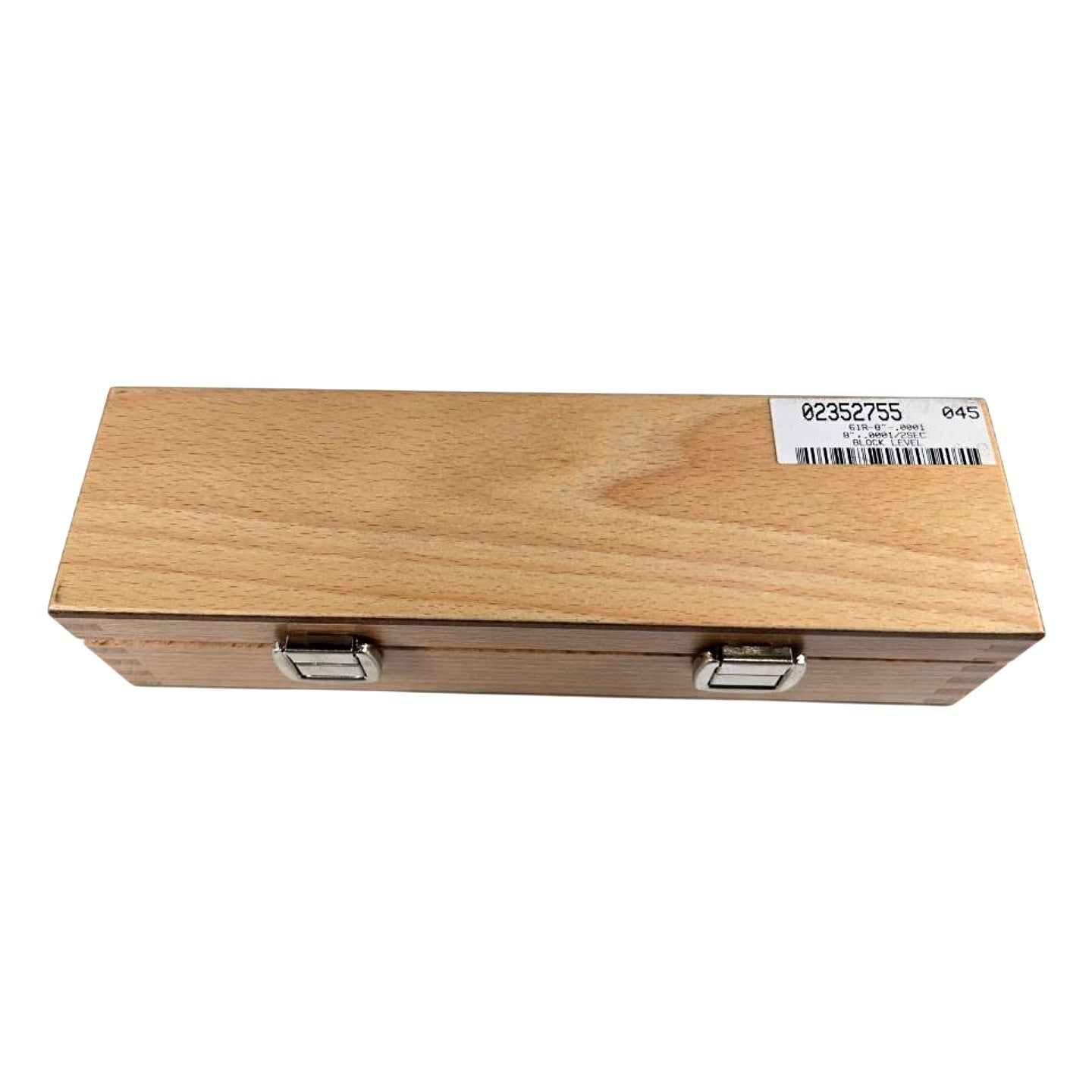

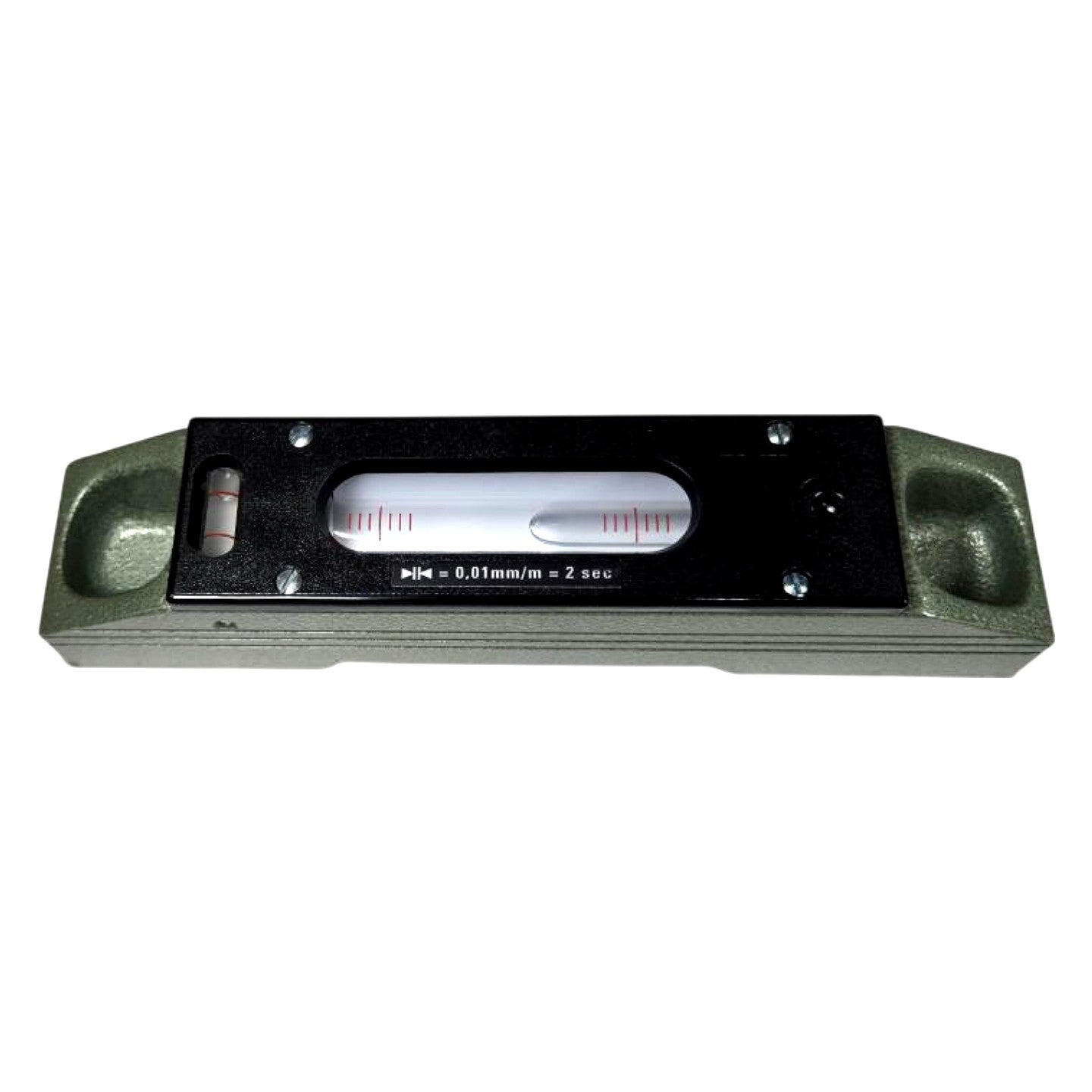

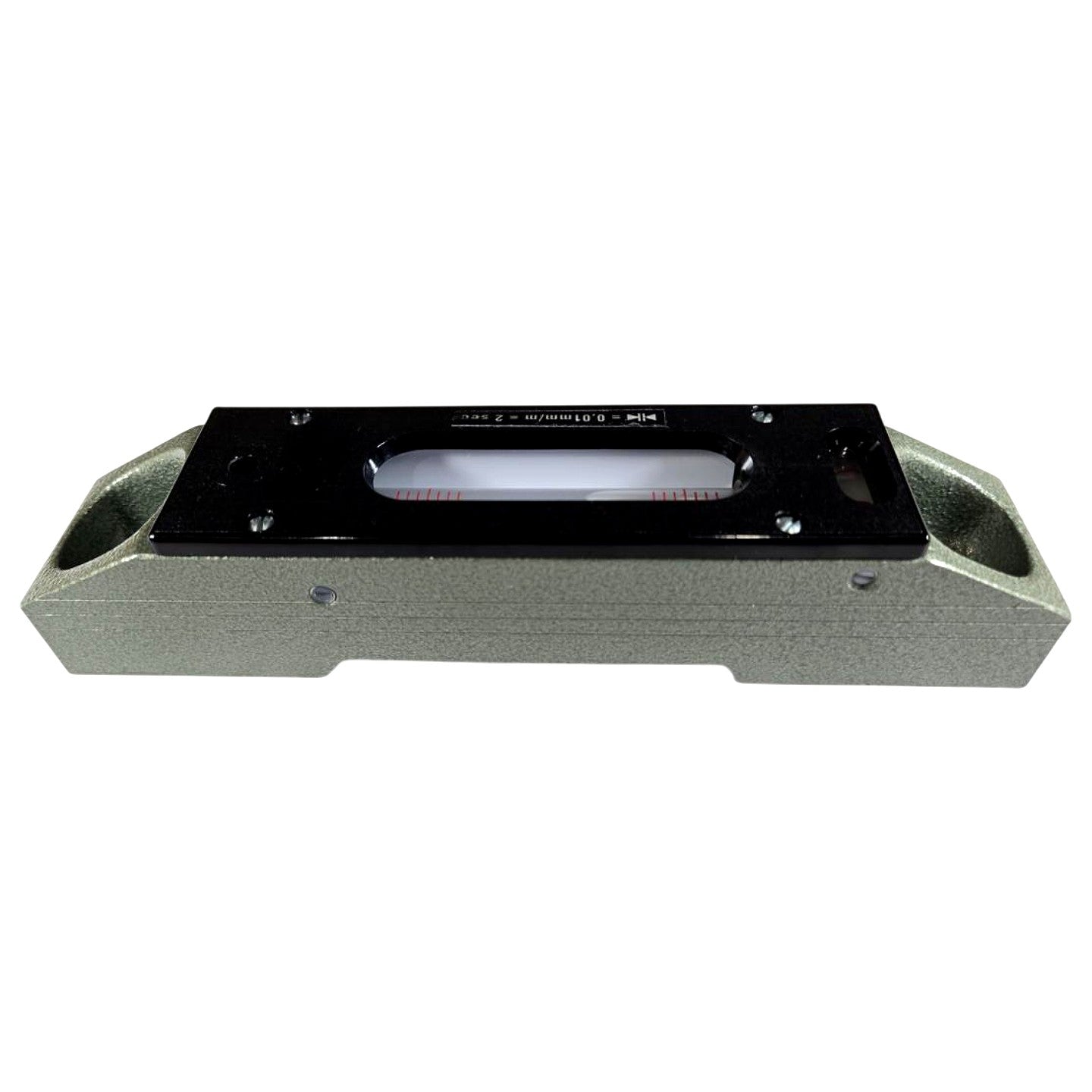

The SPI 61R-8-.0001 is a new precision inspection block level with a sensitivity of 0.0001 in/10 in (0.01 mm/m = 2 arc seconds per graduation), as confirmed by the vial label visible in the photos. The cast iron body features a ground and lapped base with a keyed slot along the bottom for use on machine tool ways, surface plates, and lathe beds, with the characteristic raised end pads (feet) providing a stable, two-point contact reference base. The instrument carries a main horizontal barrel vial with red graduation lines and a secondary cross-level vial for transverse alignment reference, both housed in a black anodized vial plate secured by four screws. Supplied new in a fitted hardwood storage case; the box label confirms part number 02352755 / 61R-8-.0001, 8 in length, 0.0001 in sensitivity, Block Level.
Product Specifications
| Brand | SPI |
| MPN | 61R-8-.0001 |
| Alternate Part # | 02352755 |
| Base Length | 8 in |
| Sensitivity | 0.0001 in / 10 in |
| Sensitivity (Metric) | 0.01 mm/m |
| Sensitivity (Angular) | 2 arc sec per graduation |
| Number of Vials | 2 (1 main barrel, 1 cross) |
| Body Material | Cast iron |
| Base Style | Ground flat w/ keyed slot |
| Condition | New |
| Case Included | Yes, fitted hardwood case |
