SPI 805-4025 2in 0.0005in Digital Magnetic Z-Axis Preset Tool Setter
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

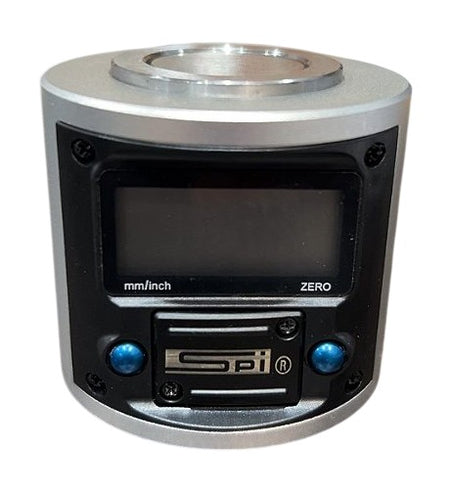

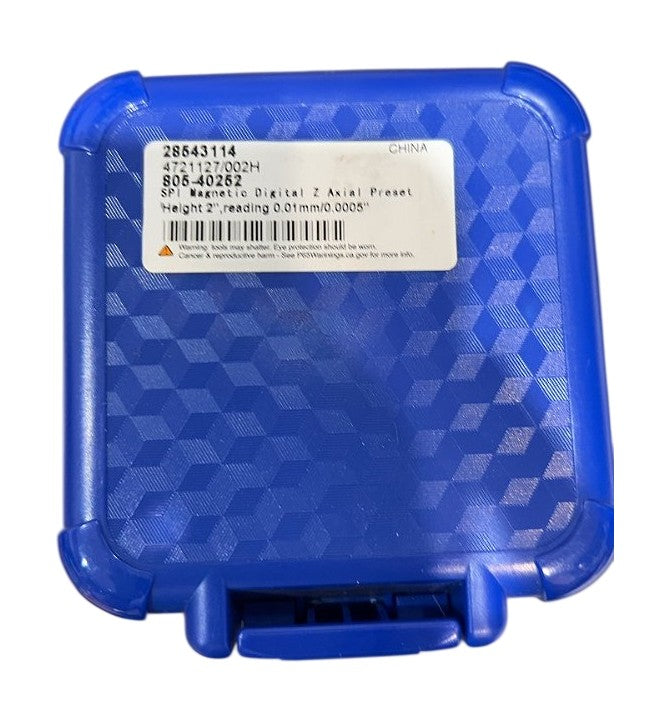

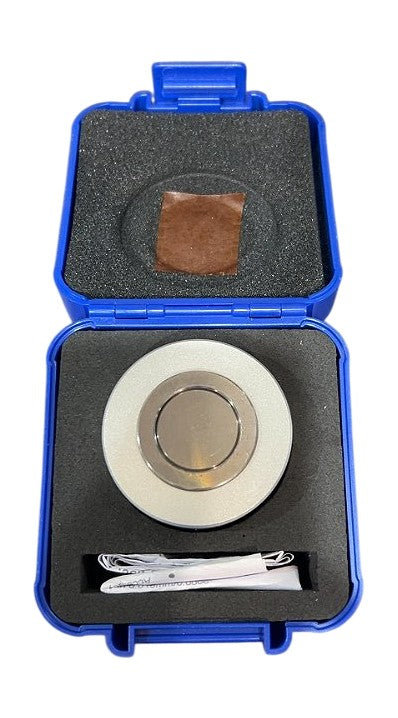

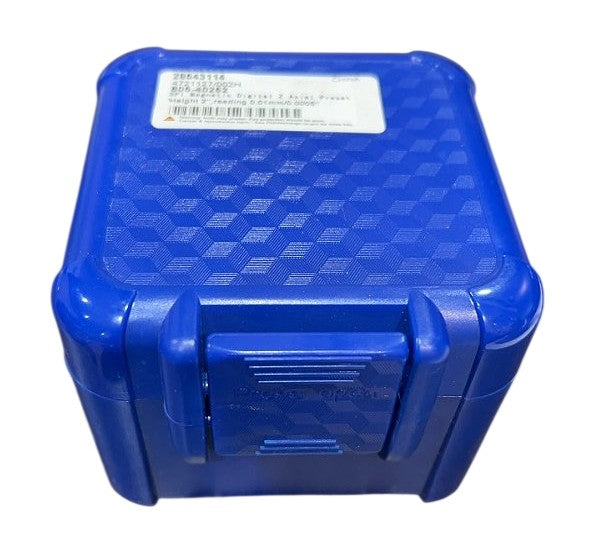

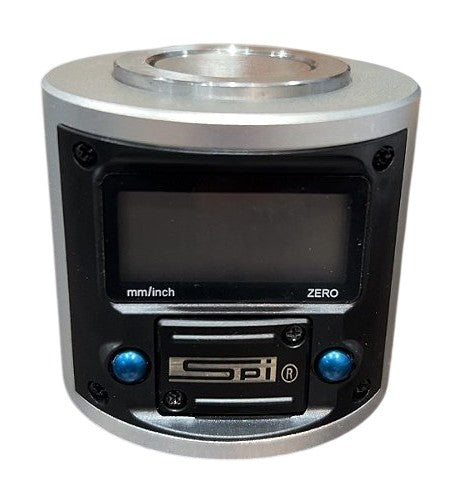

The SPI 805-4025 is a new magnetic digital Z-axis preset tool setter with a 2-inch reference height and a resolution of 0.01mm / 0.0005 inch, as confirmed directly from the label on the case. The unit features an integrated digital LCD display with mm/inch conversion and a ZERO function, two blue push-button controls, and a strong permanent magnet base that locates and holds the setter to the machine table or vise during tool-length presetting operations on CNC machining centers and milling machines. The cylindrical body is constructed with an aluminum housing and a hardened contact surface on the top, and the unit ships in a molded blue plastic protective case with foam insert and a battery. SPI part number 805-4025 is also identified on the case label with lot/trace codes 28643114 and 4721127/002H.
Product Specifications
| Brand | SPI |
| MPN | 805-4025 |
| Product Type | Magnetic Digital Z-Axis Preset Tool Setter |
| Reference Height | 2 in |
| Resolution (Inch) | 0.0005 in |
| Resolution (Metric) | 0.01 mm |
| Display Type | Digital LCD |
| Unit Switching | mm / inch selectable |
| Zero Function | Yes |
| Base Type | Permanent magnet |
| Housing Material | Aluminum |
| Condition | New |
| Includes | Molded blue plastic case, foam insert, battery |
| Country of Origin | China |
