SSI Technologies 1/4 in NPT MG-300-A-9V-R 0-300 PSI Digital Pressure Gauge
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

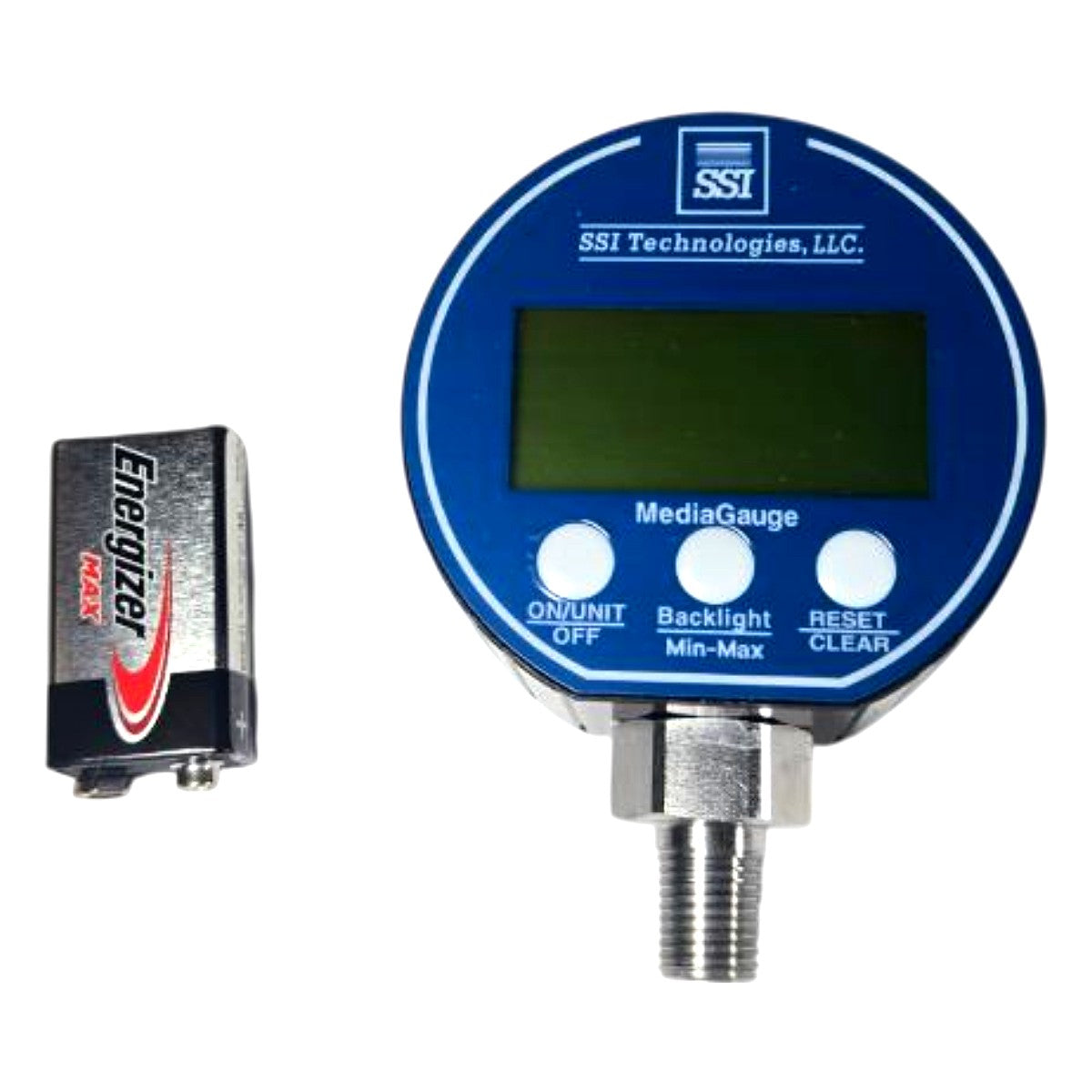

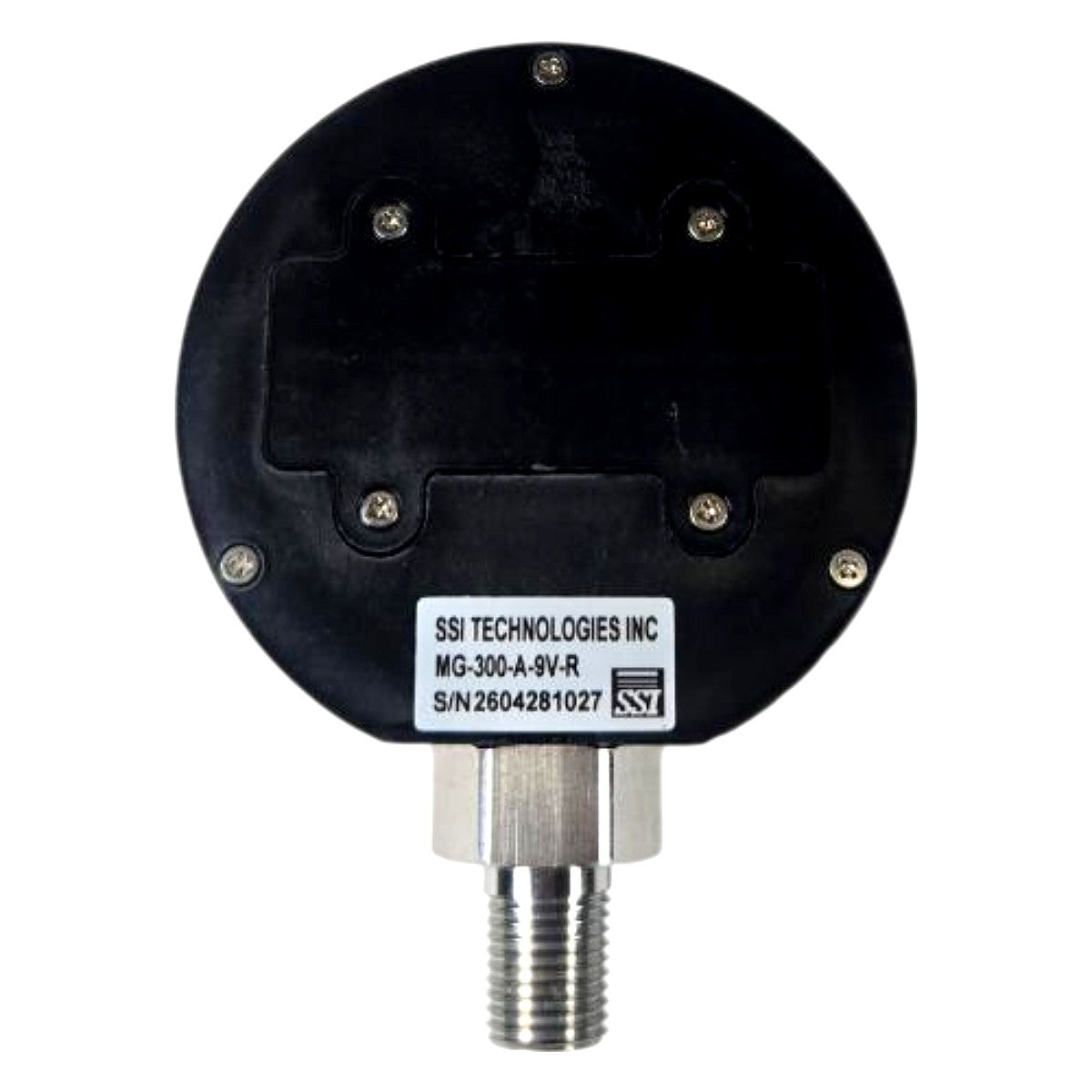

The SSI Technologies MG-300-A-9V-R MediaGauge is a battery-powered digital pressure gauge with a 0–300 PSI range, designed to measure pressure in liquids and gases without requiring any external power supply or wiring. The part number decodes as follows: MG = MediaGauge, 300 = 300 PSI full-scale range, A = all-media (compatible with liquids and gases), 9V = 9-volt battery powered (9V Energizer battery included as shown in photos), R = bottom-mount 1/4 in NPT male process connection. The gauge features an LCD display with backlit readout, three front-panel pushbuttons (ON/UNIT/OFF, Backlight/Min-Max, and RESET/CLEAR), min/max pressure memory recall, and selectable pressure units. The wetted parts and process connection are stainless steel, making this gauge suitable for hydraulic systems, pneumatic circuits, water/fluid systems, and general industrial pressure testing. Sold new in original SSI Technologies box with 9V Energizer battery included.
Product Specifications
| Brand | SSI Technologies (Amphenol) |
| MPN | MG-300-A-9V-R |
| Series | MediaGauge |
| Pressure Range | 0 to 300 PSI |
| Media Compatibility | Liquids & Gases (All Media) |
| Power Source | 9V Battery (included) |
| Display Type | LCD w/ Backlight |
| Process Connection Size | 1/4 in NPT Male |
| Connection Location | Bottom Mount |
| Connection Thread Type | NPT |
| Wetted Materials | Stainless Steel |
| Min/Max Memory | Yes |
| Selectable Units | Yes (PSI and other units) |
| Gauge Dial Size | Approx. 2.5 in diameter |
| Condition | New |
