Stafford Formrol PHS 160 160DP 1-1/4x1/2x1/2 FNC Straight Knurl Wheel
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

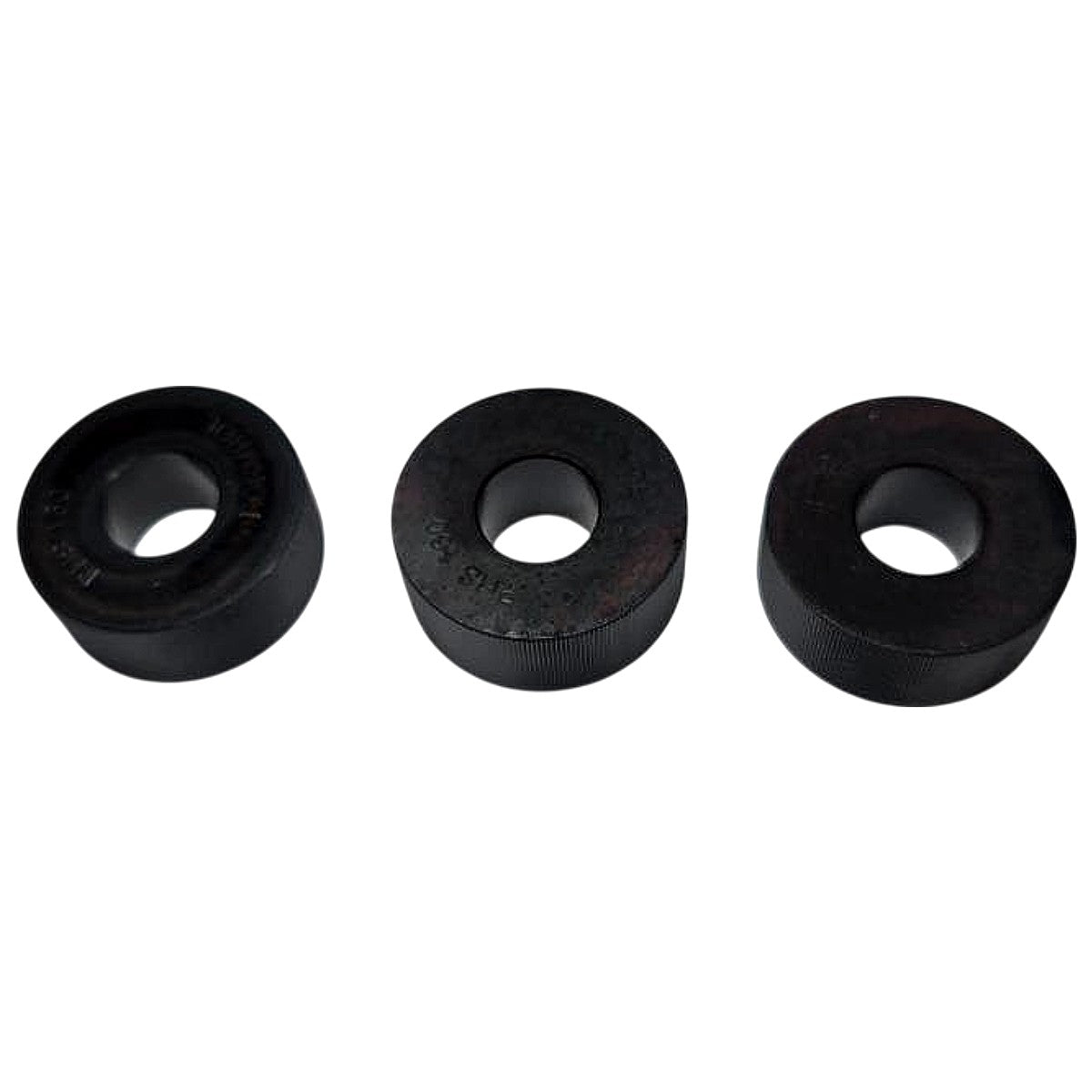

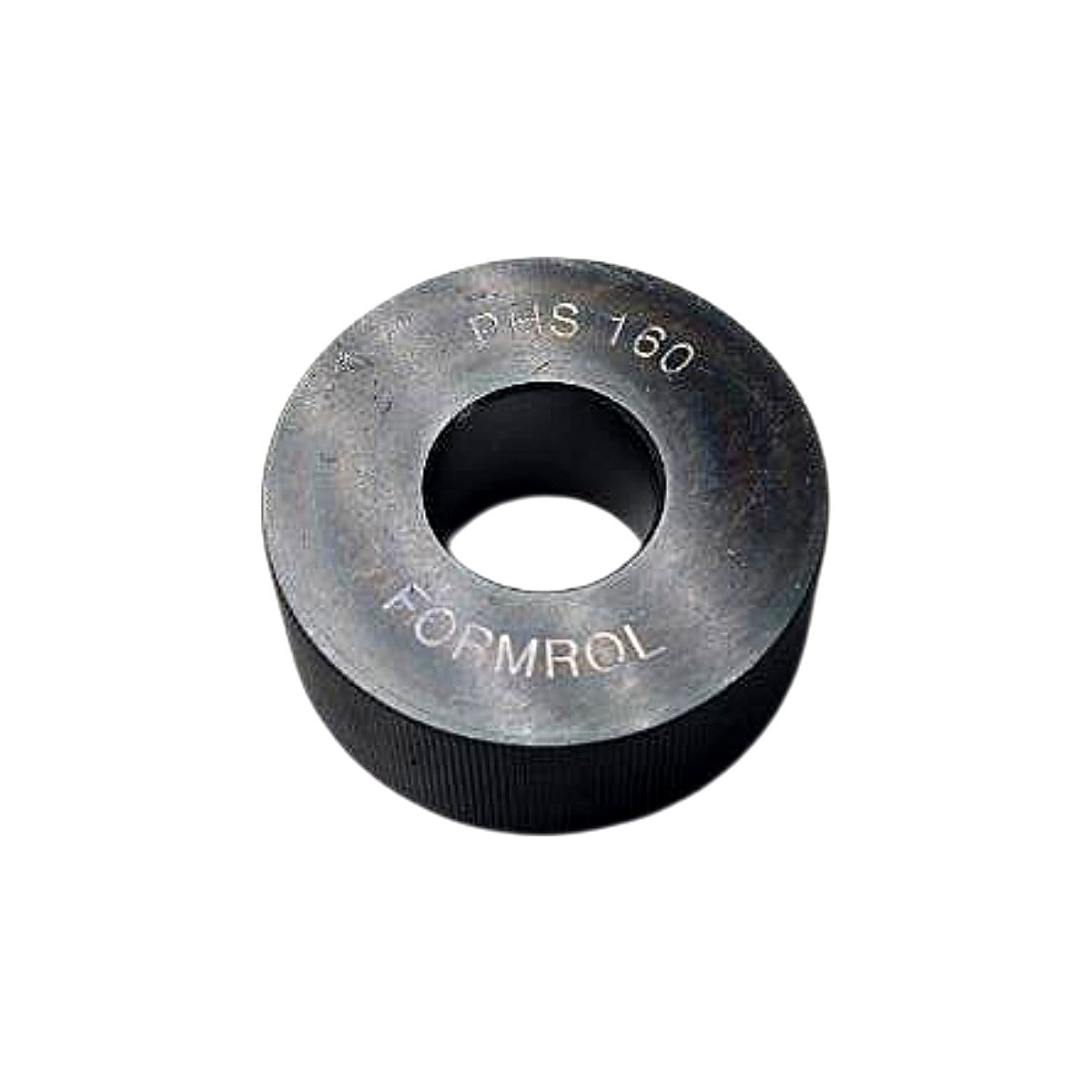

The Stafford Special Tools (Formrol) PHS 160 is a new, 160 diametral pitch (DP) straight-pattern knurl wheel with a 1-1/4 in outer diameter, 1/2 in face width, and 1/2 in bore, manufactured under part number STA K-PHS-160-FNC. The wheel is constructed from tool steel with a beveled face edge and finished with Ferritic Nitrocarburizing (FNC) surface treatment, which provides a hard, wear-resistant case (~0.0005–0.001 in depth) that reduces friction and resists galling during high-cycle knurling operations. Straight (axial) knurl patterns at 160 DP produce a fine pitch groove suited for grip-enhancement knurling on small-diameter workpieces typically turned on CNC and manual lathes using bump or straddle knurling toolholders accepting 1/2 in bore wheels. The knurled OD perimeter is the working surface; the beveled edges reduce burring at the start and end of the knurl track. Compatible with Formrol/Stafford PHS-series knurling toolholders and most standard bump knurling heads accepting this bore and wheel size.
Product Specifications
| Brand | Stafford Special Tools (Formrol) |
| MPN | STA K-PHS-160-FNC |
| Series | PHS 160 |
| Knurl Pattern | Straight (Axial) |
| Diametral Pitch (DP) | 160 DP |
| Outer Diameter (OD) | 1-1/4 in (1.250 in) |
| Face Width | 1/2 in (0.500 in) |
| Bore (ID) | 1/2 in (0.500 in) |
| Edge Style | Beveled |
| Surface Treatment / Coating | FNC (Ferritic Nitrocarburizing) |
| Quantity | 3 wheels (per lot shown) |
| Condition | New |
