Starrett 25-511J 0-0.200in 0.0001in Grad Jeweled Lug Back Dial Drop Indicator

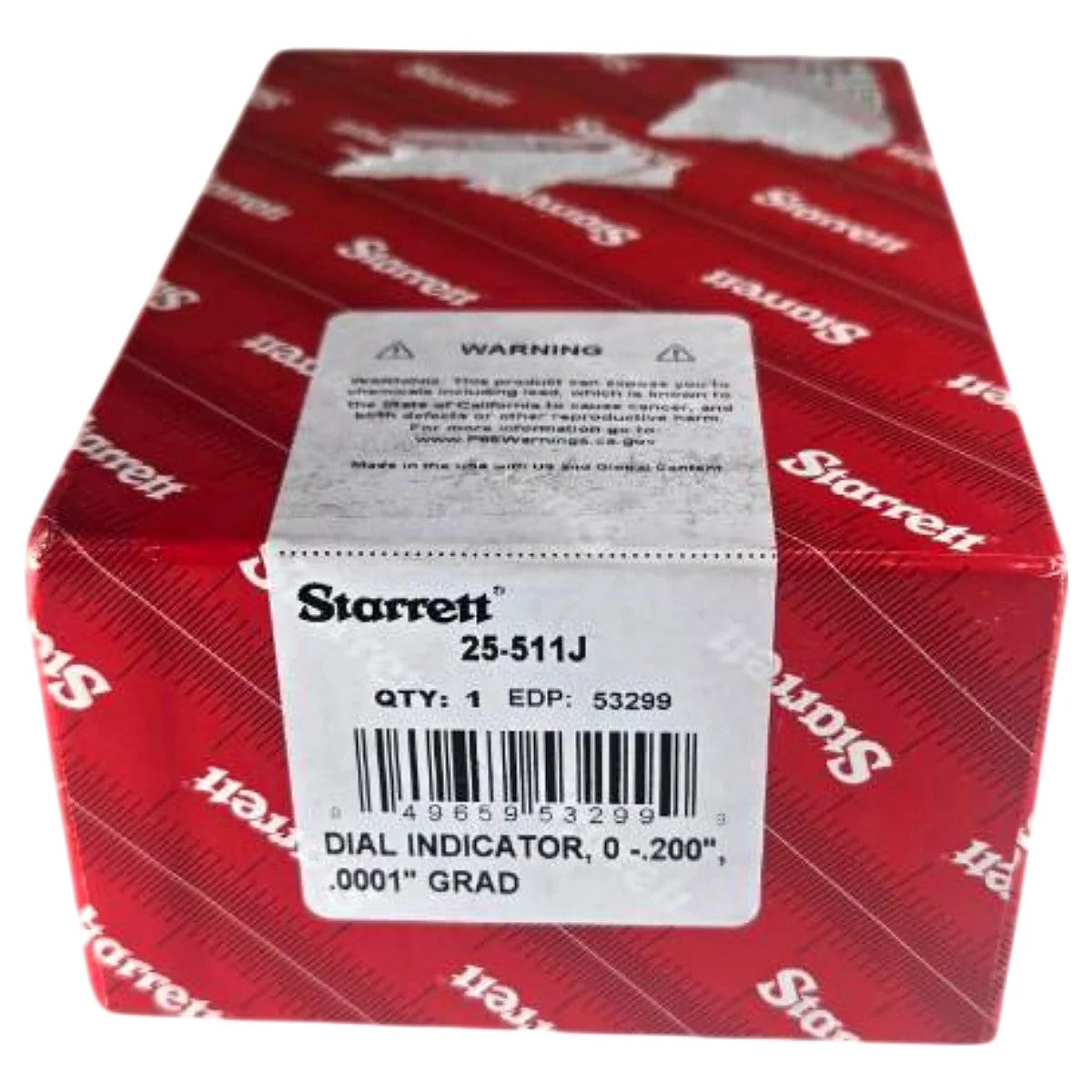

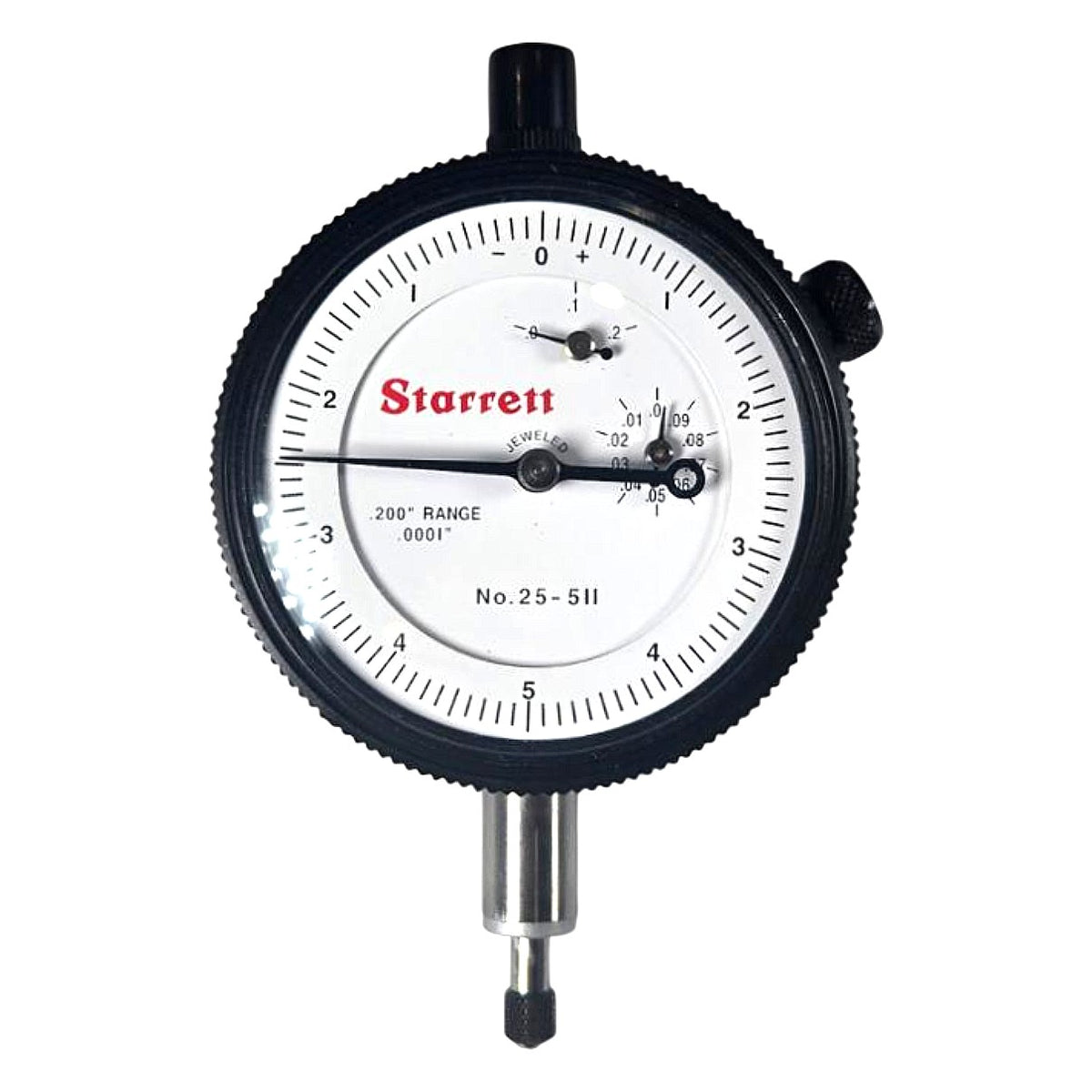

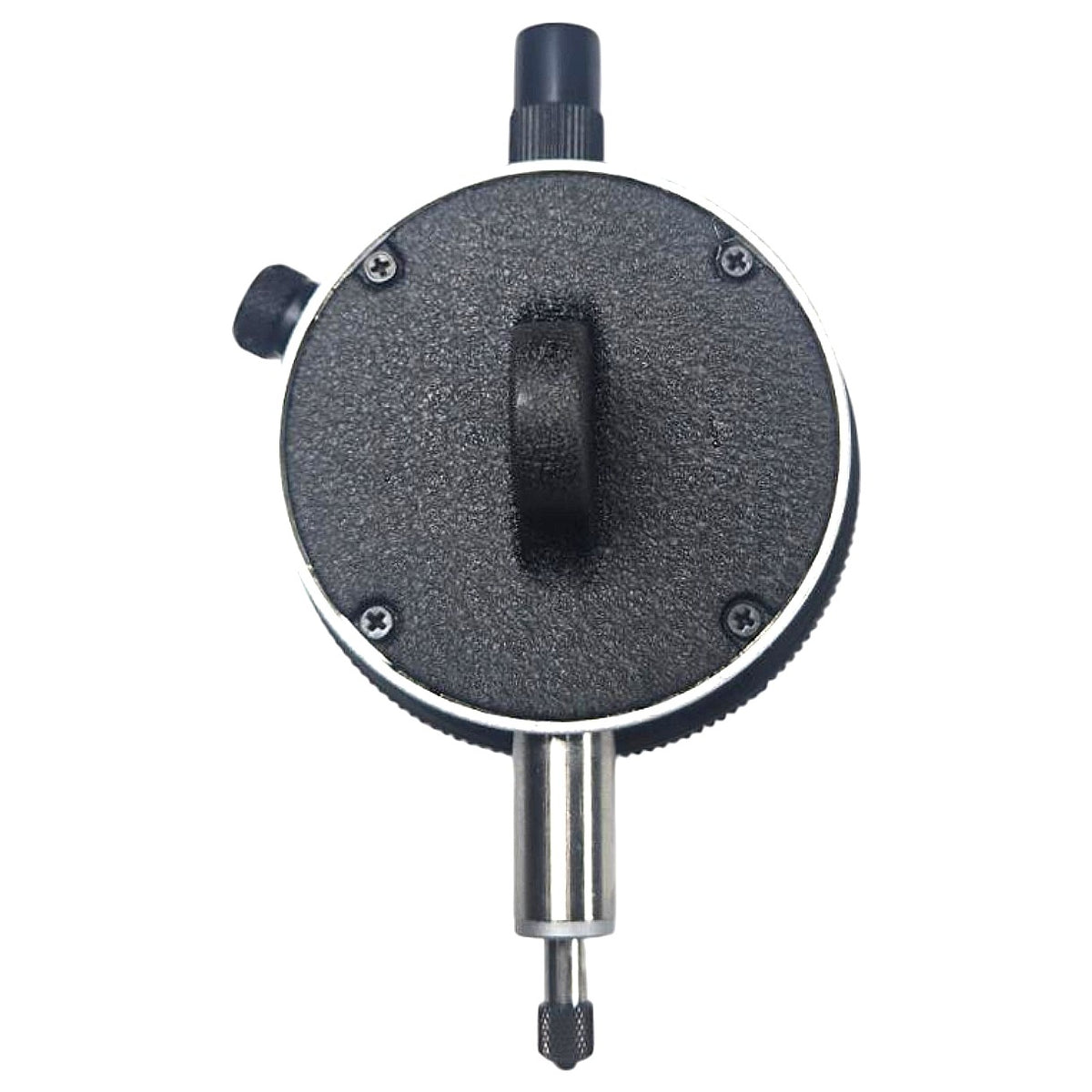

The Starrett No. 25-511J is a new, jeweled continuous-reading dial drop indicator with a 0–0.200 in. measuring range and 0.0001 in. graduation, reading in a 0-5-0 balanced (bidirectional) format on a white dial face — all of which are confirmed directly from the face markings and box label visible in the photos. The "J" suffix in the part number designates jeweled bearings in the movement, which reduces friction, extends service life, and improves repeatability compared to non-jeweled versions; the "511" suffix designates a lug-on-back mounting configuration and the 2-3/8 in. (No. 25-series) dial diameter. A revolution counter sub-dial is present on the face, allowing the operator to track full 0.100 in. stem travel increments without losing position — confirmed visible in the product photos. This indicator accepts a standard 3/8 in. stem for use with dial indicator holders, magnetic bases, and surface gauge arms, and is suited for comparative measurement, runout inspection, surface plate work, and machine tool setup. Made in USA with US and global content per the box label (EDP 53299).

Product Specifications
