Starrett 823BZ 1.5-12in 0.001in Tubular Inside Micrometer Set
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

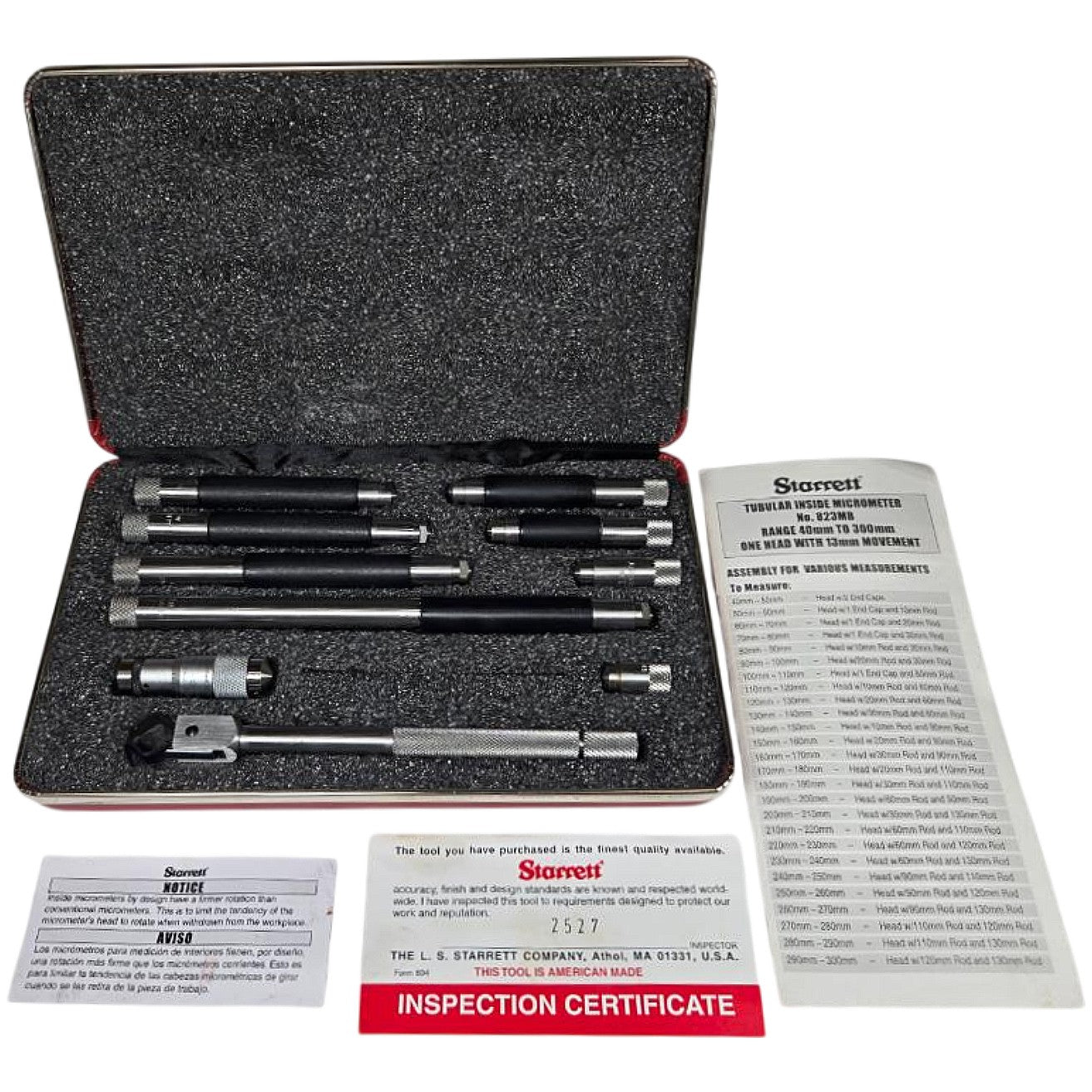

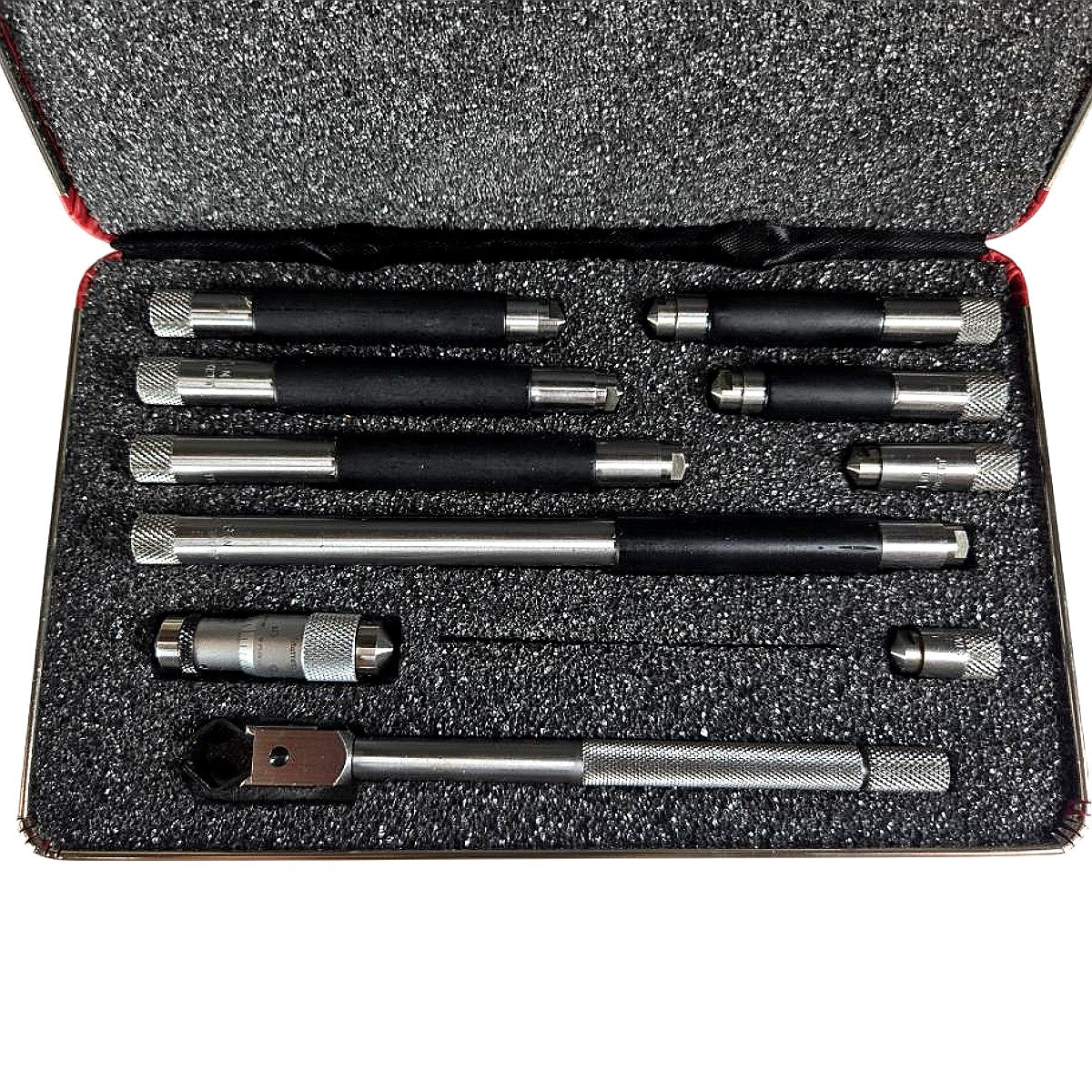

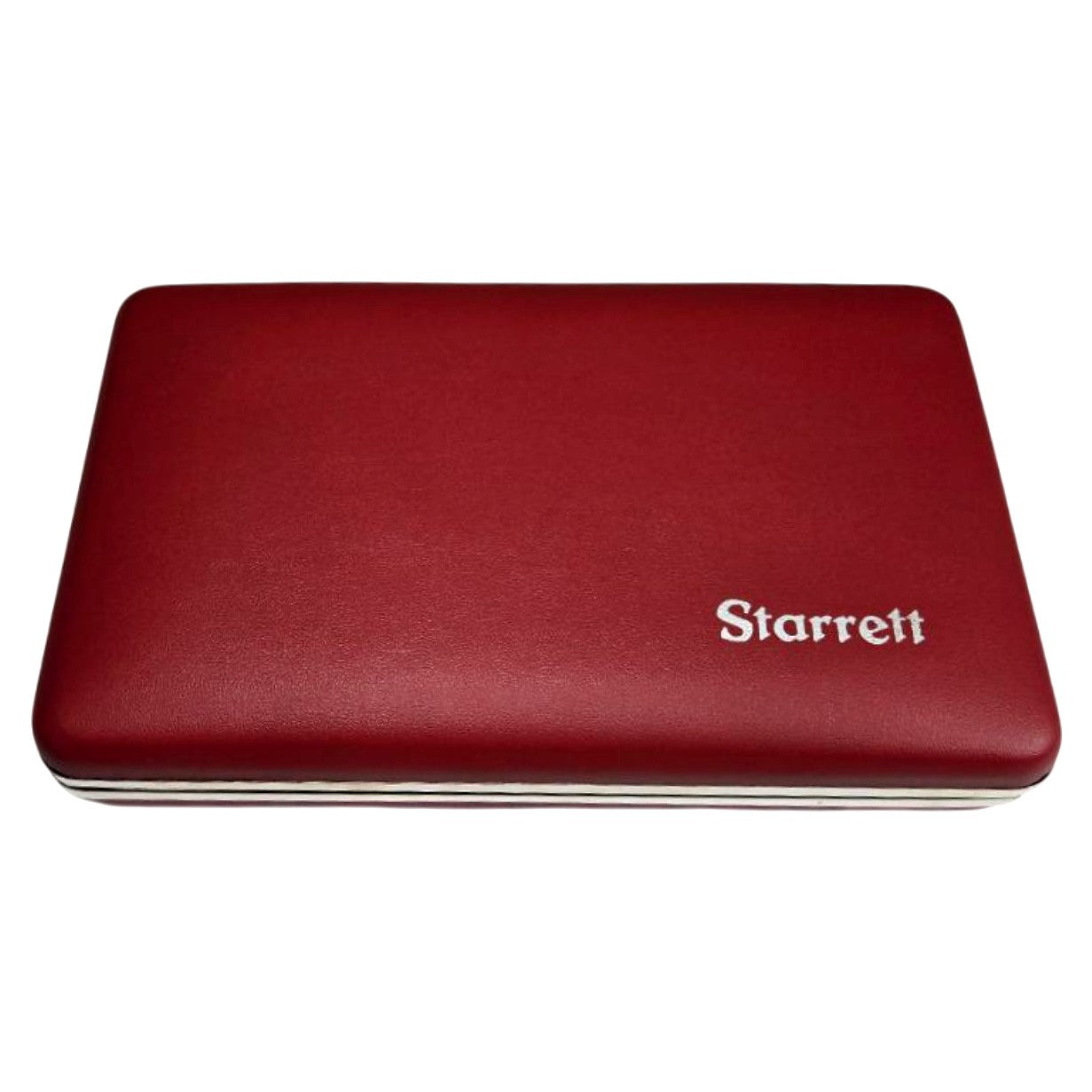

The Starrett 823BZ is a new, American-made tubular inside micrometer set covering a continuous measurement range of 1-1/2 to 12 inches (40–300 mm on the companion metric model 823MB) with a 0.001 in graduation and a stated accuracy of ±0.0001 in. The set uses a single micrometer head with 1/2 in (13 mm) of thimble travel and a friction thimble for consistent measuring pressure; hardened extension rods of various lengths thread together to reach the full 12 in range as documented on the assembly chart included with the set. The kit ships in Starrett's signature red leatherette-covered metal case with foam cutouts, includes an inspection certificate (inspector #2527 visible in the photo), and carries Starrett EDP 53052. Typical applications include measuring bores, cylinder liners, housings, and any large-diameter internal feature where a conventional inside micrometer cannot reach, and the modular rod system eliminates the need for multiple dedicated tools across the 1.5–12 in range.
Product Specifications
| Brand | Starrett |
| Model / MPN | 823BZ |
| EDP | 53052 |
| Measurement Range | 1-1/2 to 12 in (1.5000–12.0000 in) |
| Graduation | 0.001 in |
| Accuracy | ±0.0001 in |
| Head Travel (Thimble Movement) | 1/2 in (13 mm) |
| Thimble Type | Friction thimble |
| Measurement System | Inch |
| Scale Type | Mechanical / Vernier |
| Number of Pieces | 9 (head + extension rods + end cap + handle) |
| Case Type | Red leatherette-covered metal case w/ foam cutouts |
| Includes Inspection Certificate | Yes |
| Country of Origin | USA (made in USA w/ US and global content) |
| Condition | New |
