Sterling Peerless 2685533-000 Liquid End Package Centrifugal Pump Assembly

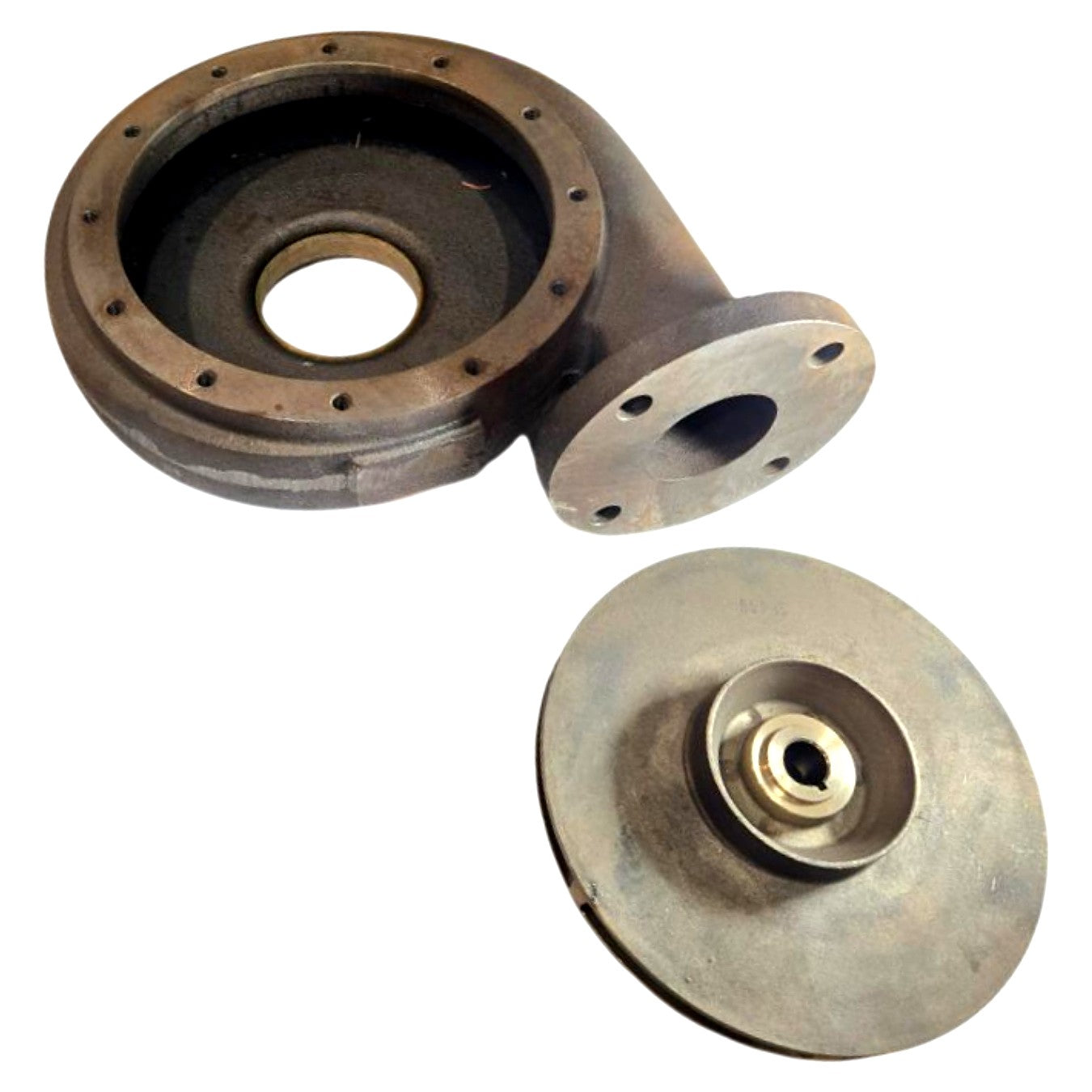

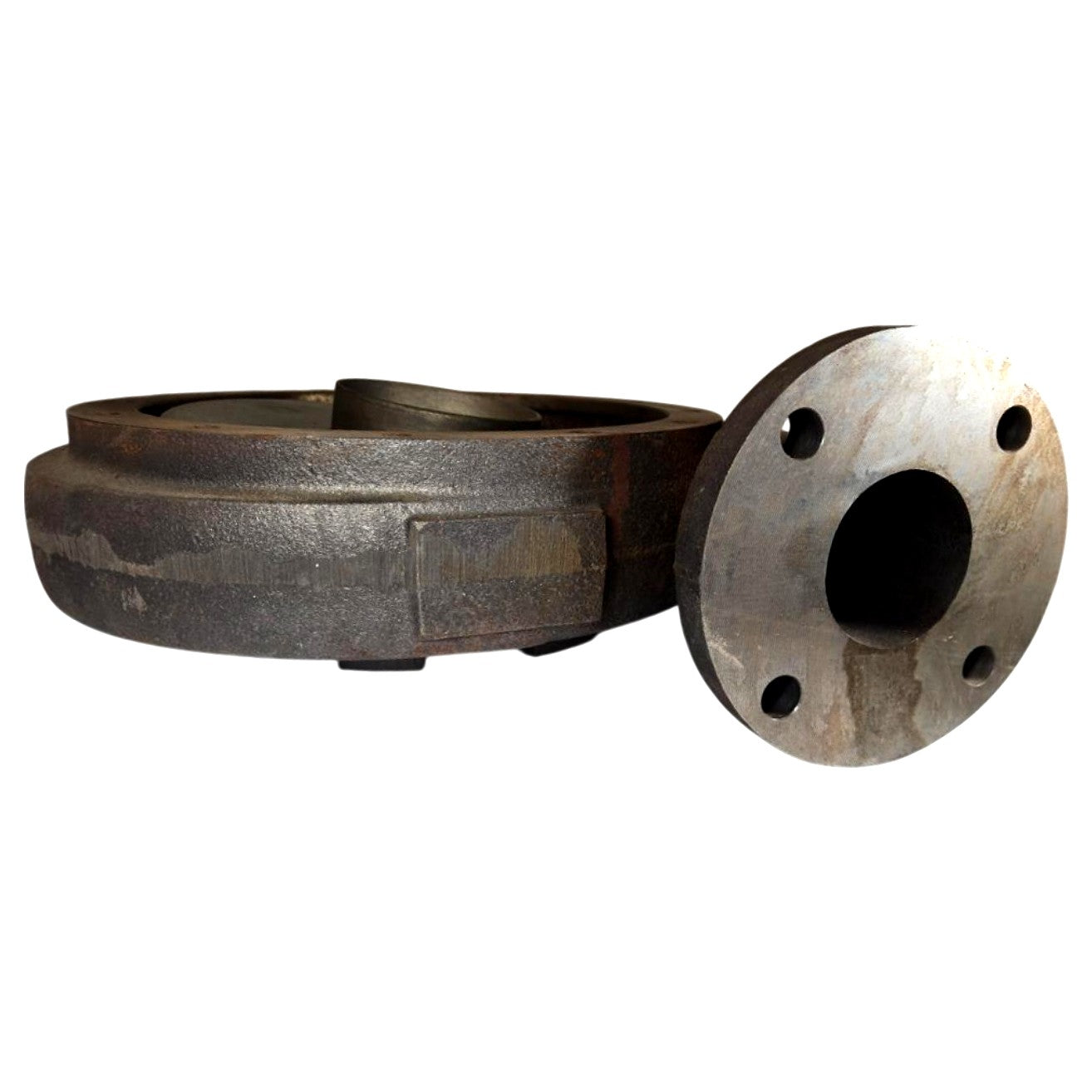

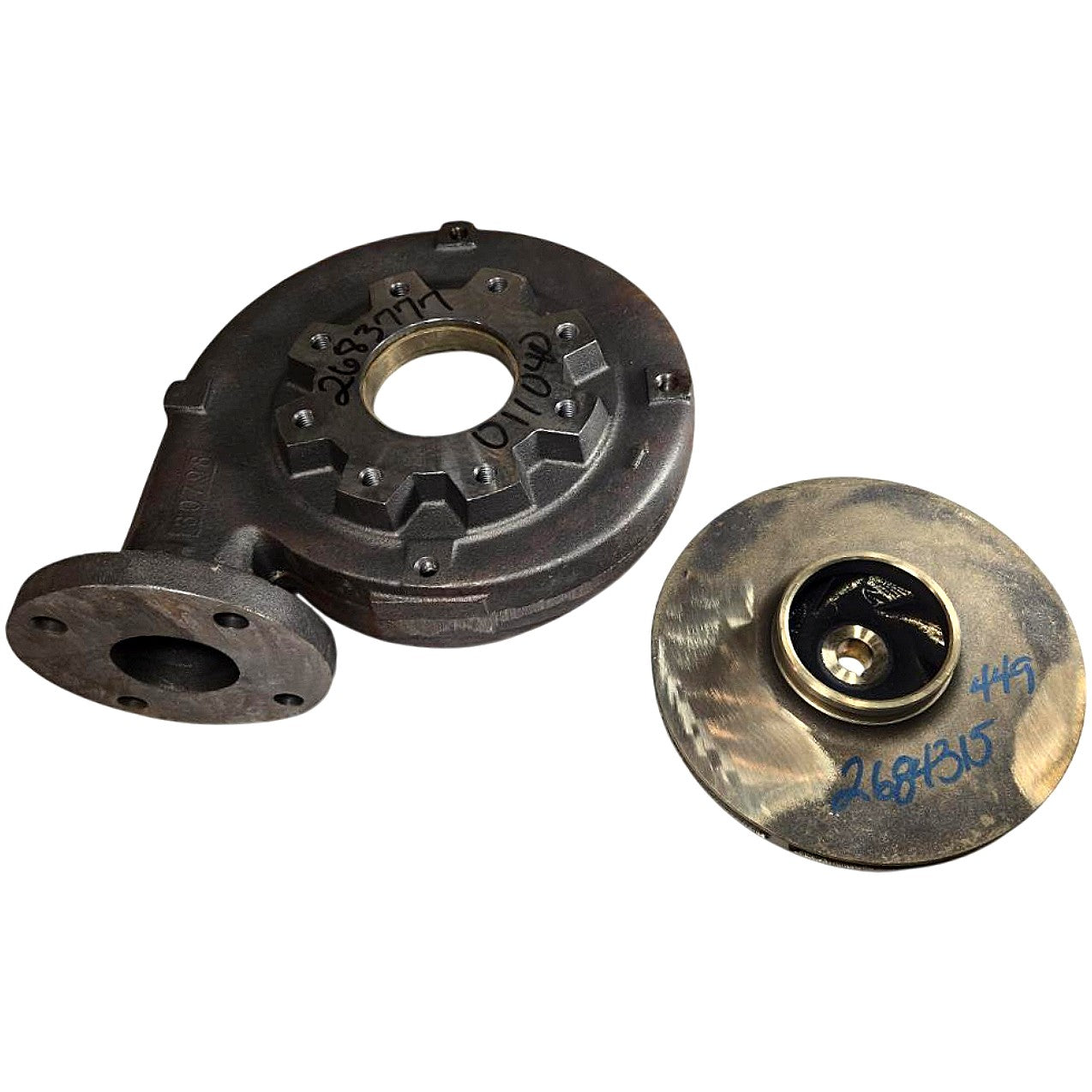

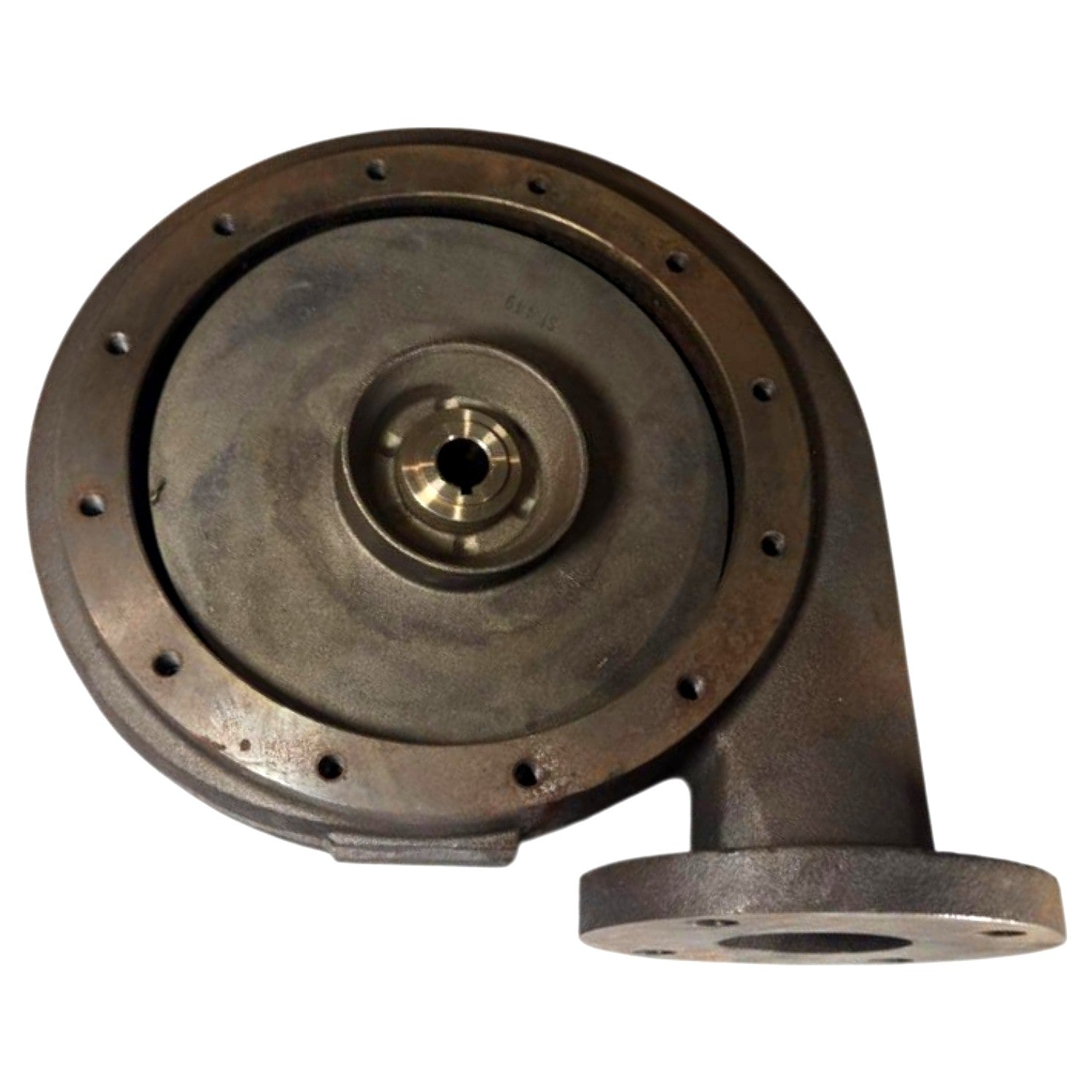

This is a new Sterling (Peerless Pump) Liquid End Package, P/N 2685533-000, Job No. 517697FJ, manufactured by the End Suction Production Team in Indianapolis, Indiana USA. The liquid end package includes a cast iron volute/casing with a flanged discharge outlet (4-bolt pattern visible) and a large-diameter bolt circle on the suction face, along with a bronze-hubbed impeller with a keyed shaft bore — all components required to rebuild or replace the wetted end of the corresponding end-suction centrifugal pump. The volute carries sub-part markings 2683777 (casing) and the impeller is marked 2681315, consistent with Sterling's F1030AM series end-suction pump platform as hand-written on the box. Sterling end-suction pumps in this family are commonly applied in HVAC, industrial water circulation, and process cooling systems. All components are unused, uninstalled, and were packaged at the factory; the original box shows storage wear but the parts themselves are in new condition.

Product Specifications
