Sumitomo CNMG432ESEW AC810P Carbide Turning Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

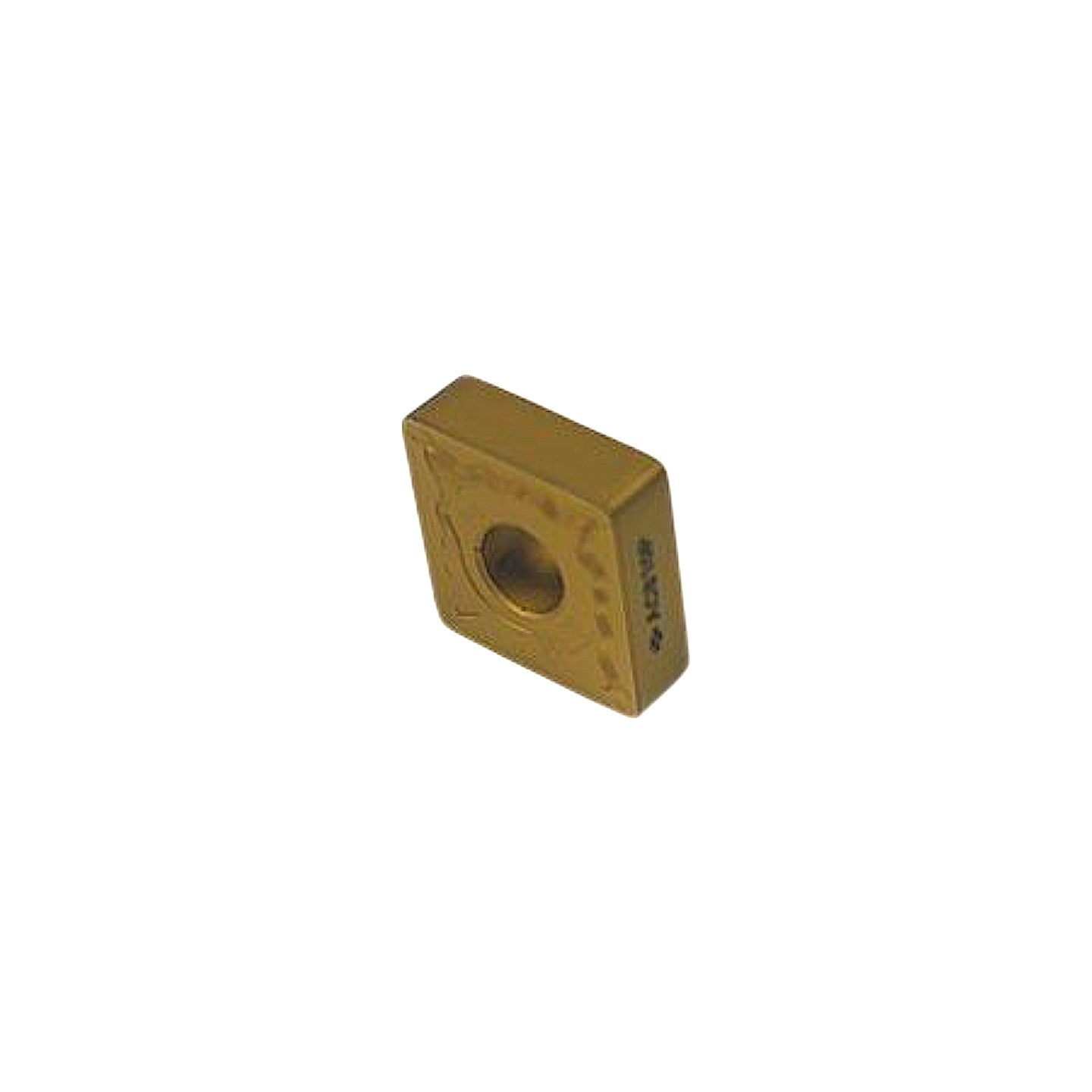

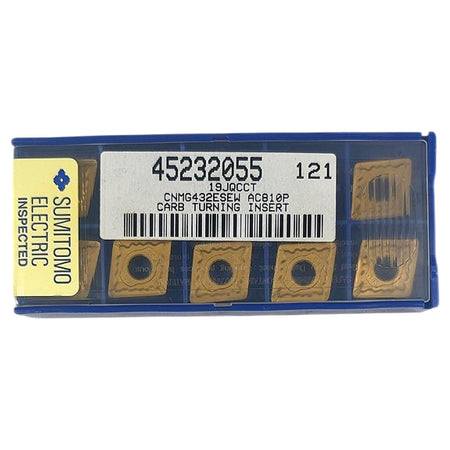

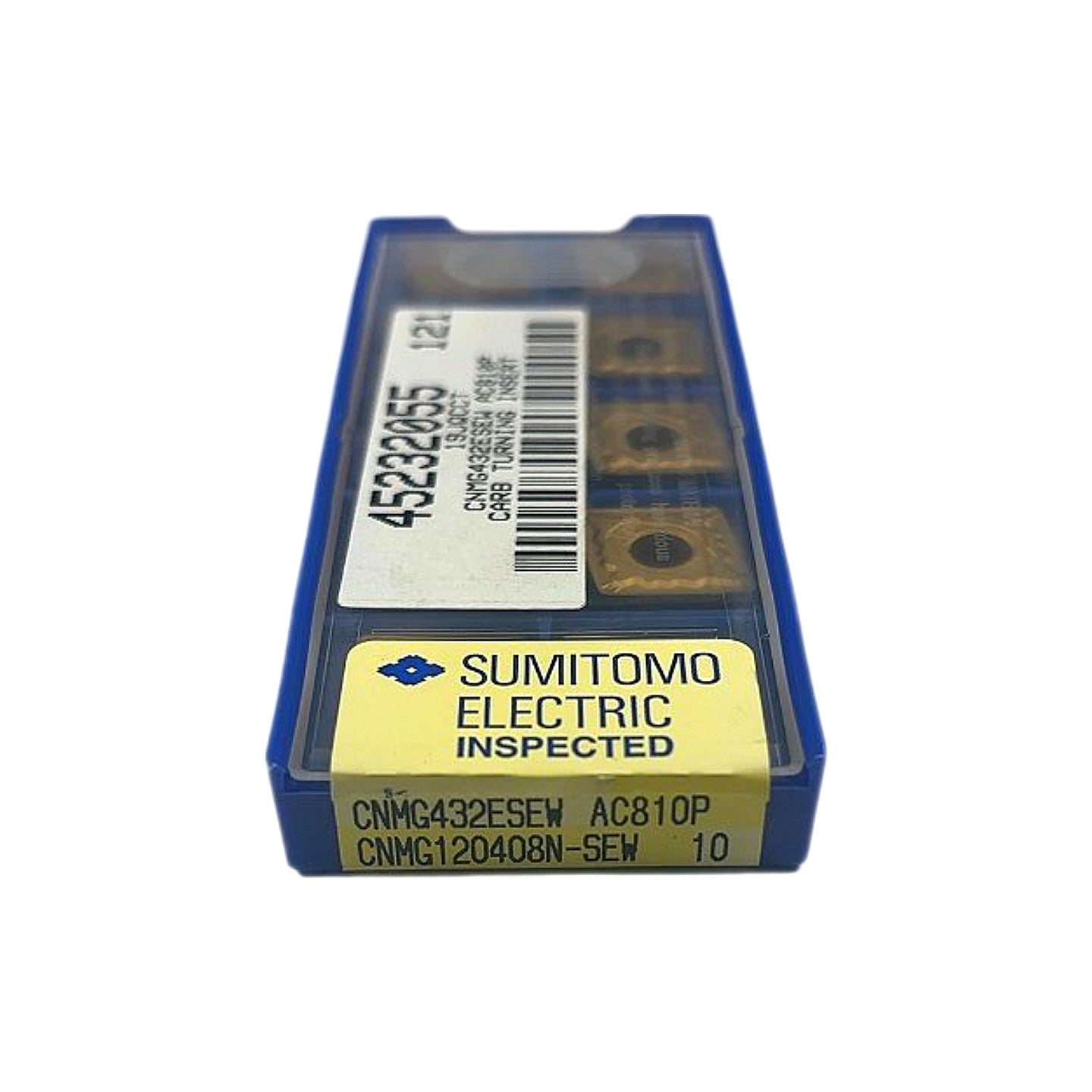

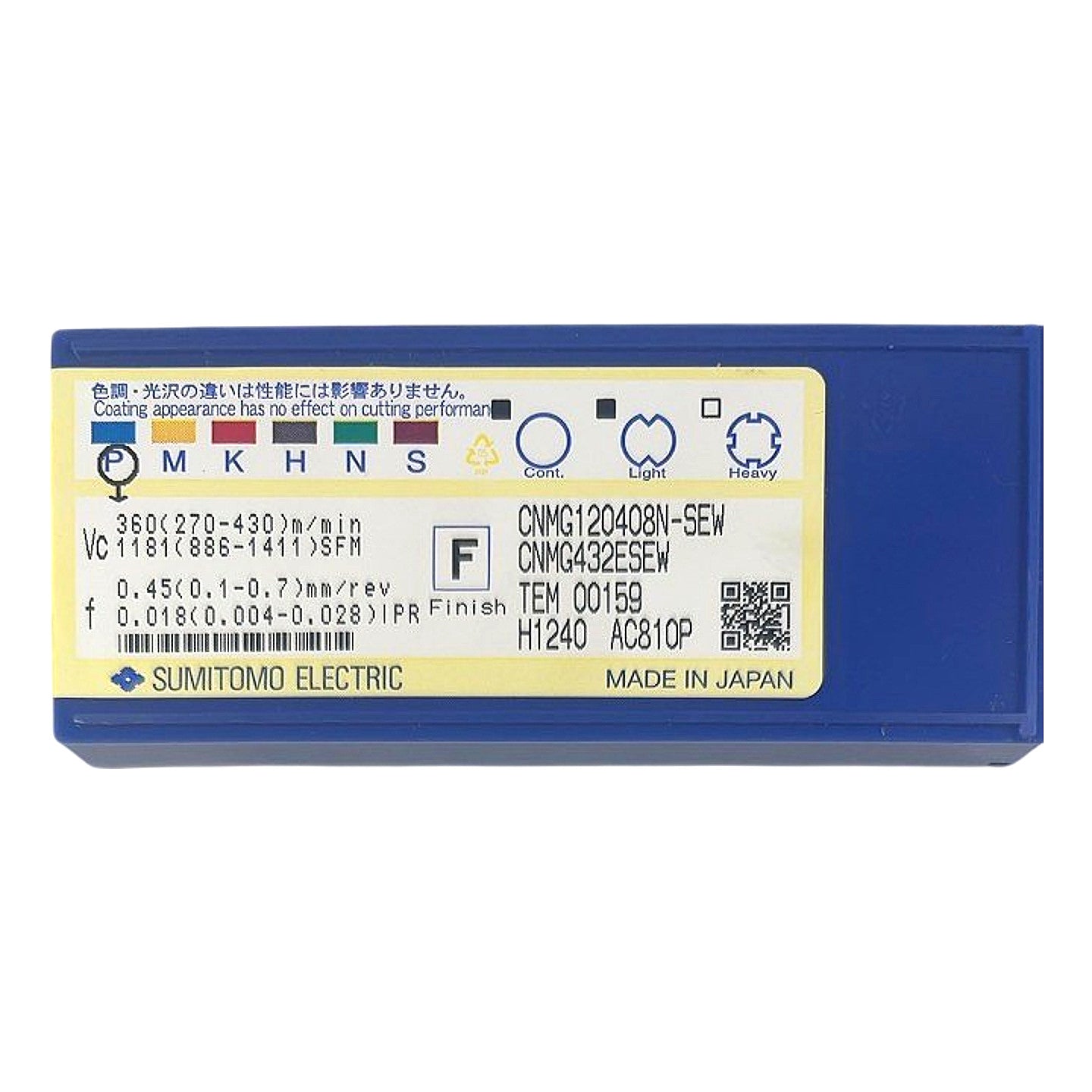

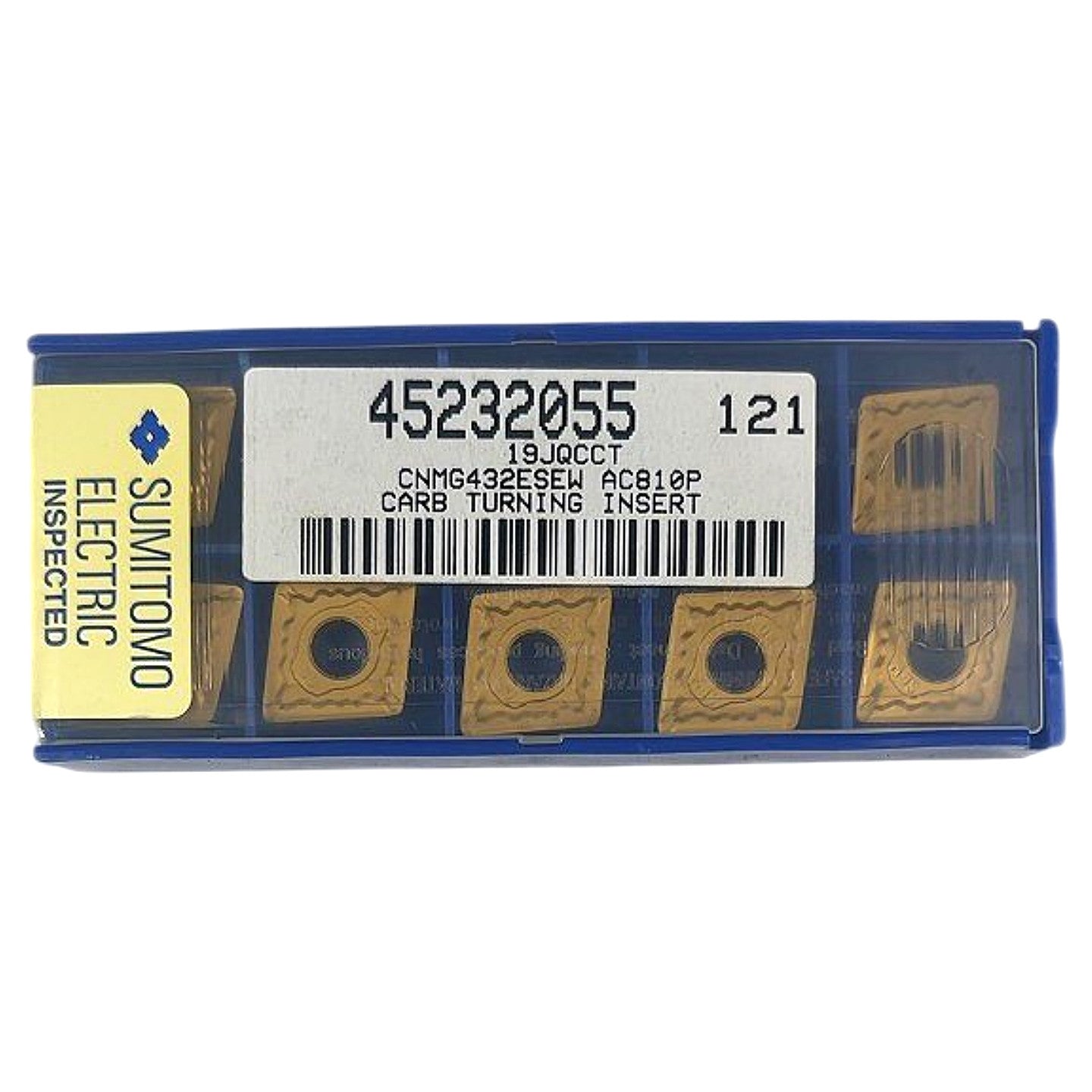

This is a new, factory-sealed box of 10 Sumitomo Electric CNMG432ESEW (ISO: CNMG120408N-SEW) carbide turning inserts in grade AC810P, part number 45232055. Decoding the ISO designation: C = 80° rhombic (diamond) shape, N = 0° clearance angle (negative rake), M = ±0.05mm/±0.08mm tolerance class, G = screw-clamped with chipbreaker, 12 = 12.7mm inscribed circle (IC), 04 = 4.76mm thickness, 08 = 0.8mm nose radius; the ESEW suffix denotes Sumitomo's wiper-geometry chipbreaker optimized for finish turning. AC810P is a PVD-coated cemented carbide grade designed primarily for finishing to medium turning of steel (ISO P application) — the gold PVD TiAlN-family coating is visible on the inserts and confirmed by the box label. Recommended cutting speed per the box label is Vc 1181 (886–1411) SFM / 360 (270–430) m/min with a feed of 0.018 (0.004–0.028) IPR, making these suited for finish-grade turning of carbon and alloy steels. Compatible with CNMG-style toolholders using 80° diamond insert seats with screw (G-style) clamping.
Product Specifications
| Brand | Sumitomo Electric |
| MPN (Imperial) | CNMG432ESEW |
| MPN (ISO/Metric) | CNMG120408N-SEW |
| Item Number | 45232055 |
| Grade | AC810P |
| Insert Shape | C – 80° Rhombic (Diamond) |
| Clearance Angle | N – 0° (Negative Rake) |
| Tolerance Class | M (±0.05mm IC, ±0.08mm thickness) |
| Clamping / Chipbreaker Type | G – Screw-on w/ chipbreaker |
| Inscribed Circle (IC) | 12.7 mm (1/2 in) |
| Insert Thickness | 4.76 mm (3/16 in) |
| Nose Radius | 0.8 mm (1/32 in) |
| Chipbreaker | SEW (N-SEW) – Wiper Finish Geometry |
| Coating | PVD (TiAlN-family) – Gold color |
| ISO Application | P (Steel) |
| Application Type | Continuous – Finish turning |
| Cutting Speed (Vc) | 360 (270–430) m/min / 1181 (886–1411) SFM |
| Feed Rate (f) | 0.45 (0.1–0.7) mm/rev / 0.018 (0.004–0.028) IPR |
| Country of Origin | Japan |
| Quantity per Box | 10 |
| Condition | New |
