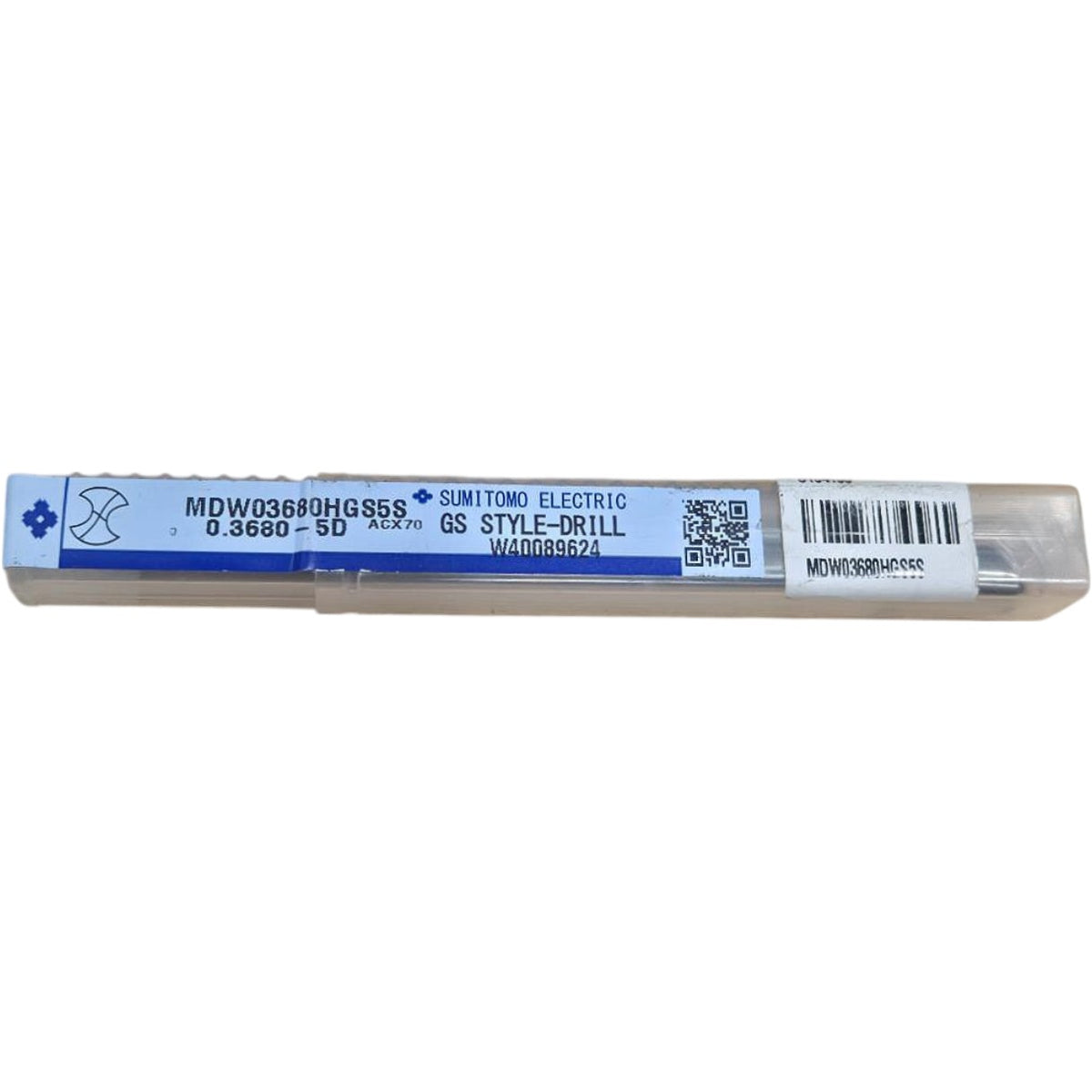

Sumitomo MDW03680HGS5S 0.3680" 5xD ACX70 GS Style Solid Carbide Drill

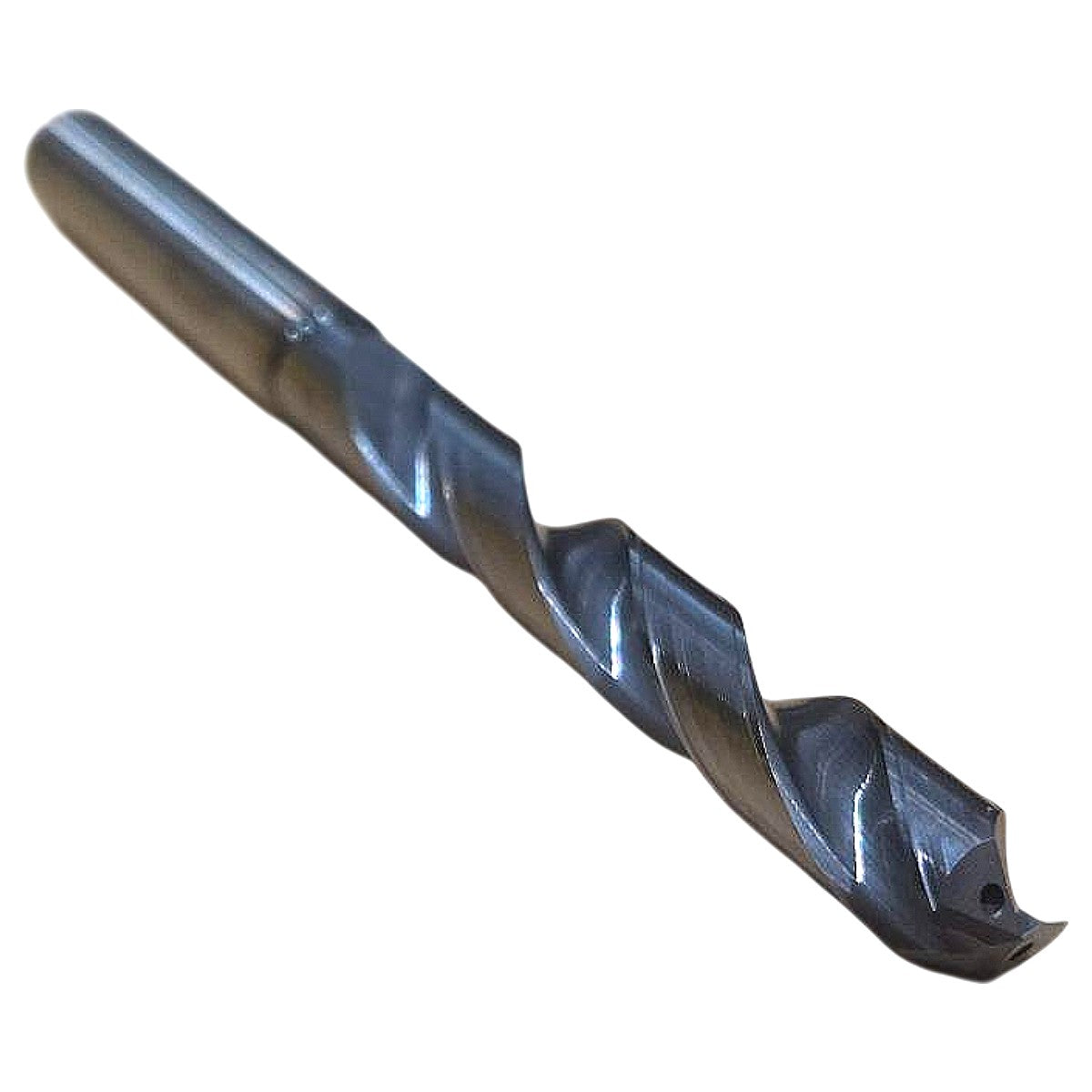

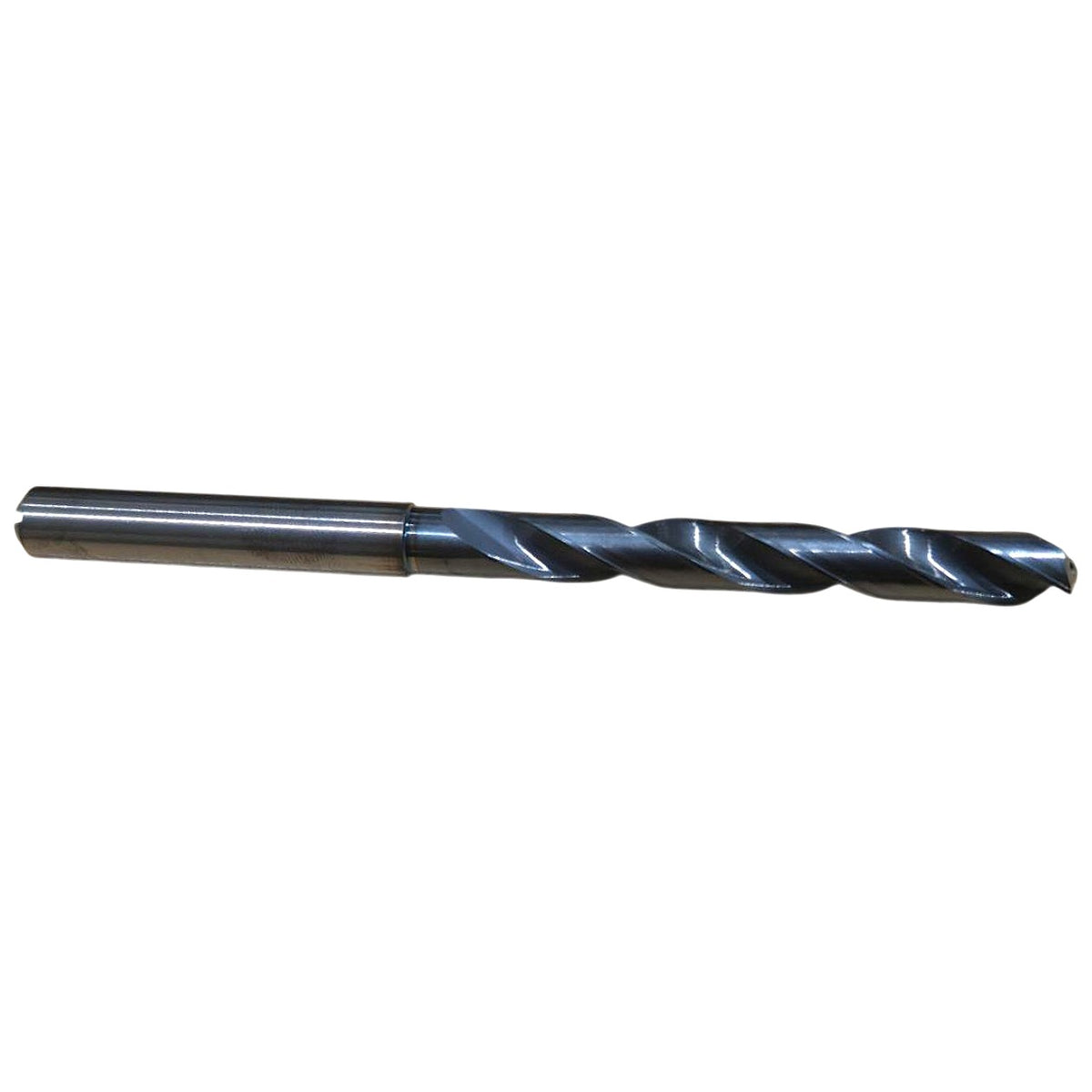

The Sumitomo Electric MDW03680HGS5S is a new, solid carbide GS Style-Drill with a 0.3680" (9.347 mm) cutting diameter and a 5xD flute length-to-diameter ratio, designed for deep-hole drilling applications in steel, cast iron, and stainless steel workpiece materials. The drill is manufactured in ACX70 carbide grade — Sumitomo's ultra-fine grain carbide substrate engineered for high wear resistance and toughness — and carries a dark TiAlN-based multilayer PVD coating (visible in photos as the uniform dark blue-black finish on the fluted section), which significantly extends tool life at elevated cutting speeds and temperatures. The GS Style geometry features a self-centering split-point web thinning and a precision-ground margin for excellent hole quality, minimizing the need for secondary reaming operations; it is designed for use in CNC machining centers with through-spindle coolant capability, compatible with straight shank toolholders (ER collet chucks, hydraulic chucks, and shrink-fit holders) sized to accept the drill's cylindrical straight shank. The longer shank section (clearly visible in the product photos as an uncoated bright cylindrical section) is sized to match the drill body diameter for direct collet clamping, consistent with Sumitomo MDW series design standards.

Product Specifications
