Sumitomo SEET13T3AGSN-G ACZ350 Square Carbide Milling Insert (10 pcs)

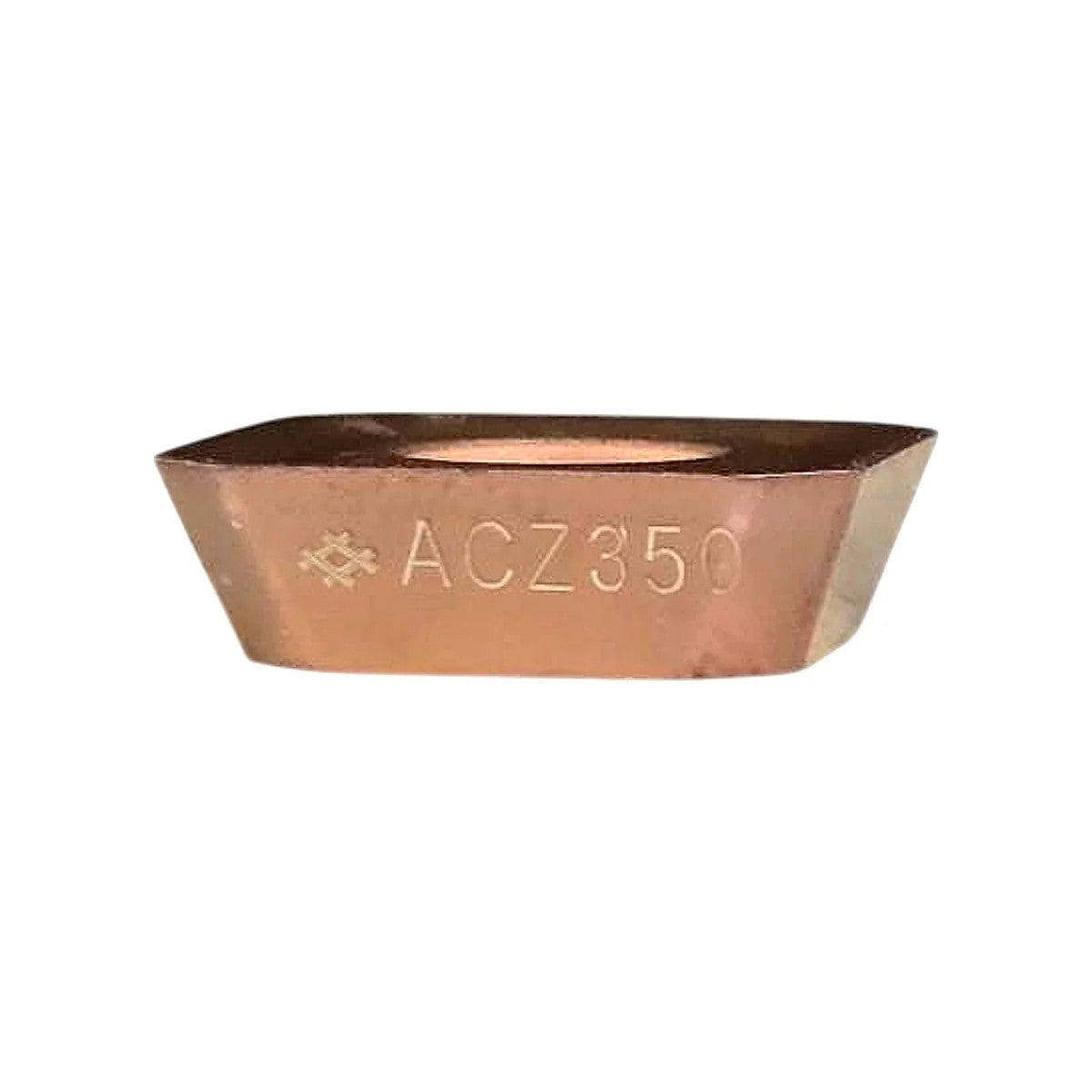

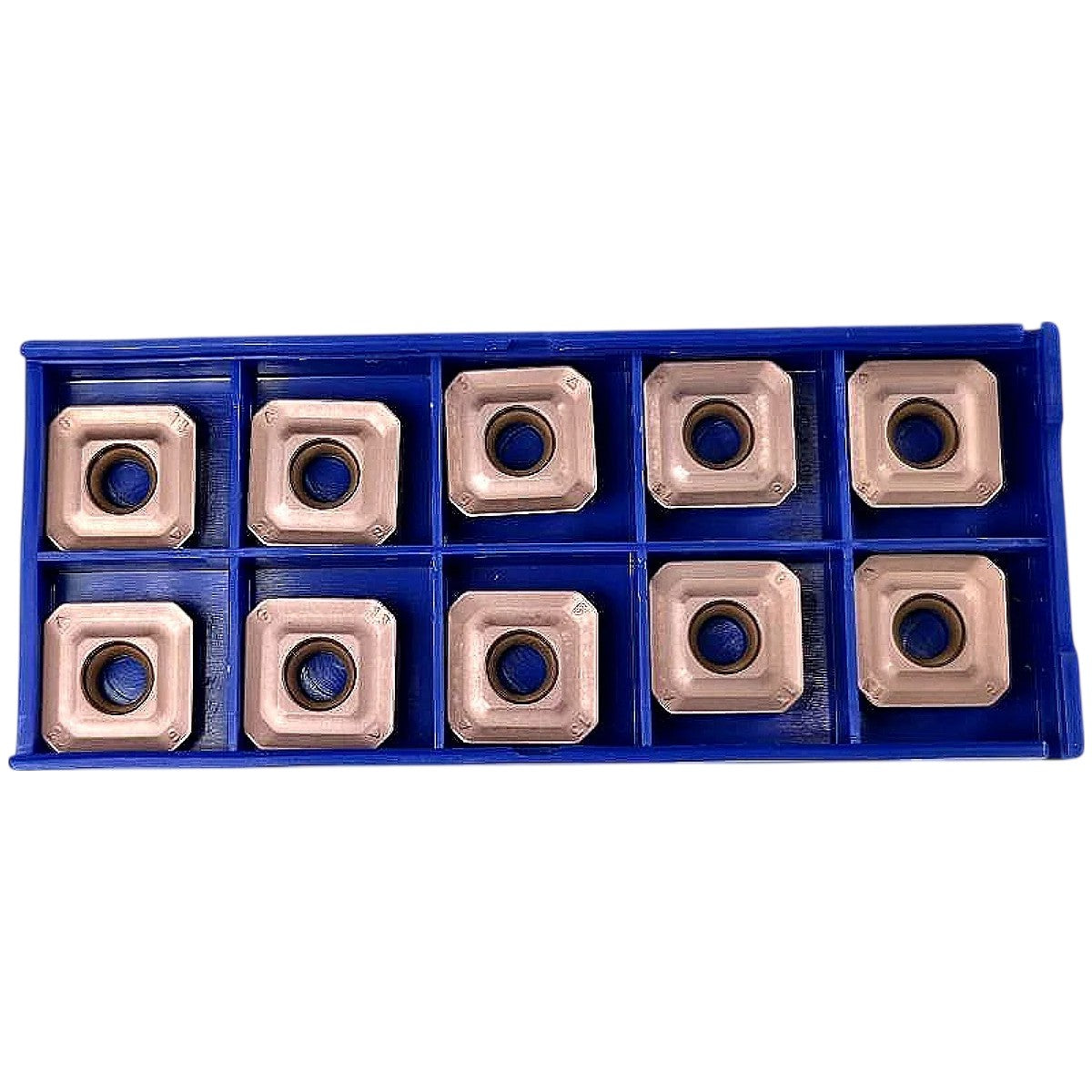

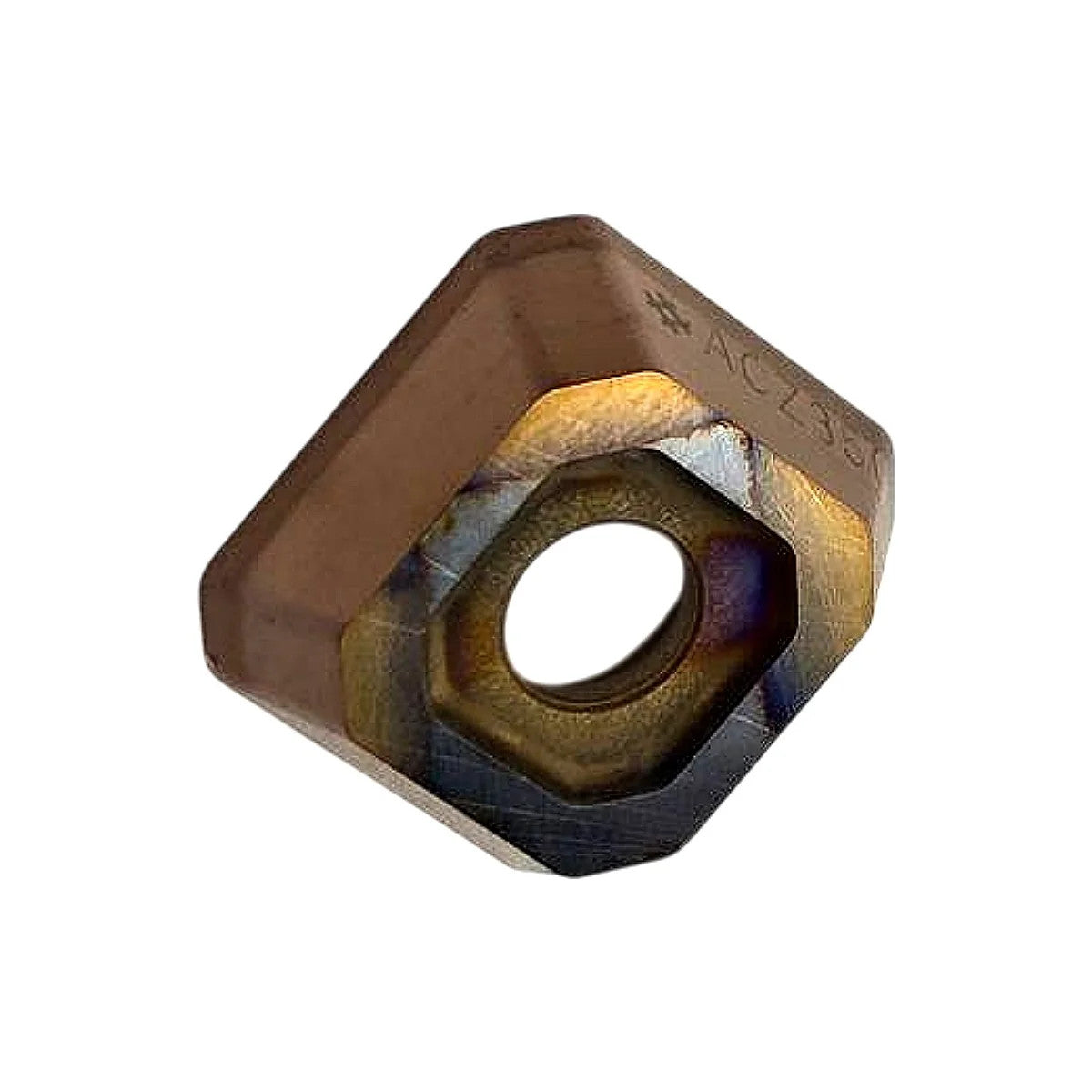

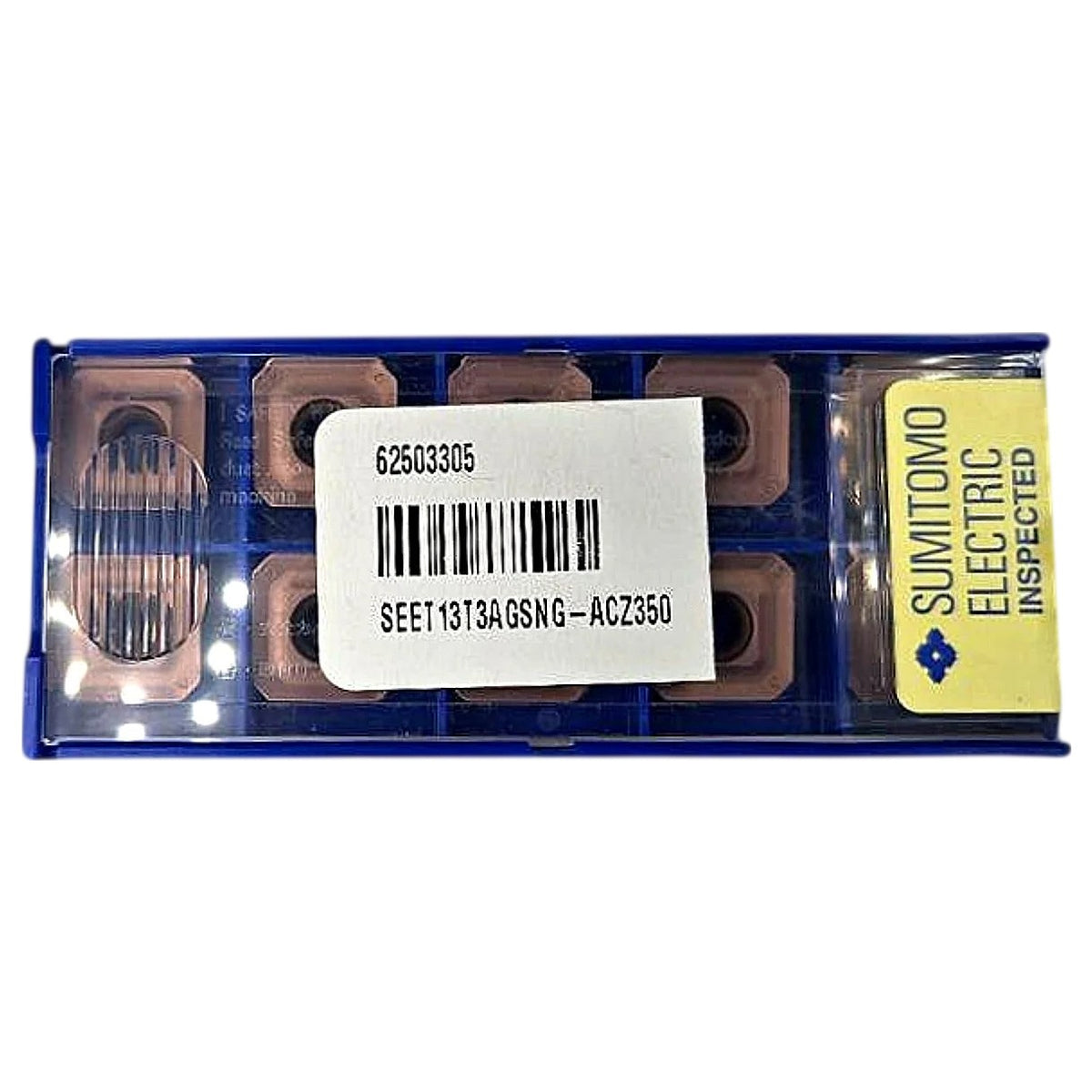

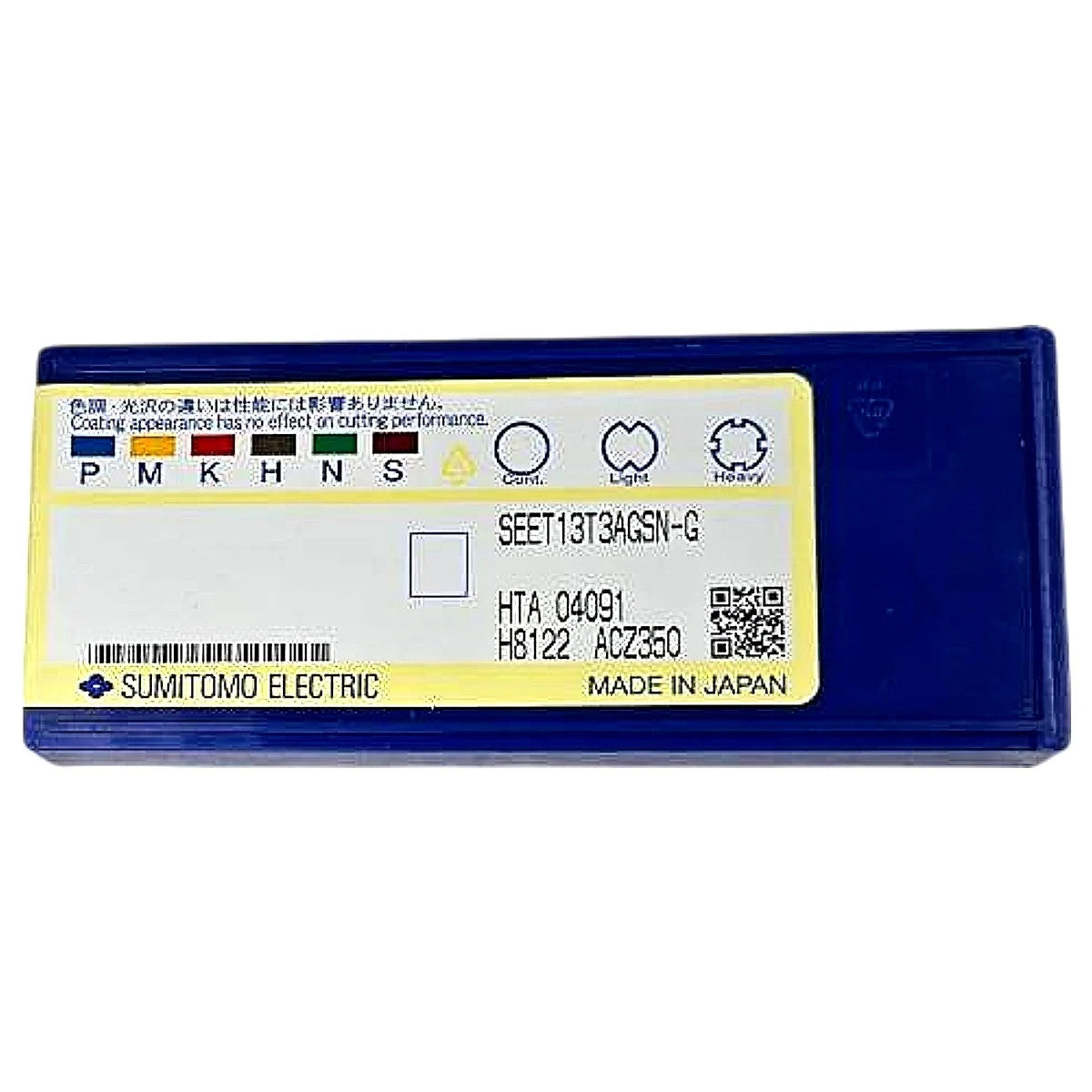

The Sumitomo Electric SEET13T3AGSN-G is a new, square-shaped (S) double-sided positive-geometry carbide milling insert in the ACZ350 grade, packaged in a standard 10-piece tray. Decoded per ISO 1832: S = square shape, E = 20° clearance angle, E = close tolerance (±0.025 mm on thickness/inscribed circle), T = clamping hole with chipbreaker on both faces, 13T3 = 13 mm inscribed circle / 4.76 mm thickness, A = 0.4 mm nose radius (or chipbreaker variant), GSN = Sumitomo proprietary chipbreaker designation for general-purpose negative/positive milling, G suffix = ground peripheral edge. ACZ350 is a PVD-coated (TiAlN-based bronze/copper-colored finish) cemented carbide grade rated for P, M, K, H, N, and S workpiece material groups as confirmed by the package label, making it suitable for milling steel, stainless, cast iron, hardened materials, non-ferrous alloys, and heat-resistant superalloys. The insert's double-sided geometry delivers up to eight usable cutting edges, and the ground peripheral edge provides enhanced dimensional accuracy; compatible toolholders accepting SEET13T3 square milling inserts from Sumitomo's SE-style face mill and shoulder mill bodies (e.g., ASX445 and similar platforms). Product Specifications Brand Sumitomo Electric MPN SEET13T3AGSN-G Insert Material Cemented Carbide Grade ACZ350 Insert Shape Square (S) ISO Designation SEET13T3AGSN-G Clearance Angle 20° (E) Tolerance Class E (±0.025 mm IC & thickness) Inscribed Circle (IC) 13 mm Insert Thickness 4.76 mm (T3) Nose Radius 0.4 mm (A) Chipbreaker GSN (general-purpose, double-sided) Edge Preparation Ground peripheral edge (G suffix) Coating PVD TiAlN-based (ACZ350) Usable Cutting Edges 8 (double-sided) Applicable Work Materials P, M, K, H, N, S Application Type Cont., Light, Heavy (all interrupted) Quantity 10 inserts per box Country of Origin Japan
