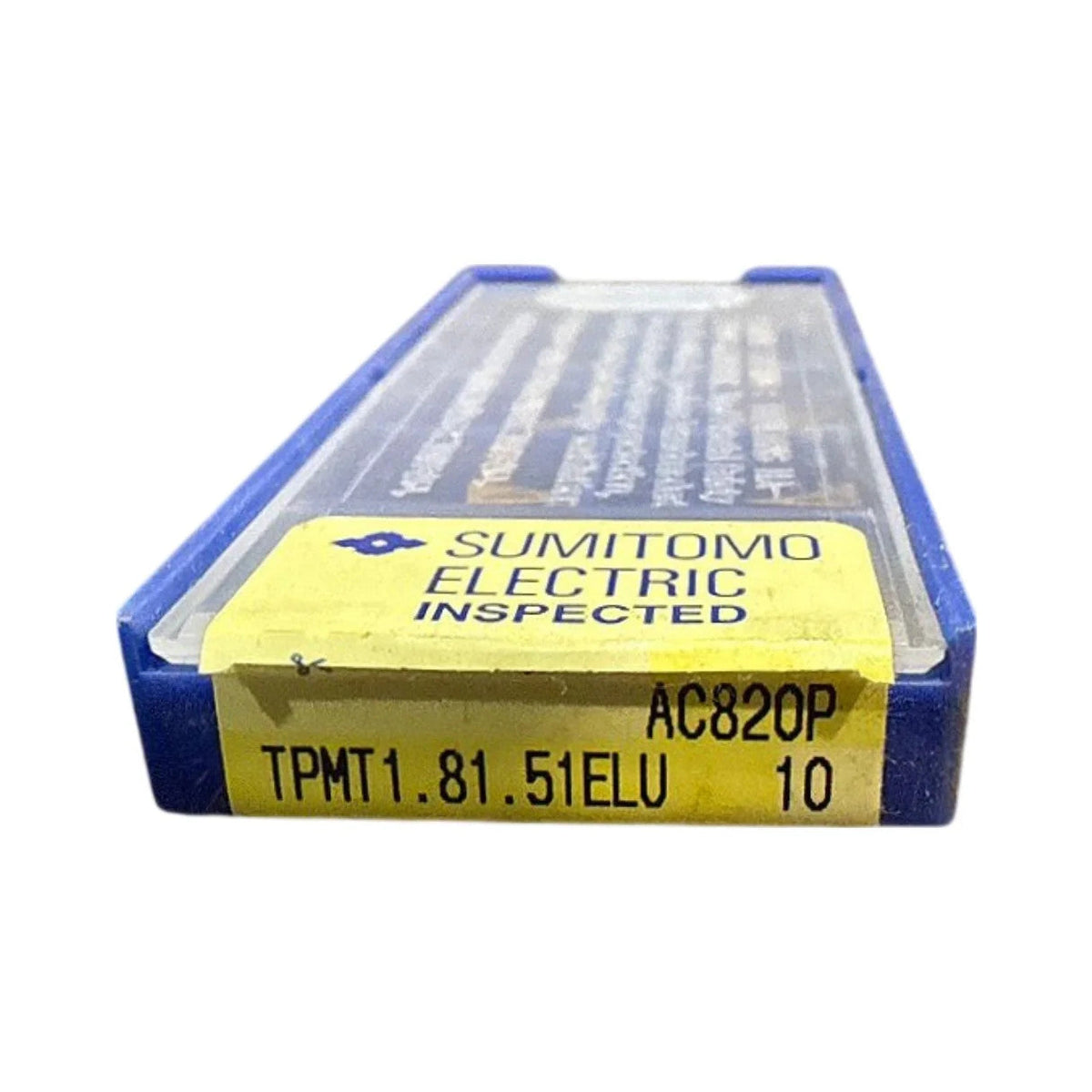

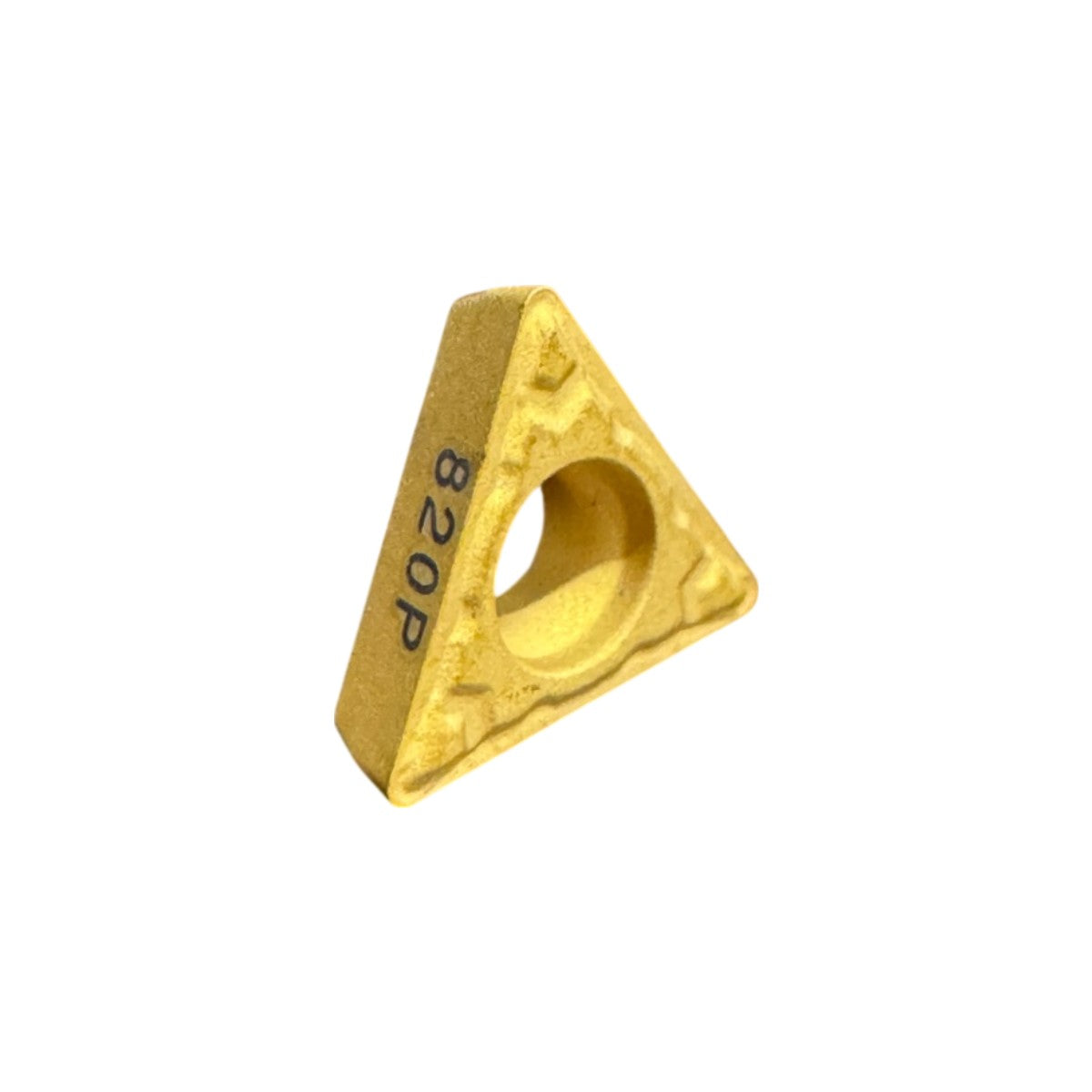

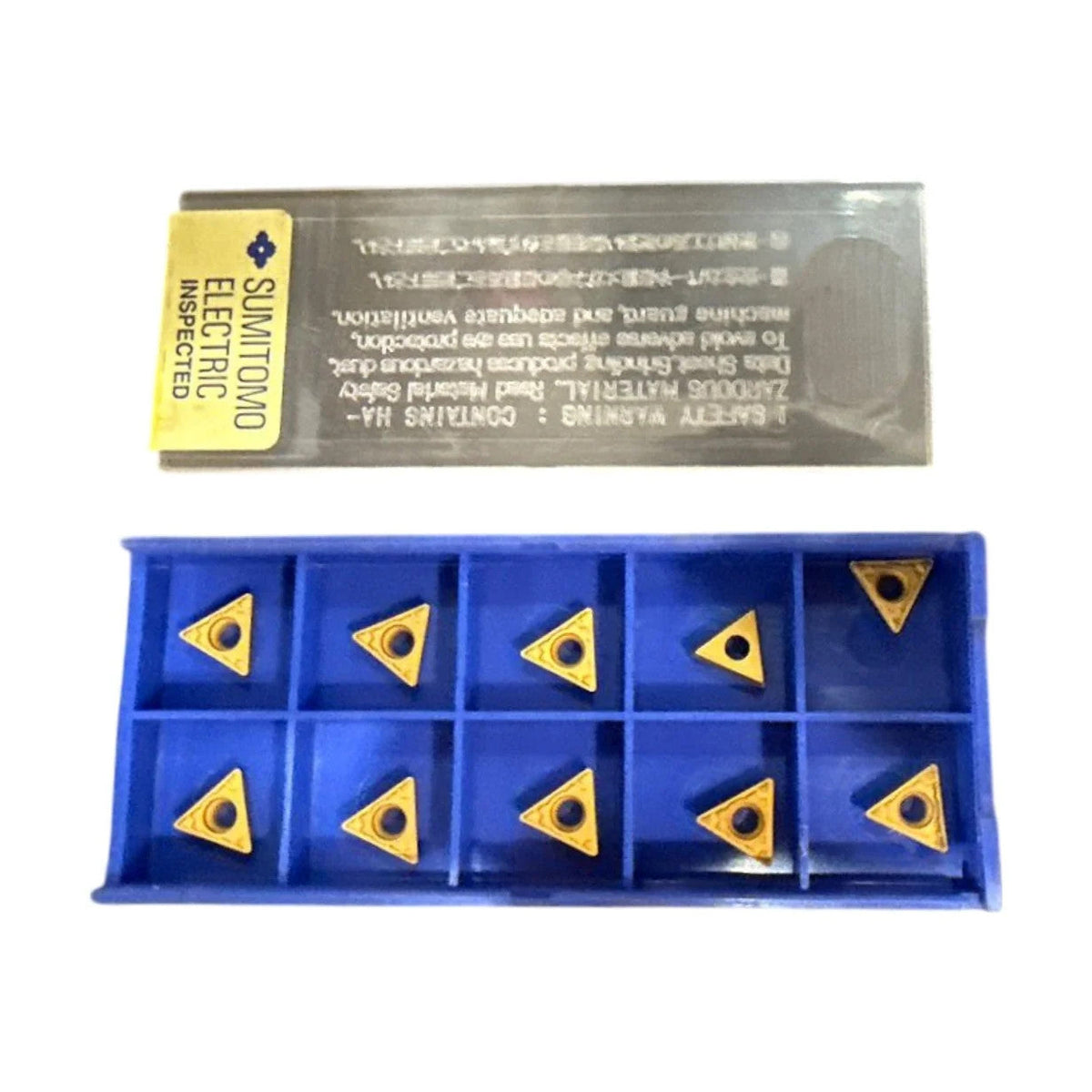

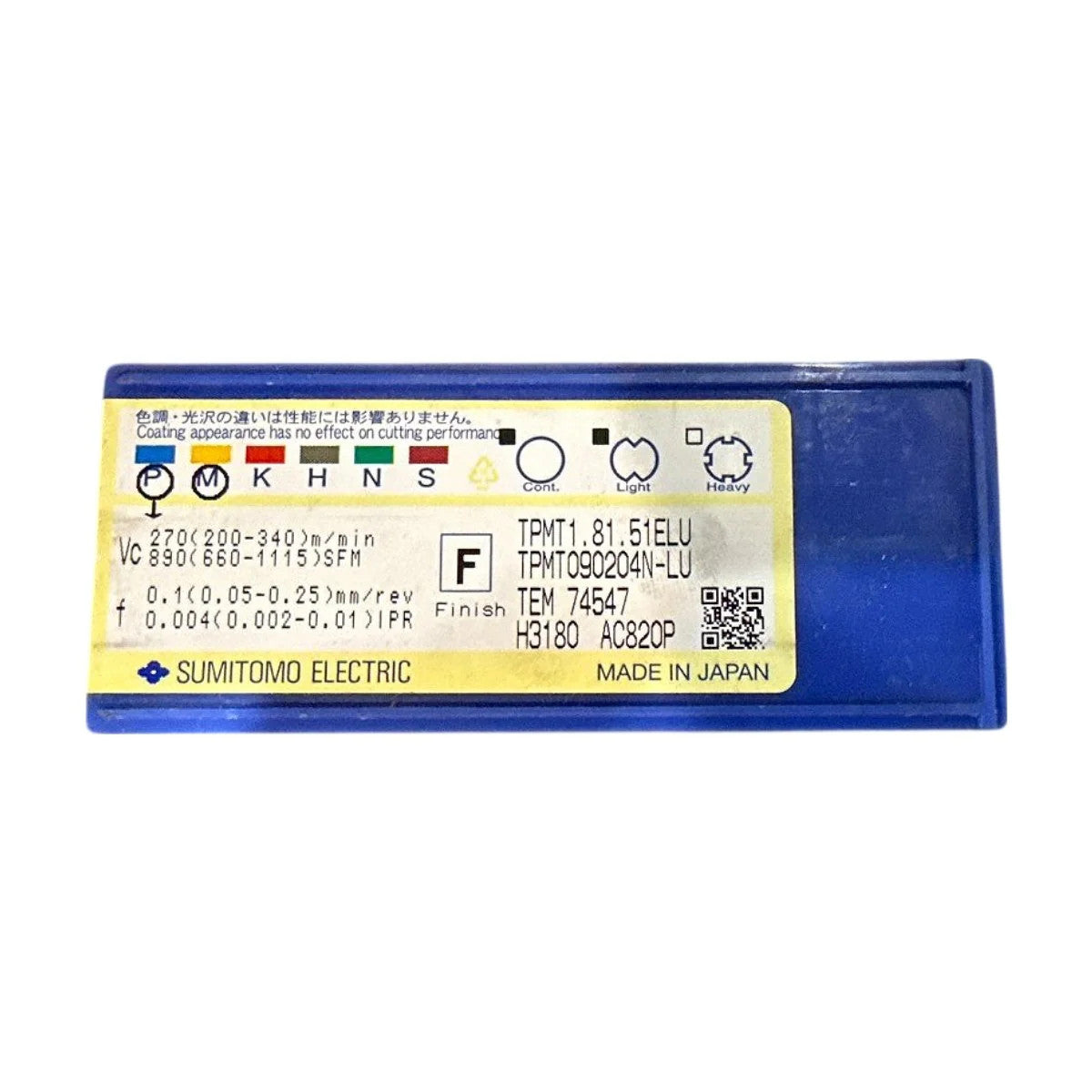

This is a new box of 10 Sumitomo Electric TPMT090204N-LU (ANSI TPMT1.81.51ELU) triangular carbide turning inserts in grade AC820P, made in Japan. The TPMT geometry is a 60° triangle with 11° positive clearance, M-class tolerance, a center hole and a single-sided chipbreaker, giving 3 usable cutting edges per insert with a 0.4 mm (1/64 in) nose radius. The LU chipbreaker is rated for finishing (F) and light-to-continuous cutting, and AC820P is a coated carbide grade for steel (ISO P) and stainless steel (ISO M). The box label gives a cutting speed of 270 m/min (200-340 m/min), or 890 SFM (660-1115 SFM), and a feed of 0.1 mm/rev (0.05-0.25 mm/rev), or 0.004 IPR (0.002-0.01 IPR). Inserts are for turning and boring holders with a triangular TP-style pocket in the 09-size range.
Product Specifications
| Brand | Sumitomo Electric |
| MPN | TPMT090204N-LU |
| Alternate Part Number | TPMT1.81.51ELU |
| Grade | AC820P |
| Insert Shape | Triangle (T) |
| Clearance Angle | 11° (P) |
| Tolerance Class | M |
| Insert Type | Single-sided w/ center hole and chipbreaker (T) |
| Cutting Edge Length Code | 09 |
| Thickness Code | 02 (3/32 in / 2.38 mm) |
| Nose Radius | 0.4 mm (1/64 in) |
| Chipbreaker | LU |
| Number of Cutting Edges | 3 |
| Material | Carbide |
| Coating | CVD Coated |
| Color | Gold |
| Operation | Turning, Finishing |
| Workpiece Material | ISO P (Steel), ISO M (Stainless) |
| Cutting Speed (Vc) | 270 m/min (200-340), 890 SFM (660-1115) |
| Feed Rate | 0.1 mm/rev (0.05-0.25), 0.004 IPR (0.002-0.01) |
| Application Range | Finish, Light to Continuous Cutting |
| Quantity per Pack | 10 |
| Country of Origin | Japan |
