Sumitomo VNMG331EEX AC610M CVD Carbide Turning Insert
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

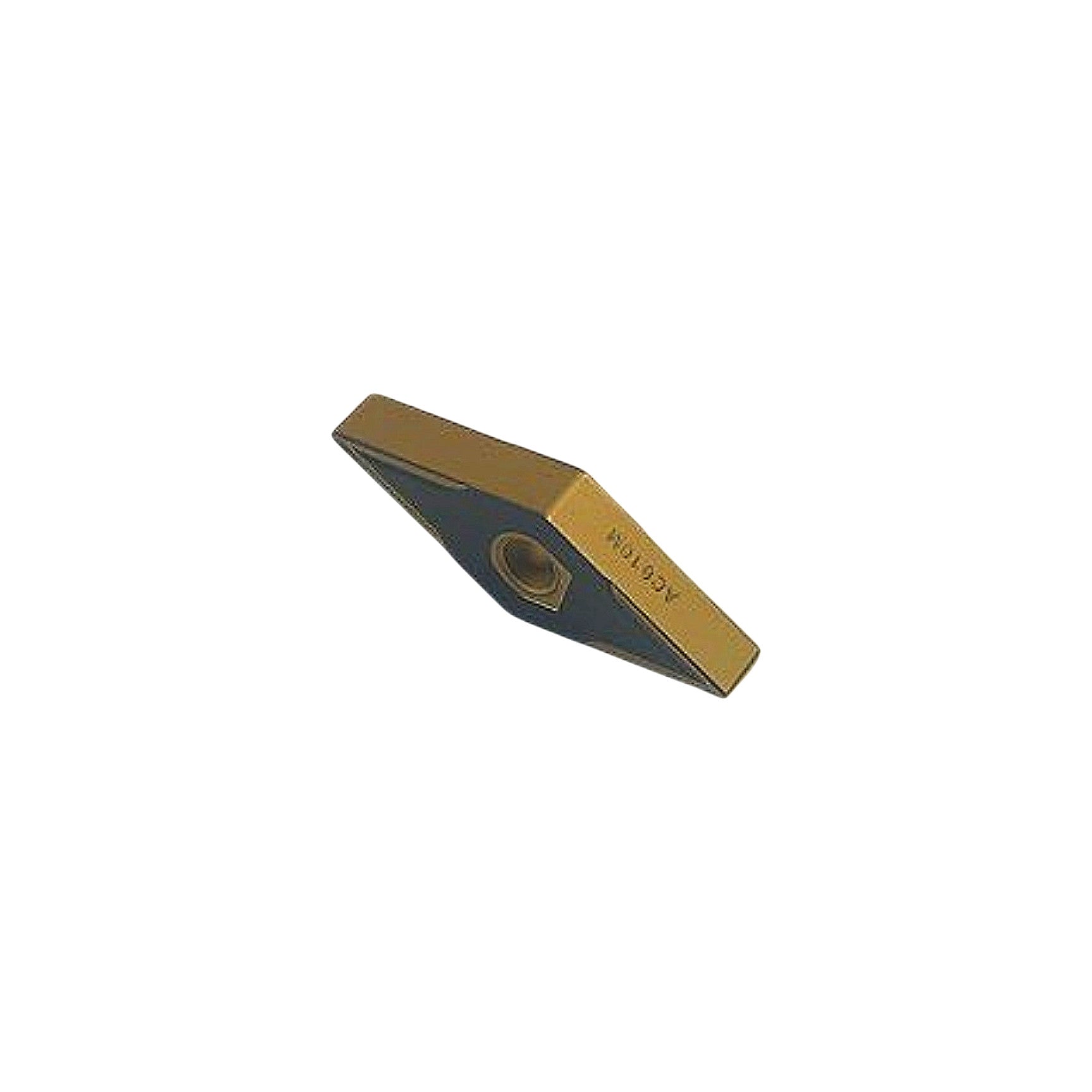

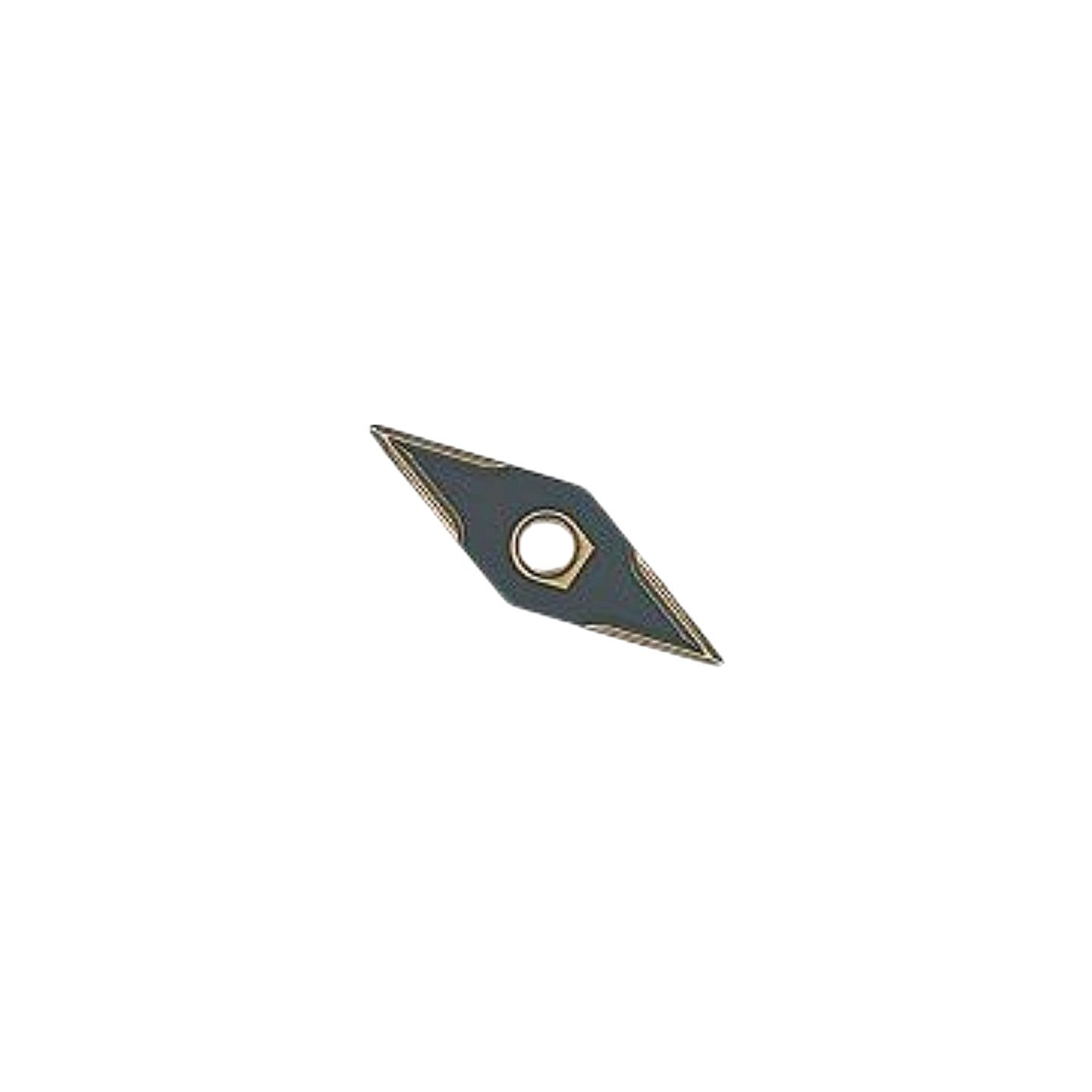

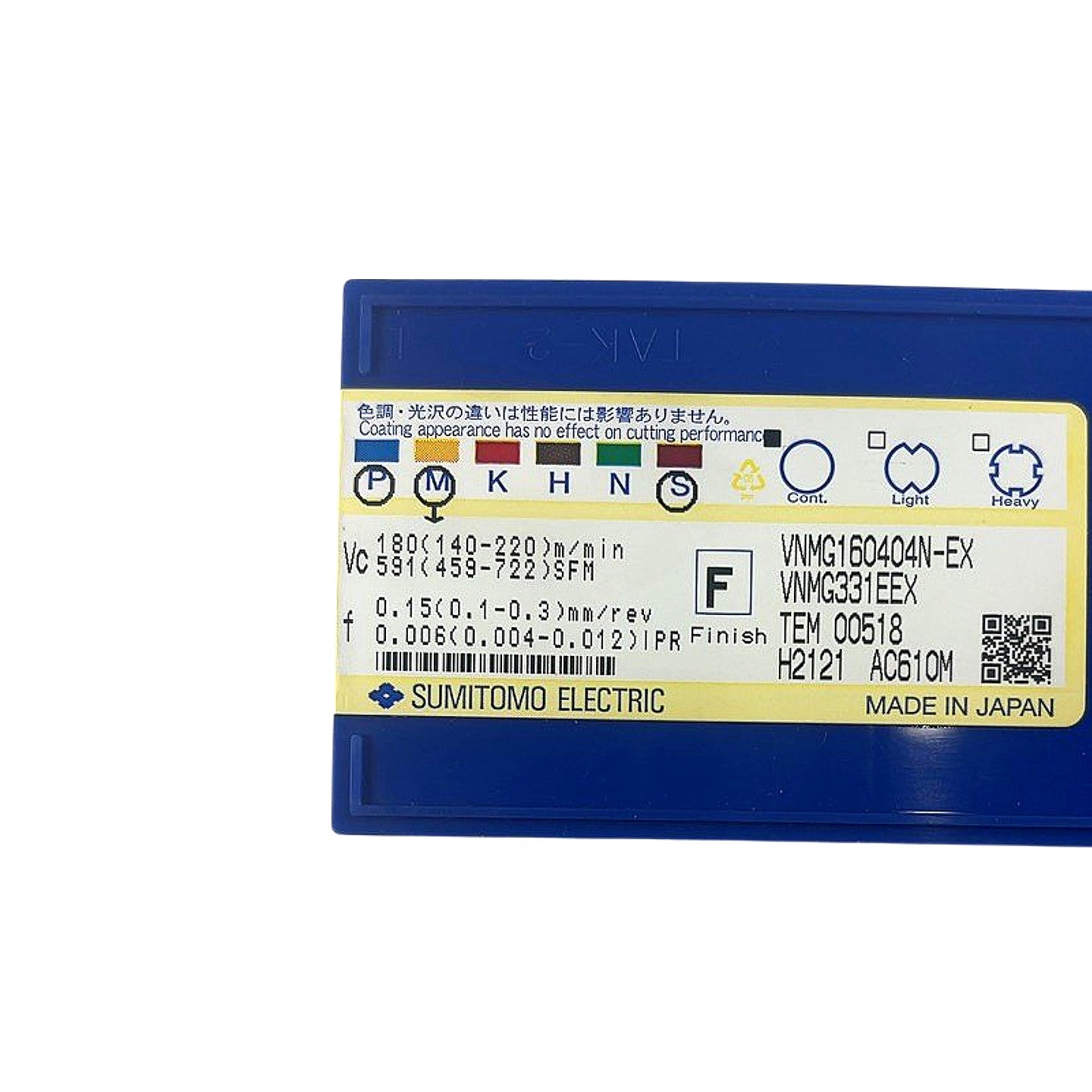

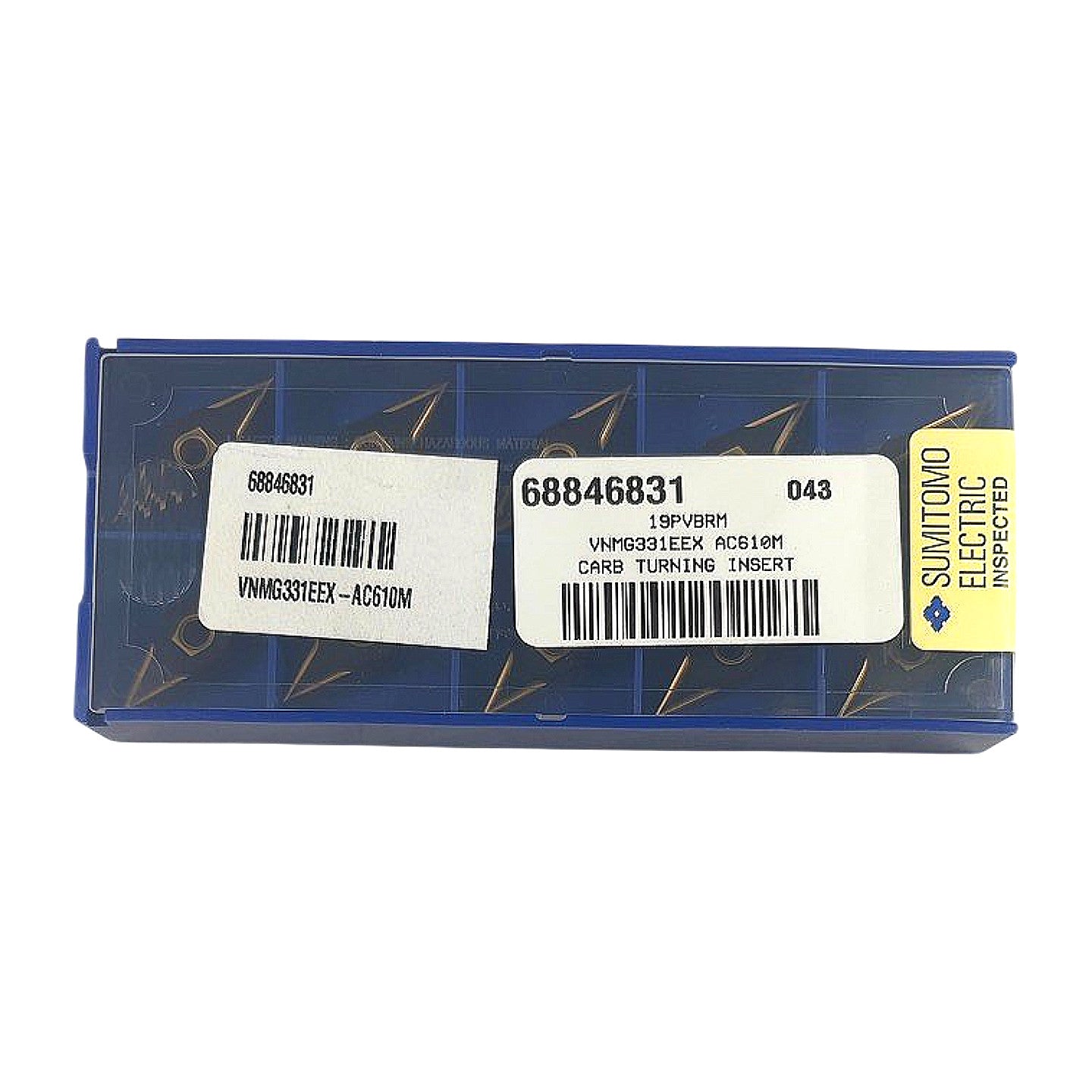

The Sumitomo VNMG331EEX (ISO: VNMG160404N-EX) is a new, factory-sealed 35° diamond-shape (V) carbide turning insert in grade AC610M, a CVD-coated cemented carbide designed for finishing to light continuous turning of steel (P) and stainless/difficult materials (M). The AC610M grade features Sumitomo's multi-layer CVD coating (TiCN/Al₂O₃ outer layers) over a tough carbide substrate, producing the characteristic gold top-face appearance visible in the photos; Sumitomo notes that coating color variation does not affect cutting performance. The EEX chipbreaker geometry is a positive-rake finish chipbreaker optimized for light feeds and low cutting forces, with published cutting data of Vc 180 m/min (591 SFM) nominal and feed f 0.15 mm/rev (0.006 IPR) for finish applications. Inserts fit standard VNMG-style toolholders using a 35° diamond V-shape with a 0° clearance angle (N), 4 mm IC, 0.4 mm nose radius, and a central cylindrical hole (G hole type). The box label confirms Sumitomo Electric part number VNMG331EEX-AC610M, lot 043, qty 10 per box, made in Japan.
Product Specifications
| Brand | Sumitomo Electric |
| MPN | VNMG331EEX-AC610M |
| ISO Designation | VNMG160404N-EX |
| Insert Shape | V — 35° Diamond |
| Clearance Angle | N — 0° |
| Tolerance Class | M |
| Mounting / Chipbreaker | G — Central hole w/ chipbreaker |
| Inscribed Circle (IC) | 16.0 mm (5/8 in) |
| Insert Thickness | 4.76 mm (3/16 in) |
| Nose Radius | 0.4 mm (1/64 in) |
| Chipbreaker | EEX (finish, positive rake) |
| Grade | AC610M |
| Substrate | CVD-coated cemented carbide |
| Coating | CVD multi-layer (TiCN/Al₂O₃) |
| ISO Material Group | P (steel), M (stainless) |
| Application | Finish turning |
| Cutting Speed (Vc nom.) | 180 m/min (591 SFM) |
| Feed Rate (f nom.) | 0.15 mm/rev (0.006 IPR) |
| Cutting Speed Range | 140–220 m/min (459–722 SFM) |
| Feed Rate Range | 0.1–0.3 mm/rev (0.004–0.012 IPR) |
| Quantity per Box | 10 |
| Country of Origin | Japan |
| Condition | New |
