Superior Products A-641SS CGA-346 .825-14NGO RH-EX x 1/4 NPTM SS Adapter PK10

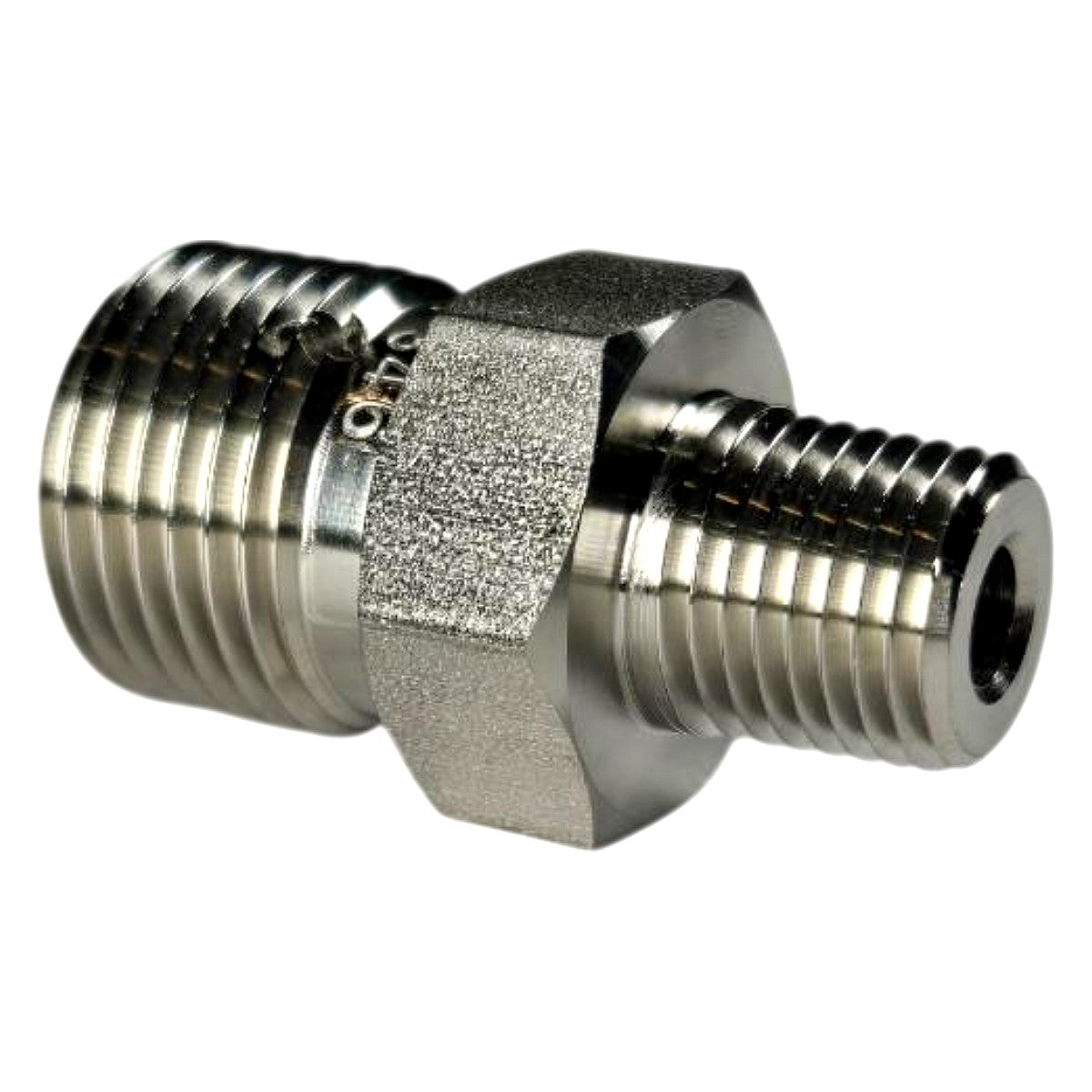

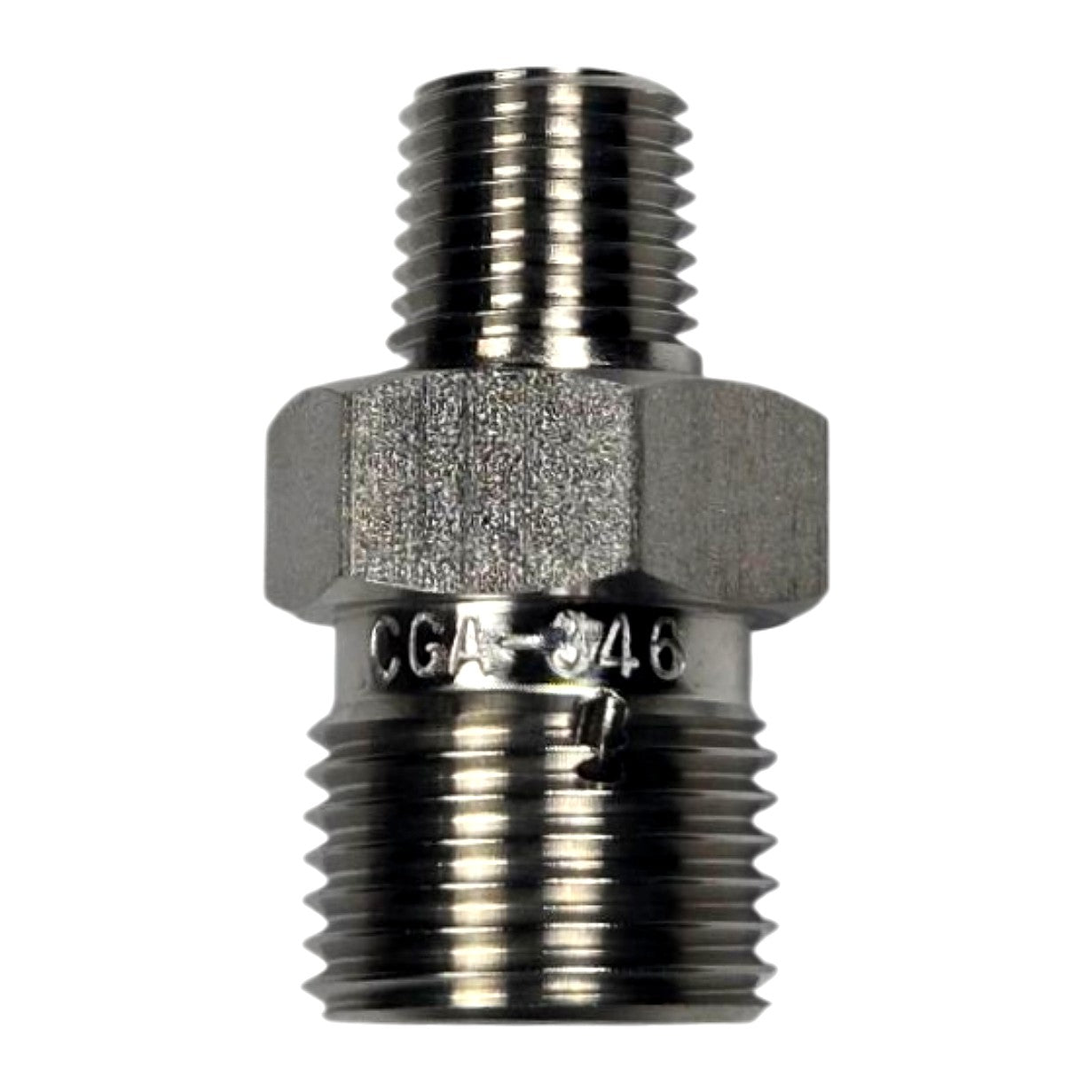

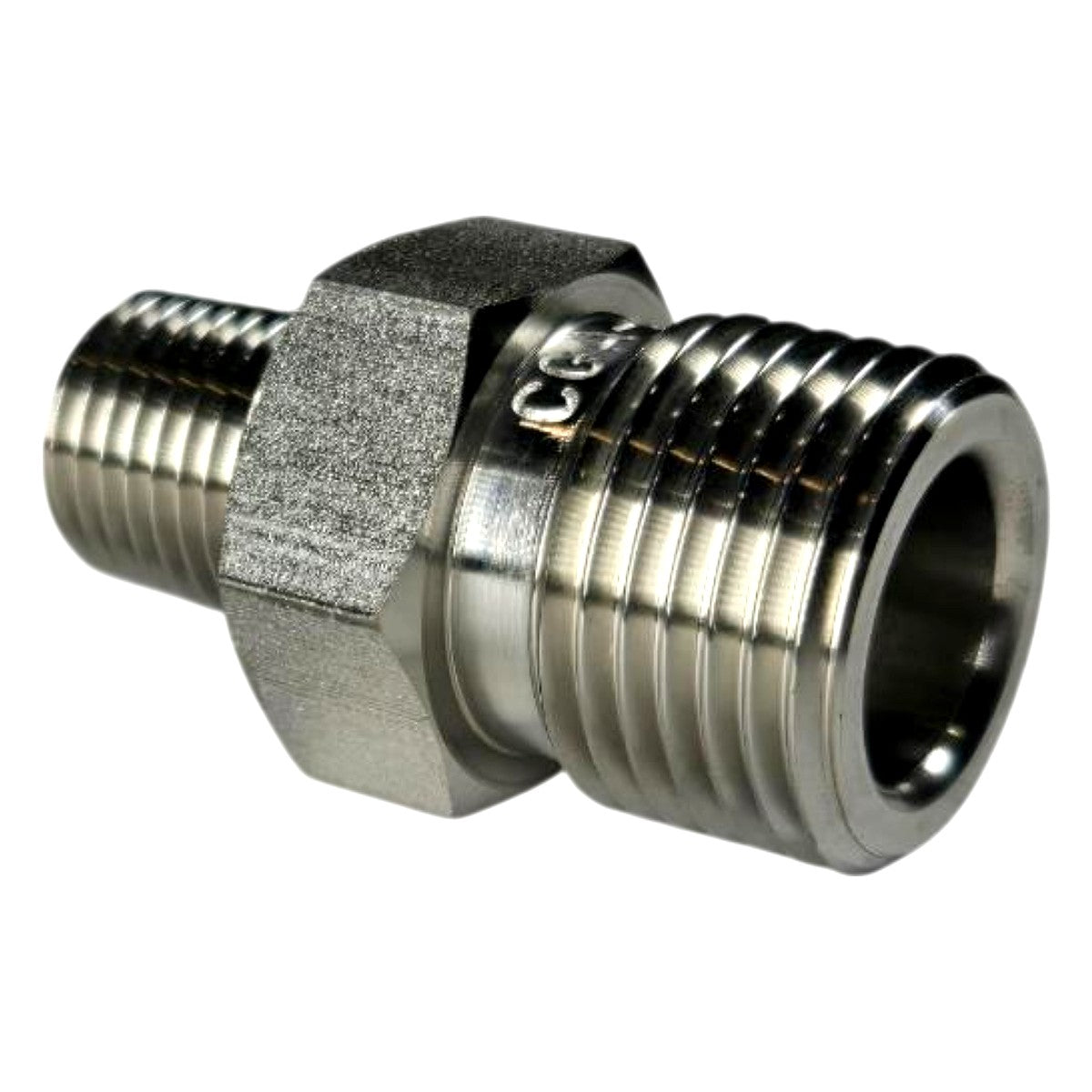

This is a factory-new lot of 10 Superior Products Inc. A-641SS stainless steel CGA-346 pipeline outlet adapter fittings, made in the USA and packaged individually (W/E designation B-1340SS). The large end is a CGA-346 connection: .825"-14 NGO (National Gas Outlet) right-hand external (male) thread, the standard outlet for Air (high pressure) and CO₂ cylinder valves up to 3000 PSI; the small end is a 1/4" NPT male (NPTM) thread for connection to regulators, manifolds, or downstream piping. Constructed from 316 stainless steel for corrosion resistance and suitability for oxygen and other high-purity gas service; the "SS" suffix in the part number and W/E number confirms stainless steel material. These adapters are designed for use in gas cylinder manifold and pipeline outlet systems, compatible with CGA-346 valve outlets as defined by Compressed Gas Association standards, and are suitable for air, CO₂, and similar non-corrosive industrial gas applications.

Product Specifications
