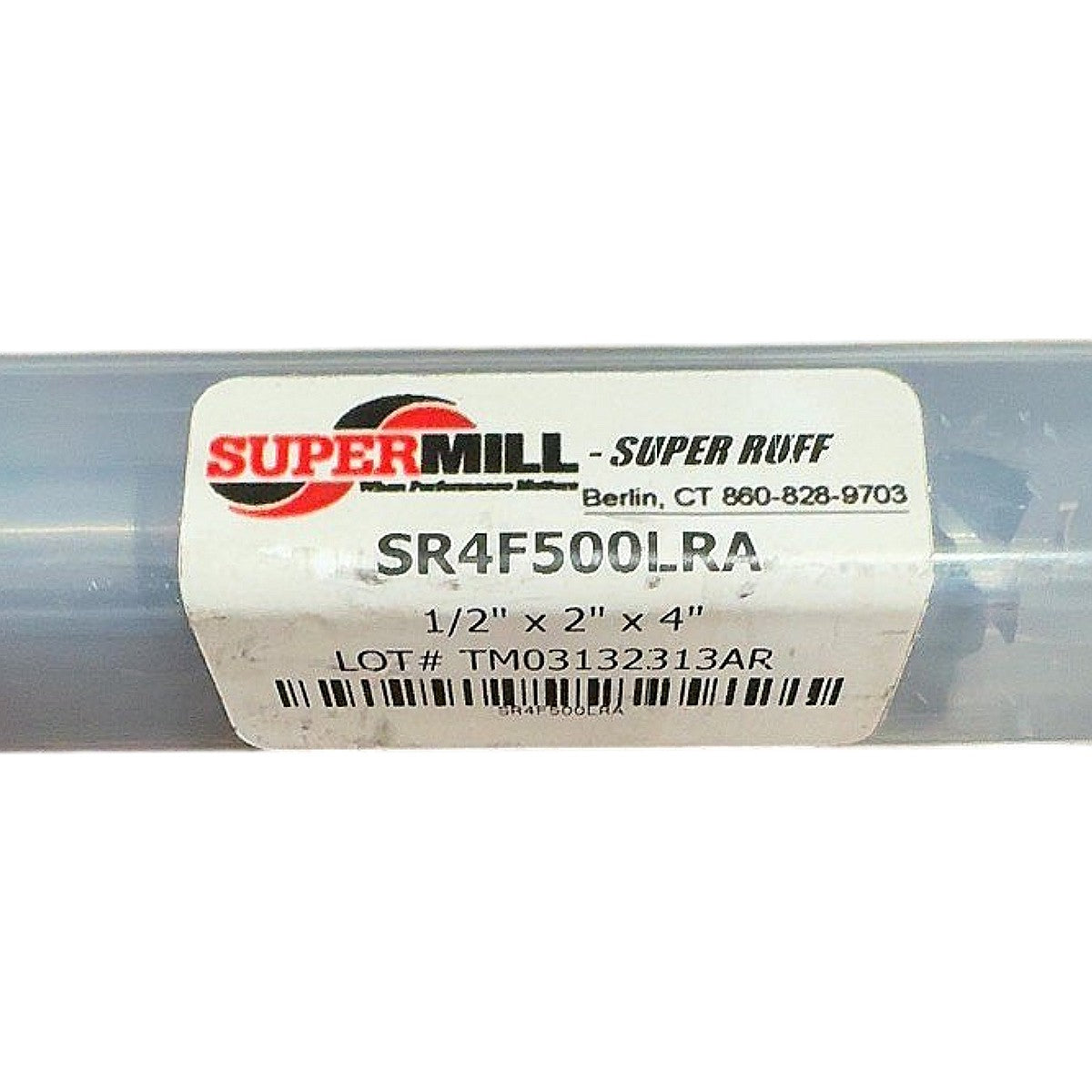

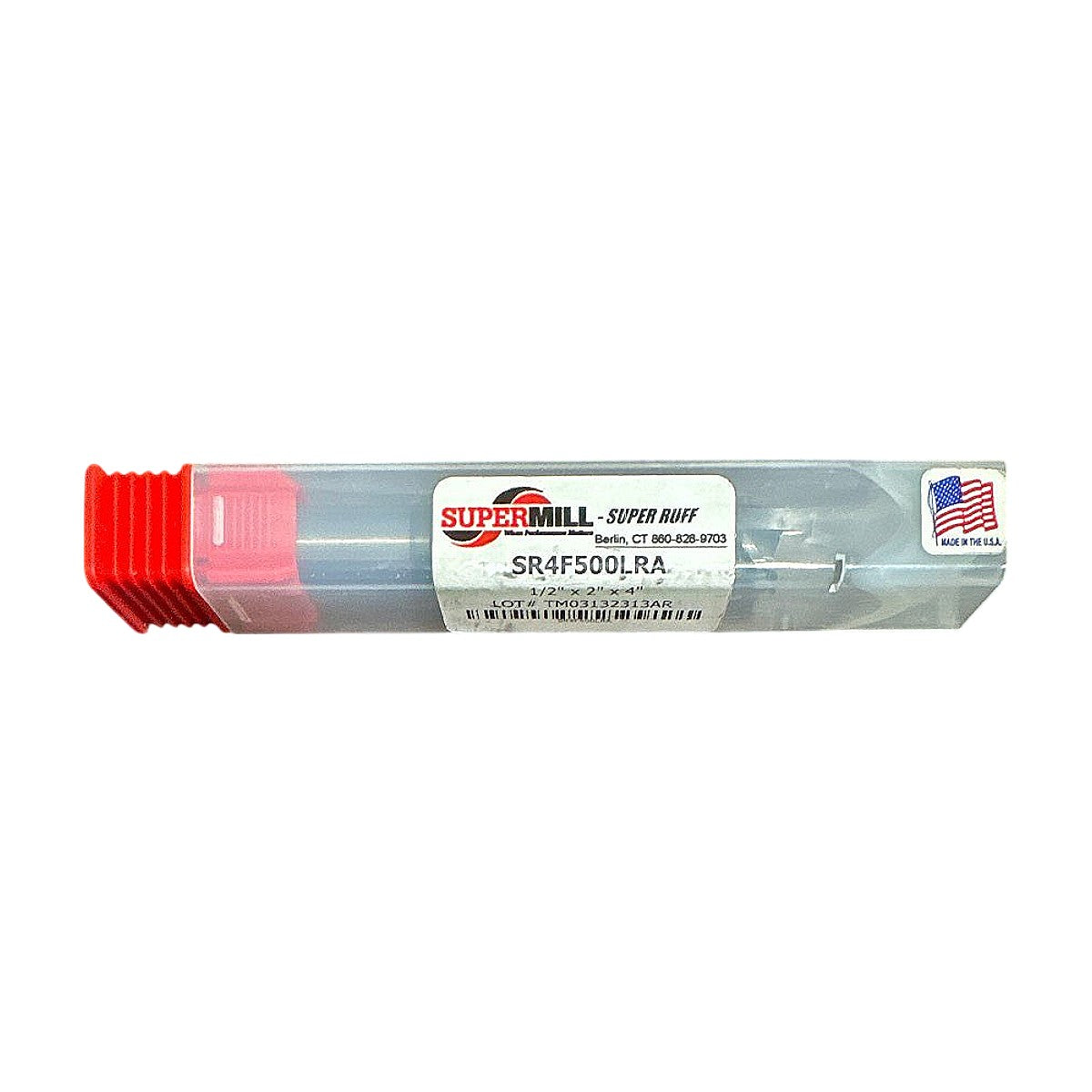

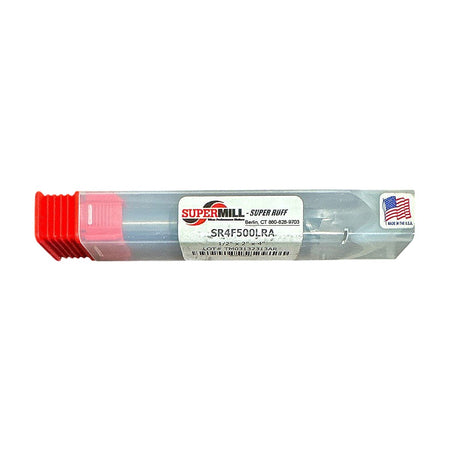

SuperMill SR4F500LRA 1/2" 4-Flute HSS Roughing End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

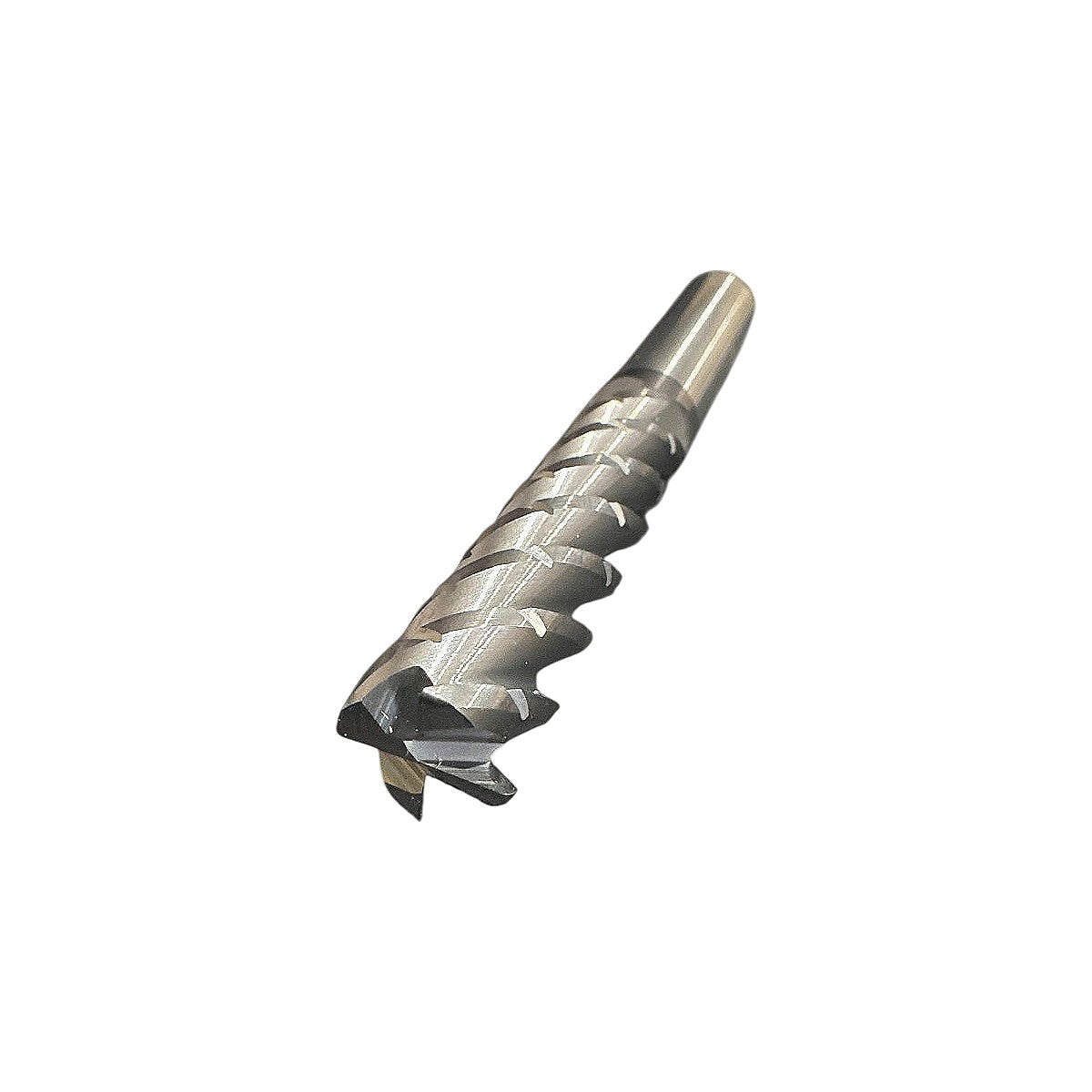

The SuperMill SR4F500LRA is a new, USA-made "Super Ruff" series 4-flute roughing (corncob-style) end mill with a 1/2 in cutting diameter, 2 in length of cut, and 4 in overall length. Decoding the MPN: SR = Super Ruff roughing series; 4F = 4 flutes; 500 = 0.500 in (1/2 in) diameter; L = long reach / 4 in overall length; R = right-hand cut; A = uncoated bright finish. The serrated/nicked flute geometry breaks chips into small segments, reducing cutting forces and enabling aggressive material removal rates on steel, cast iron, aluminum, and other ferrous and non-ferrous workpiece materials in roughing and semi-roughing operations. SuperMill manufactures this tool in Berlin, CT (USA) to close tolerances; the 1/2 in straight shank is compatible with standard ER, R8, and Weldon-flat toolholders of the same diameter.
Product Specifications
| Brand | SuperMill |
| MPN | SR4F500LRA |
| Series | Super Ruff (roughing/corncob) |
| Cutting Diameter | 1/2 in (0.500 in) |
| Number of Flutes | 4 |
| Length of Cut (LOC) | 2 in |
| Overall Length (OAL) | 4 in |
| Shank Diameter | 1/2 in |
| Cut Direction | Right-hand |
| Finish / Coating | Uncoated (bright) |
| End Style | Roughing (serrated flutes) |
| Country of Origin | USA |
| Condition | New |
