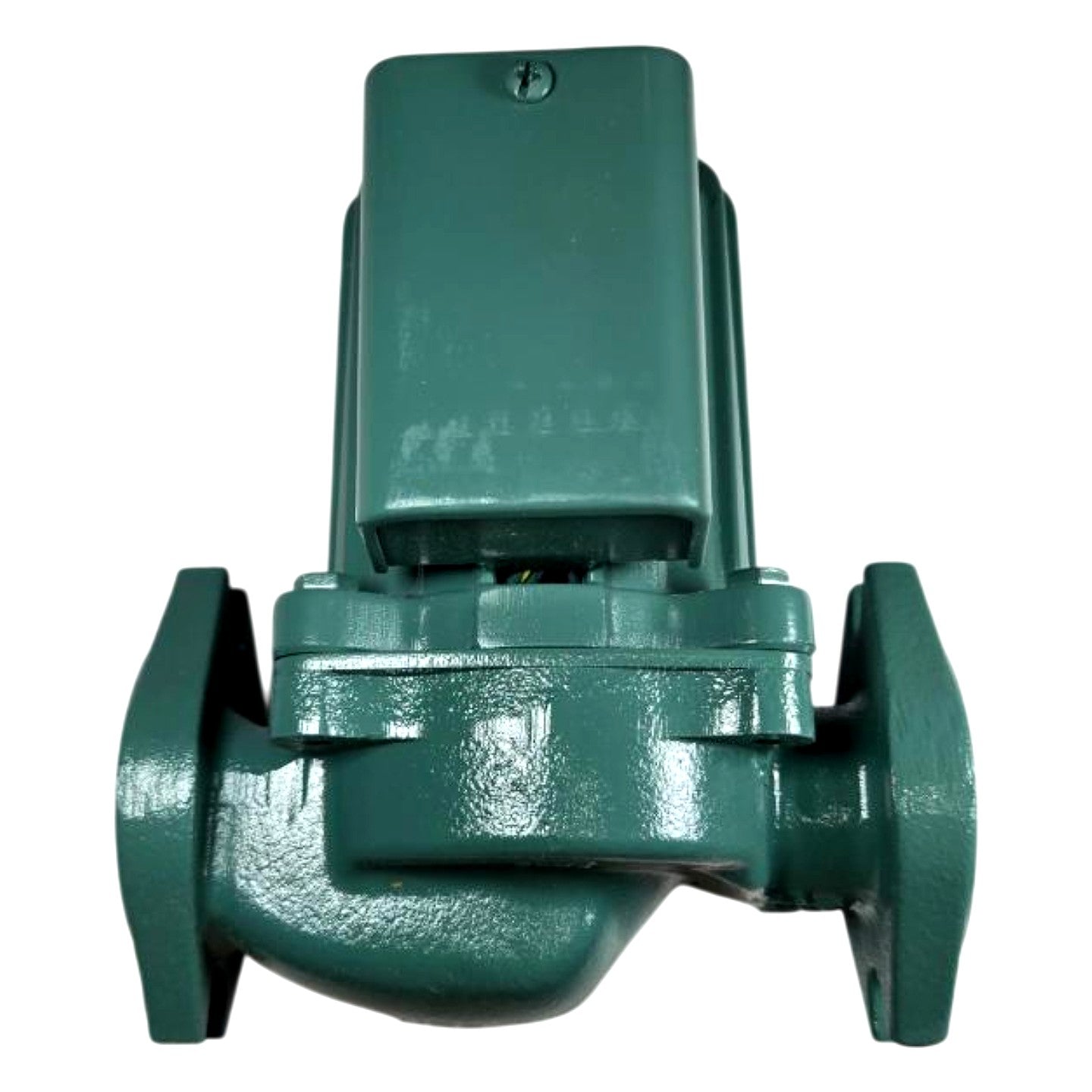

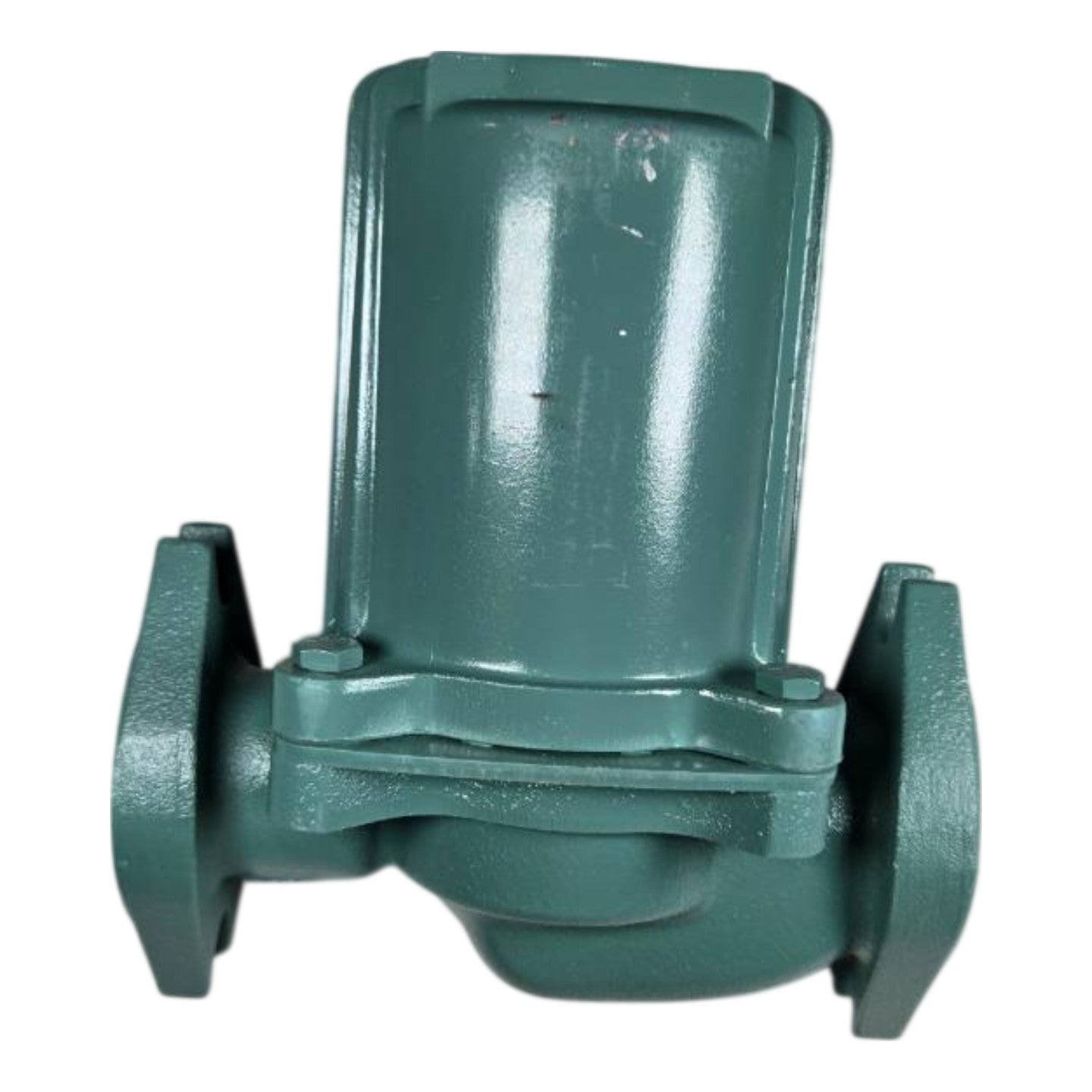

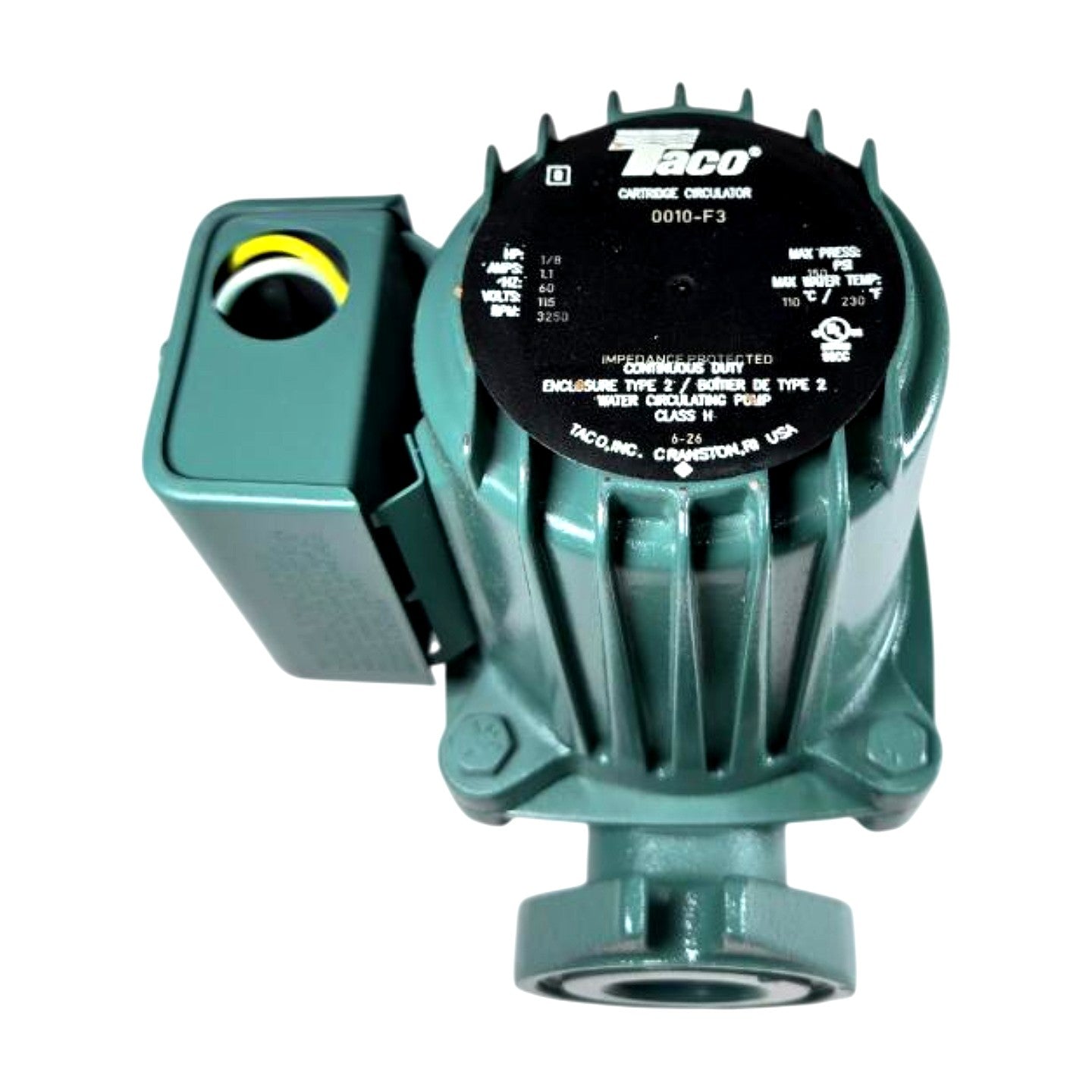

Taco 0010-F3 1/8 HP 115V Cast Iron Flanged Hydronic Circulator Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

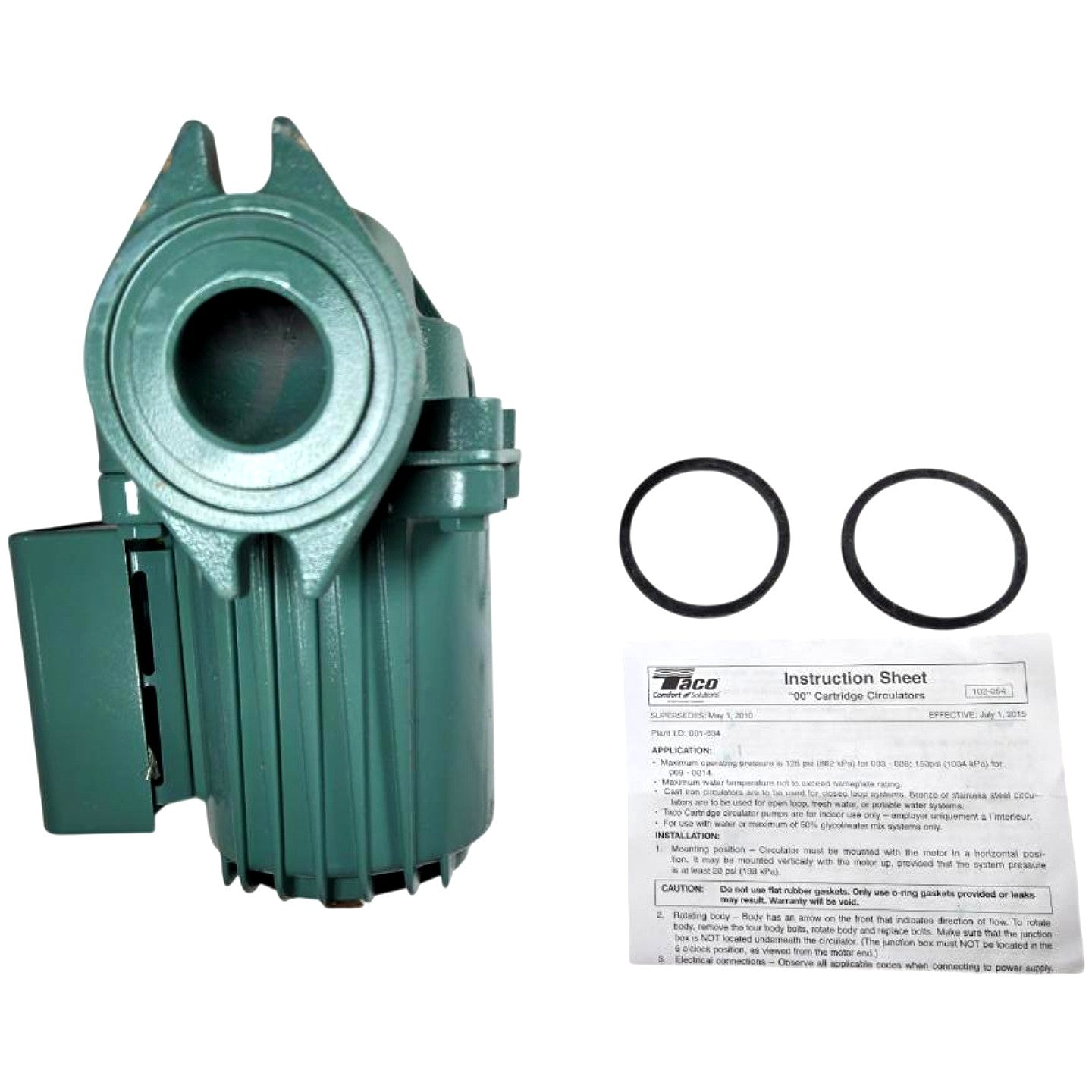

The Taco 0010-F3 is a new, cartridge-style hydronic circulating pump built with a cast iron body and flanged end connections, designed for closed-loop hydronic heating systems operating at up to 125 PSI and 230°F (110°C) maximum water temperature. The 1/8 HP impedance-protected motor runs on 115V AC / 60 Hz single-phase power, draws 1.1 amps, and spins at 3250 RPM, delivering up to 33 GPM flow at up to 10 ft of head. The cartridge design allows in-line servicing without disturbing piping, and the rotating body can be repositioned to four orientations to suit installation requirements — junction box must not be located at the 6 o'clock position. Includes two replacement O-rings and Taco instruction sheet 102-054; UL listed, Enclosure Type 2, Class H insulation, manufactured by Taco, Inc. in Cranston, RI, USA. Suitable for closed-loop forced hot water (hydronic) heating systems; not rated for open loop, potable water, or glycol concentrations above 50%.
Product Specifications
| Brand | Taco |
| Model / MPN | 0010-F3 |
| Pump Type | Cartridge Circulator, Inline |
| Body Material | Cast Iron |
| Connection Type | Flanged |
| Horsepower | 1/8 HP |
| Voltage | 115V AC |
| Phase | 1 (Single Phase) |
| Frequency | 60 Hz |
| Amperage | 1.1 A |
| Motor Speed | 3250 RPM |
| Max Flow Rate | 33 GPM |
| Max Head | 10 ft |
| Max Operating Pressure | 125 PSI |
| Max Water Temperature | 230°F (110°C) |
| Enclosure Type | Type 2 |
| Insulation Class | Class H |
| Motor Protection | Impedance Protected |
| Duty | Continuous Duty |
| Certifications | UL Listed |
| System Compatibility | Closed loop hydronic; max 50% glycol/water |
| Country of Origin | USA (Cranston, RI) |
| Condition | New |
| Included Accessories | 2x O-rings, instruction sheet 102-054 |
