Taco 0010-F3 1/8 HP 115V Cast Iron Flanged Hydronic Circulator Pump

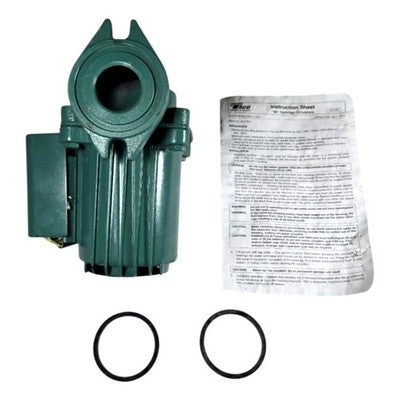

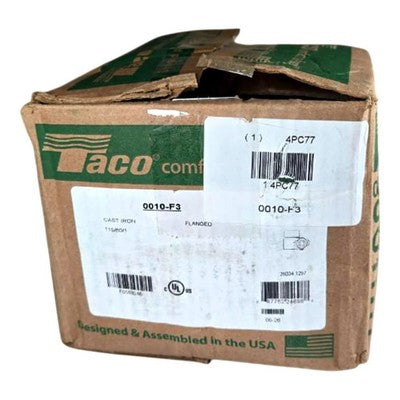

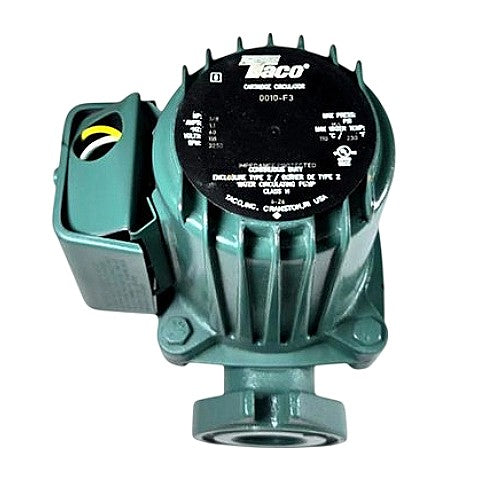

The Taco 0010-F3 is a 1/8 HP single-speed cartridge-style hydronic circulator pump with a cast iron body and flanged end connections, designed for closed-loop hydronic heating systems including baseboard, radiant floor, and chilled-water applications. Per the nameplate visible in the photos, it operates on 115V / 60 Hz / 1-phase power, draws 1.1 amps, and spins at 3250 RPM; maximum working pressure is 125 PSI and maximum fluid temperature is 230°F (110°C). The "F3" suffix in the part number designates the flanged (F) connection style with cast iron body construction, as distinguished from the sweat or union variants in the 0010 series. The pump features an impedance-protected, continuous-duty motor with a Type 2 enclosure rating and Class H insulation, and includes two replacement O-rings and an instruction sheet as confirmed by the product photos. This unit is new in original Taco packaging; the box shows cosmetic wear but the pump itself is unused. Product Specifications Brand Taco MPN 0010-F3 Horsepower 1/8 HP Voltage 115V Frequency 60 Hz Phase 1-Phase Amperage 1.1 A Motor Speed 3250 RPM Max Pressure 125 PSI Max Fluid Temp 230°F (110°C) Body Material Cast Iron Connection Type Flanged Motor Enclosure Type 2 Insulation Class Class H Duty Cycle Continuous Motor Protection Impedance Protected Pump Type Cartridge Circulator Certifications UL Listed, cUL Listed Origin Designed & Assembled in USA Includes 2x O-rings, instruction sheet
