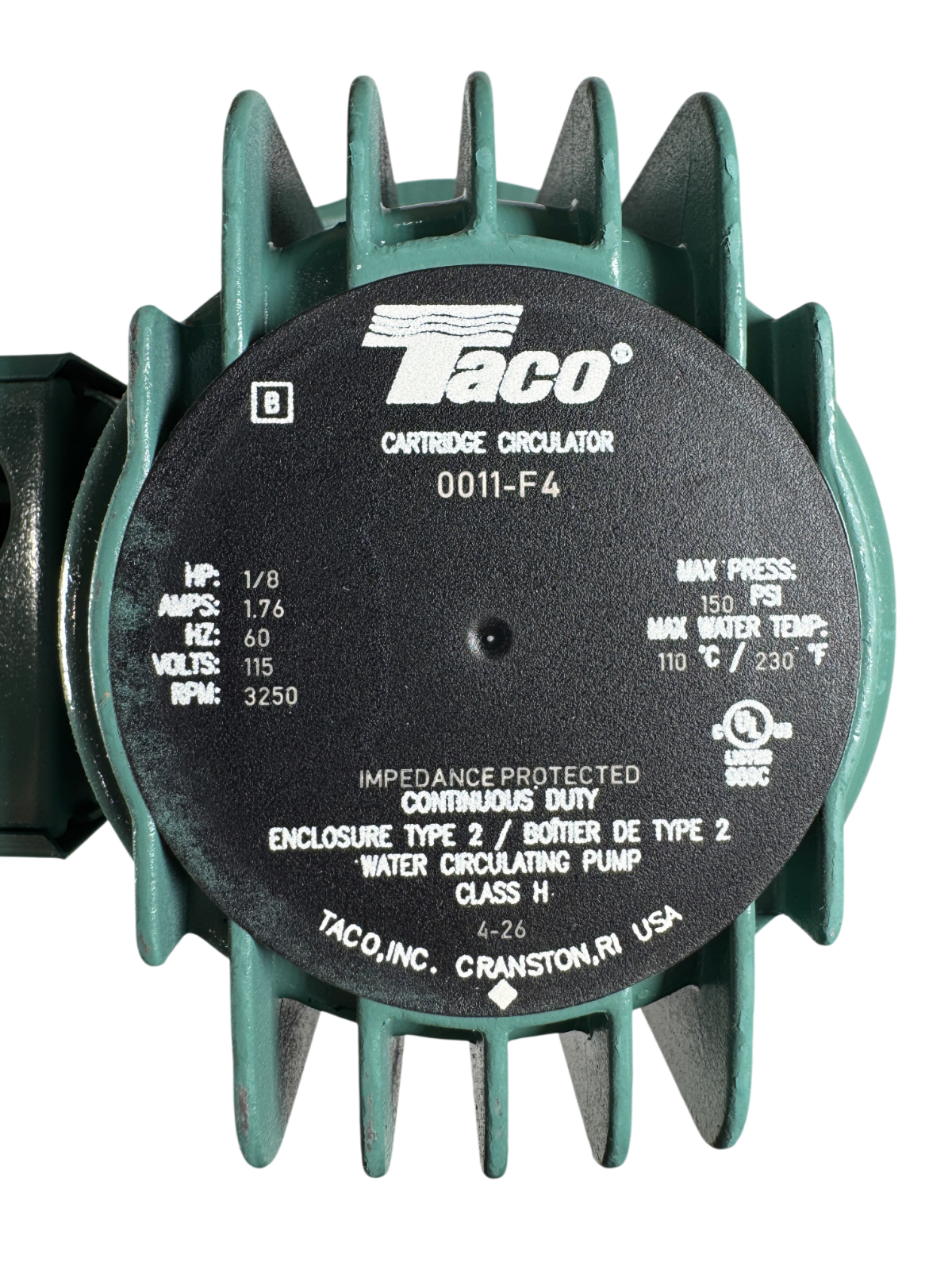

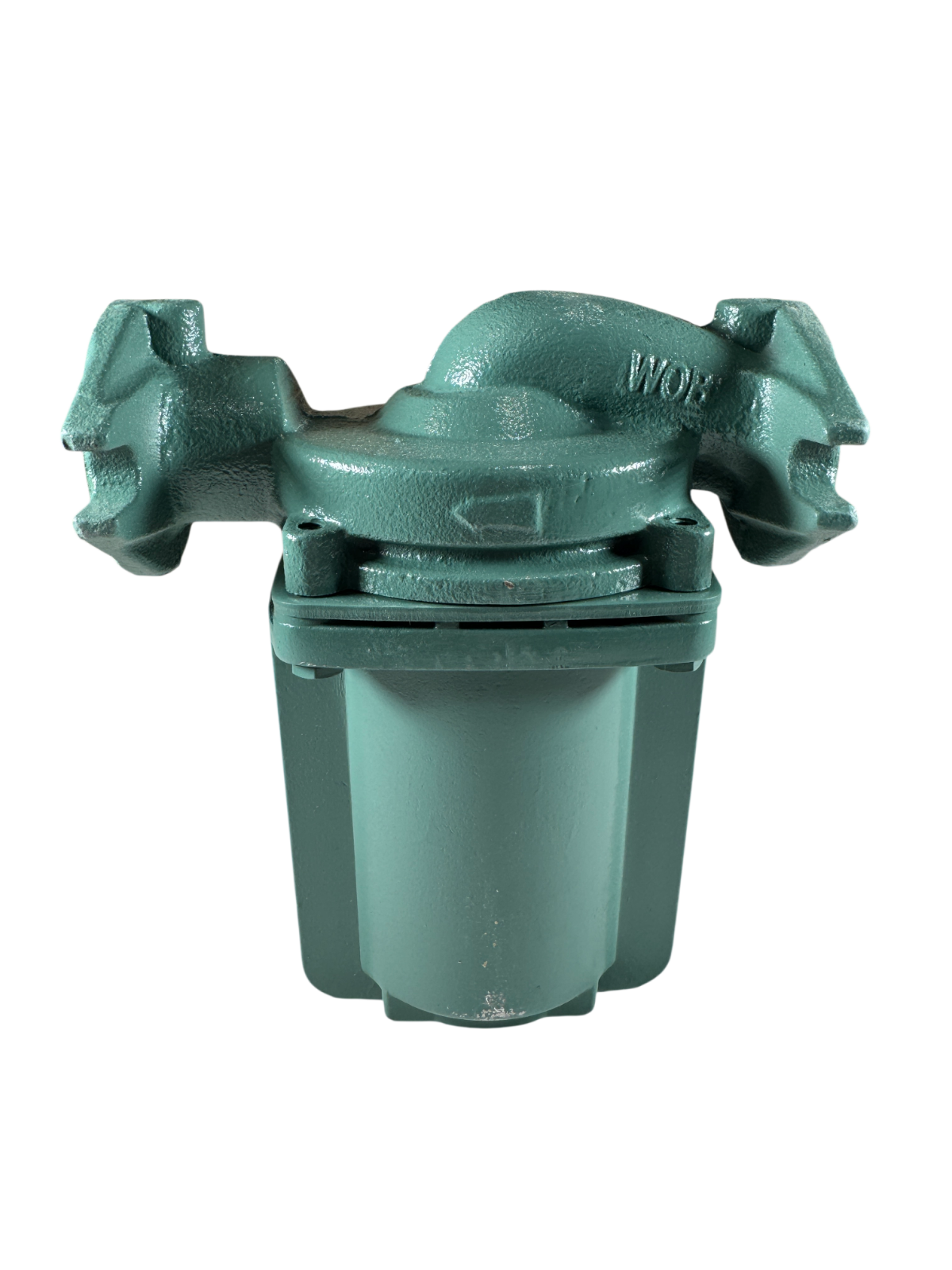

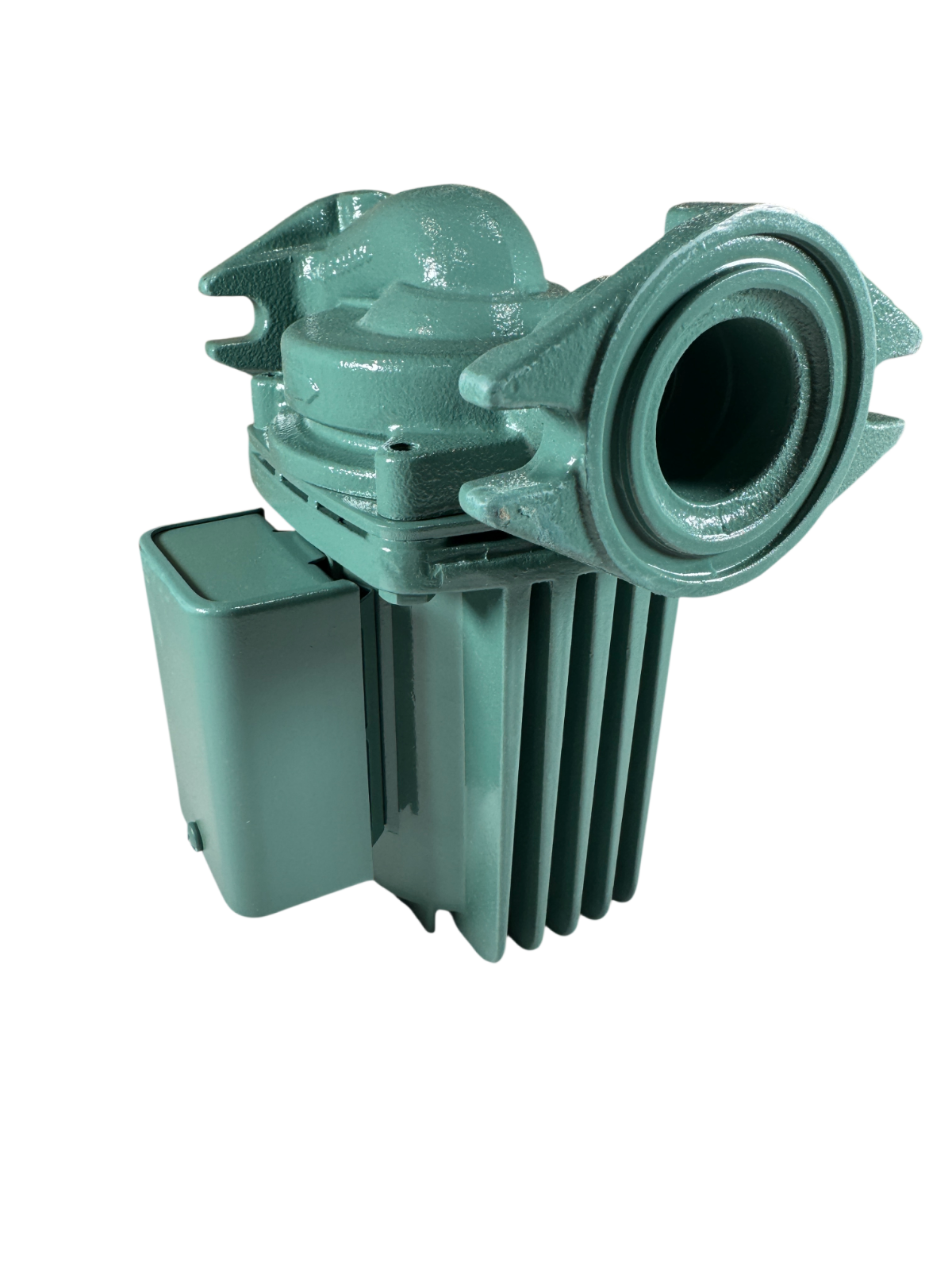

Taco 0011-F4 1PH 1/8HP 115VAC 60Hz 31 GPM Cast Iron Hydronic Circulating Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Overall Height | 6.5 in |
| For Low Lead Compliance Level | EX |
| Circulator Pump Media Type | Hydronic Pump |
| Flow @ 20' of Head | 13 gpm |
| Housing Material | Cast Iron |
| Motor Enclosure Design | Totally Enclosed Non-Ventilated |
| Includes Volute | Volute Included |
| MPN | 0011-F4 |
| Face to Face Dimension | 6-1/2 in |
| Number of Speeds | 1 |
| Full Load Current | 1.76 A |
| Compatible Discharge Pipe Size | 3/4 in; 1 in; 1-1/4 in; 1-1/2 in |

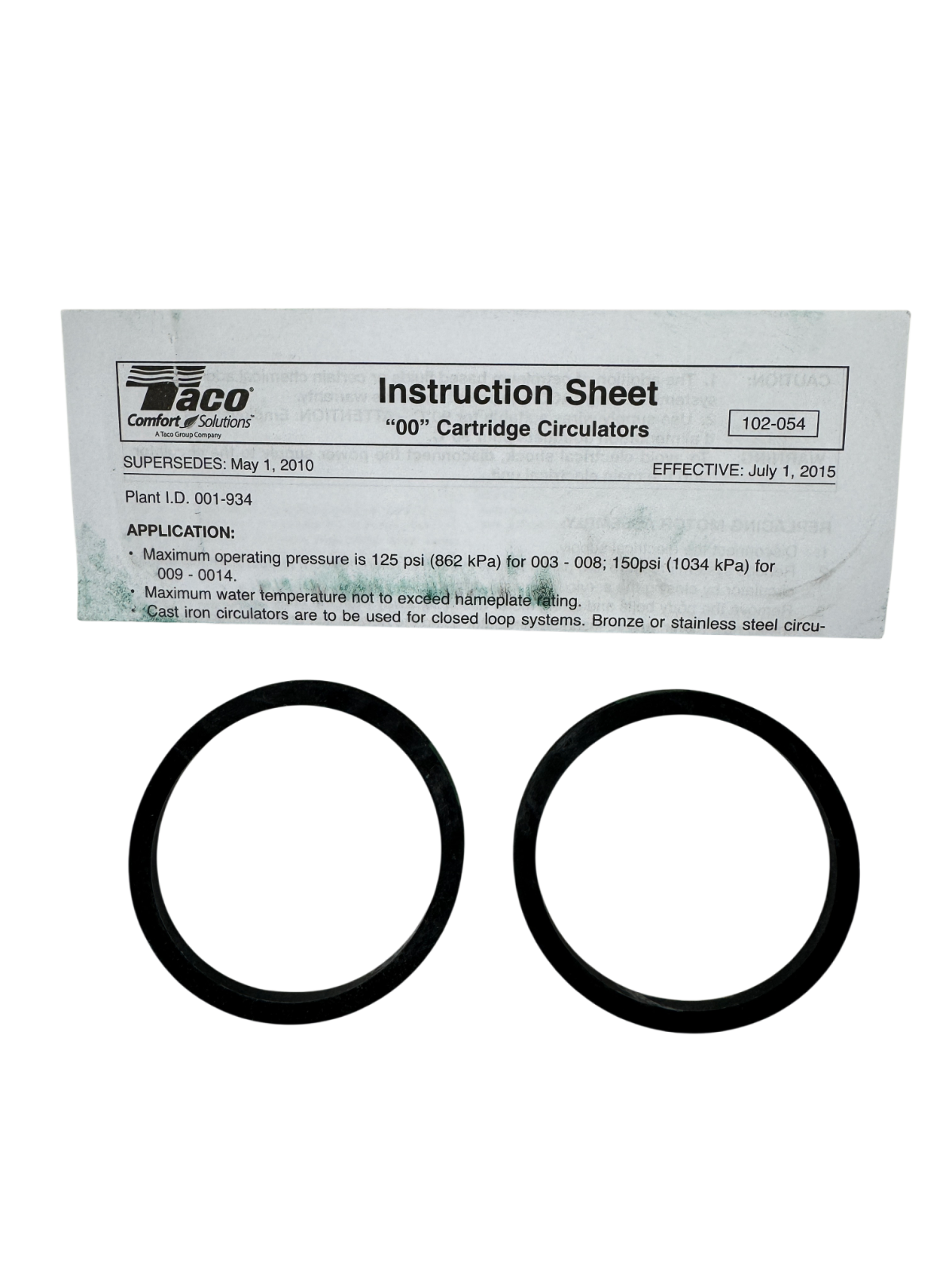

| Includes | Flange Gaskets; Impedance Thermal Proctection |
| Unit Type | Unit |
| Max. Operating Pressure | 150 PSI |
| Compatible Pipe Size | 3/4 in 1 in 1-1/4 in 1-1/2 in |
| Connection Type | Flange |
| Overall Width | 5.63 in |
| Supply Voltage | 115 V |
| Maximum Flow Rate @ 30 Feet of Head | 2 gpm |
| Unit Quantity | 1 |
| Rotor Type | Wet |
| Maximum Flow Rate @ 15 feet of Head | 18 gpm |
| Maximum RPM | 3,250 |
| Max. Media Temp | 230 °F |
| Maximum Flow Rate @ 25 Feet of Head | 7 gpm |
| System Type | Hydronic |
| Maximum Flow Rate @ 5 feet of Head | 27 gpm |
| Overall Length | 7.5 in |
| Standards | UL-CUS |
| Brand | Taco |
| Body Gasket Material | EPDM |
| Minimum Media Temperature | 40 °F |
| Includes Flange | No Flange Included |
| Maximum Flow Rate @ 10 feet of Head | 23 gpm |
| Frequency | 60 Hz |
| Rated Power | 1/8 hp |
| Mounting Location | Inline |
| Country of Origin | United States |
