Taco 0015-MSSF3-IFC 3-Speed 115V Cartridge Circulator Pump w/ IFC
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

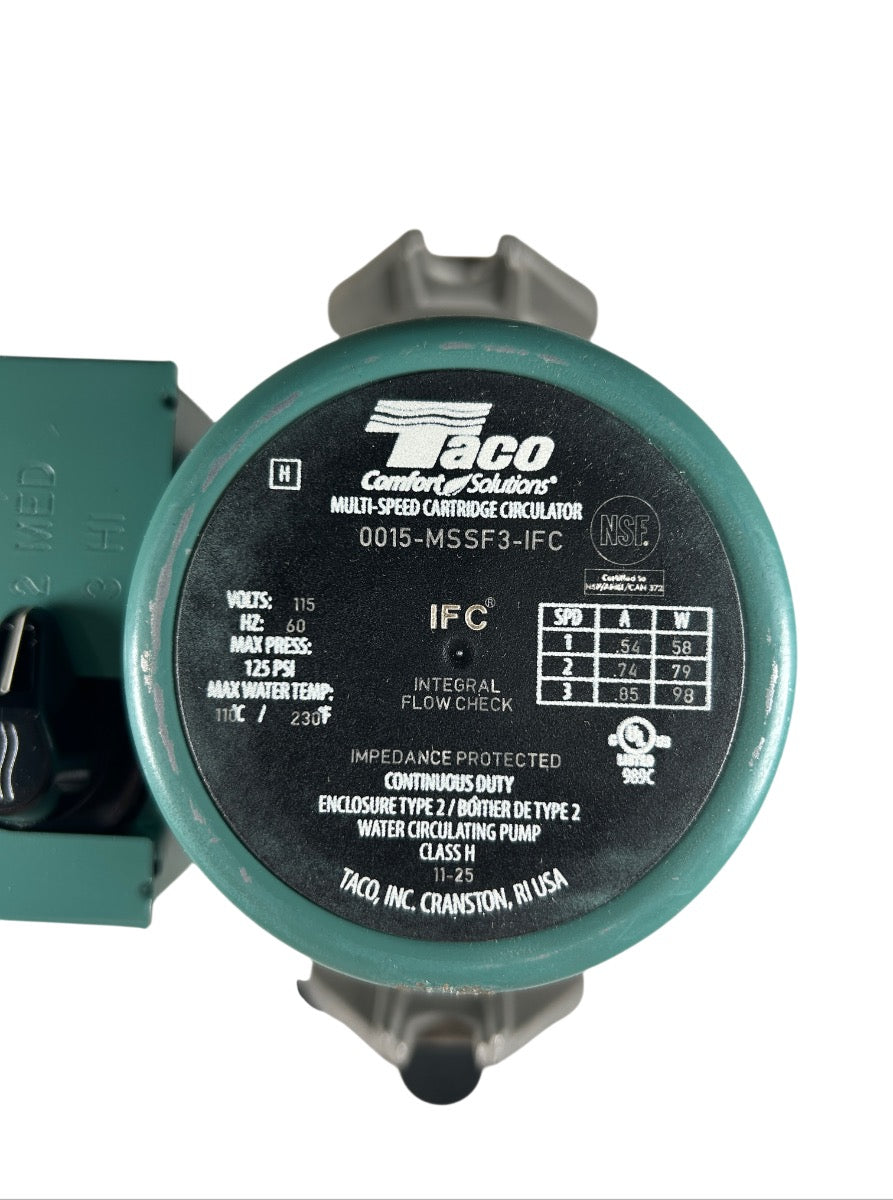

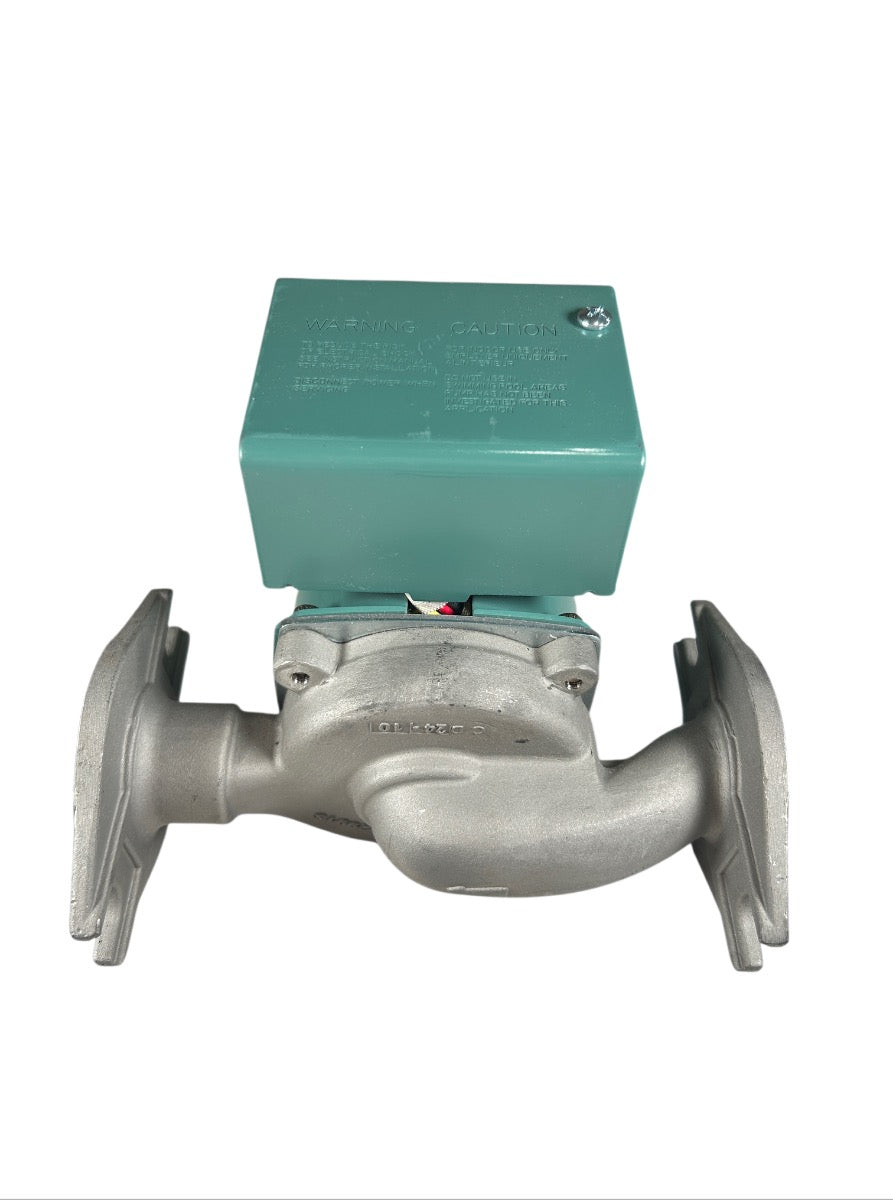

The Taco 0015-MSSF3-IFC is a new, multi-speed cartridge-style hydronic circulating pump featuring an Integral Flow Check (IFC) valve built directly into the volute body, eliminating the need for a separate check valve in the system. The pump operates on 115V / 60Hz single-phase power and offers three selectable speeds: Speed 1 draws 0.54A / 58W, Speed 2 draws 0.74A / 79W, and Speed 3 draws 0.85A / 98W, allowing field adjustment to match system demand. Rated for a maximum working pressure of 125 PSI and a maximum fluid temperature of 110°C (230°F), the pump carries NSF certification to NSF/ANSI 61 and CAN/CSA B125 for potable water contact, and is listed as an impedance-protected, continuous-duty unit with a Type 2 enclosure rating. The stainless-faced flanged connections mate directly to standard 0015-series flange sets, and the unit is noted on the original box as a direct replacement for the Grundfos UPS15-58FC 3-Speed circulator.
Product Specifications
| Manufacturer | Taco, Inc. |
| Model Number | 0015-MSSF3-IFC |
| Pump Type | Multi-Speed Cartridge Circulator |
| Number of Speeds | 3 |
| Voltage | 115V |
| Frequency | 60 Hz |
| Speed 1 Current | 0.54 A |
| Speed 1 Power | 58 W |
| Speed 2 Current | 0.74 A |
| Speed 2 Power | 79 W |
| Speed 3 Current | 0.85 A |
| Speed 3 Power | 98 W |
| Maximum Working Pressure | 125 PSI |
| Maximum Fluid Temperature | 110°C / 230°F |
| Flow Check | Integral Flow Check (IFC) |
| Duty Cycle | Continuous |
| Motor Protection | Impedance Protected |
| Enclosure Type | Type 2 |
| Insulation Class | Class H |
| NSF Certification | NSF/ANSI 61 / CAN/CSA B125 |
| Connection Type | Flanged |
| Condition | New |
