Taco 005-SF2 1/35HP 115V Stainless Steel Inline Cartridge Circulator Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

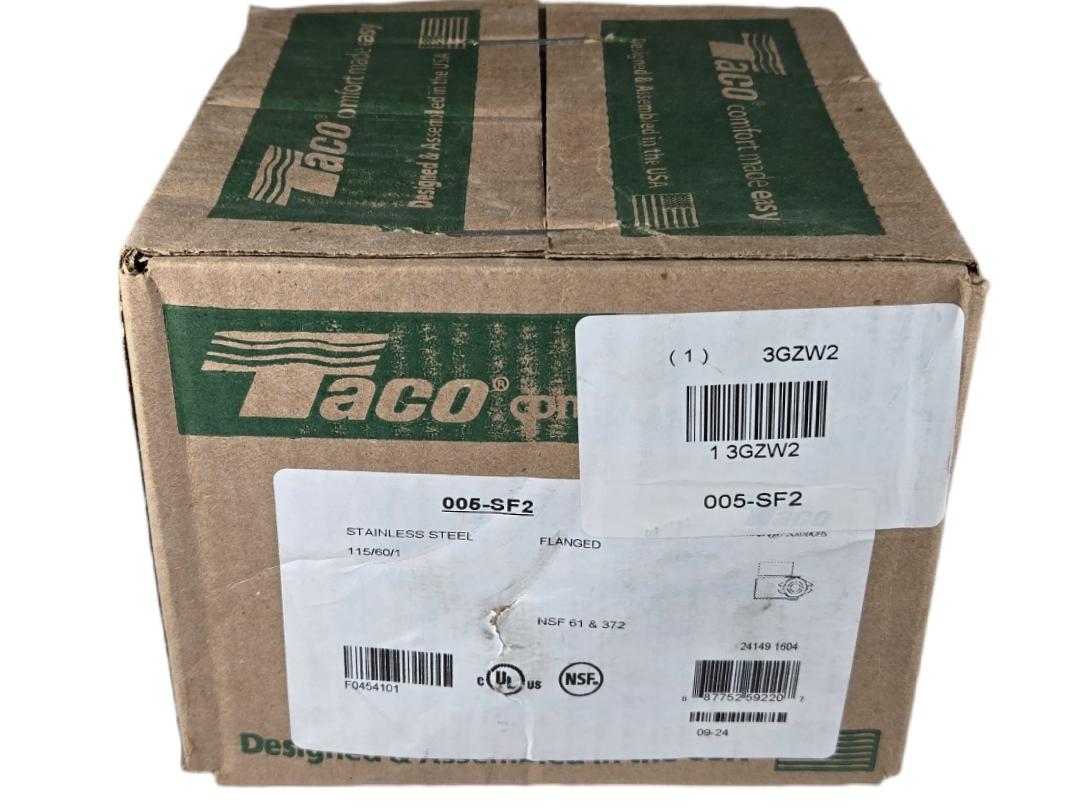

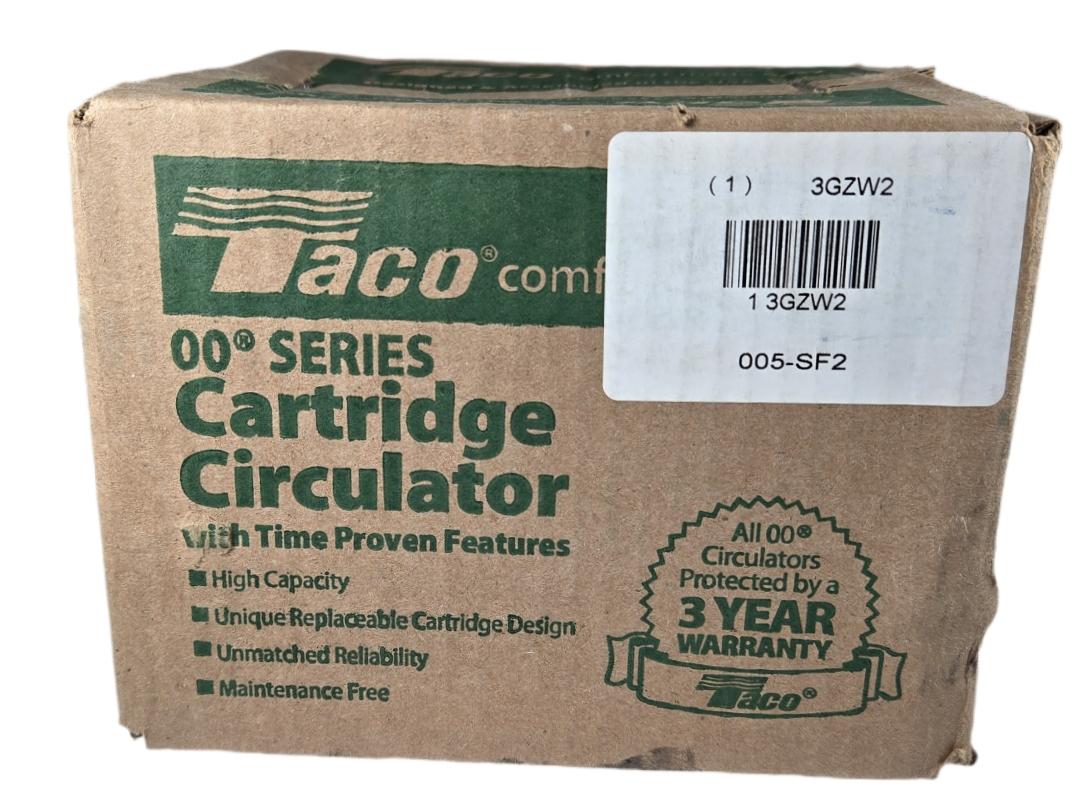

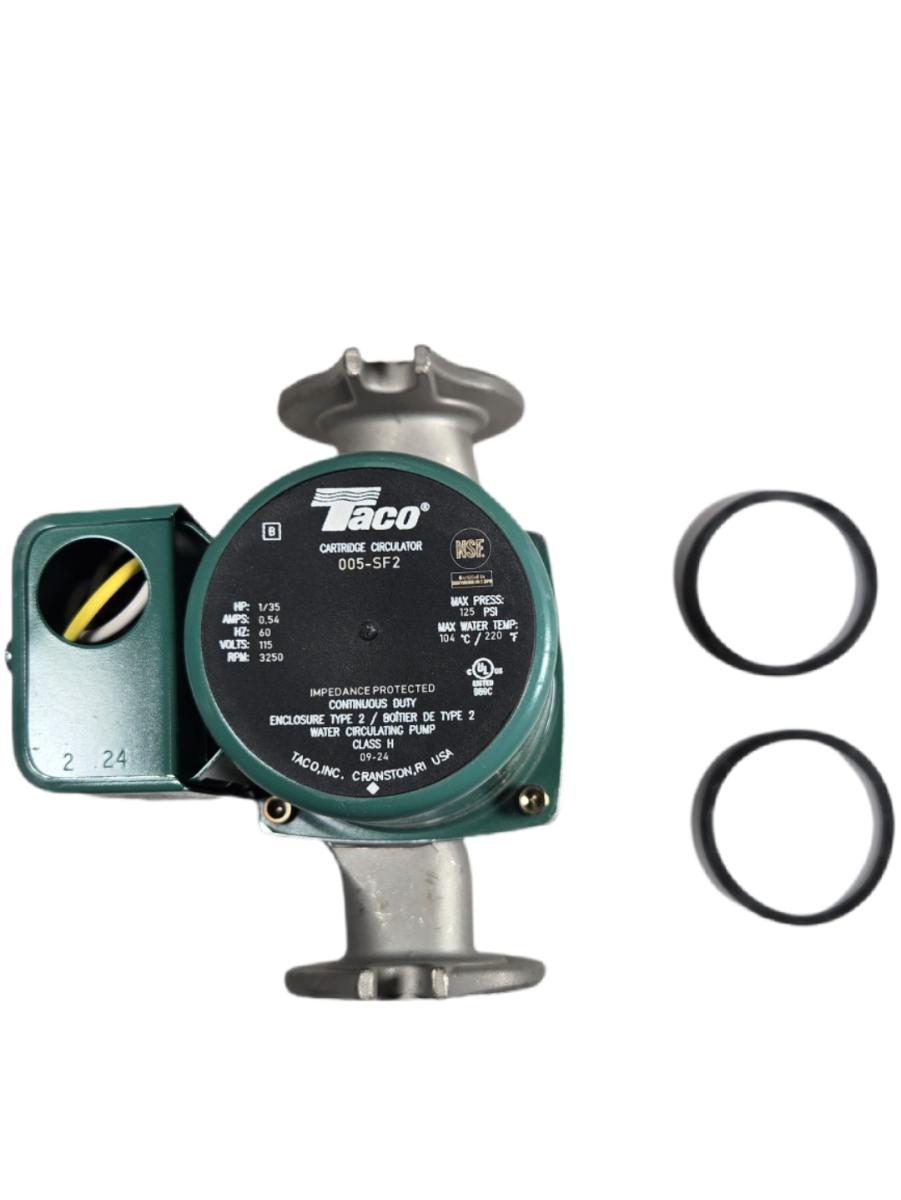

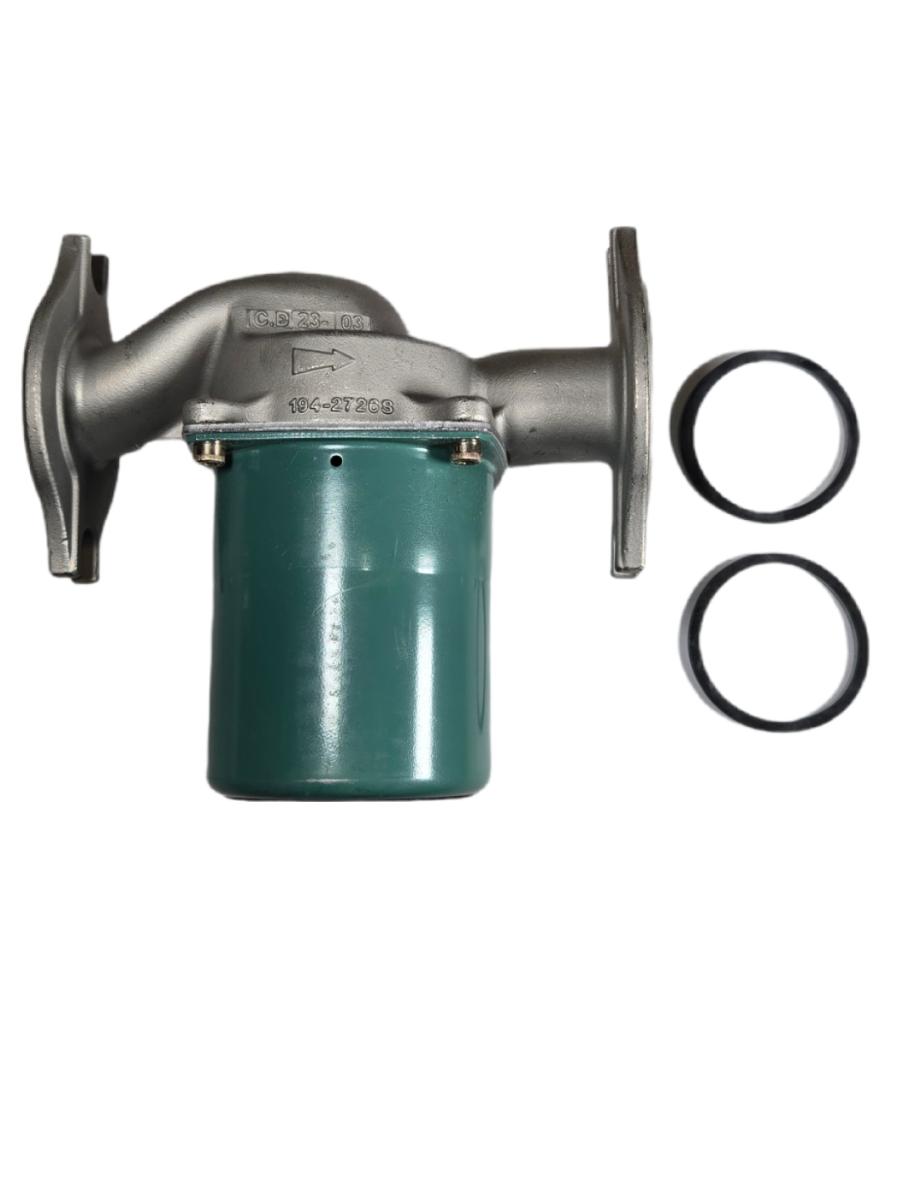

The Taco 005-SF2 is a new, 00-Series stainless steel cartridge circulator pump rated at 1/35 HP, 115V/60Hz single-phase, drawing 0.54 amps at 3,250 RPM, with a maximum working pressure of 125 PSI and a maximum fluid temperature of 220°F (104°C). The stainless steel volute body and flanged end connections make this pump suitable for potable water systems, as it carries NSF 61 and NSF 372 certifications for lead-free compliance, and it is UL Listed. This pump delivers up to 19 GPM flow and 9 ft of maximum head, using Taco's replaceable cartridge design that allows motor replacement without draining the system, and includes two O-ring gaskets for flange connections. The impedance-protected, continuous-duty motor with Class H insulation is rated for enclosure Type 2 and is designed for residential and light commercial hydronic heating, potable water recirculation, and radiant floor heating applications. Manufactured and assembled by Taco, Inc. in Cranston, RI, USA; the Grainger catalog cross-reference number visible on the box label is 3GZW2.
Product Specifications
| Manufacturer Part Number | 005-SF2 |
| Series | 00 Series |
| Horsepower | 1/35 HP |
| Voltage | 115V AC |
| Frequency | 60 Hz |
| Phase | 1 |
| Amperage | 0.54 A |
| RPM | 3250 RPM |
| Maximum Flow Rate | 19 GPM |
| Maximum Head | 9 ft |
| Maximum Working Pressure | 125 PSI |
| Maximum Fluid Temperature | 220°F (104°C) |
| Volute/Body Material | Stainless Steel |
| Connection Type | Flanged |
| Motor Protection | Impedance Protected |
| Duty Cycle | Continuous Duty |
| Motor Insulation Class | Class H |
| Enclosure Type | Type 2 |
| Certifications | UL Listed, NSF 61, NSF 372 |
| Pump Type | Cartridge Circulator |
| Includes | Two O-ring gaskets |
| Manufacturer Origin | Designed and Assembled in USA |
| Condition | New |
