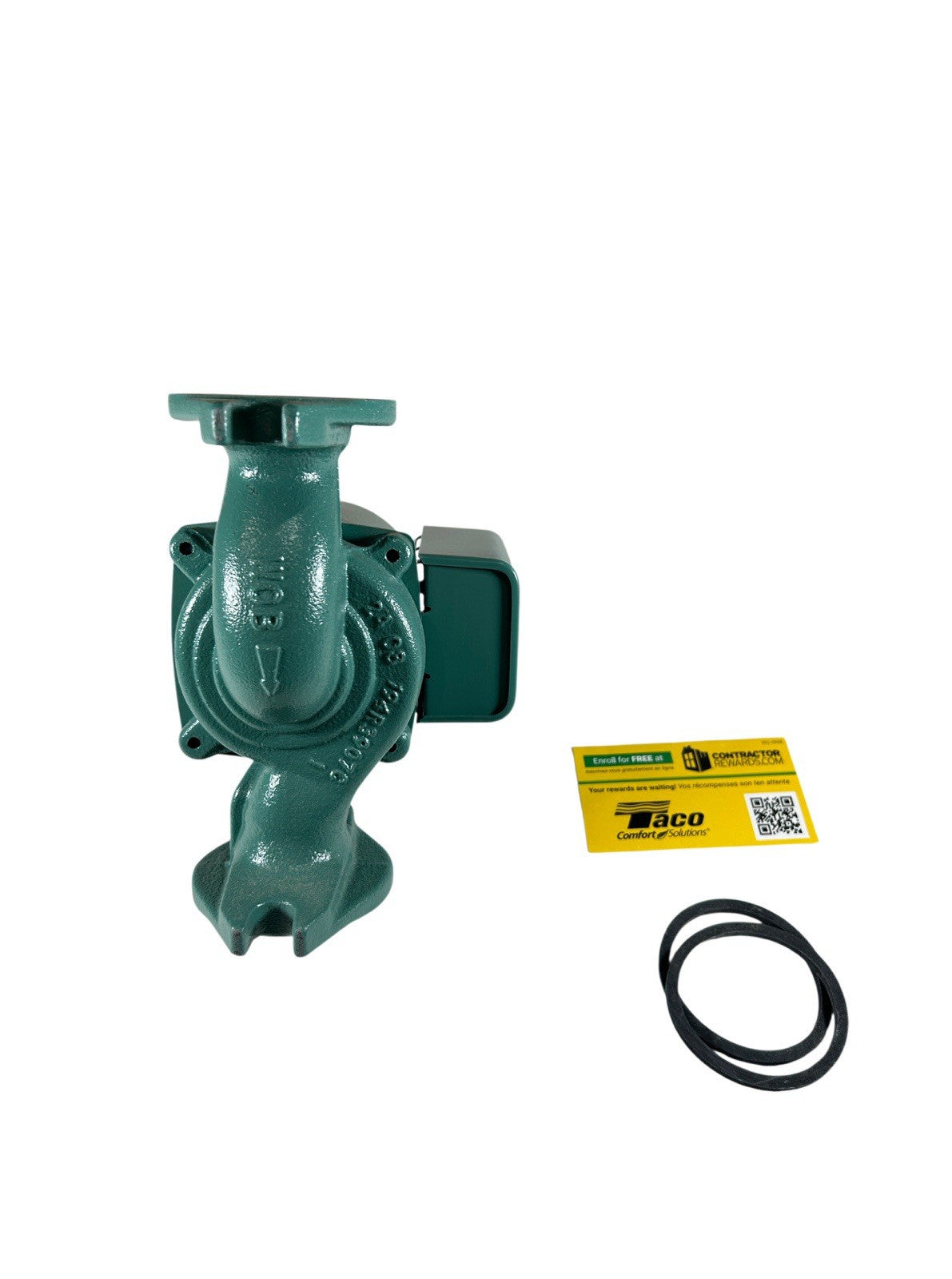

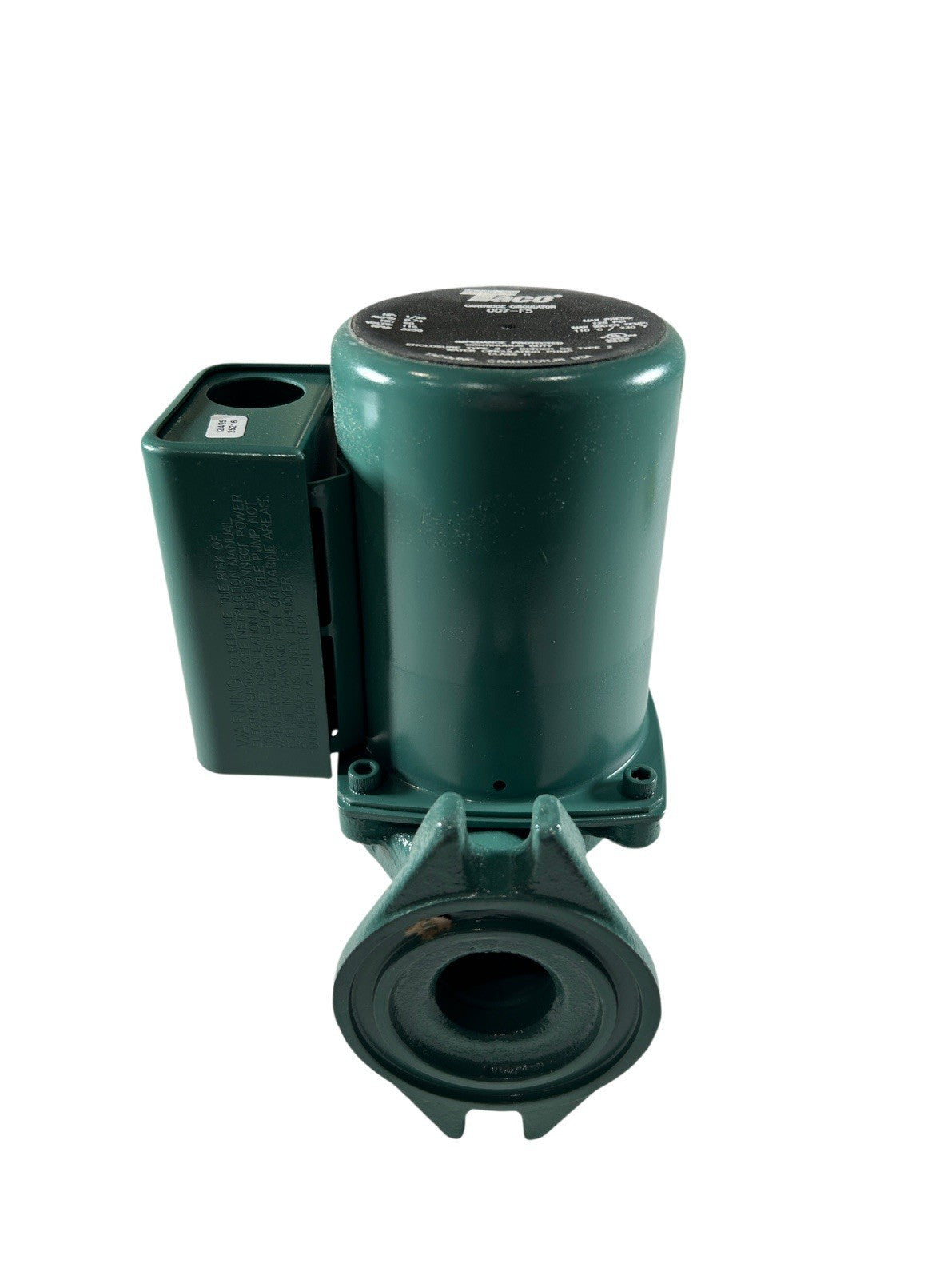

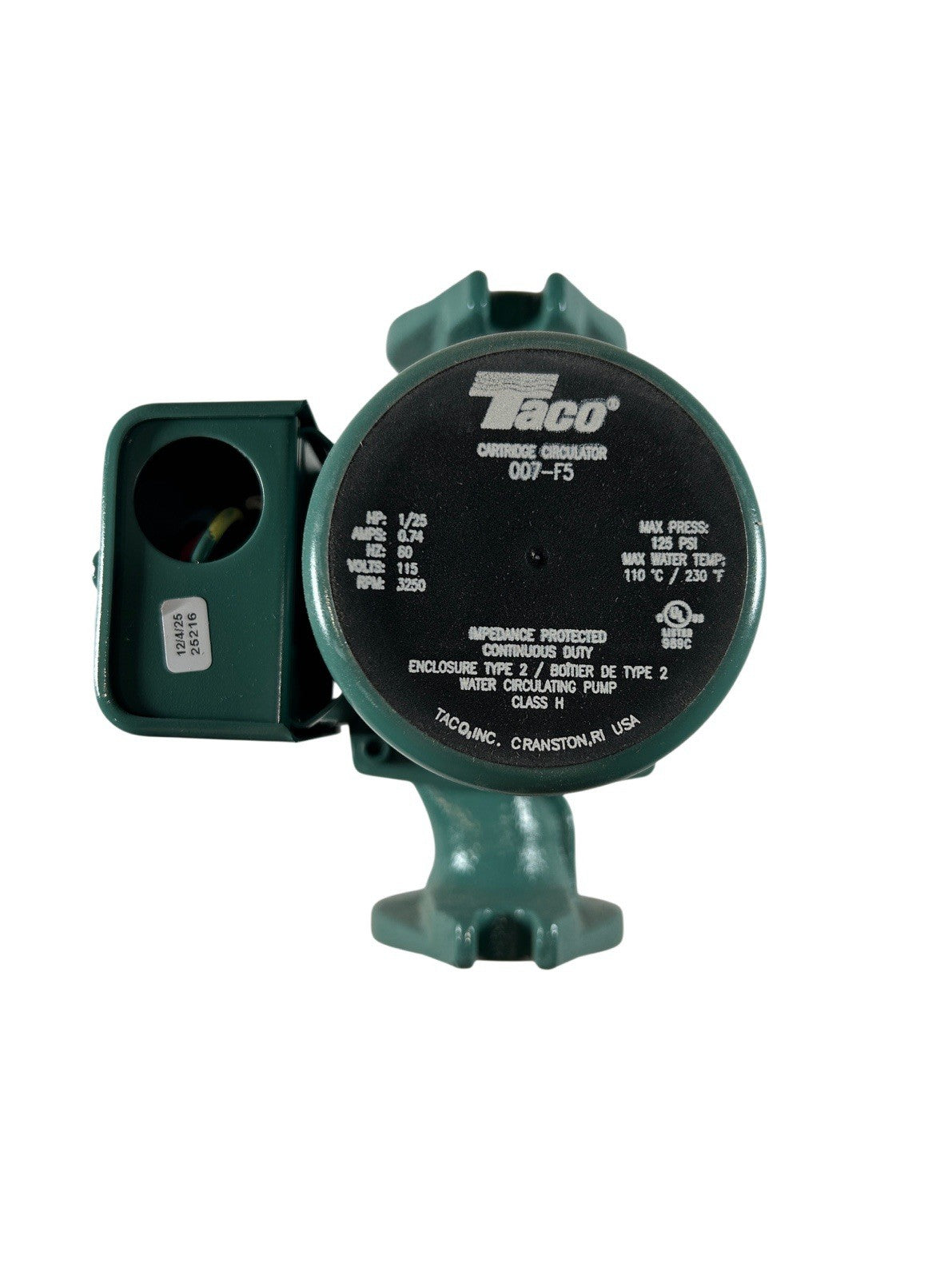

Taco 007-F5 1/25HP 1PH 115VAC 60Hz 23 GPM Cast Iron Hydronic Circulating Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Phase | Single |
| Maximum Feet of Head | 10 ft |
| Housing Material | Cast Iron |
| Motor Enclosure Design | Totally Enclosed Non-Ventilated |
| MPN | 007-F5 |
| Face to Face Dimension | 6-3/8 in |
| Number of Speeds | 1 |
| Max Media Temp | 230 °F |
| Full Load Current | 0.71 A |
| Unit Type | Unit |
| Compatible Pipe Size | 3/4 in, 1 in, 1-1/4 in, 1-1/2 in |
| Connection Type | Flange |
| Overall Width | 4.75 in |
| Supply Voltage | 115 V |
| Unit Quantity | 1 |
| Rotor Type | Wet |
| Maximum RPM | 3250 RPM |
| System Type | Hydronic |
| Maximum Flow Rate @ 5 feet of Head | 15 GPM |
| Overall Length | 6.13 in |
| Max Flow Rate | 23 GPM |
| Standards | UL-CUS |
| Brand | Taco |
| Body Gasket Material | EPDM |
| Series | 007 |
| Minimum Media Temperature | 40 °F |
| Maximum Flow Rate @ 10 feet of Head | 0 GPM |
| Frequency | 60Hz |
| Rated Power | 1/25 hp |
| Max Operating Pressure | 125 PSI |
| Mounting Location | Inline |
| Country of Origin | United States |
