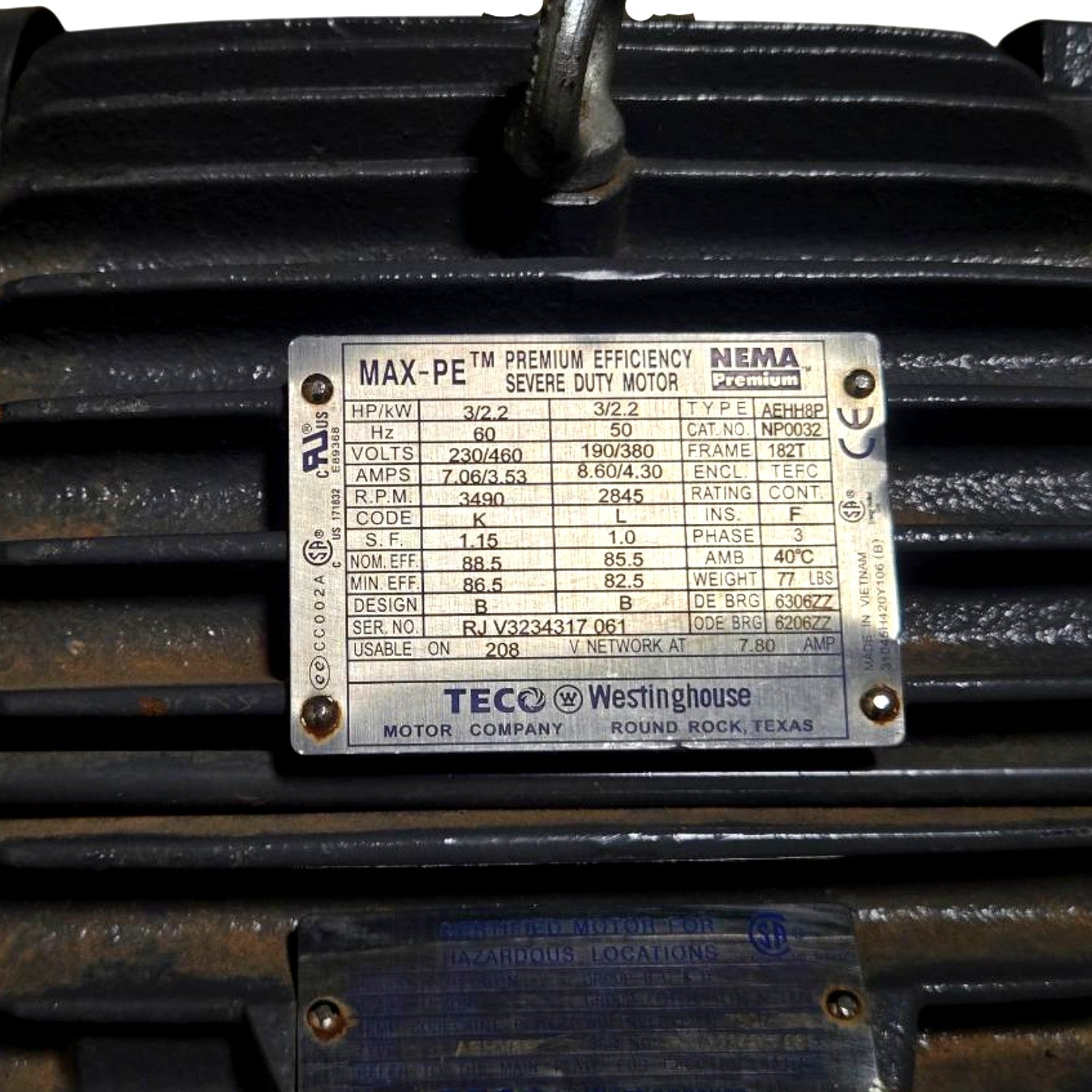

The TECO-Westinghouse NP0032 is a new MAX-PE™ NEMA Premium Efficiency severe-duty AC induction motor rated 3 HP (2.2 kW), designed for continuous-duty industrial applications. Per the nameplate read directly from the photos, it operates at 230/460V (60 Hz) or 190/380V (50 Hz), draws 7.06/3.53A at 60 Hz, runs at 3490 RPM on a 4-pole Design B configuration, and is built on a NEMA 182T rigid foot-mount frame with a TEFC (Totally Enclosed Fan Cooled) enclosure rated for 40°C ambient. The motor carries Class F insulation, a 1.15 service factor (60 Hz), nominal efficiency of 88.5% (60 Hz) meeting NEMA Premium standards, and is also rated for PWM VFD converter-supply duty with a minimum switching frequency of 3 kHz — making it suitable for variable-speed drive applications. Drive-end bearing is a 6306ZZ and opposite drive-end bearing is a 6206ZZ; the unit weighs 77 lbs per the nameplate and is CSA/UL listed, CE marked, and certified for hazardous locations (visible label). Serial number RJV3234317 061, manufactured in Vietnam by TECO-Westinghouse Motor Company, Round Rock, Texas.
Product Specifications
| Brand | TECO-Westinghouse |
| Catalog / Part No. | NP0032 |
| Series | MAX-PE Premium Efficiency Severe Duty |
| Horsepower | 3 HP (2.2 kW) |
| Voltage | 230/460V (60 Hz), 190/380V (50 Hz) |
| Amperage | 7.06/3.53A (60 Hz), 8.60/4.30A (50 Hz) |
| Speed (RPM) | 3490 RPM (60 Hz), 2845 RPM (50 Hz) |
| Frequency | 60/50 Hz |
| Phase | 3 |
| NEMA Frame | 182T |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Insulation Class | F |
| Service Factor | 1.15 (60 Hz), 1.0 (50 Hz) |
| Design | B |
| Nominal Efficiency | 88.5% (60 Hz), 85.5% (50 Hz) |
| Minimum Efficiency | 86.5% (60 Hz), 82.5% (50 Hz) |
| Ambient Temperature Rating | 40°C |
| Duty Rating | Continuous (CONT.) |
| Motor Type | AEHH8P |
| Drive-End Bearing (DE BRG) | 6306ZZ |
| Opp. Drive-End Bearing (ODE BRG) | 6206ZZ |
| Weight | 77 lbs |
| Mounting | Rigid Foot Mount |
| VFD Compatible | Yes, PWM VFD duty rated |
| Min. PWM Switching Frequency | 3 kHz |
| 208V Usable | Yes, 7.80A |
| Efficiency Standard | NEMA Premium |
| Serial Number | RJV3234317 061 |
| Certifications | UL, CSA, CE, Hazardous Locations |
| Country of Origin | Vietnam |
