Telemecanique 9007MS03S0300 Series B SPDT Cross Roller Plunger Limit Switch

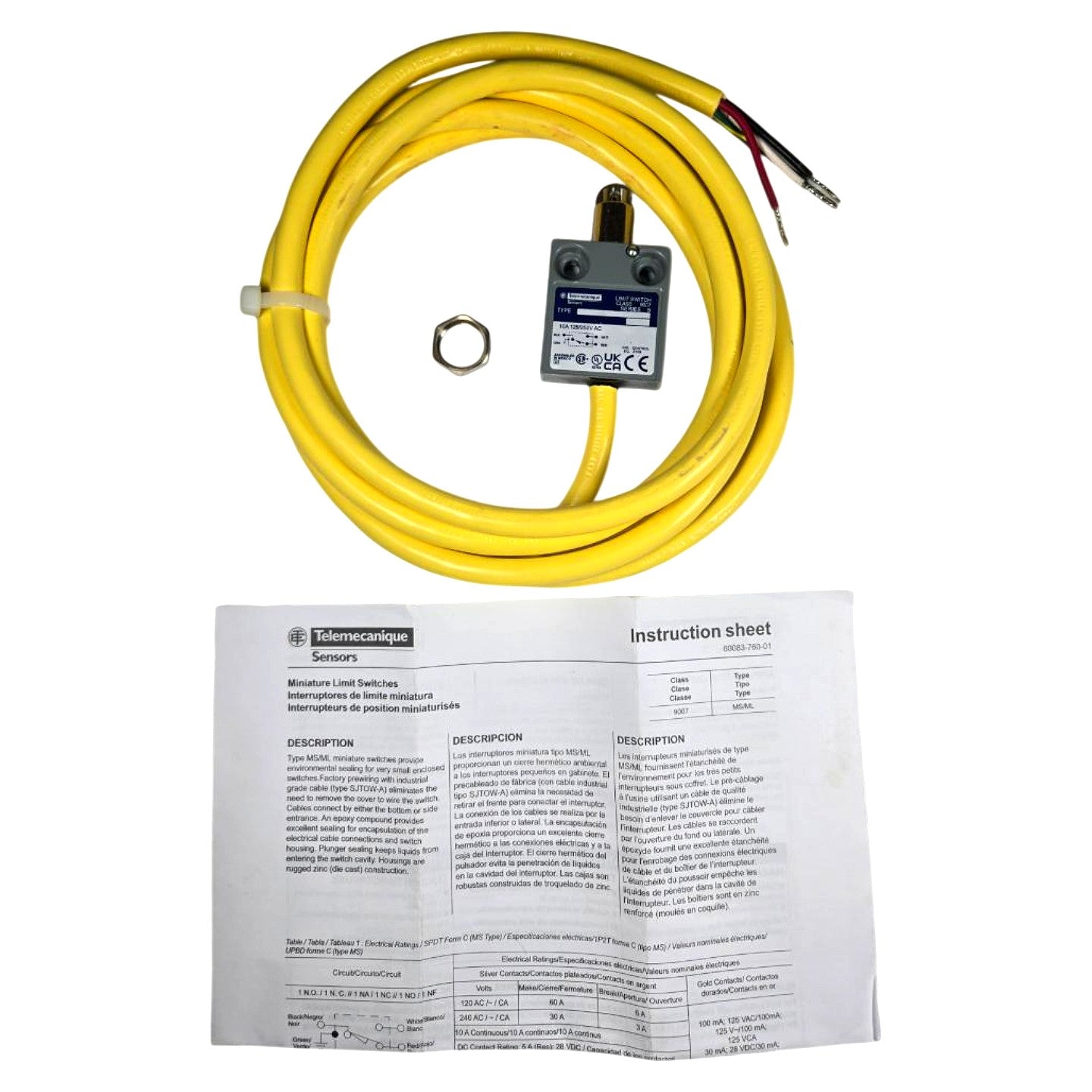

The Telemecanique (Schneider Electric) 9007MS03S0300 Series B is a new, compact enclosed miniature limit switch of the Class 9007 MS/ML type, featuring a metallic cross roller plunger actuator and SPDT (1 NO / 1 NC) snap-action silver contacts rated 10A at 120V AC / 7A at 240V AC. The die-cast zinc housing is factory pre-wired with an industrial-grade SJTOW-A yellow PVC cable approximately 10 feet (3 meters) in length, exiting from the bottom, with conductors color-coded black (NC), red (NO), white/green (common) — epoxy-sealed internal connections provide environmental sealing without requiring the cover to be removed for wiring. The cross roller plunger head is metallic construction, suited for detecting cam or linear actuated machine elements in conveyor systems, packaging machinery, material handling, and automated assembly equipment where a compact sealed form factor and prewired cable connection are required. Certifications visible on the unit and confirmed by the instruction sheet include UL, cUL, CE, and UKCA markings; the switch is manufactured in Mexico by Telemecanique Sensors (a Schneider Electric brand).

Product Specifications
