Telemecanique XSAV01801 M18 NC 2-Wire Inductive Proximity Sensor
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

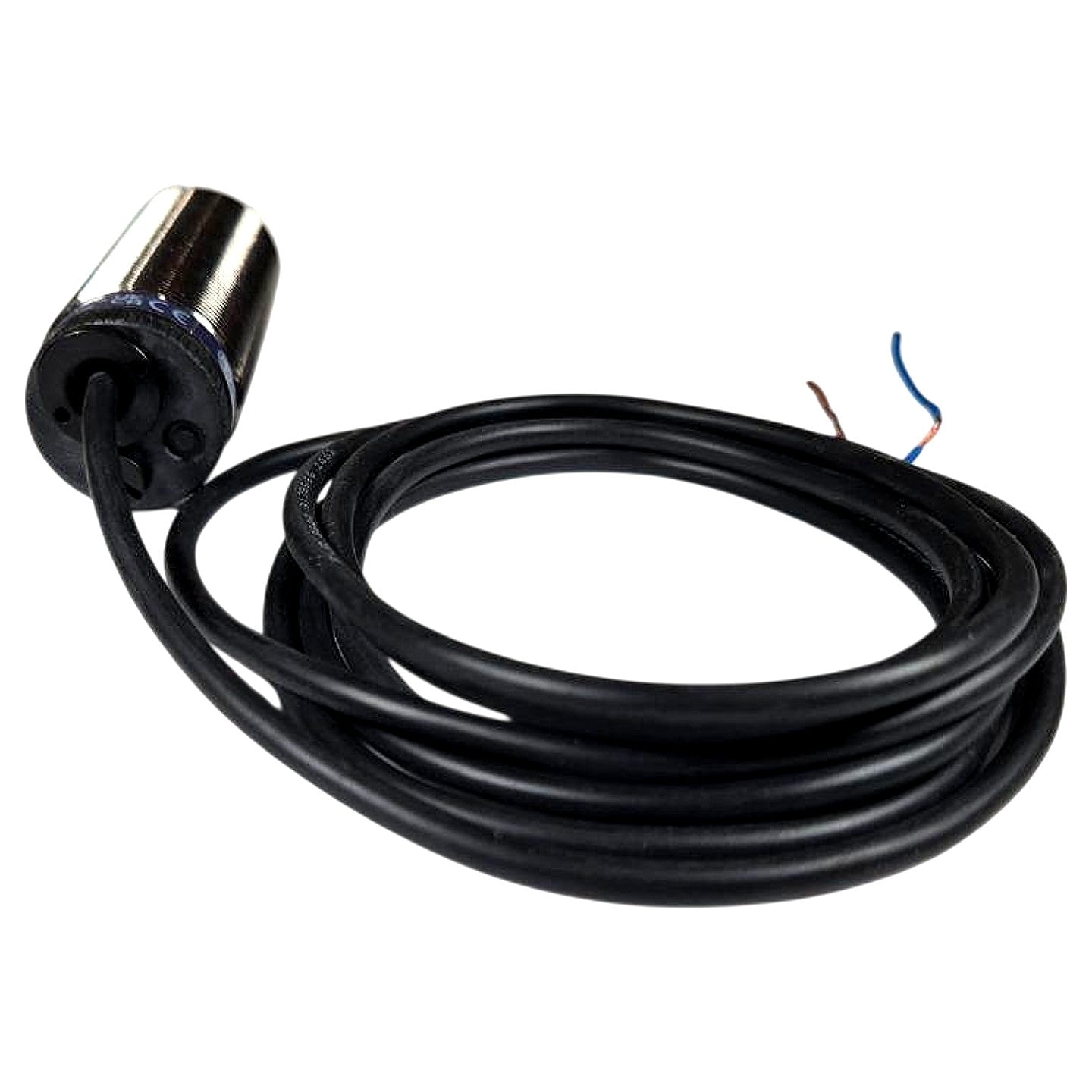

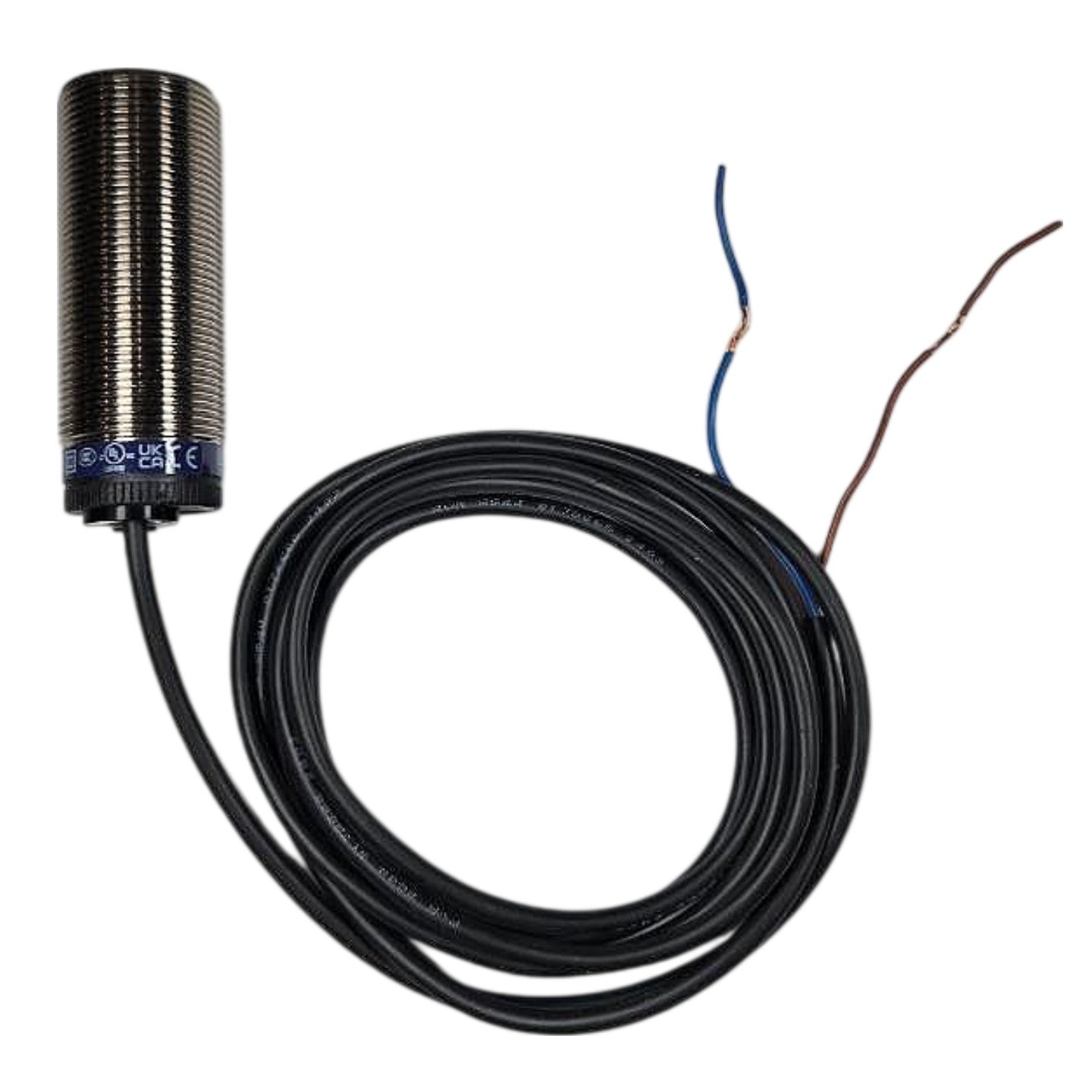

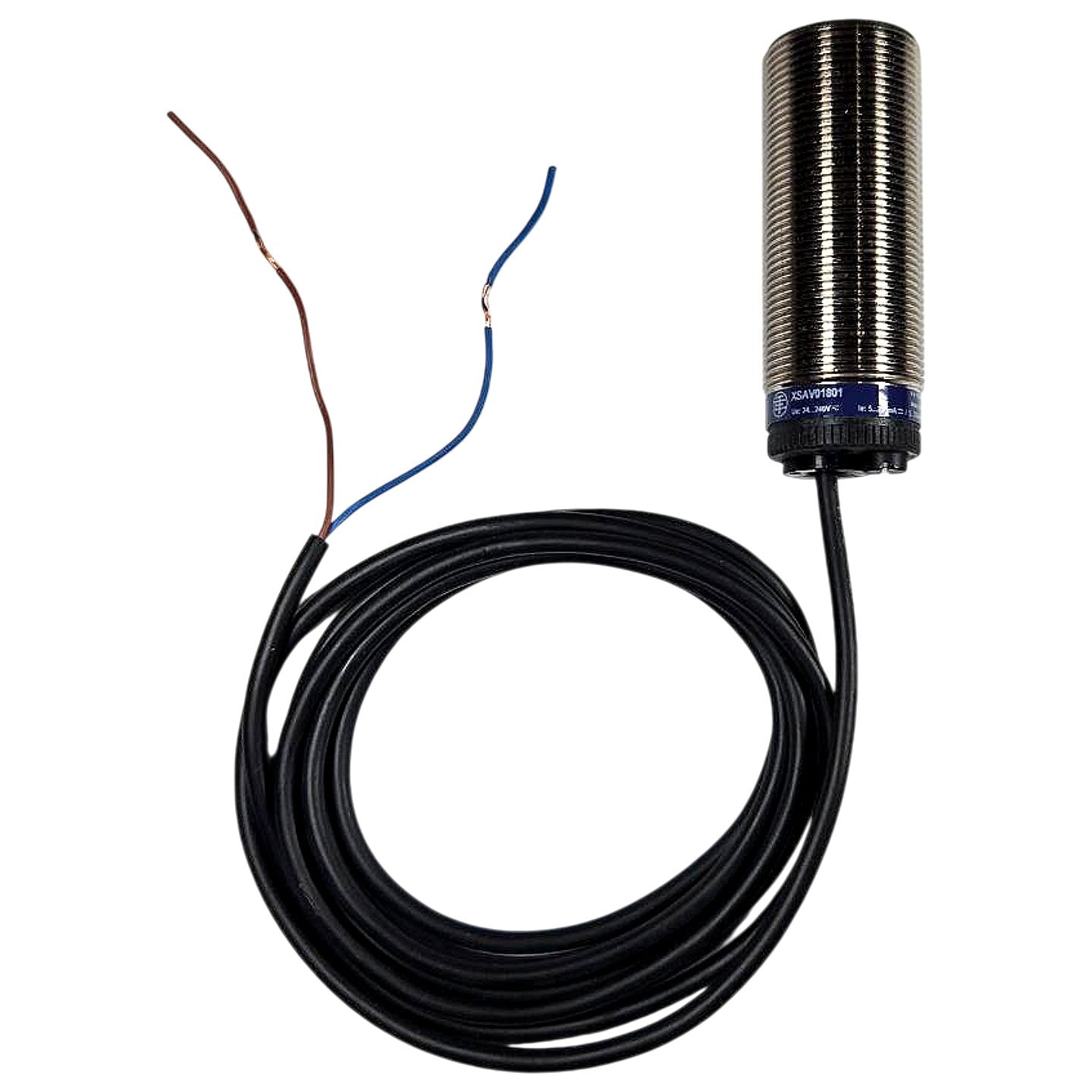

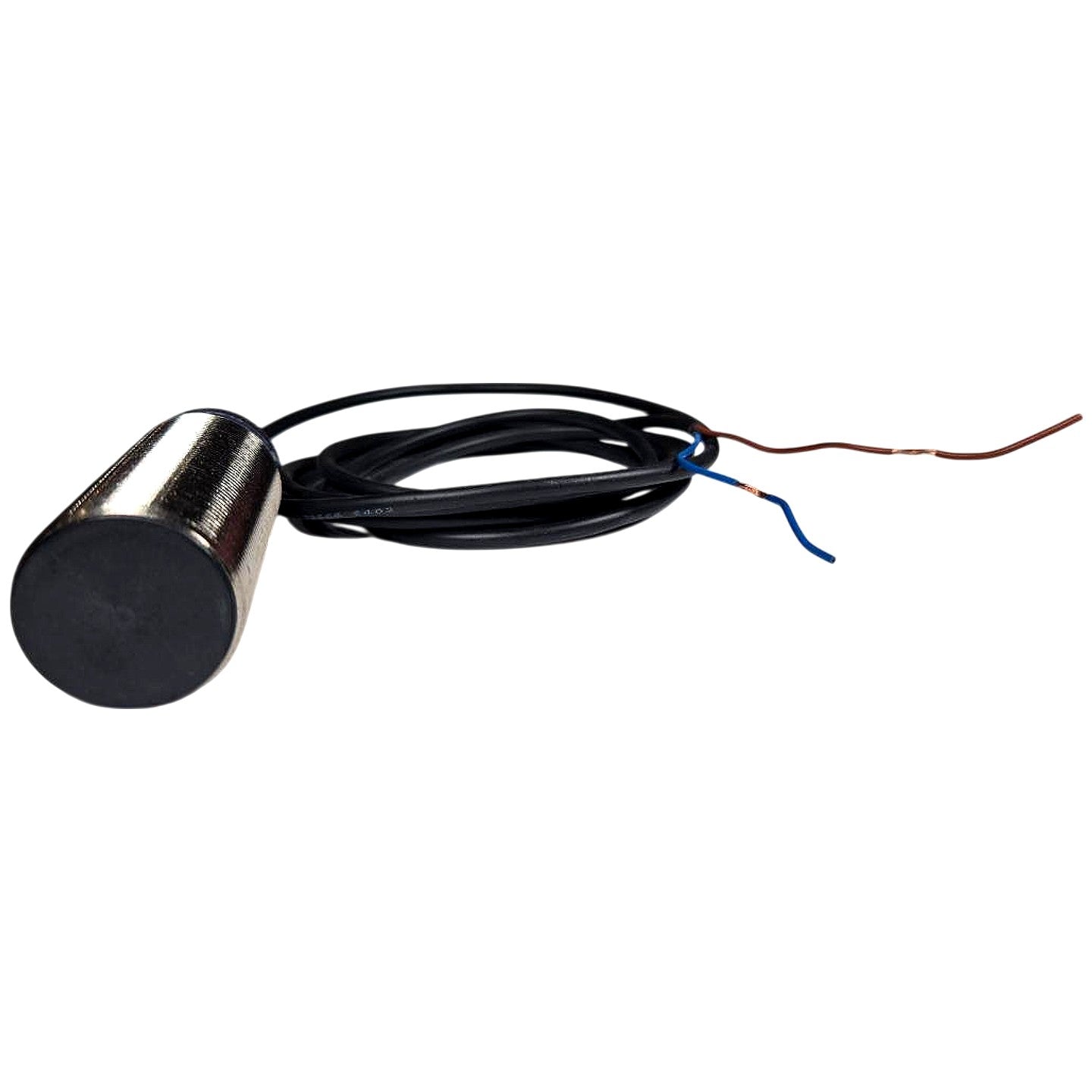

The Telemecanique Sensors XSAV01801 is a new, shielded M18 cylindrical inductive proximity sensor with a 2-wire AC/DC wiring configuration and a normally closed (NC) output, terminated with a bare-end cable rather than a connector. The label visible in the photos confirms part number XSAV01801 and a supply voltage of 24–240V AC/DC, making it compatible with a wide range of PLC and relay-based control circuits without a separate power supply adapter. The shielded (flush-mountable) sensing face allows installation in metal brackets or through metal panels without derating the sensing range, which is 5 mm nominal for this M18 series. The nickel-plated brass cylindrical body features full M18 threads for panel or bracket mounting with the included jam nuts, and the sensor carries CE, UL, and UKca markings visible on the body label, confirming compliance for North American and European industrial applications including conveyor position detection, machine guarding, and part-present verification on automated assembly equipment.
Product Specifications
| Manufacturer Part Number | XSAV01801 |
| Brand | Telemecanique Sensors (Schneider Electric) |
| Sensor Type | Inductive Proximity Sensor |
| Body Style | Cylindrical |
| Thread Size | M18 x 1 |
| Output Type | NC (Normally Closed) |
| Wiring Configuration | 2-Wire |
| Supply Voltage | 24–240V AC/DC |
| Shielding | Shielded (flush mount) |
| Nominal Sensing Range (Sn) | 5 mm |
| Connection Type | Non-terminated cable (bare wire ends) |
| Cable Colors | Brown, Blue |
| Body Material | Nickel-plated brass |
| Certifications | CE, UL, UKca |
| Condition | New |
| Cable Length (approx.) | 2 m |
