Tennant 385685 14VDC 0.1A Liquid Level Sensor

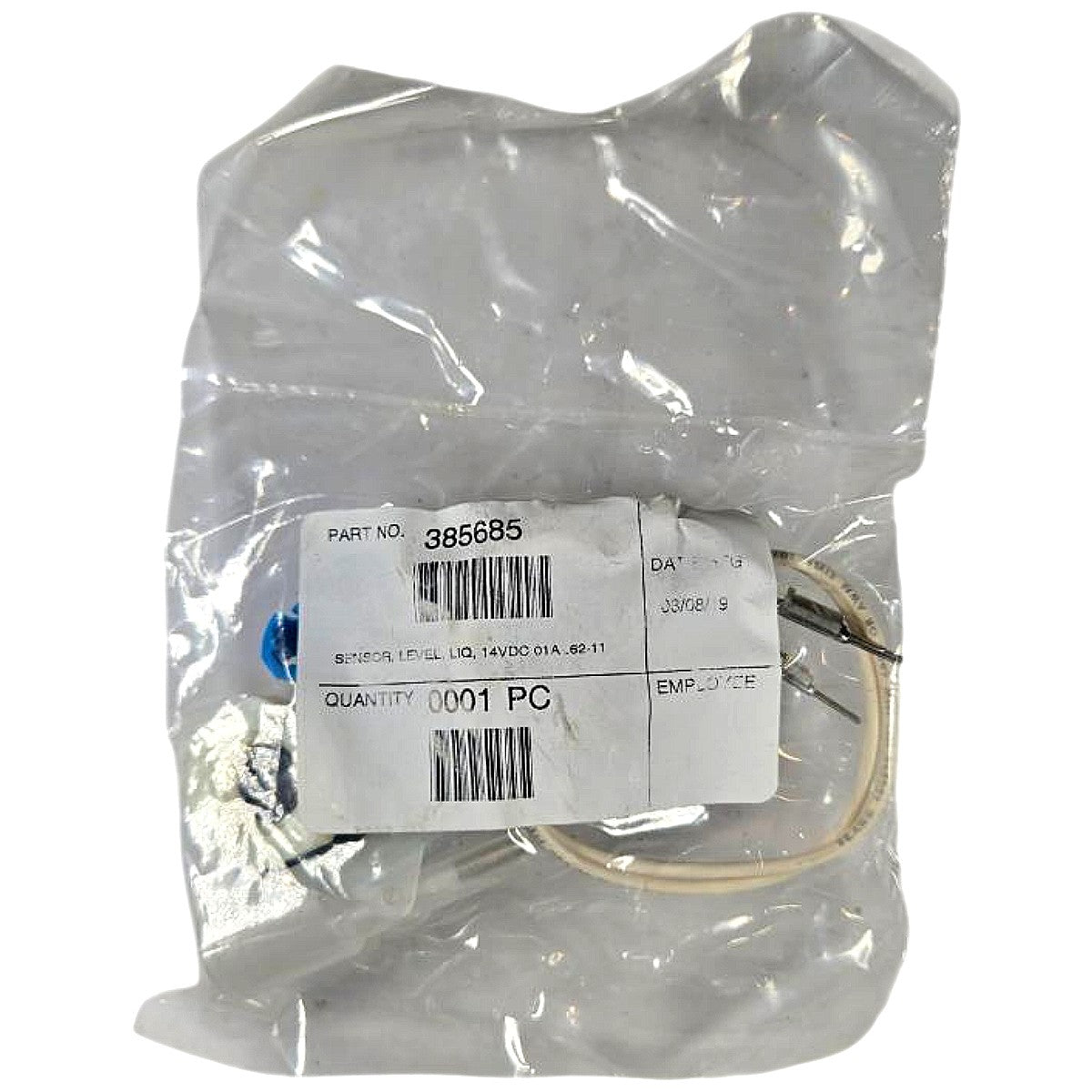

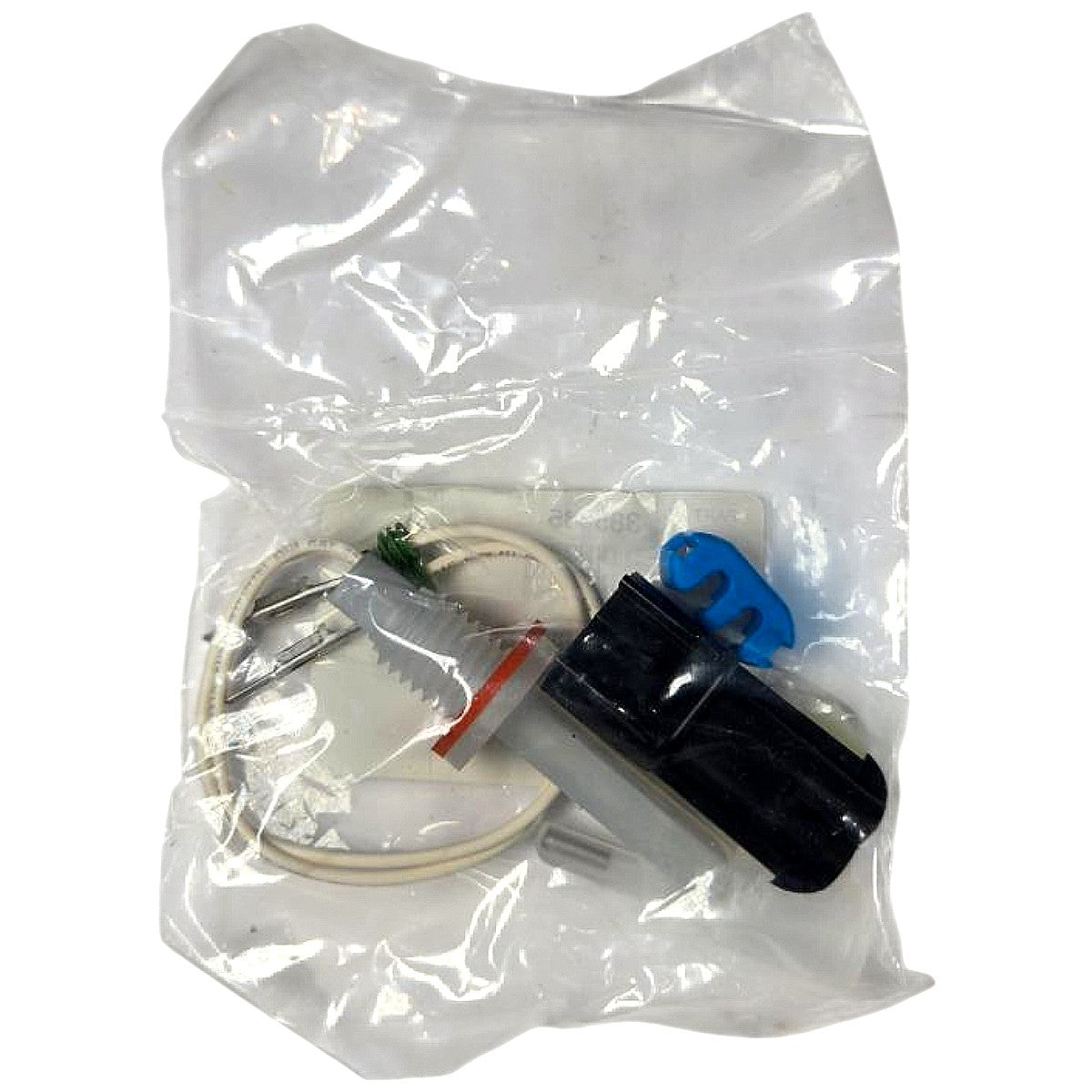

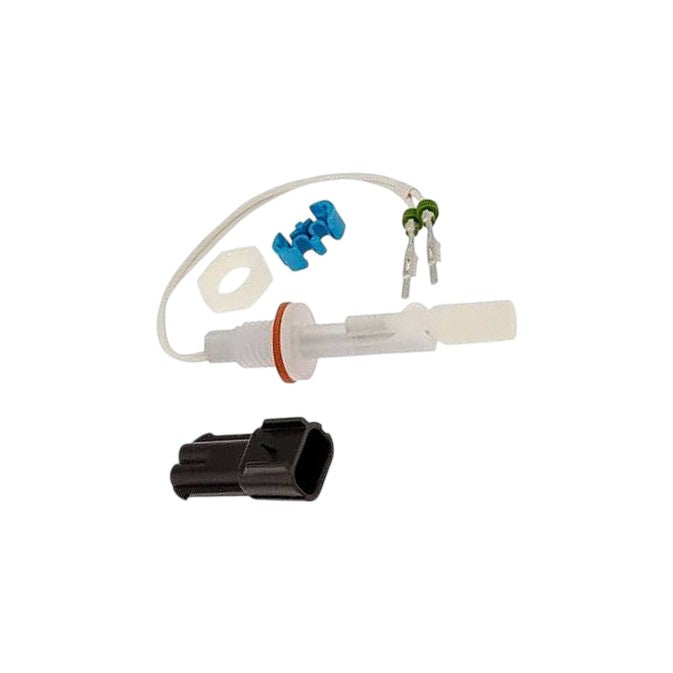

The Tennant 385685 is a new OEM liquid level sensor assembly designed for use in Tennant floor scrubbers and sweepers, operating at 14VDC with a maximum current draw of 0.1A. The kit includes the threaded probe body with O-ring seal (visible orange O-ring on the body), a hex lock nut, blue secondary lock clip, two crimp pin terminals, two green resistors/diodes integrated into the circuit lead, and a black 2-position weather-pack style connector housing — all components required for a complete installation or replacement. The probe body is constructed of white nylon/plastic and mounts through a panel or tank wall using the threaded body and jam nut, sealed by the O-ring to prevent fluid ingress; the part number label on the bag confirms the description "SENSOR, LEVEL, LIQ, 14VDC 01A .62-11," where ".62-11" likely denotes thread or probe dimensions. This sensor monitors solution or recovery tank liquid levels and triggers a warning or shutoff signal in the machine's control circuit; it is a direct OEM replacement sourced as a factory-packaged single-piece unit dated 03/08/19.

Product Specifications
