ThinBit LGT050D2R Groove'N Turn 0.050 in Width Carbide Grooving Insert
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

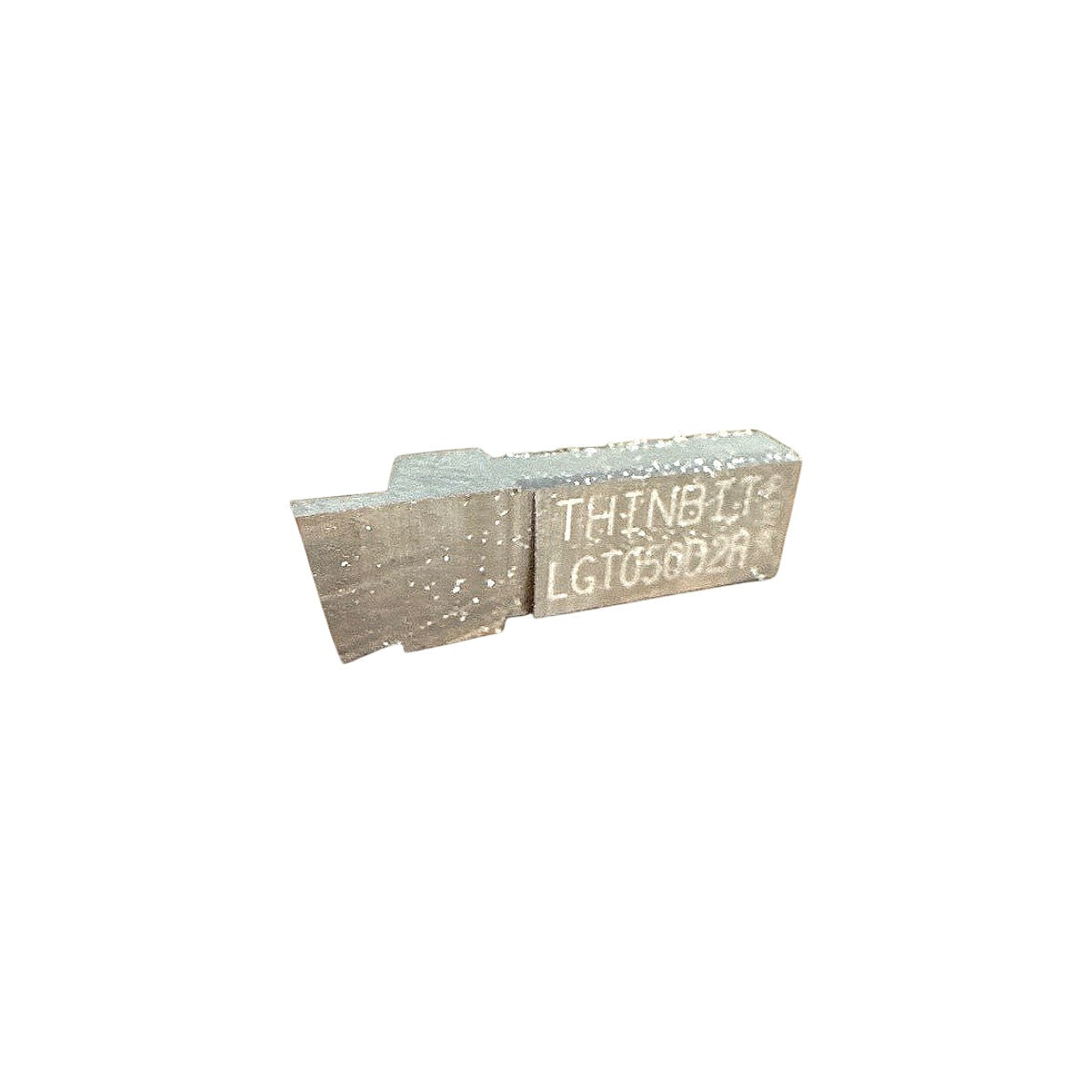

The ThinBit LGT050D2R is a new, uncoated solid carbide Groove'N Turn insert manufactured by Kaiser Tool Company (Fort Wayne, IN, USA) for use in ThinBit LGTB-series toolholders. Decoding the MPN: "LGT" = Groove'N Turn insert family; "050" = 0.050 in (1.27 mm) groove width; "D" = carbide grade D (uncoated submicron carbide, suited for non-ferrous metals, plastics, and aluminum); "2" = insert height/body size 2; "R" = right-hand cutting direction. The insert features a flat-top geometry designed for clean, narrow grooving and light turning on CNC lathes, with a square-shouldered profile that produces a flat groove bottom. Compatible ThinBit toolholders in the LGTB2 series accept this insert directly, clamping mechanically without a screw for rapid indexing. Typical applications include O-ring grooves, snap-ring grooves, and narrow parting operations in aluminum, brass, copper, and plastics.
Product Specifications
| Brand | ThinBit (Kaiser Tool Company) |
| MPN | LGT050D2R |
| Insert Family | Groove'N Turn (LGT series) |
| Groove Width | 0.050 in (1.27 mm) |
| Cutting Direction | Right-Hand |
| Body Size | 2 |
| Carbide Grade | D (uncoated submicron carbide) |
| Coating | Uncoated |
| Recommended Materials | Aluminum, brass, copper, plastics, non-ferrous |
| Compatible Toolholder Series | ThinBit LGTB2 series |
| Country of Origin | USA |
| Condition | New |
