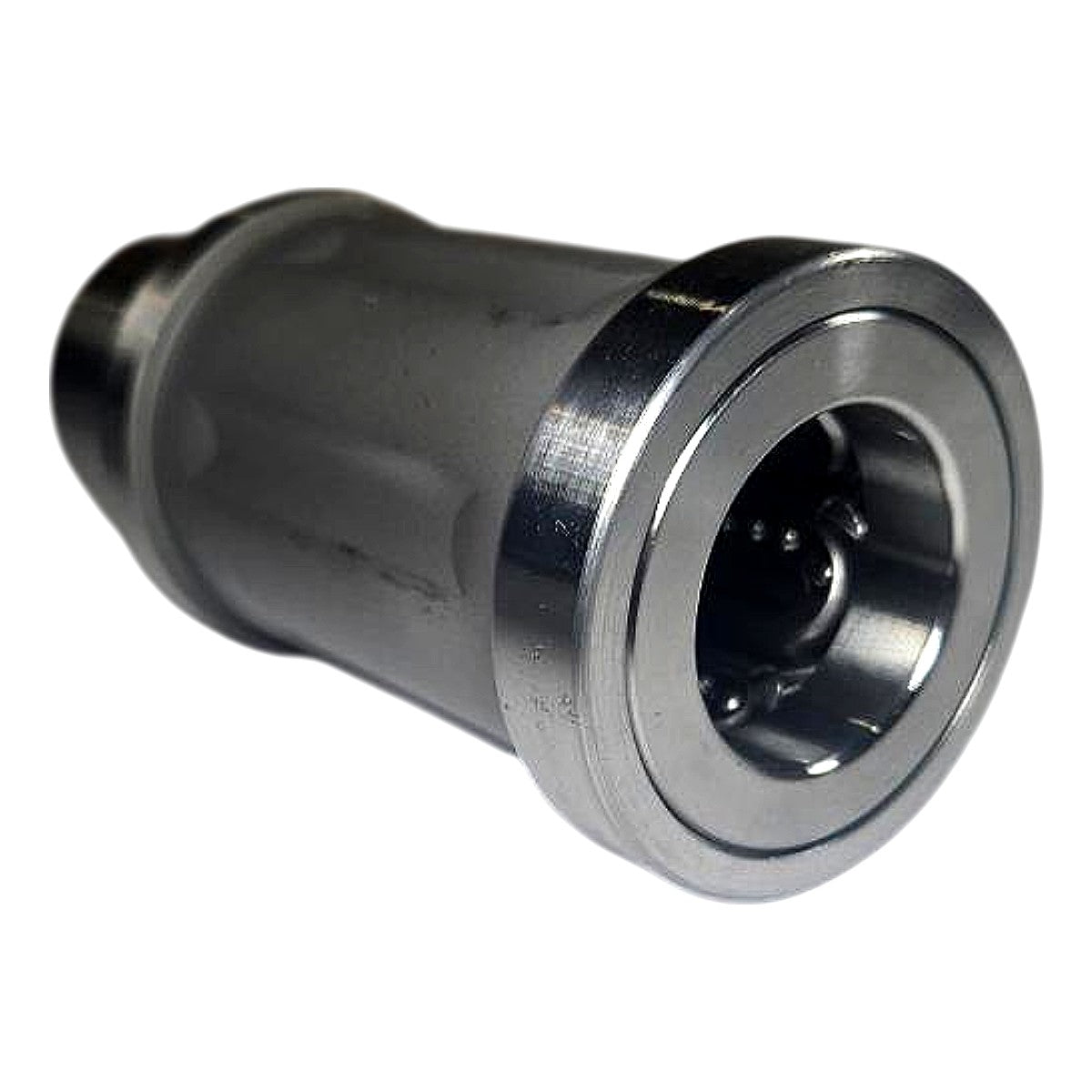

Thomson DS24 1-1/2 in Dynamic 770 Lb Capacity Die Set Linear Bushing

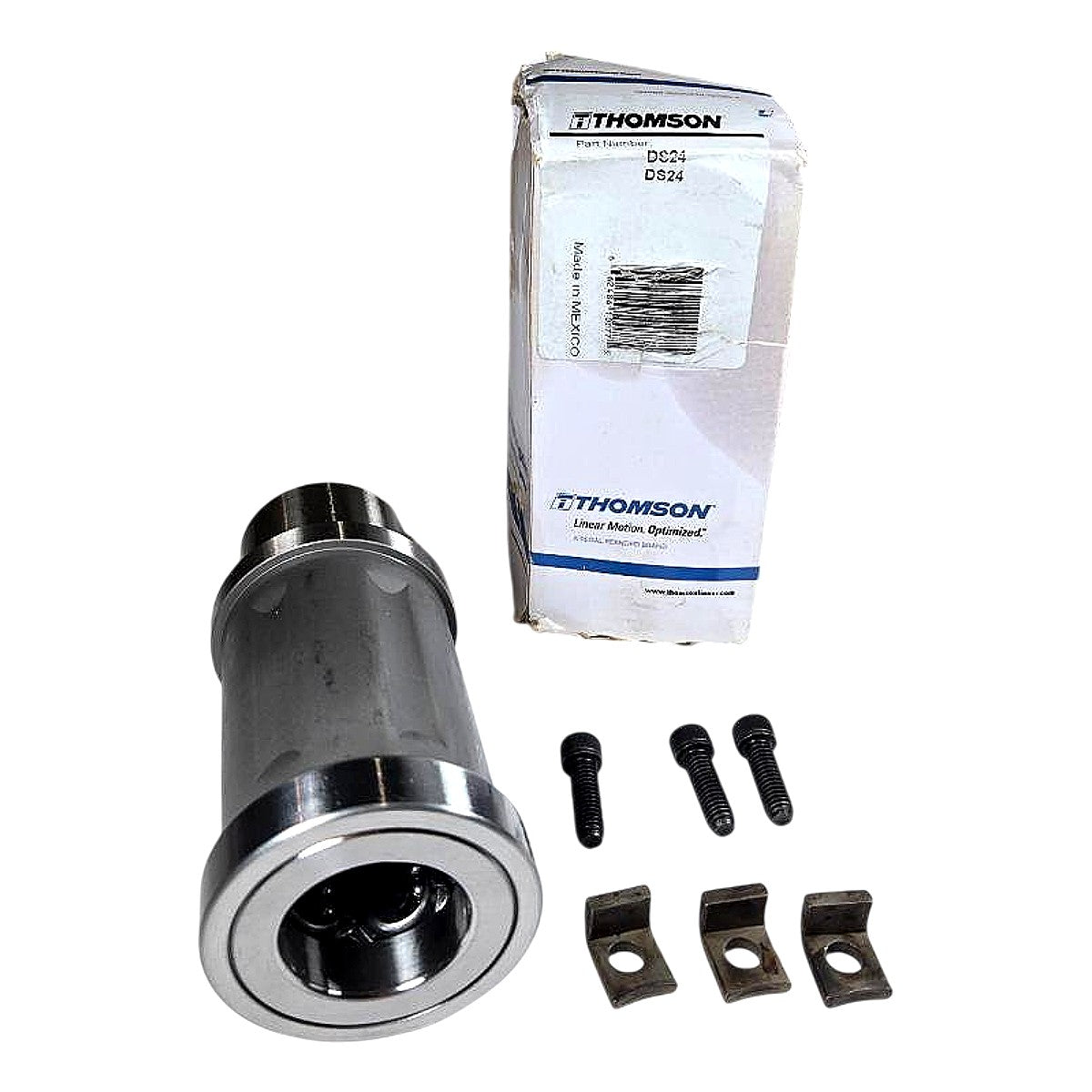

The Thomson DS24 is a new Die Set Linear Ball Bushing designed for precision linear motion guidance in stamping and punch-press die sets. The "DS" series designation indicates a Die Set configuration with a flanged, self-retaining design that accepts standard 1-1/2 in (nominal) die set shafts; the "24" encodes the shaft size in sixteenths of an inch (24/16 = 1-1/2 in bore). The bushing delivers a dynamic load capacity of 770 lbs and uses recirculating steel ball circuits arranged in multiple rows for smooth, low-friction travel with consistent precision. Construction is hardened steel throughout, and the unit ships complete with three socket-head cap screws and three retaining clamp plates (visible in photos) for secure flange mounting in the die shoe. Thomson DS-series bushings are direct replacements in standard die set assemblies and conform to Thomson's published Die Set Bushing dimensional standards for this bore size.

Product Specifications
