Titan USA TC18924 3/8in 142° 2-Flute Carbide NC Spot Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

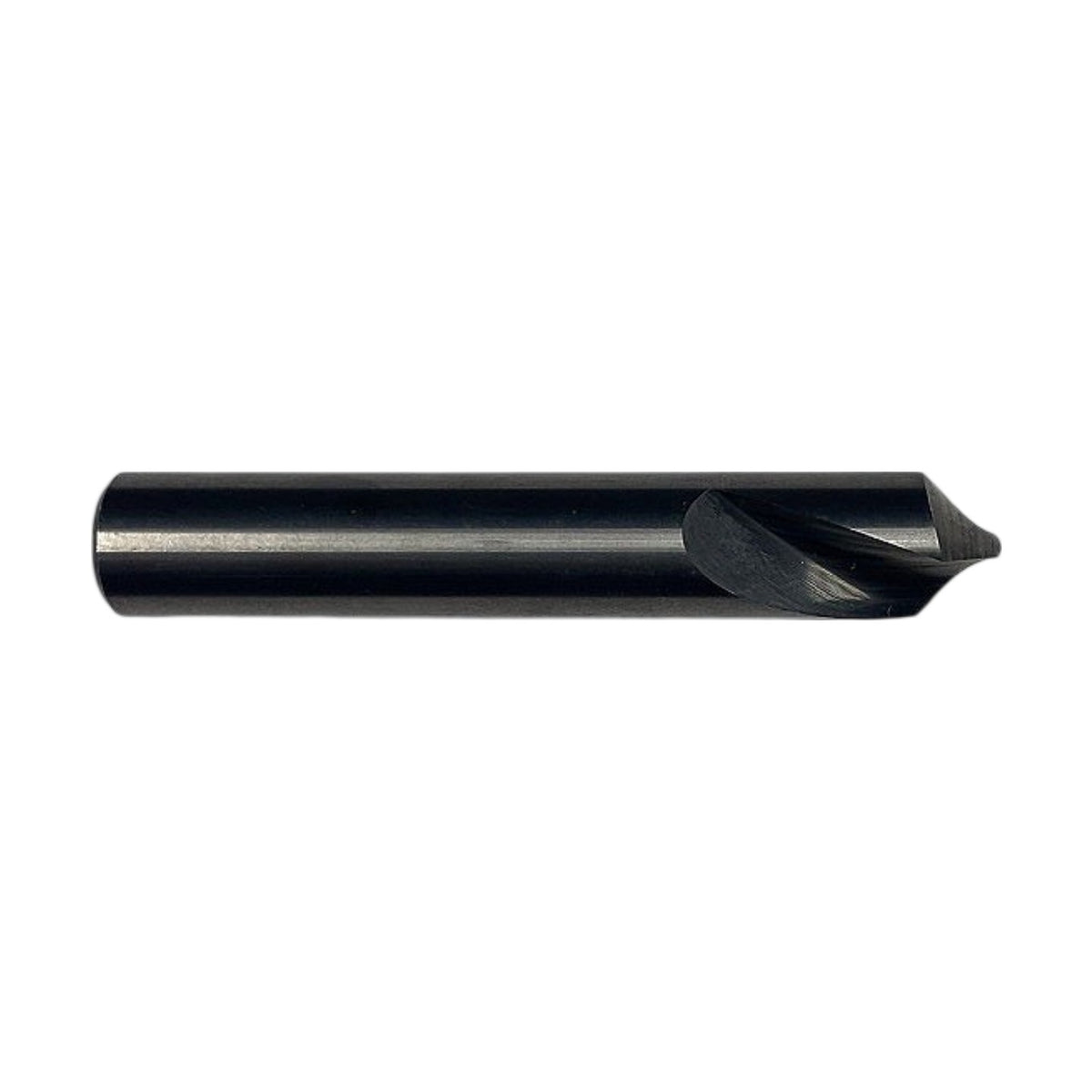

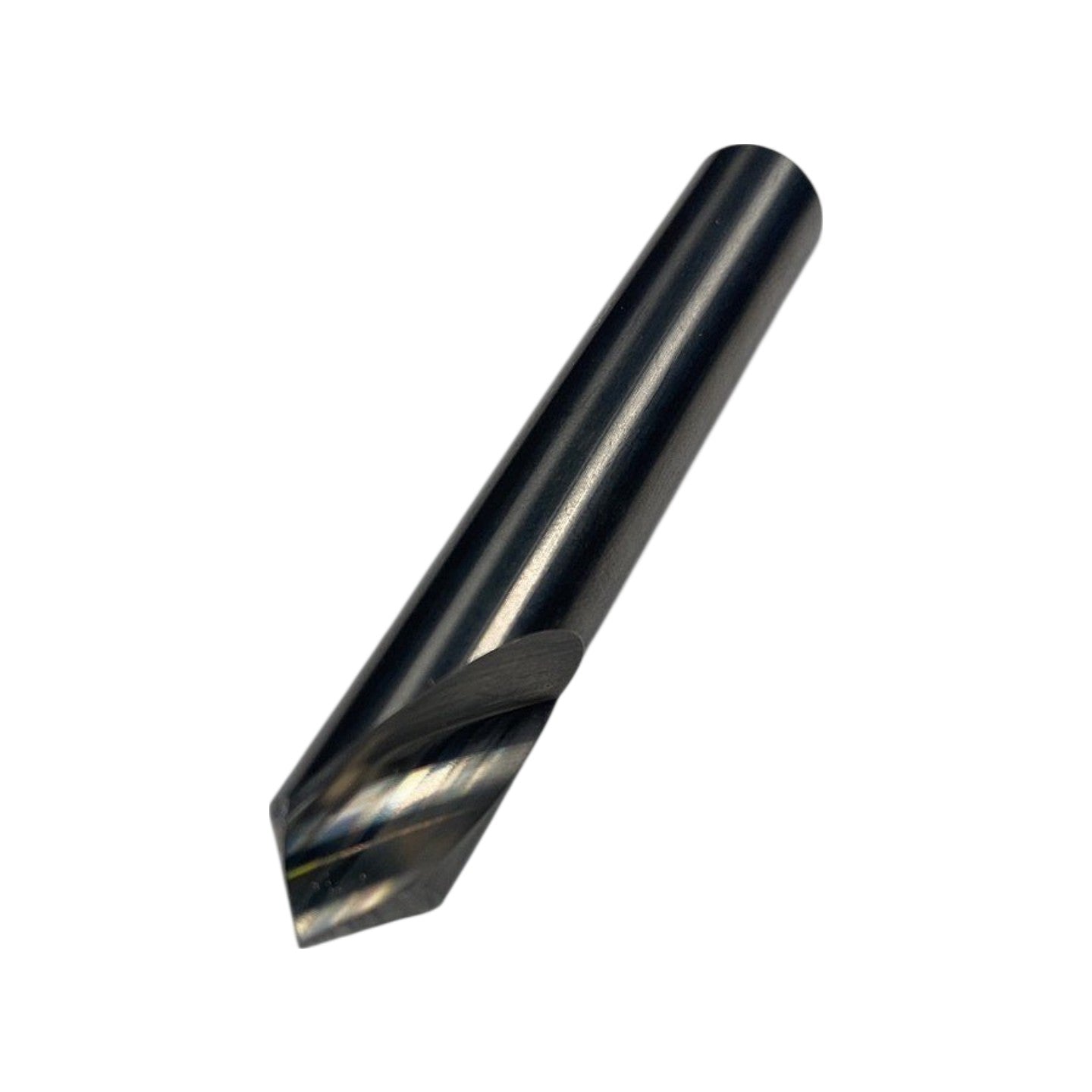

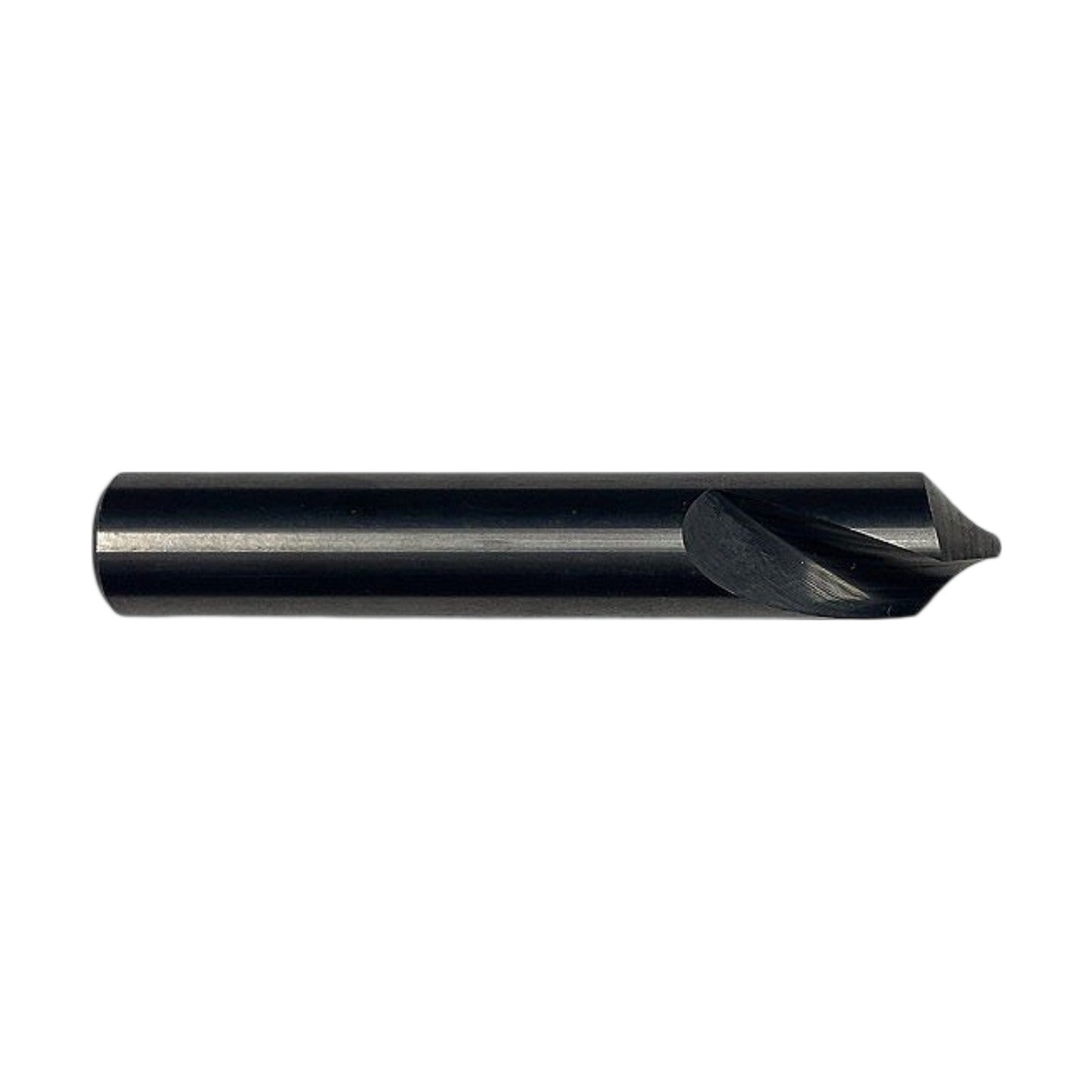

This is a new Titan USA TC18924 solid micrograin carbide NC spot drill, 3/8 in diameter, ground to a 142° included point angle specifically optimized for spotting prior to drilling with standard 135°–140° split-point drill bits, ensuring accurate hole location without a pilot. The tool features a single-flute (S/C — single cut) helical geometry with 1 in length of flute (LOF) and 3 in overall length (OAL), manufactured from submicron micrograin carbide substrate for superior rigidity and edge retention compared to HSS spot drills. Made in the USA, the darker tool shown indicates an AlTiN or similar PVD coating (the uncoated example shows bright carbide), making it suited for hardened steels, stainless, and aerospace alloys in CNC machining centers with 3/8 in ER or end mill collet chucks. The 142° point angle produces a chamfer-free spot that accepts standard jobber drill geometry without bell-mouthing, and the short flute length maximizes stiffness to prevent deflection in precision hole location applications.
Product Specifications
| Brand | Titan USA |
| Part Number (MPN) | TC18924 |
| Tool Type | NC Spot Drill |
| Diameter | 3/8 in (0.375 in) |
| Point Angle | 142° |
| Number of Flutes | 2 (S/C single cut) |
| Length of Flute (LOF) | 1 in |
| Overall Length (OAL) | 3 in |
| Shank Diameter | 3/8 in |
| Material / Substrate | Solid Micrograin Carbide |
| Coating | AlTiN PVD (dark tool); uncoated variant also available |
| Country of Origin | USA |
| Shank Type | Straight (cylindrical) |
| Compatible Holders | 3/8 in ER collet chuck, end mill holder |
| Condition | New |
