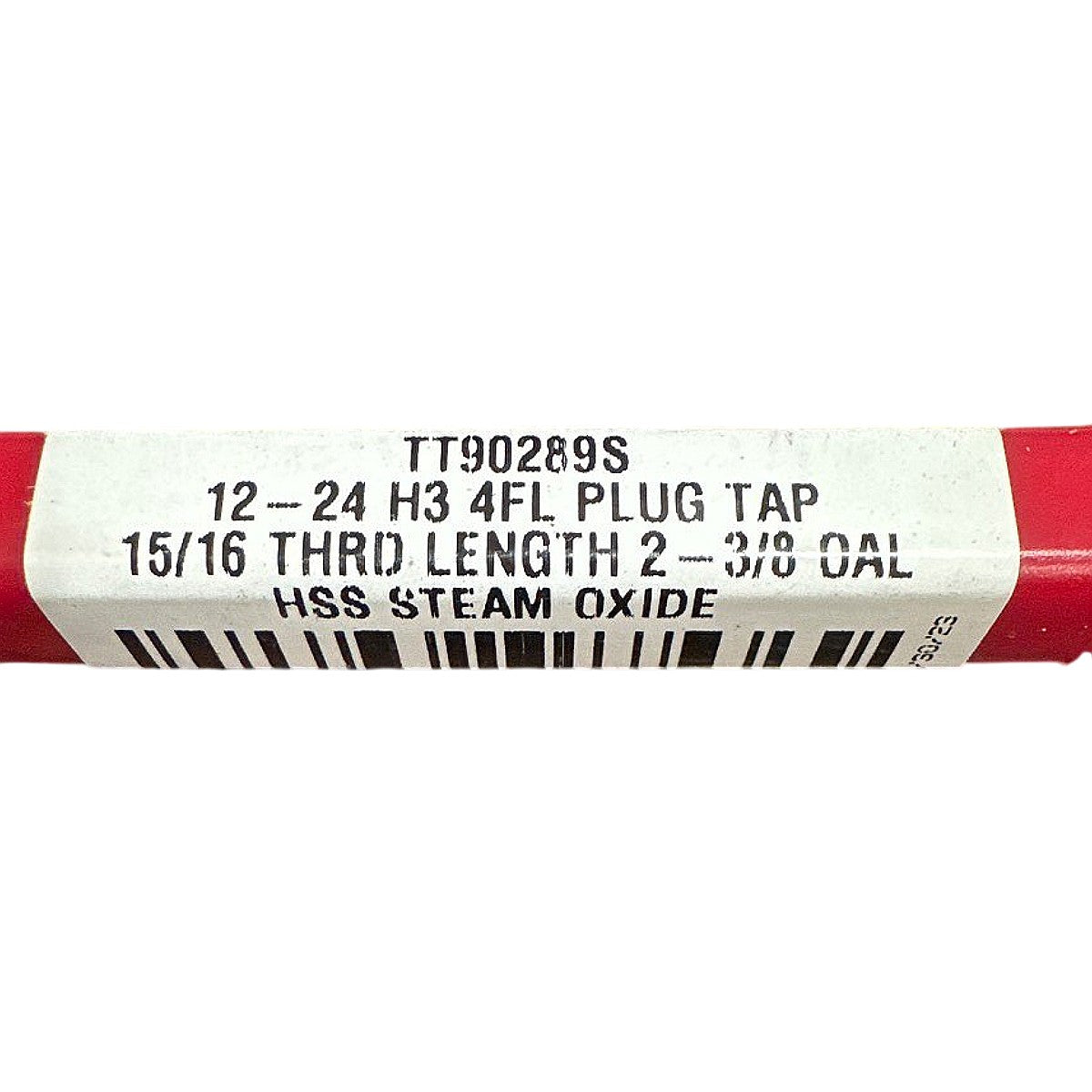

The Titan USA TT90289S is a new #12-24 UNC plug-style hand/machine tap manufactured in the USA from high-speed steel (HSS) with a steam oxide finish, which provides enhanced lubricity and corrosion resistance compared to bright finish taps. It features 4 straight flutes, an H3 pitch diameter tolerance class (0.0005–0.0010 in. over basic), a thread length of 15/16 in., and an overall length of 2-3/8 in. — all confirmed directly from the label. The plug chamfer (3–5 thread lead) makes it suitable for both through-hole and blind-hole threading where sufficient chip clearance exists, and the 4-flute geometry provides rigidity for use in tapping machines, CNC machining centers, or hand tapping of ferrous and non-ferrous materials. The H3 tolerance is compatible with standard 2B thread class fits in steels, cast iron, and aluminum.
Product Specifications
| Brand | Titan USA |
| MPN | TT90289S |
| Thread Size | #12-24 UNC |
| Tap Style | Plug |
| Number of Flutes | 4 |
| Pitch Diameter Tolerance | H3 |
| Thread Length | 15/16 in |
| Overall Length (OAL) | 2-3/8 in |
| Material | High-Speed Steel (HSS) |
| Coating / Finish | Steam Oxide |
| Flute Type | Straight |
| Chamfer Lead | Plug (3–5 thread lead) |
| Thread Standard | UNC |
| Country of Origin | USA |
| Condition | New |
