Tool-Flo 16ER8UN AC22A Carbide Threading Insert, 8 TPI UN (5 pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

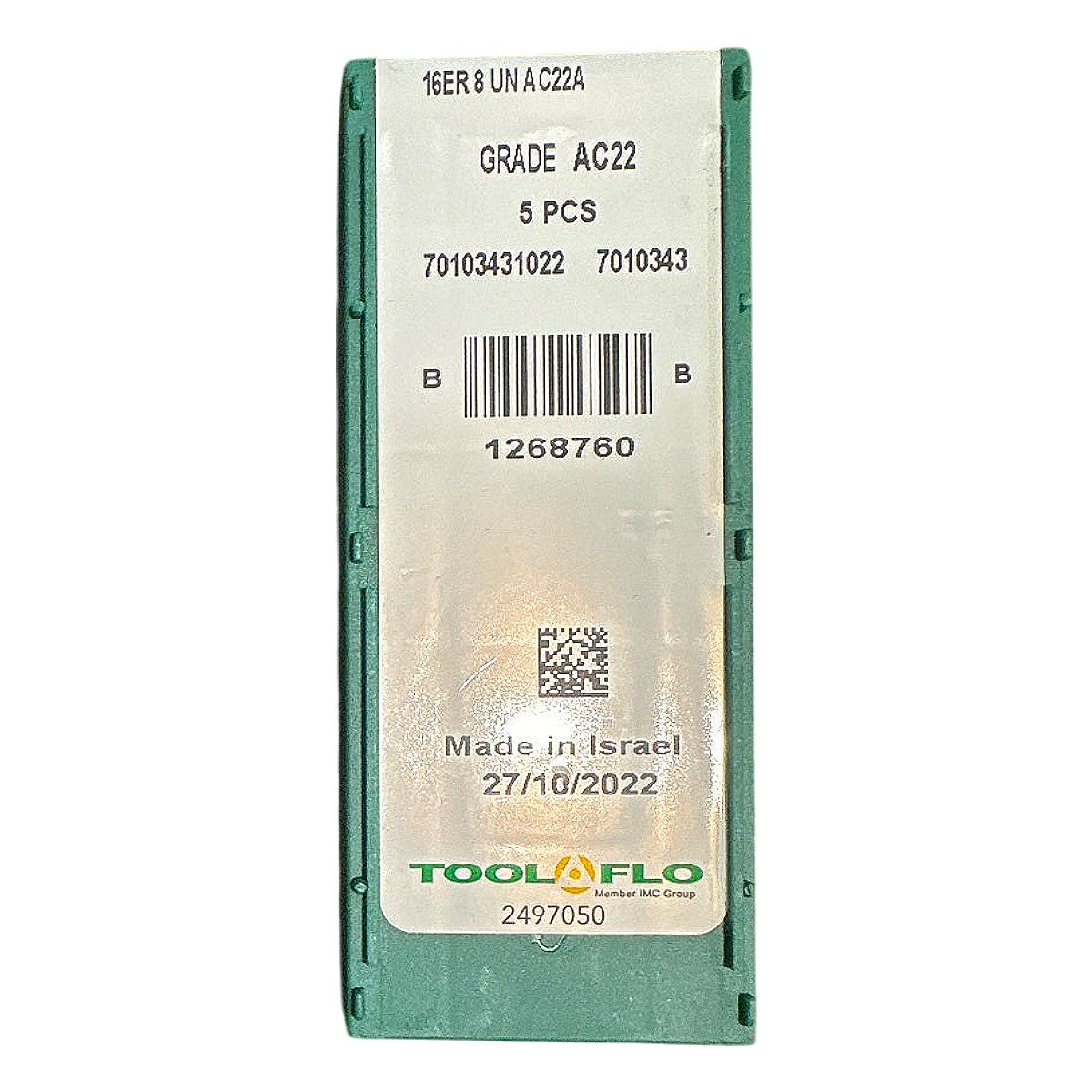

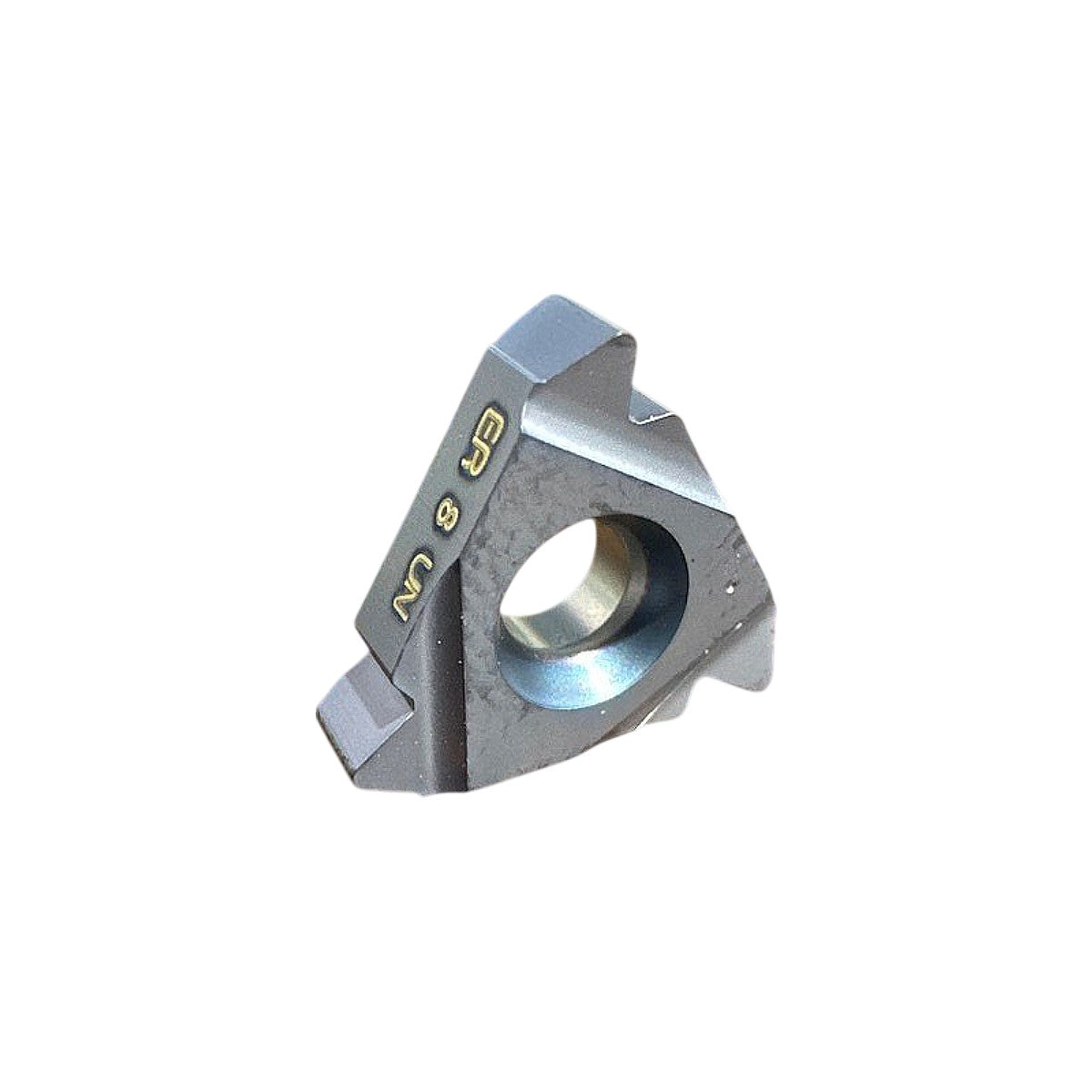

The Tool-Flo 16ER8UN AC22A is a new, indexable carbide external threading insert designed to cut Unified National (UN) thread forms at 8 threads per inch (TPI), in Grade AC22 — a PVD-coated submicron carbide grade engineered by IMC Group (Iscar family) for threading steel, stainless steel, and other difficult-to-machine materials. Decoding the MPN: "16" = 16 mm inscribed circle (IC) triangular insert; "E" = external threading; "R" = right-hand cutting direction; "8" = 8 TPI pitch; "UN" = Unified National thread form; "AC22A" designates the carbide grade and coating. The insert features a 60° thread form profile consistent with UN/UNC/UNF standards, fits standard ER/16 external threading toolholders with a 16 mm IC triangular seat, and is sold in the original factory-sealed cassette of 5 pieces made in Israel (dated 27/10/2022).
Product Specifications
| Brand | Tool-Flo (IMC Group) |
| MPN | 16ER8UN AC22A |
| Part Number (Alt) | 7010343 / 70103431022 |
| Grade | AC22 |
| Insert Size (IC) | 16 mm |
| Insert Shape | Triangular (60° threading profile) |
| Cutting Direction | Right-hand (R) |
| Application | External threading (E) |
| Thread Form | Unified National (UN) — 60° included angle |
| Pitch / TPI | 8 TPI |
| Coating | PVD (AC22 grade) |
| Quantity per Package | 5 pcs |
| Country of Origin | Israel |
| Condition | New (factory sealed) |
| Compatible Toolholder Style | 16 mm IC external threading toolholder |
