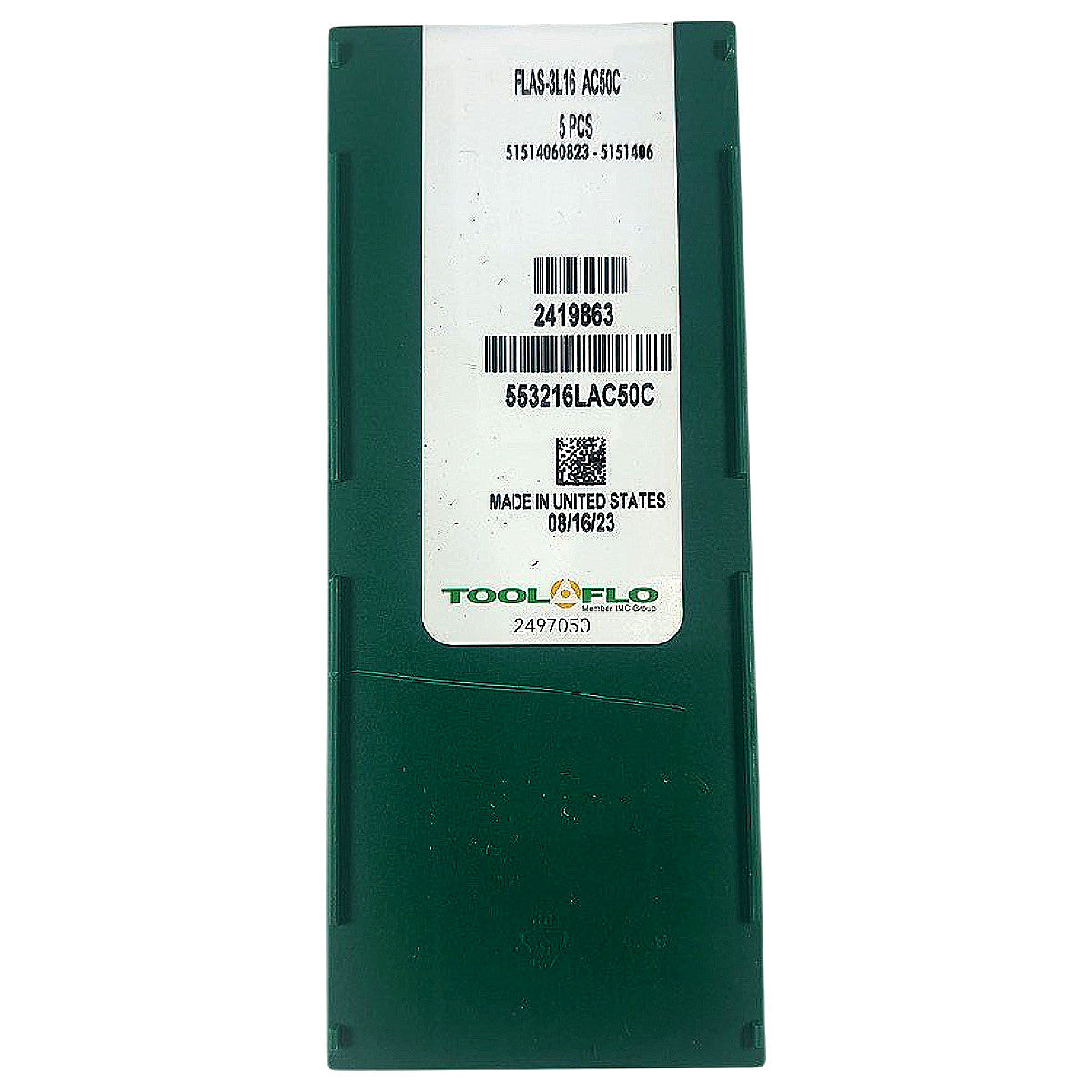

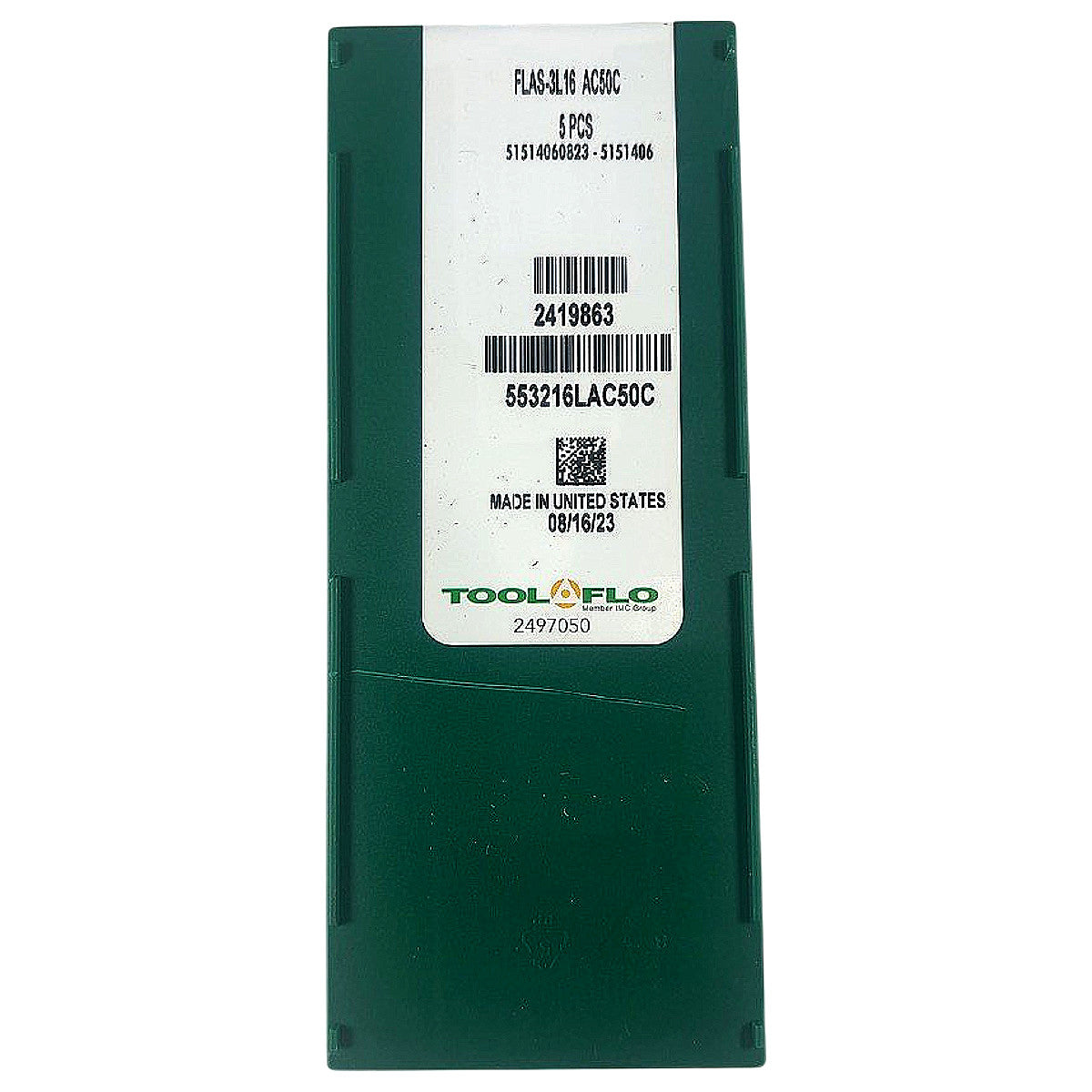

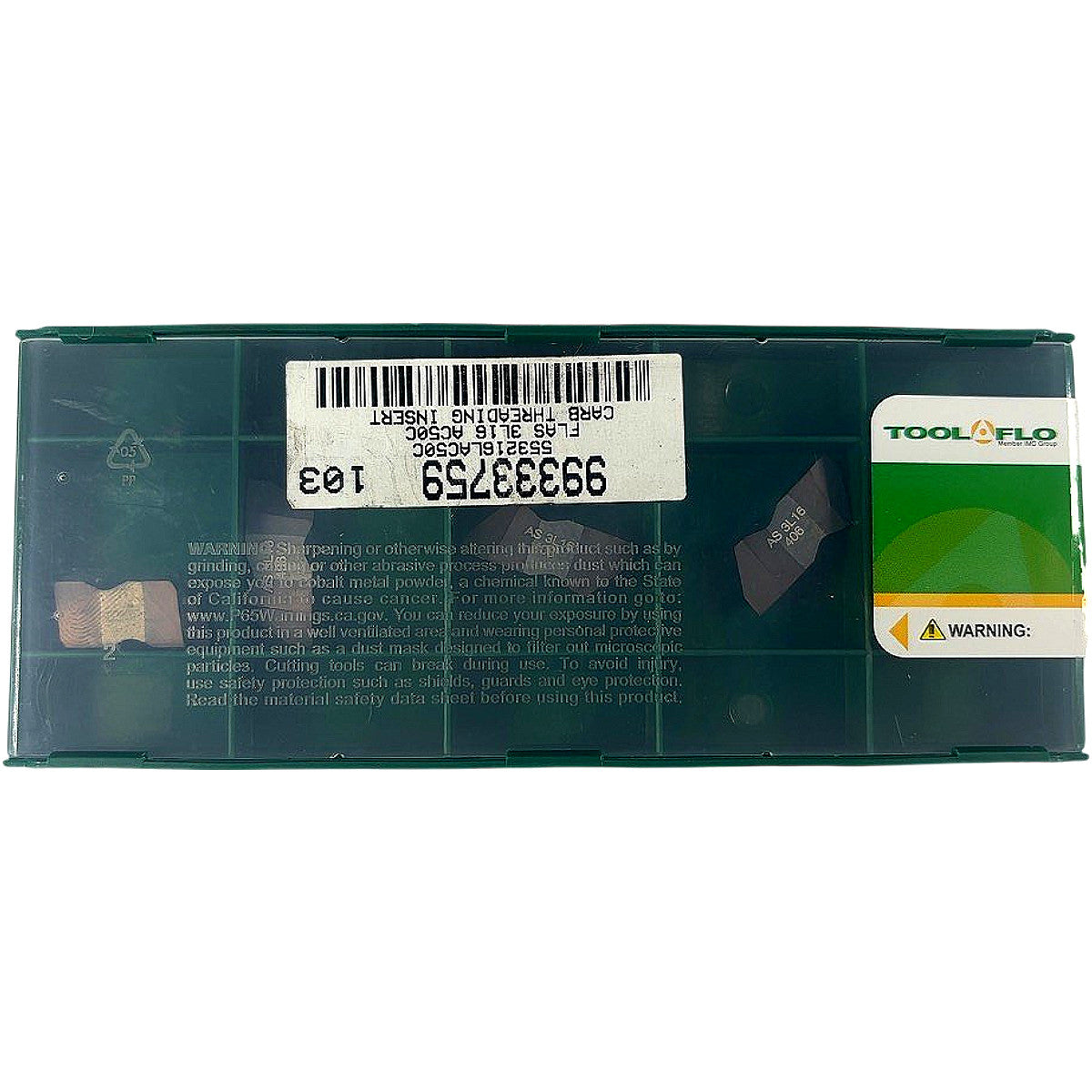

Tool Flo FLAS-3L16 AC50C Carbide Threading Insert (5pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

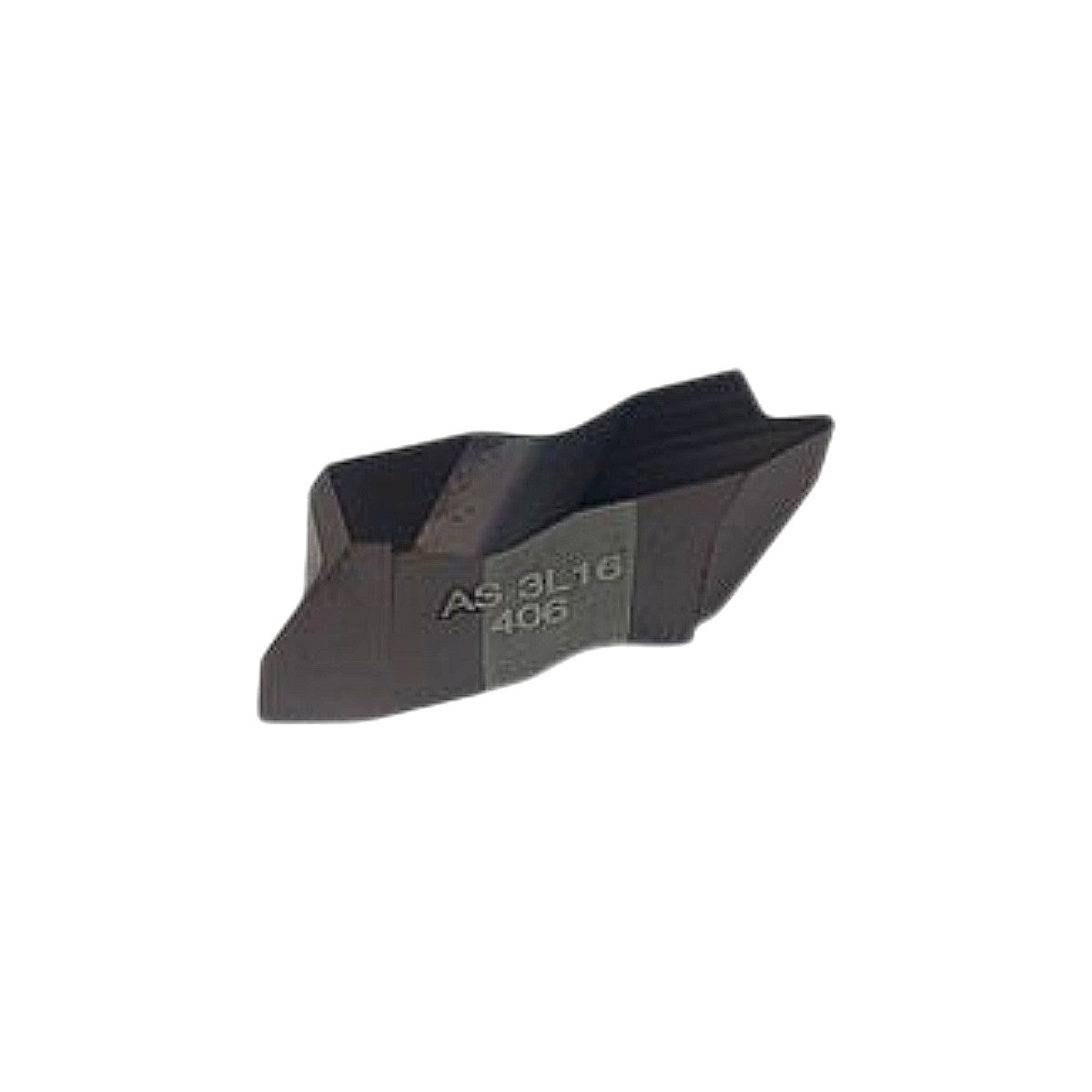

The Tool Flo FLAS-3L16 AC50C is a new, USA-made full-profile laydown-style carbide threading insert designed for external threading on CNC lathes, ground to produce a 60° unified/metric thread form. The designation breaks down as follows: "FLAS" = Full-profile Laydown Acme-style (actually a 60° full-profile laydown insert), "3L" = left-hand cutting direction, "16" = 16 TPI thread pitch, and "AC50C" is Tool Flo's CVD-coated submicron carbide grade optimized for threading steel, stainless steel, and alloy steels at moderate-to-high cutting speeds. The AC50C grade features a TiCN/Al₂O₃ CVD multilayer coating that provides wear resistance and thermal barrier performance for extended tool life in production threading. Each box contains 5 inserts (lot number 553216LAC50C, made 08/16/23) and is compatible with Tool Flo laydown threading toolholders accepting the FLA/FLAS insert style. The insert stamp "AS 3L16 / 406" on the face confirms the 16 TPI pitch, left-hand orientation, and lot traceability.
Product Specifications
| Brand | Tool Flo |
| MPN | FLAS-3L16 AC50C |
| Internal Part No. | 553216LAC50C |
| Insert Style | FLAS – Full-Profile Laydown Threading |
| Hand of Cut | Left-Hand (L) |
| Thread Pitch | 16 TPI |
| Thread Form | 60° Full Profile (UN/Metric) |
| Grade | AC50C |
| Coating | CVD TiCN/Al₂O₃ multilayer |
| Substrate | Submicron carbide |
| Quantity per Box | 5 pcs |
| Country of Origin | USA |
| Condition | New |
| Date of Manufacture | 08/16/2023 |
| Compatible Toolholder Style | Tool Flo FLA/FLAS laydown toolholders |
