Toshiba VT130P9U4400 480V 40KVA 3-Phase AC Variable Frequency Drive

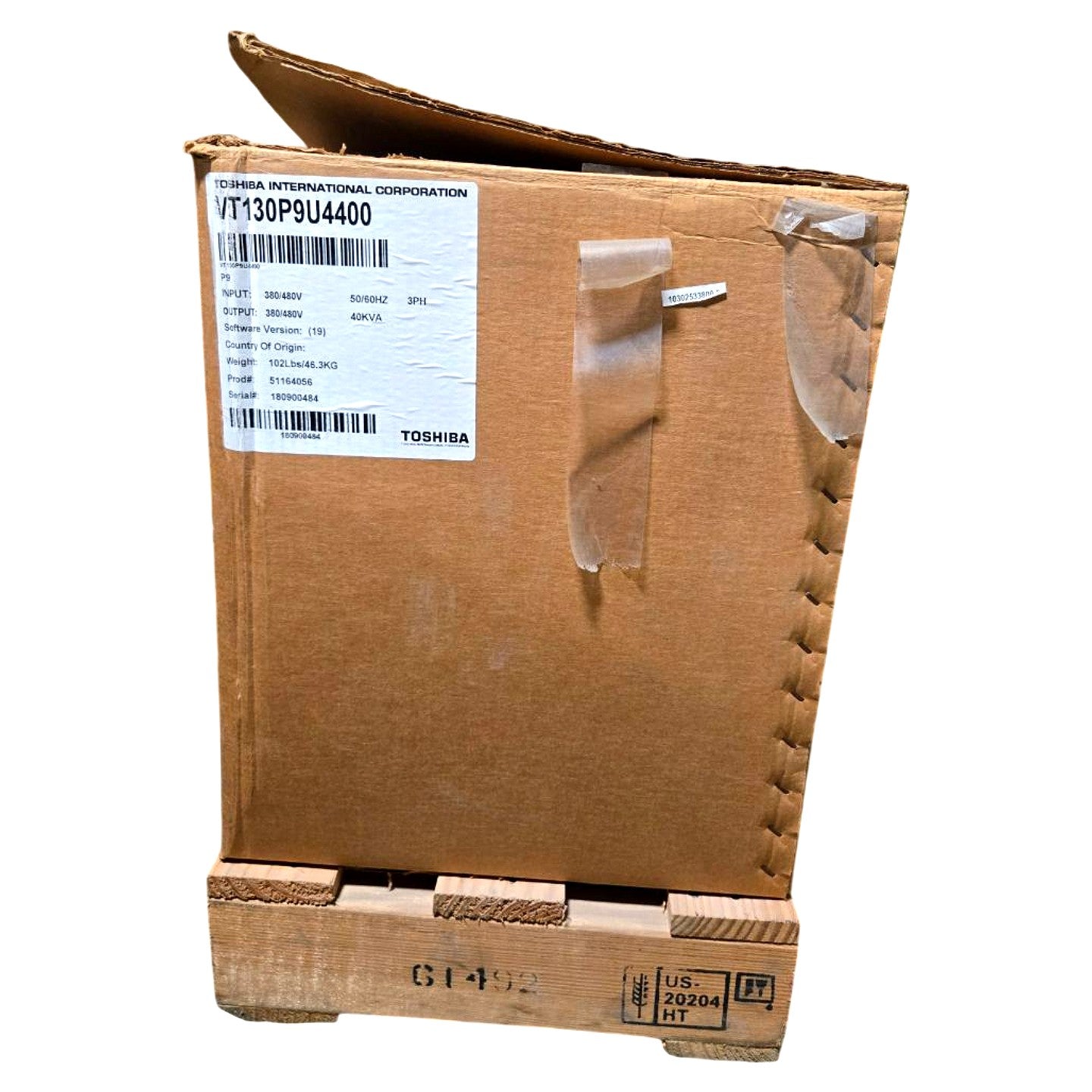

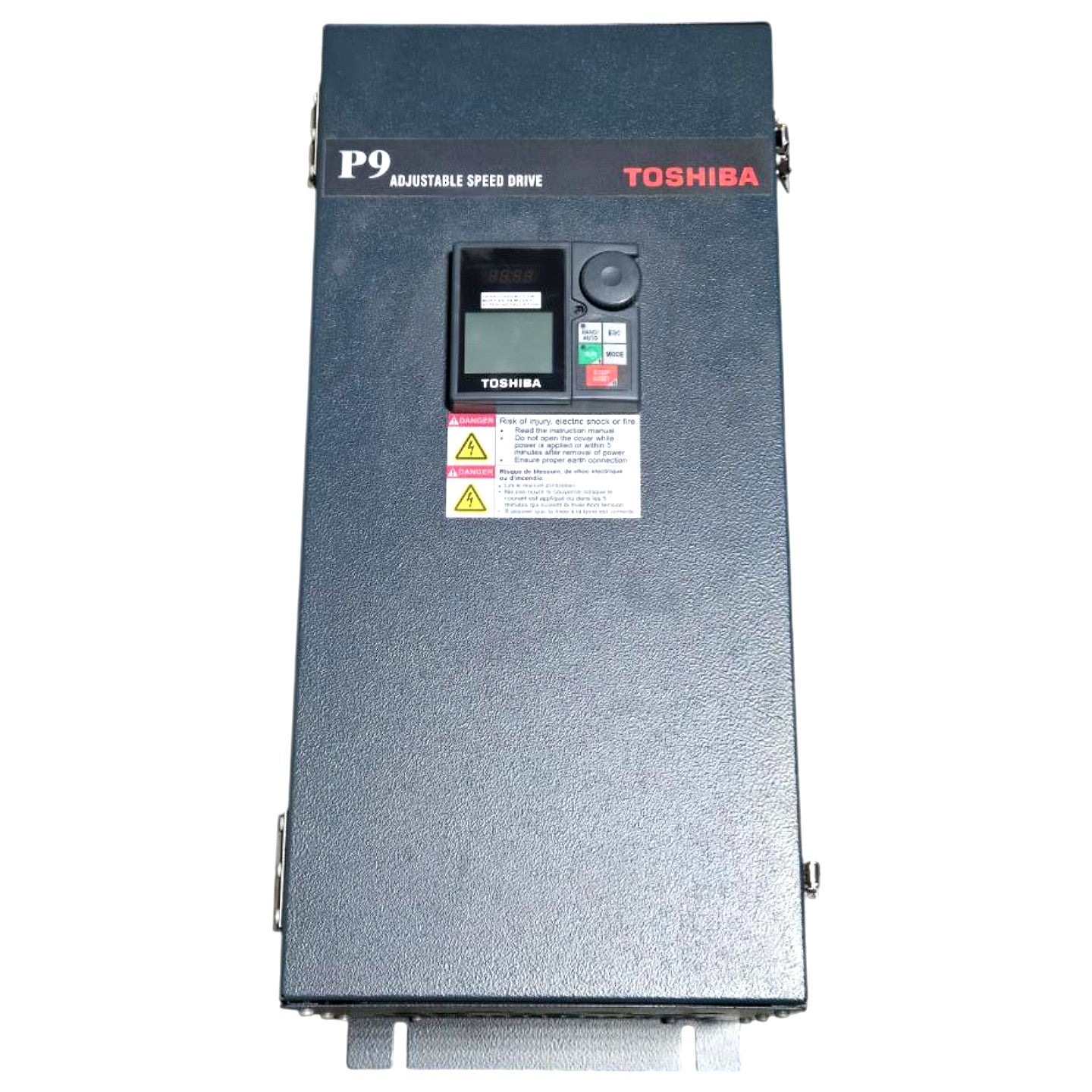

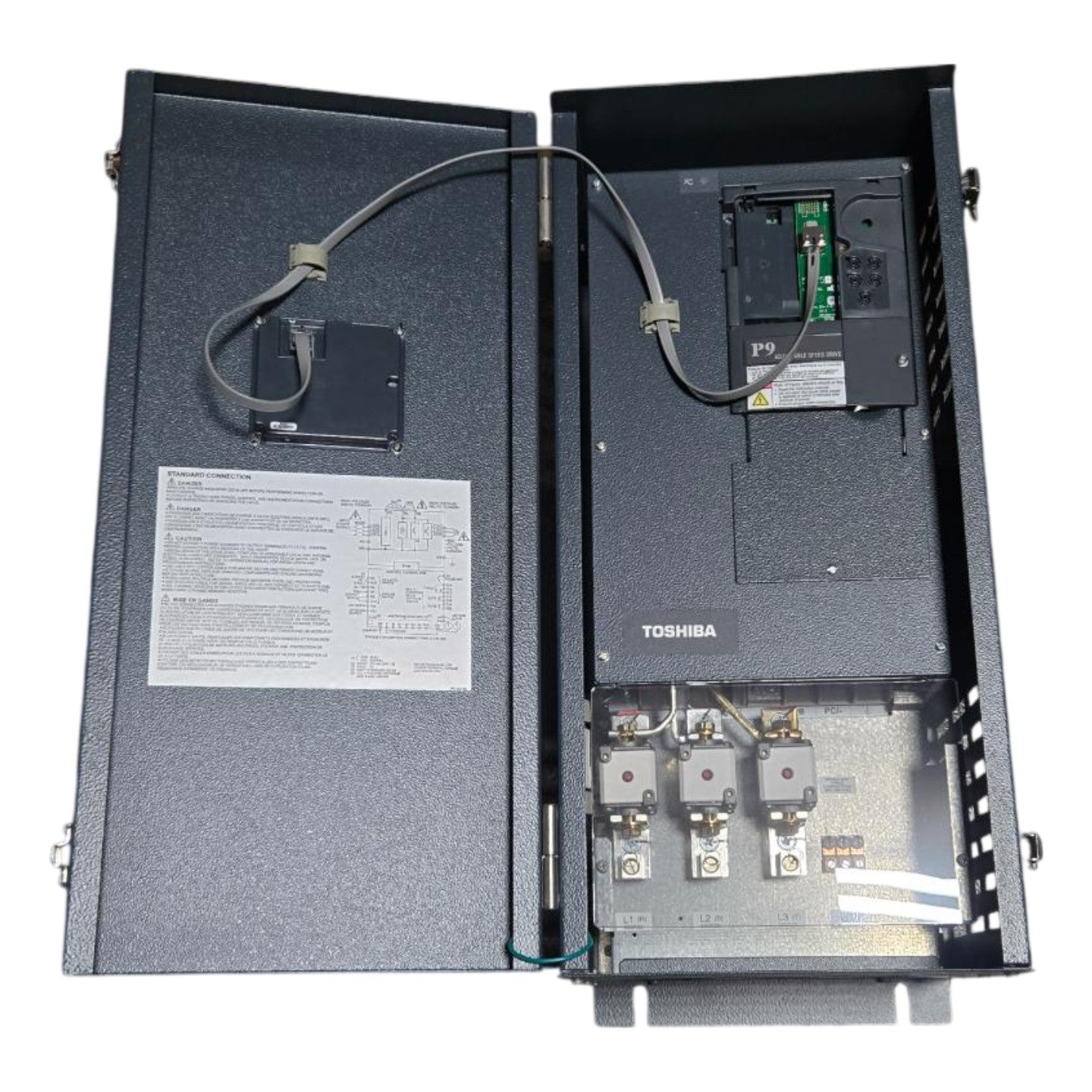

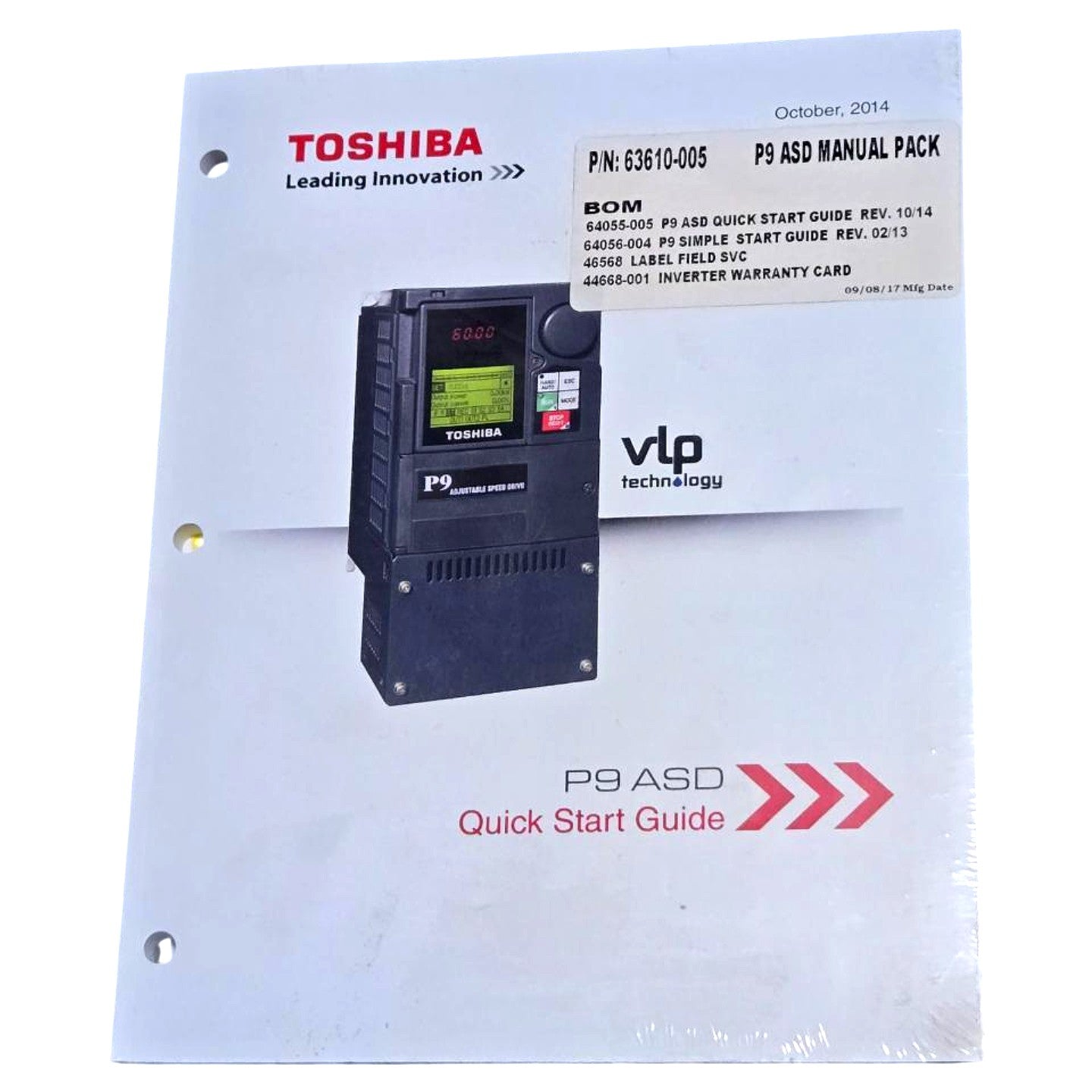

The Toshiba VT130P9U4400 is a new, unused P9 Series Adjustable Speed Drive (ASD) rated for 40 KVA output, accepting 380/480V 3-phase 50/60 Hz input and delivering 380/480V 3-phase output, with software version 19 and a manufacturing date of September 8, 2017 as confirmed by the box label and manual pack. The P9 incorporates Toshiba's VLP (Variable Leakage flux control) technology for V/Hz and sensorless vector control of standard AC induction motors, with an integral HAND/AUTO/ESC/MODE/STOP-START operator interface panel, LCD display, and rotary speed reference potentiometer. This enclosure-mounted unit houses three large bus-bar input terminals (L1, L2, L3) with fused disconnect provisions, a removable control PCB module, and a standard connection wiring diagram on the interior door; it weighs 102 lbs (46.3 kg) per the factory shipping label. Typical applications include HVAC fans, pumps, compressors, and general industrial motor speed control where precise variable-frequency output is required; the unit ships with the original P9 ASD Quick Start Guide (P/N 64055-005 Rev. 10/14), P9 Simple Start Guide (P/N 64056-004 Rev. 02/13), and Inverter Warranty Card per manual pack P/N 63610-005.

Product Specifications
