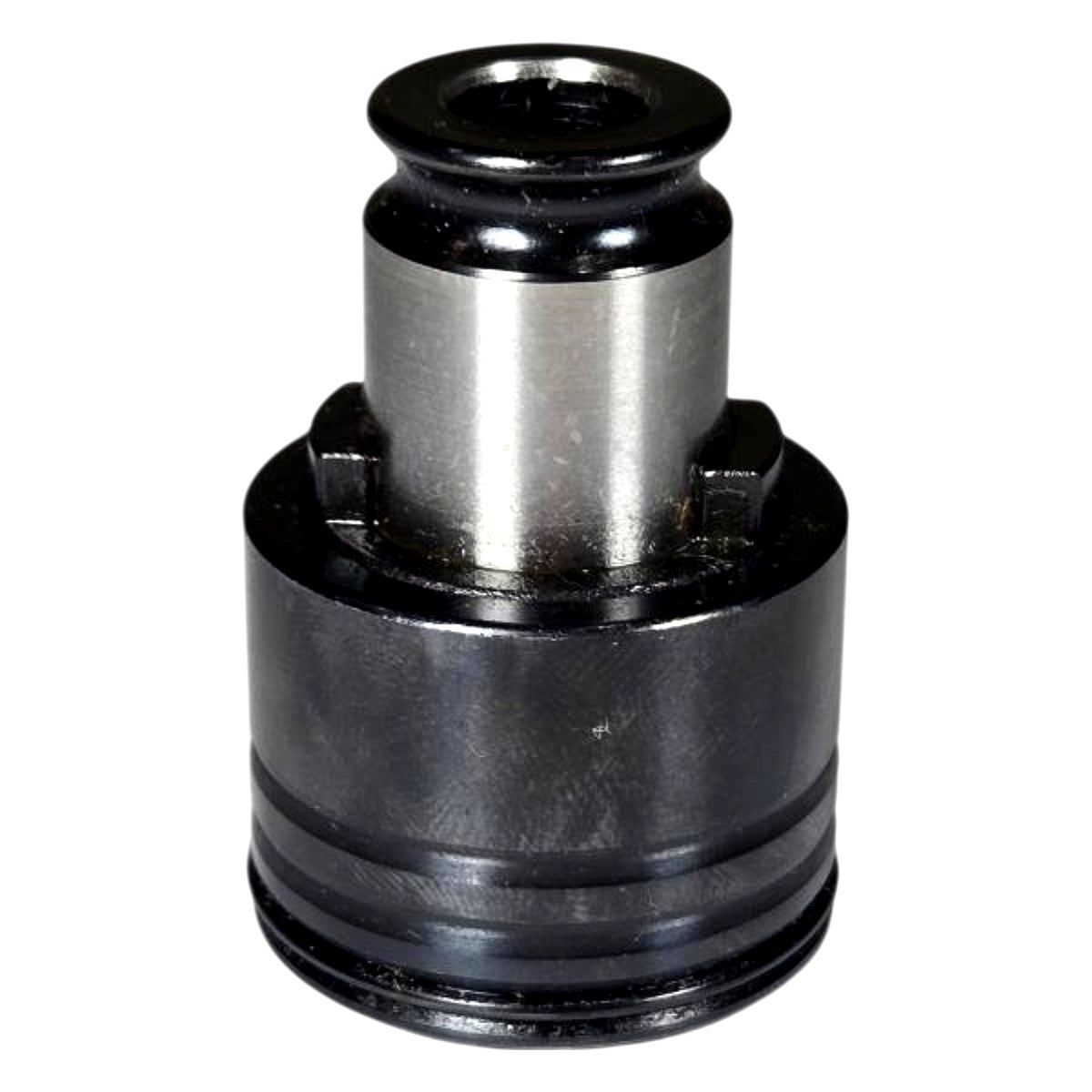

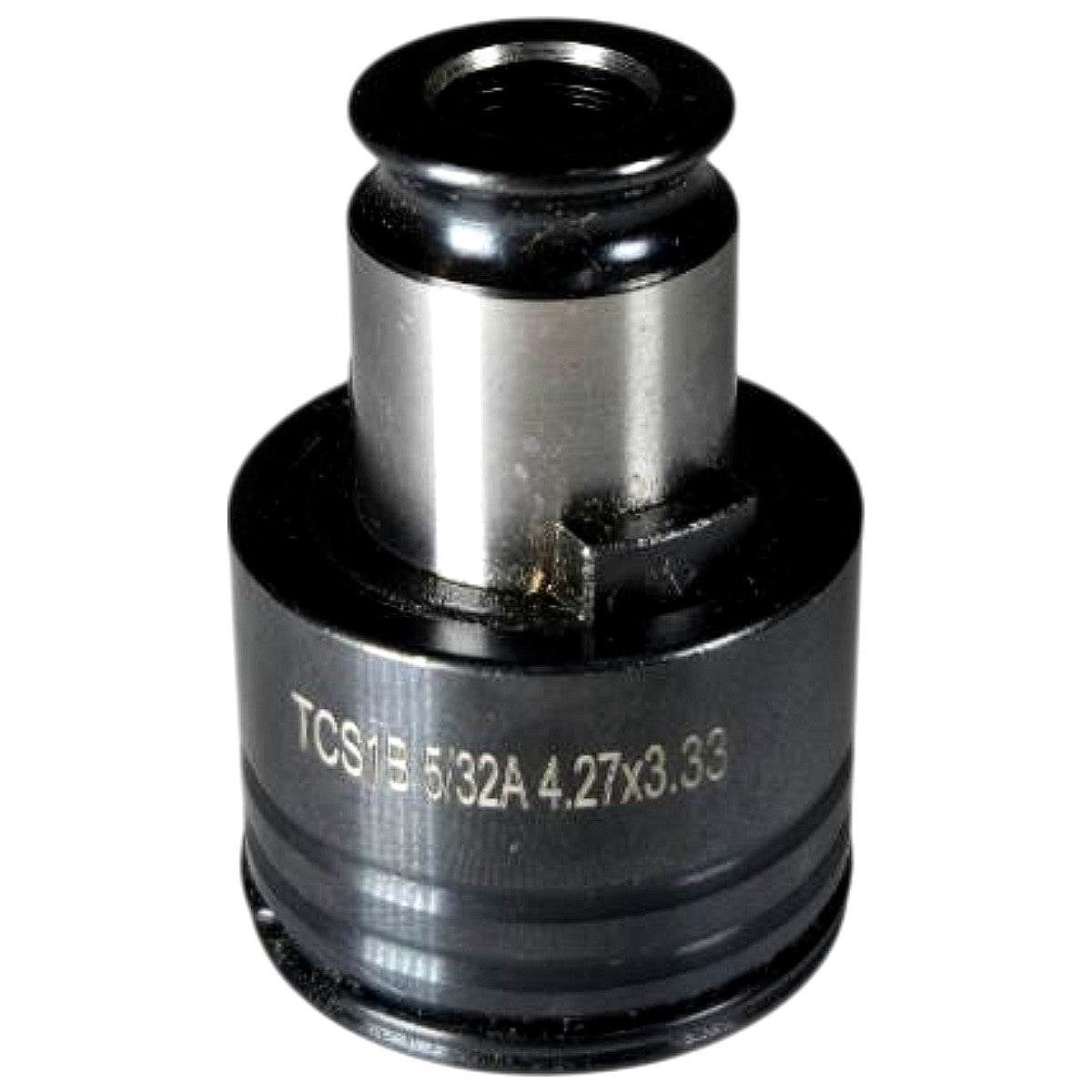

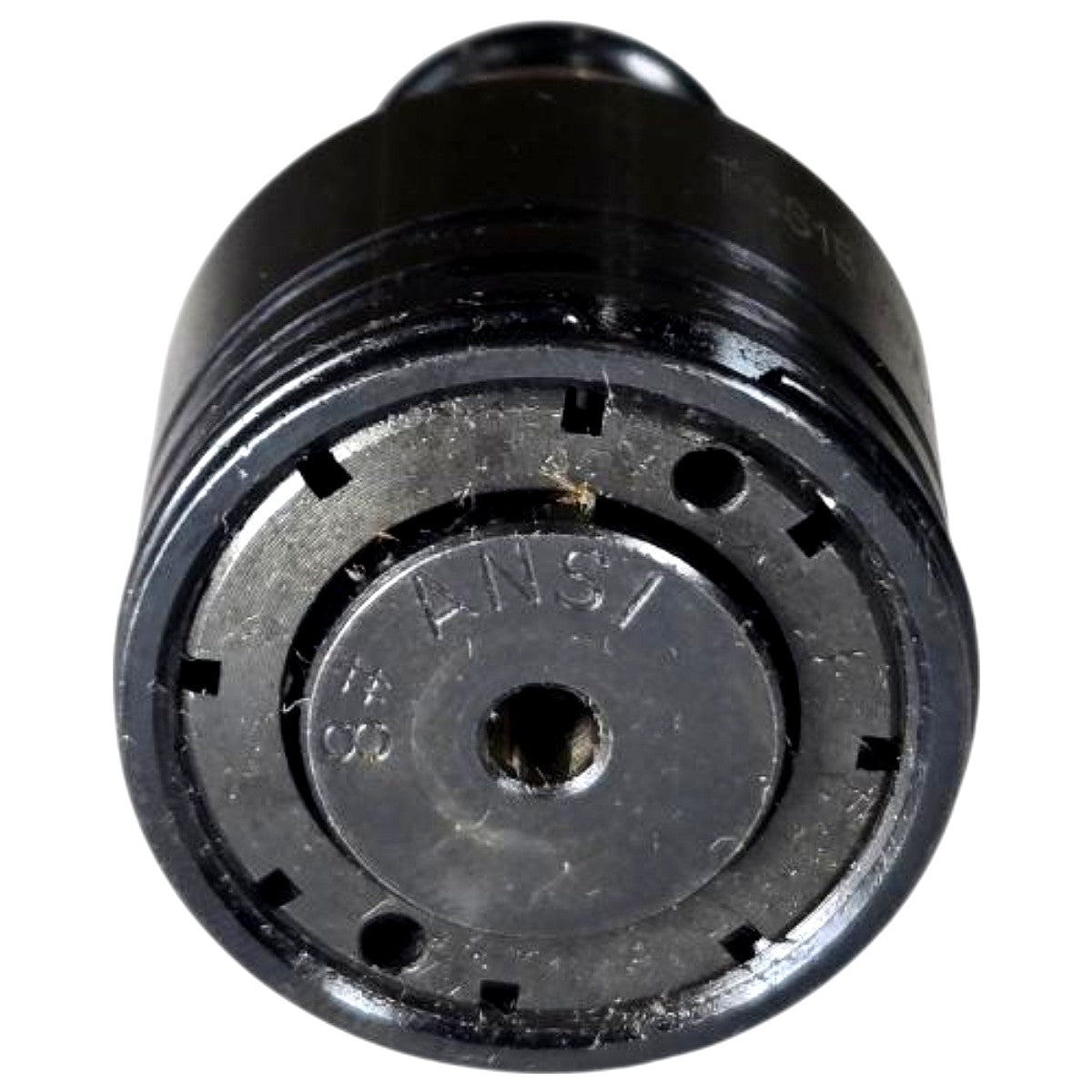

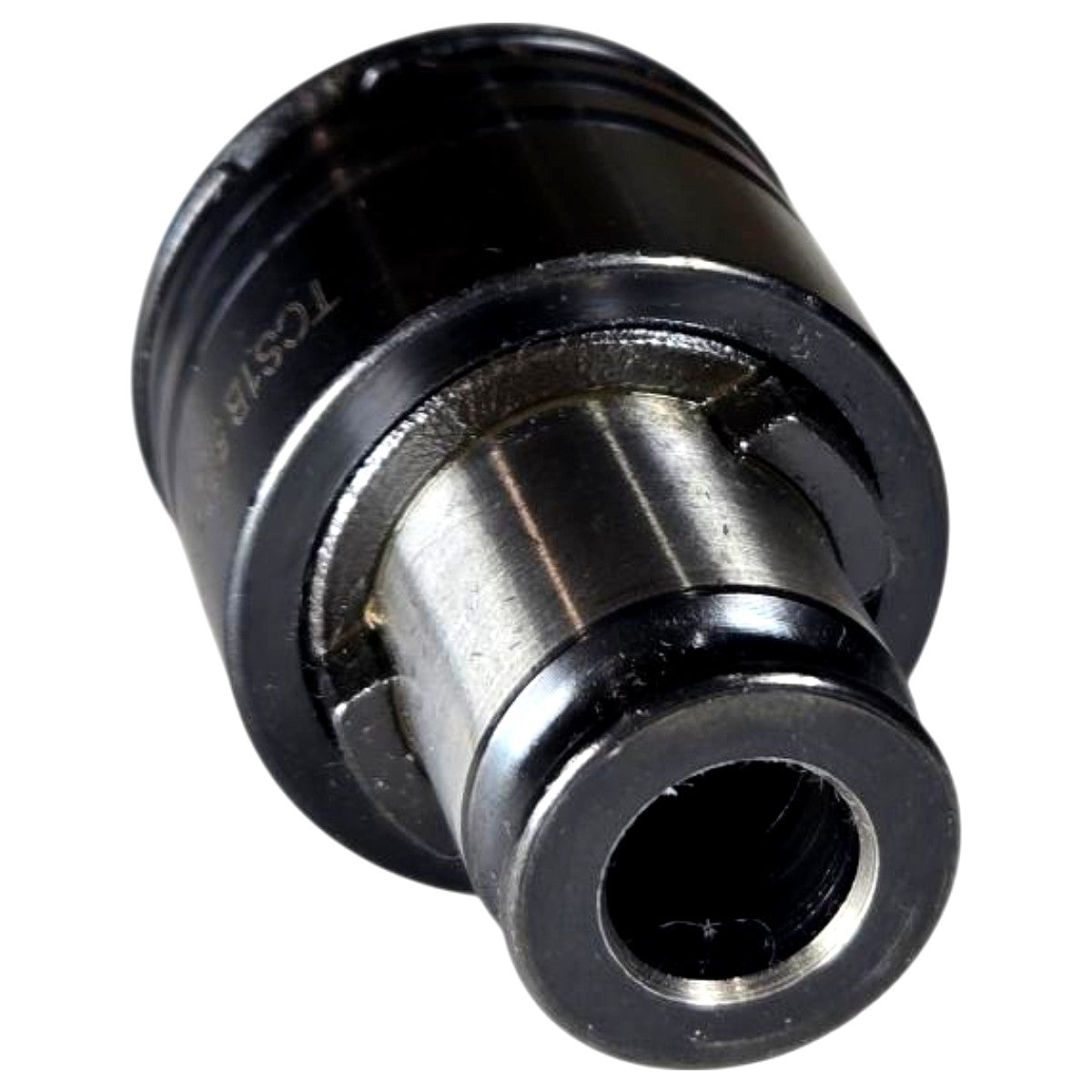

The TradeMax TCS1B is a Size 1 tension-compression tap collet (quick-change tap adapter) with an integral safety clutch, configured for an ANSI #8 tap with a 5/32-inch (0.156 in) round shank and 4.27 mm × 3.33 mm square drive — the exact metric equivalents of the ANSI standard 0.168 in shank diameter and 0.131 in square drive for a #8 tap. The "B" suffix in the model designation denotes the safety-clutch (tension-compression) version, which provides torque overload protection in both drive and reverse directions to prevent tap breakage and protect the workpiece. The collet body is oxide-black finished alloy steel with a ground silver shank for snap-in engagement with Size 1 quick-change tapping heads (such as those conforming to the ANSI B94.7 quick-change standard), and the bottom face is stamped "ANSI" confirming conformance to that standard. This new unit is suited for CNC machining centers, turret lathes, and tapping heads using Size 1 quick-change tooling, targeting tapping of threads in the #8-32 and #8-36 range in steel, aluminum, and similar materials.
Product Specifications
| Brand | TradeMax |
| Model / MPN | TCS1B 5/32A |
| Quick-Change Size | Size 1 |
| Tap Size (ANSI) | #8 (ANSI) |
| Tap Shank Diameter | 5/32 in (0.156 in) / 4.27 mm |
| Square Drive Size | 3.33 mm (0.131 in) |
| Clutch Type | Safety (tension-compression) |
| Standard | ANSI (stamped on body) |
| Body Finish | Oxide black alloy steel |
| Shank Finish | Ground steel (bright) |
| Condition | New |
