Tritan 60-1R ANSI #60 3/4 in Pitch Single Strand 50 ft Roller Chain
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

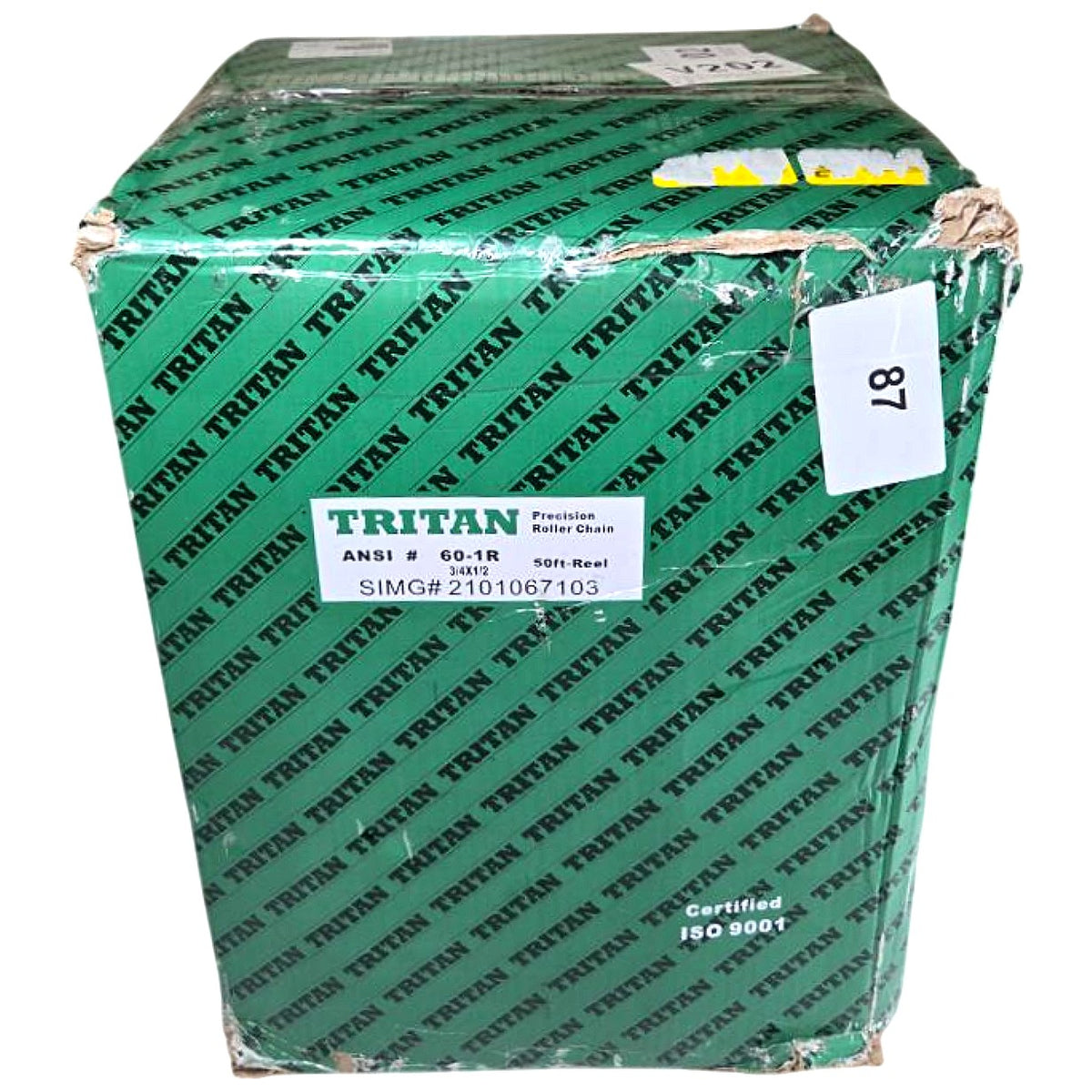

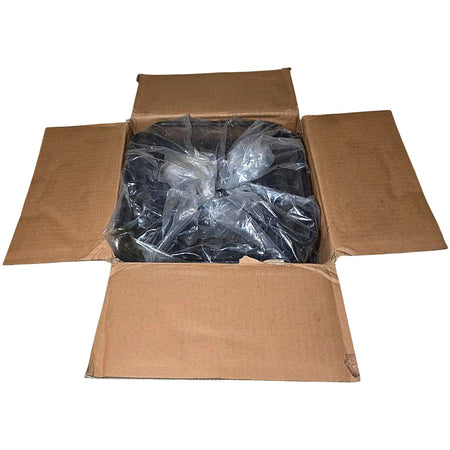

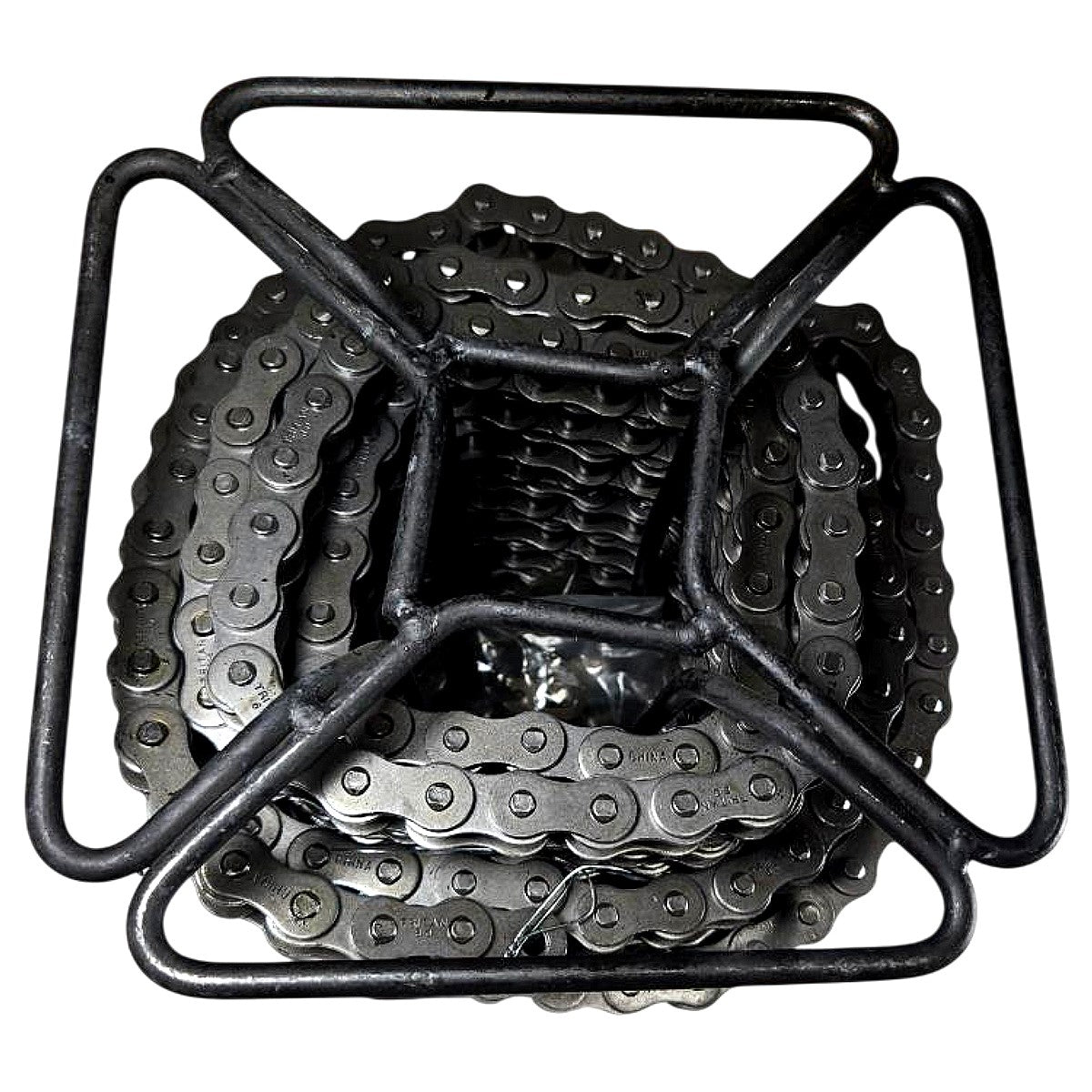

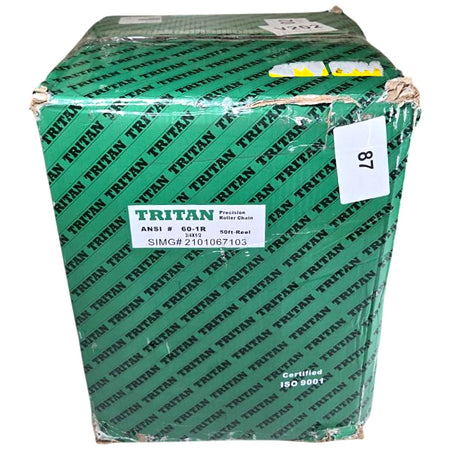

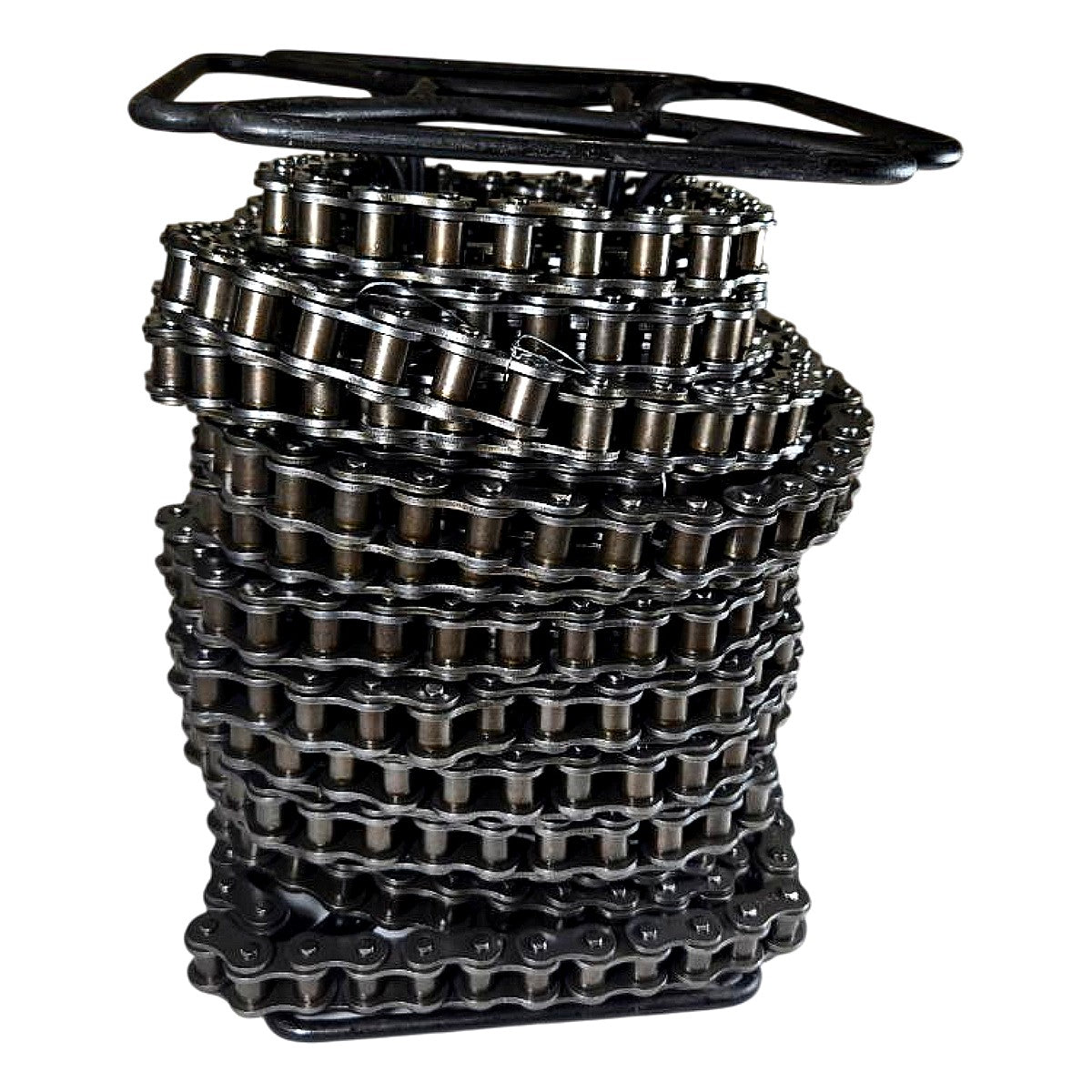

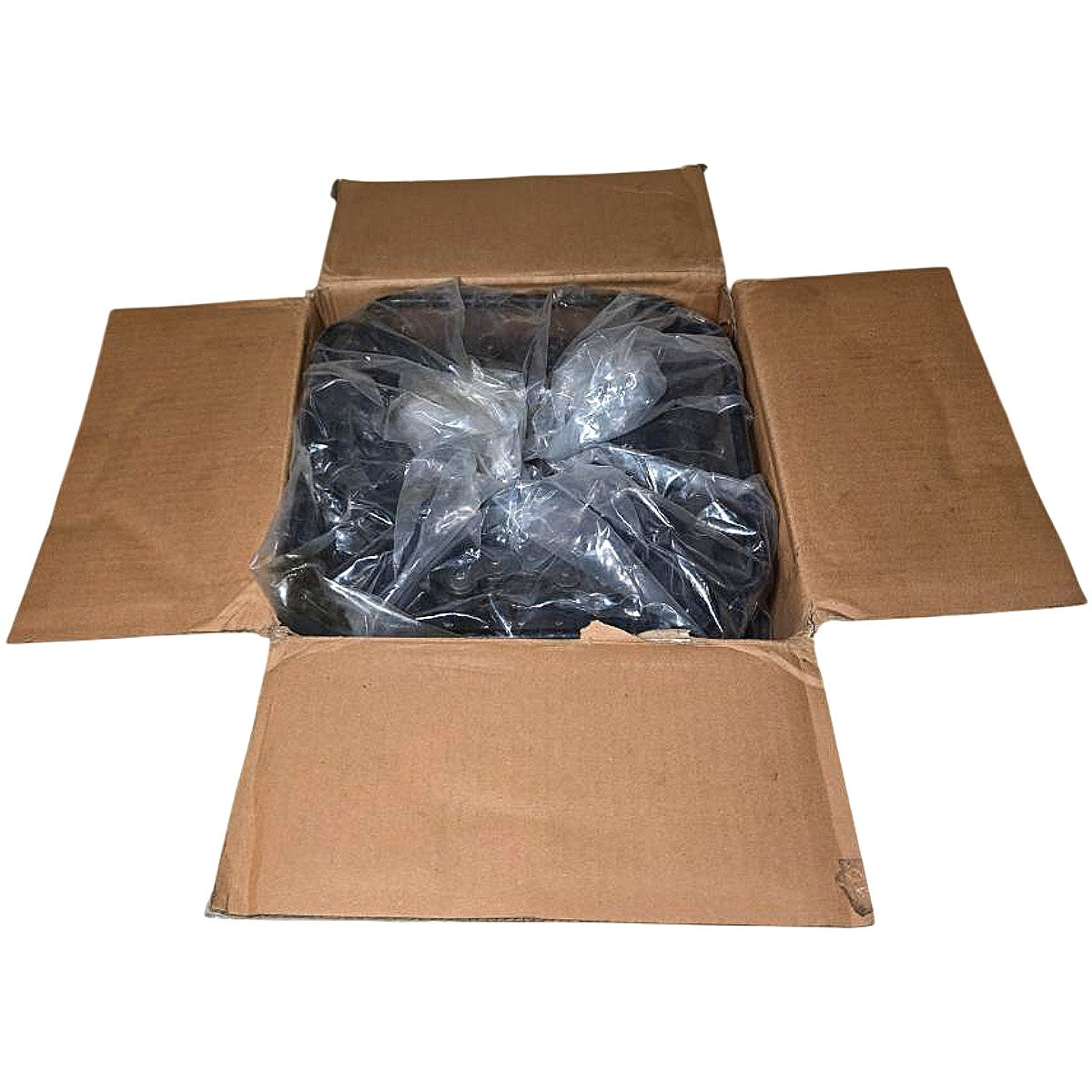

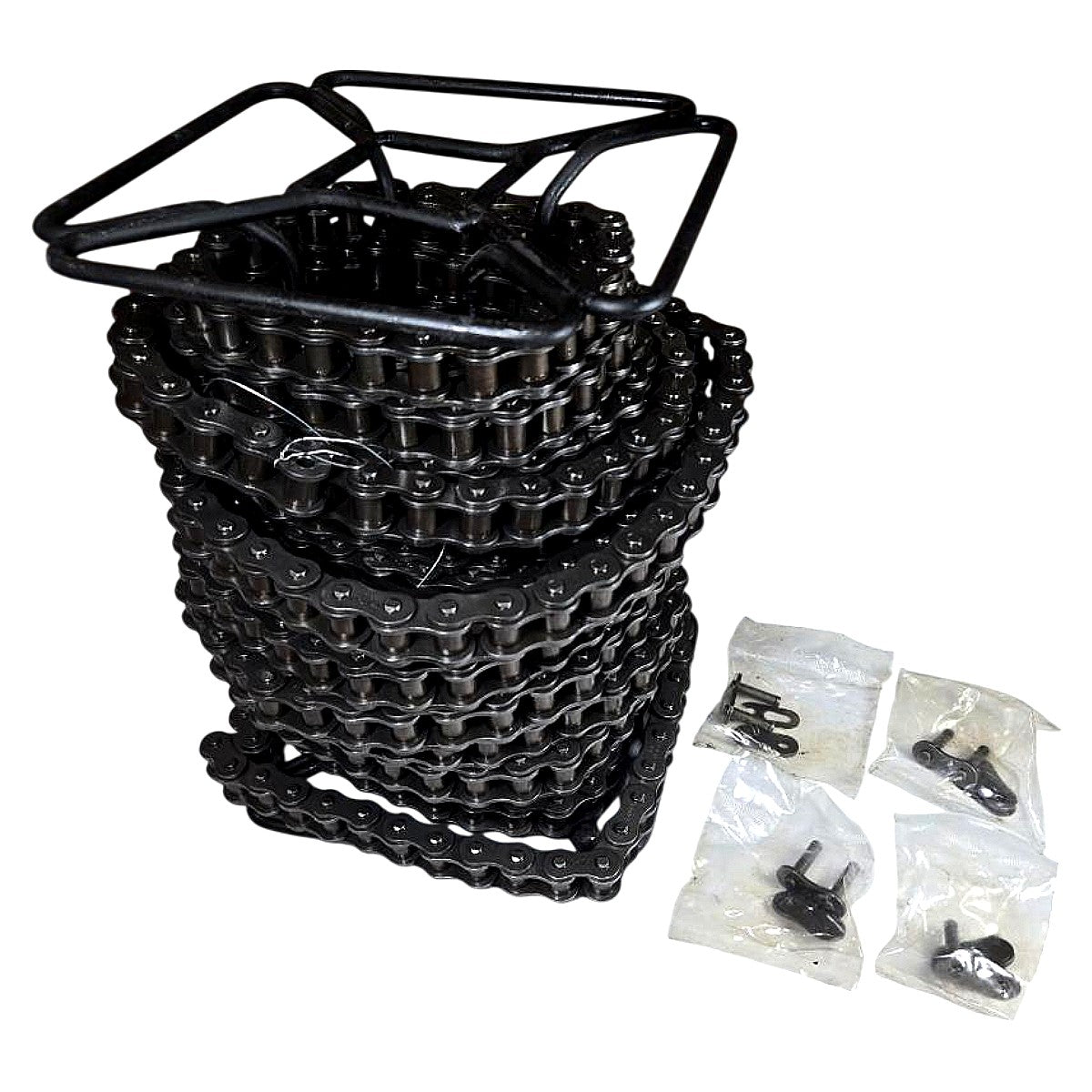

The Tritan 60-1R is a new, single-strand ANSI #60 precision roller chain supplied on a 50 ft wire-form reel with connecting links included. Per the ANSI/ASME B29.1 standard, #60 chain has a 3/4 in (19.05 mm) pitch, 1/2 in (12.70 mm) roller diameter, and 0.595 in inner plate width; construction uses hardened steel side plates, rollers, and bushings with a riveted pin design for high tensile strength and fatigue resistance. The chain is manufactured under ISO 9001 certification (confirmed on box label) and packaged with hardware bags containing connecting links visible in the photos, making it ready for immediate installation on conveyors, drive systems, and general industrial machinery calling for ANSI #60 single-strand chain.
Product Specifications
| Brand | Tritan |
| Part Number | 60-1R |
| SIMG # | 2101067103 |
| ANSI Chain Number | #60 |
| Strand Configuration | Single Strand |
| Pitch | 3/4 in (19.05 mm) |
| Roller Diameter | 0.469 in (11.91 mm) |
| Roller Width (Inner Plate Width) | 0.500 in (12.70 mm) |
| Pin Diameter | 0.234 in (5.94 mm) |
| Overall Length | 50 ft |
| Pin Type | Riveted |
| Material | Steel |
| Avg. Tensile Strength | 8,500 lbf |
| Working Load | 1,700 lbf |
| Standard | ANSI/ASME B29.1 |
| Quality Certification | ISO 9001 |
| Connecting Links Included | Yes |
| Condition | New |
