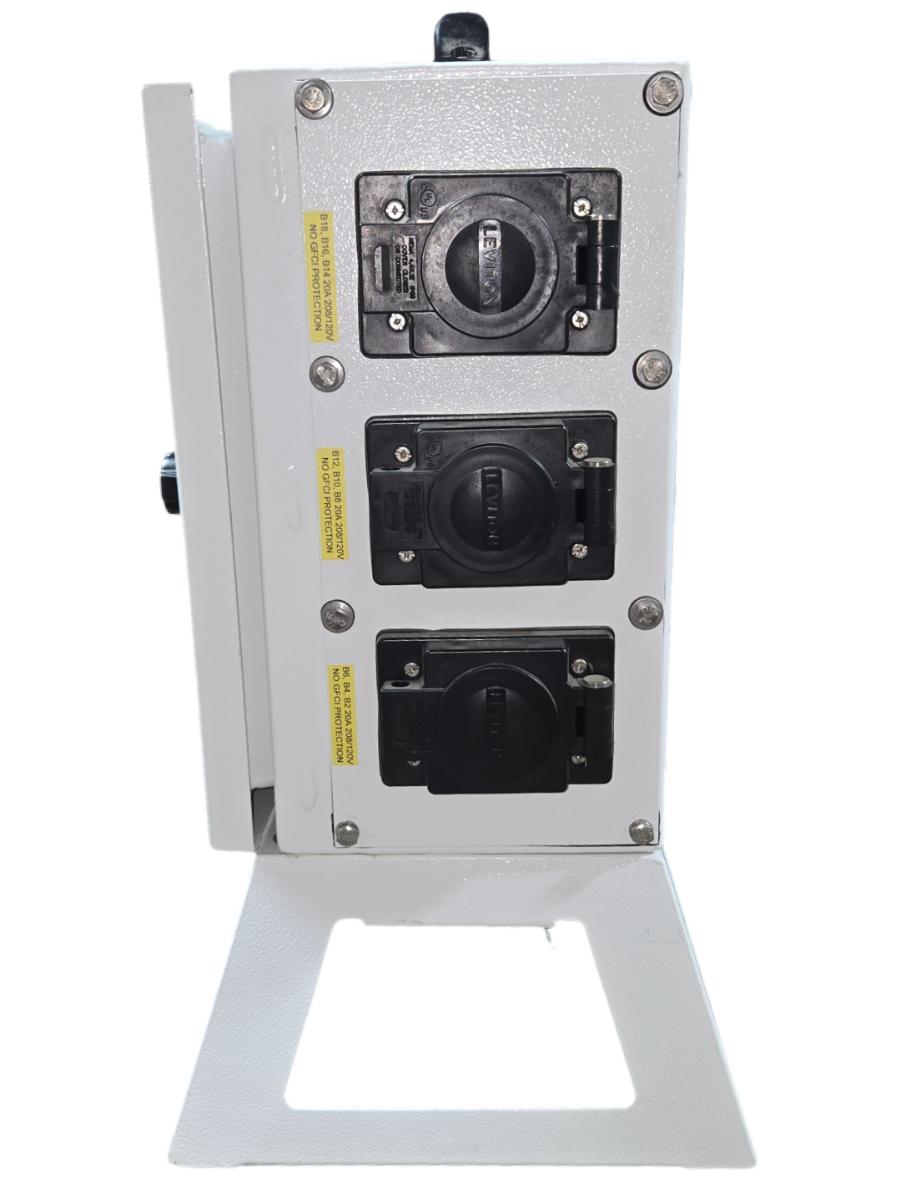

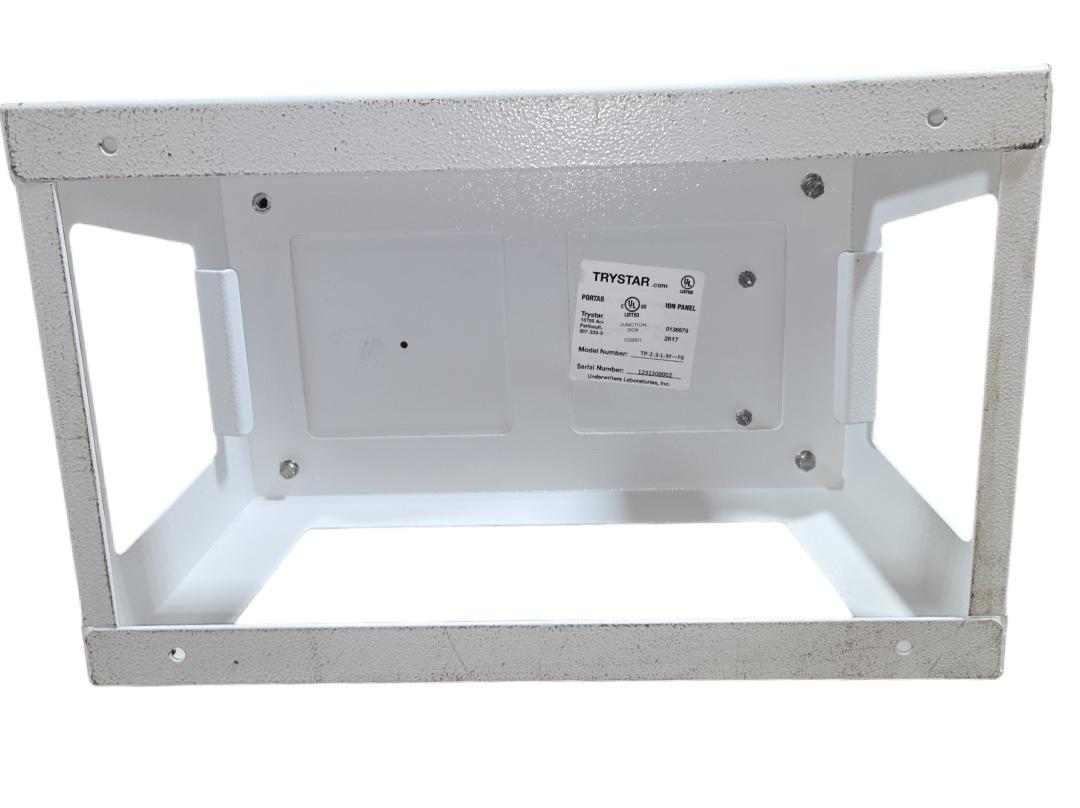

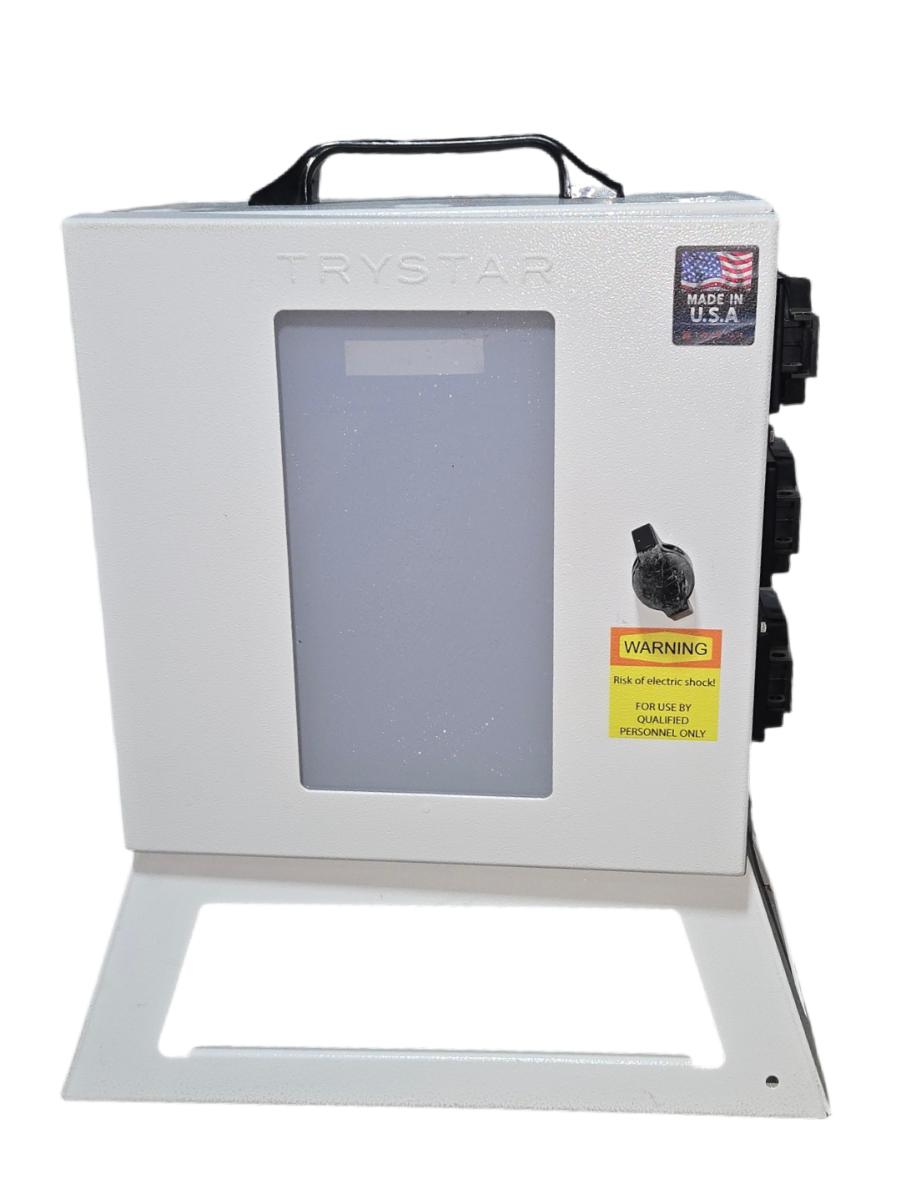

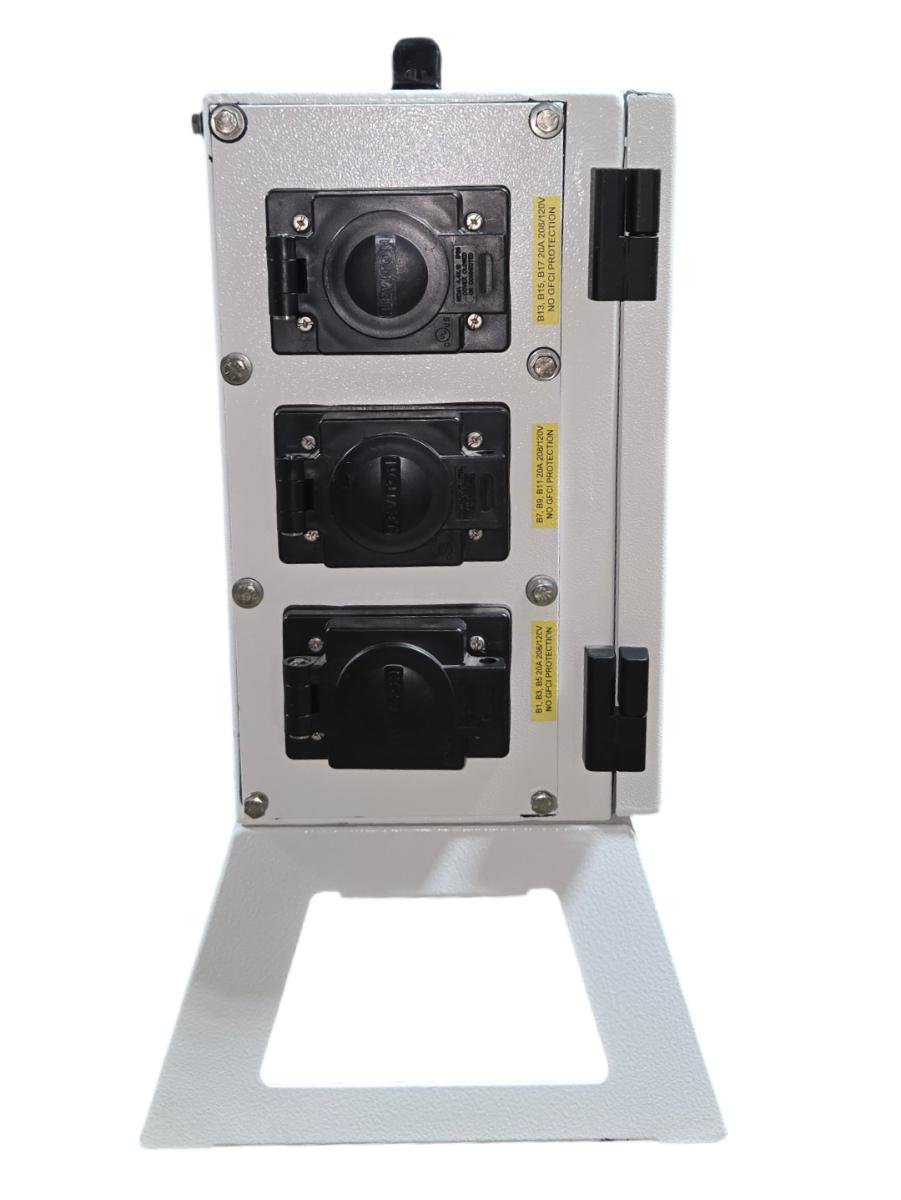

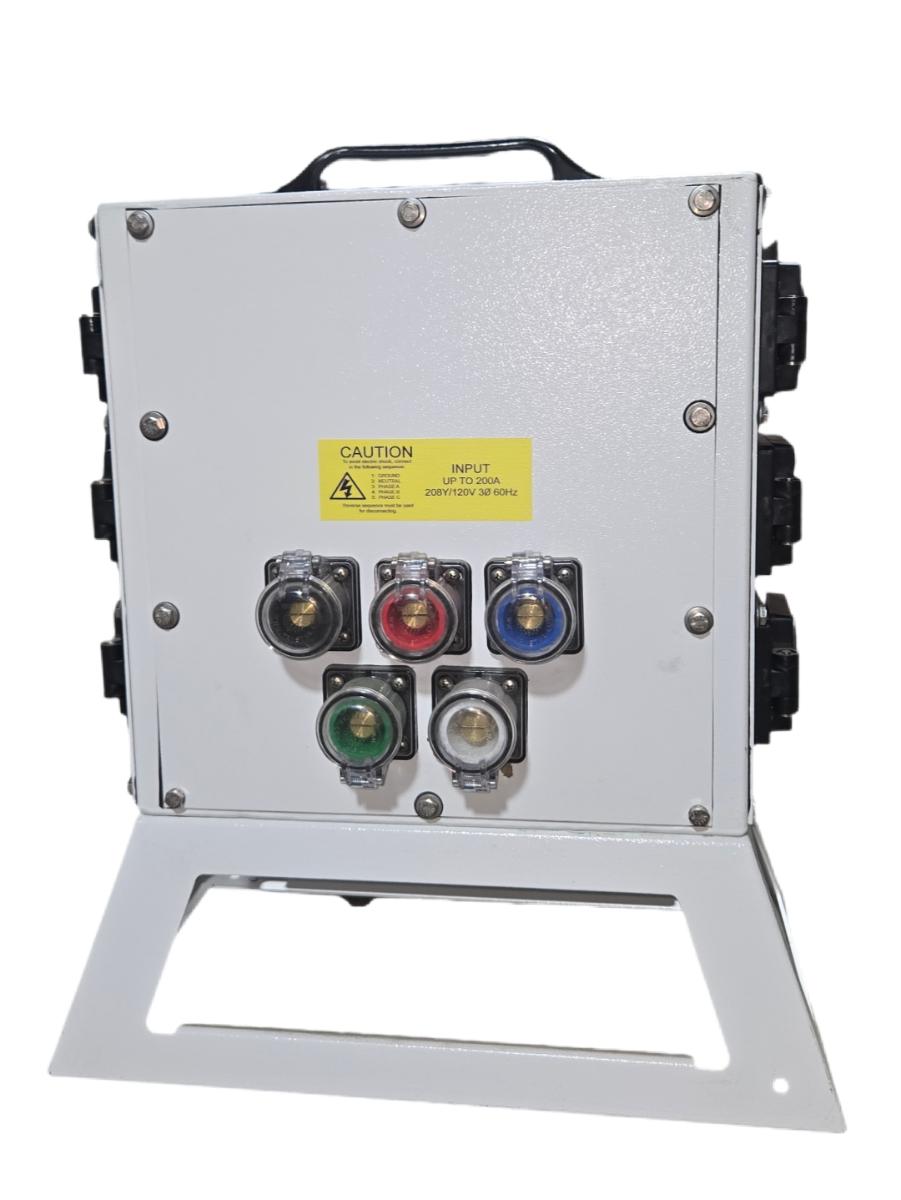

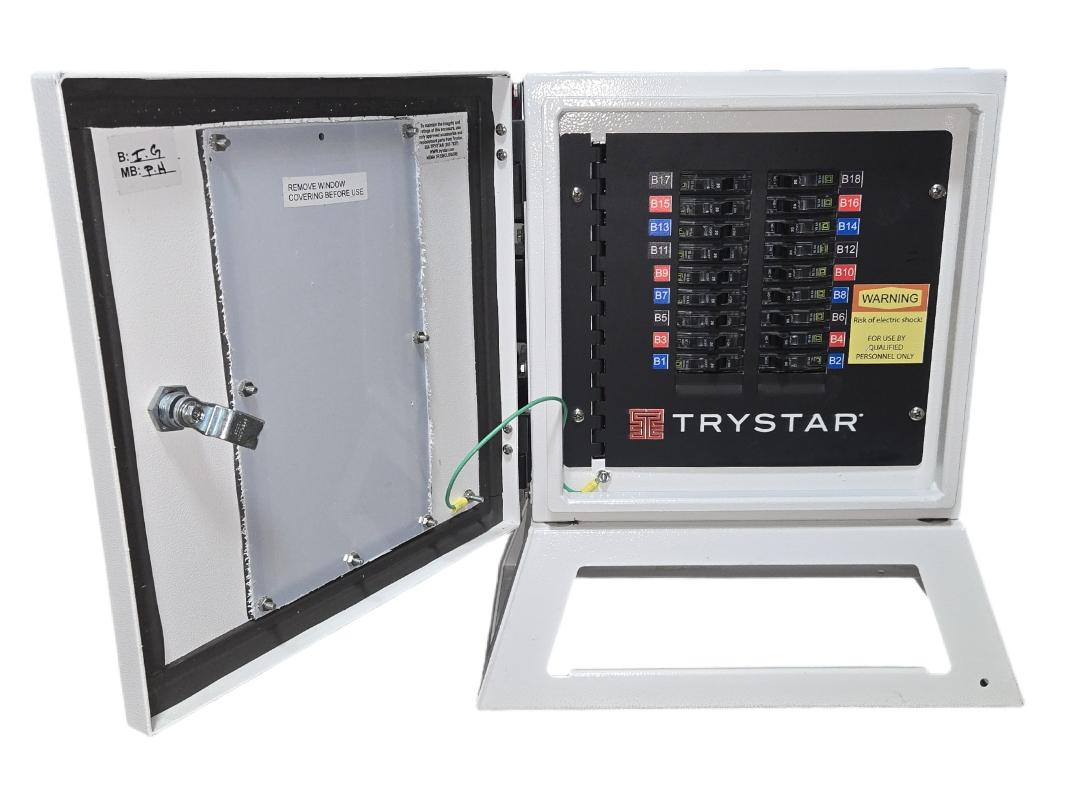

The Trystar TP-2-3-L-M-F6 is a new, UL-Listed portable power distribution panel (UL Junction Box File 0139670, listed 2017) designed for temporary power distribution in entertainment, film production, industrial, and event applications. The unit accepts input up to 200A at 208Y/120V, 3-phase, 60Hz via five color-coded cam-lock input connectors on the rear panel (black/Phase A, red/Phase B, blue/Phase C, green/Ground, white/Neutral), following the industry-standard cam-lock connection sequence. Inside the hinged, lockable steel enclosure, 18 individual circuit breakers (labeled B1–B18) provide individually protected branch circuits; output receptacles on both side panels are Leviton and Marinco locking-type rated at 20A, 208/120V, grouped in sets of three breakers per outlet (B1-B3, B5-B7, B9-B11, B13-B15, B17 on one side; B2-B4, B6-B8, B10-B12, B14-B16, B18 on the other), with no GFCI protection as labeled. The powder-coated steel enclosure features a carry handle, a transparent front window for breaker status visibility, a fold-flat floor stand base for freestanding use, and is manufactured in the USA by Trystar (part number 307-333-3 per underside label).
Product Specifications
| Manufacturer | Trystar |
| Model Number | TP-2-3-L-M-F6 |
| Trystar Part Number | 307-333-3 |
| Serial Number | 1221300002 |
| Product Type | Portable Power Distribution Panel |
| UL Listing | UL Listed, Junction Box, File 0139670 (2017) |
| Input Voltage | 208Y/120V, 3-Phase |
| Input Current | Up to 200A |
| Input Frequency | 60 Hz |
| Input Connectors | 5 x cam-lock connectors (Black/Phase A, Red/Phase B, Blue/Phase C, Green/Ground, White/Neutral) |
| Number of Branch Circuits | 18 (B1–B18) |
| Branch Circuit Breaker Rating | 20A per breaker |
| Output Receptacle Voltage | 208/120V |
| Output Receptacle Brands | Leviton and Marinco locking-type receptacles |
| GFCI Protection | None (labeled NO GFCI PROTECTION on all outlet groups) |
| Side Panel Outlet Groups (Left) | 3 groups: B1-B3, B7-B9/B7-B11, B13-B15/B13-B15-B17 — 20A, 208/120V each |
| Side Panel Outlet Groups (Right) | 3 groups: B2-B4, B6-B8-B10, B12-B14-B16/B18 — 20A, 208/120V each |
| Enclosure Material | Powder-coated steel |
| Enclosure Color | White |
| Front Door | Hinged with key lock and transparent viewing window |
| Carry Handle | Yes, top-mounted |
| Base/Stand | Integral fold-flat freestanding floor stand |
| Country of Origin | USA |
| Condition | New |
