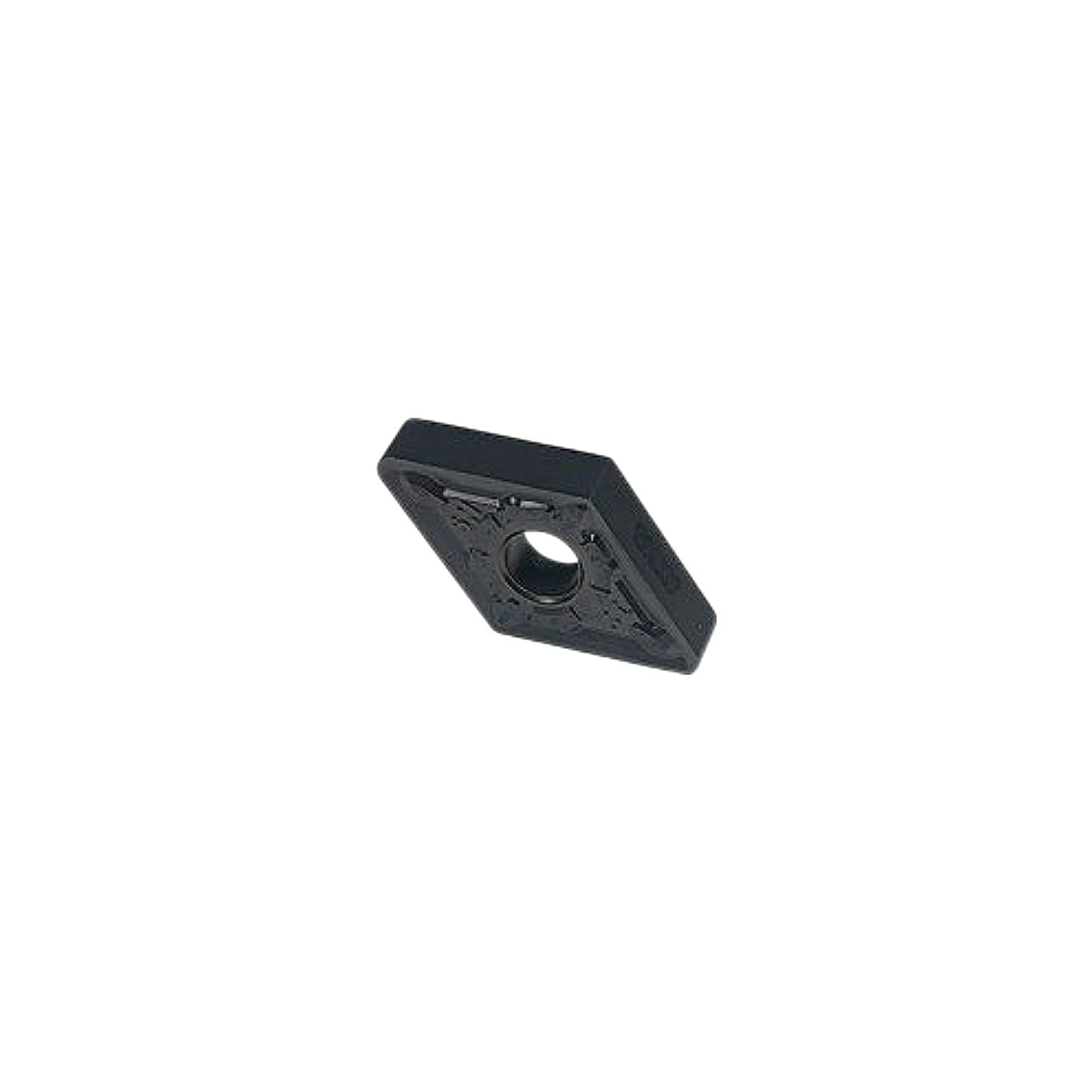

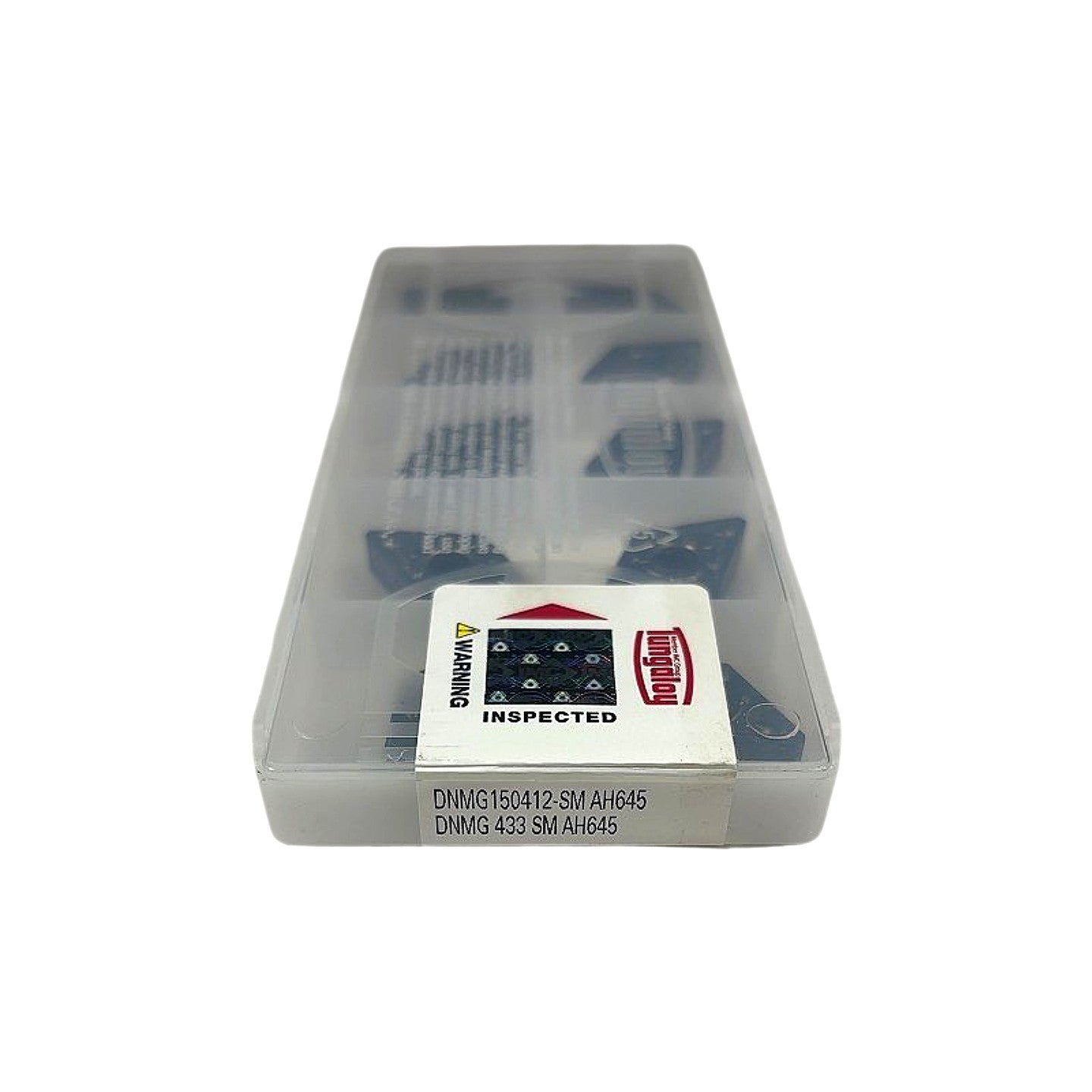

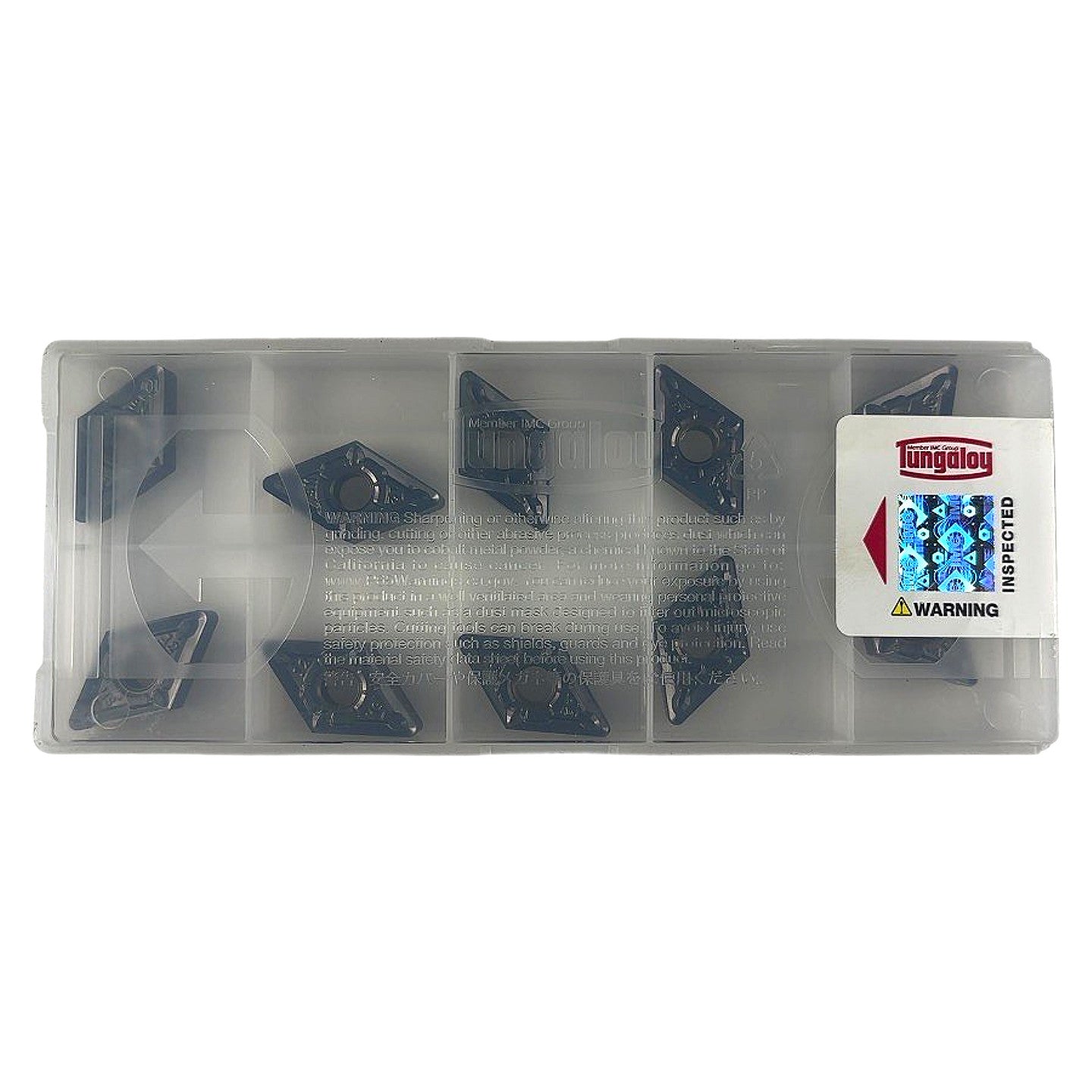

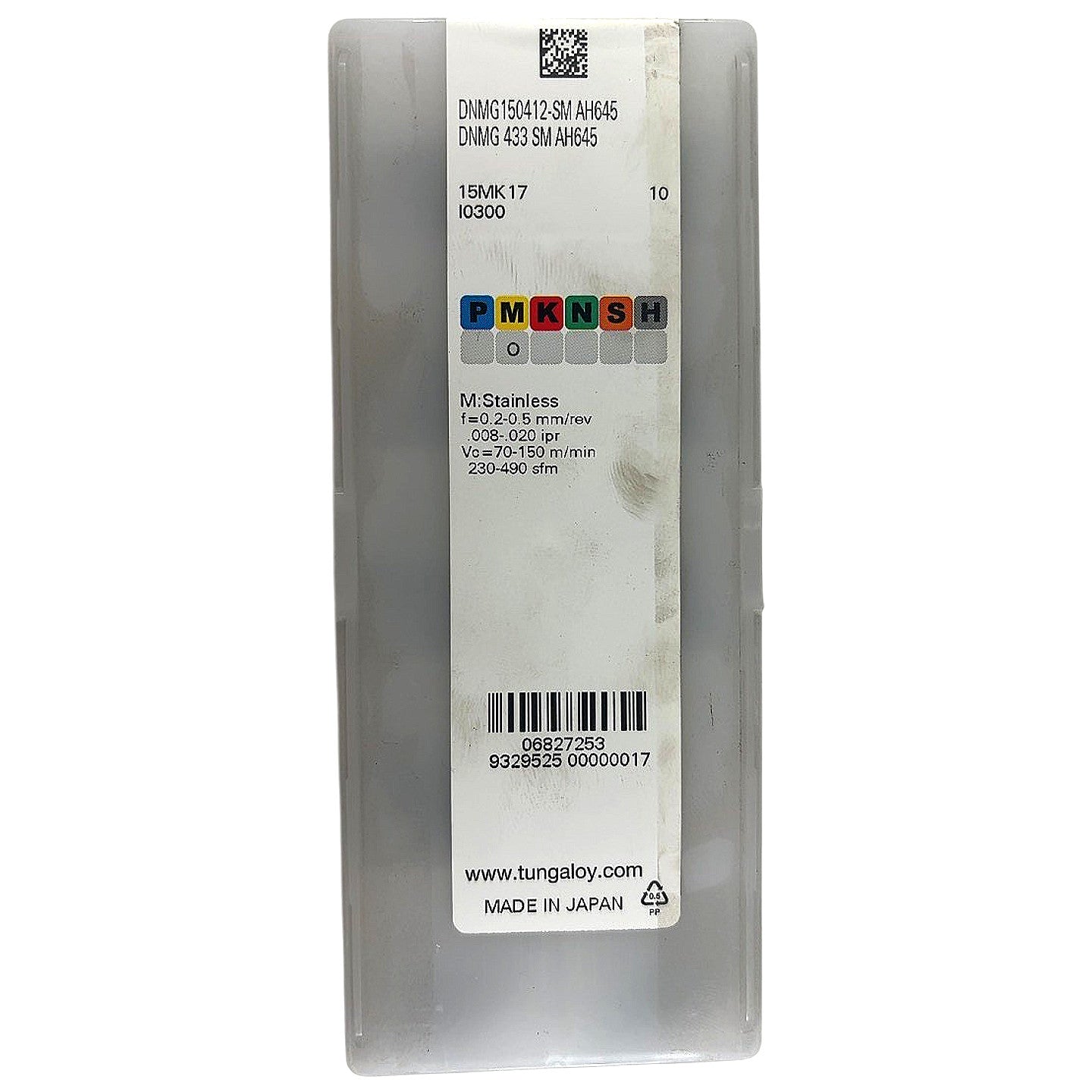

The Tungaloy DNMG150412-SM AH645 (ANSI: DNMG 433 SM) is a 55° diamond-shaped, double-sided negative-rake carbide turning insert with a central hole for screw clamping, manufactured in Japan to ISO tolerance class M. The AH645 grade is a PVD-coated cemented carbide engineered specifically for stainless steel (ISO M material group) machining, delivering excellent resistance to built-up edge, notch wear, and heat-induced deformation under the dark, low-friction PVD coating visible in the photos. The SM chipbreaker geometry is optimized for medium turning of stainless steel with a recommended feed range of 0.2–0.5 mm/rev (0.008–0.020 ipr) and cutting speed of 70–150 m/min (230–490 sfm), as confirmed on the package label. This insert mounts in standard DNMG-compatible toolholders (e.g., PDJN/PDNN series) with a 15 mm inscribed circle, 4.76 mm thickness, and 1.2 mm nose radius. Each factory-sealed package contains 10 new, unused inserts.
Product Specifications
| Brand | Tungaloy |
| ISO Part Number | DNMG150412-SM AH645 |
| ANSI Part Number | DNMG 433 SM AH645 |
| Insert Shape | D — 55° Diamond |
| Clearance Angle | N — 0° (Negative Rake) |
| Tolerance Class | M |
| Mounting / Chipbreaker Type | G — Central Hole, SM Chipbreaker |
| Inscribed Circle (IC) | 15.875 mm (5/8 in) |
| Insert Thickness | 4.76 mm (3/16 in) |
| Nose Radius | 1.2 mm (3/64 in) |
| Grade | AH645 |
| Substrate | Cemented Carbide |
| Coating | PVD |
| Chipbreaker | SM (Medium Turning, Stainless Steel) |
| ISO Material Group | M (Stainless Steel) |
| Feed Rate (f) | 0.2–0.5 mm/rev / 0.008–0.020 ipr |
| Cutting Speed (Vc) | 70–150 m/min / 230–490 sfm |
| Number of Cutting Edges | 4 (2-sided, 2 edges per side) |
| Quantity per Package | 10 |
| Country of Origin | Japan |
| Condition | New |
