Tungaloy MCLNR164D 1in Shank RH CNMG432 Indexable Turning Toolholder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

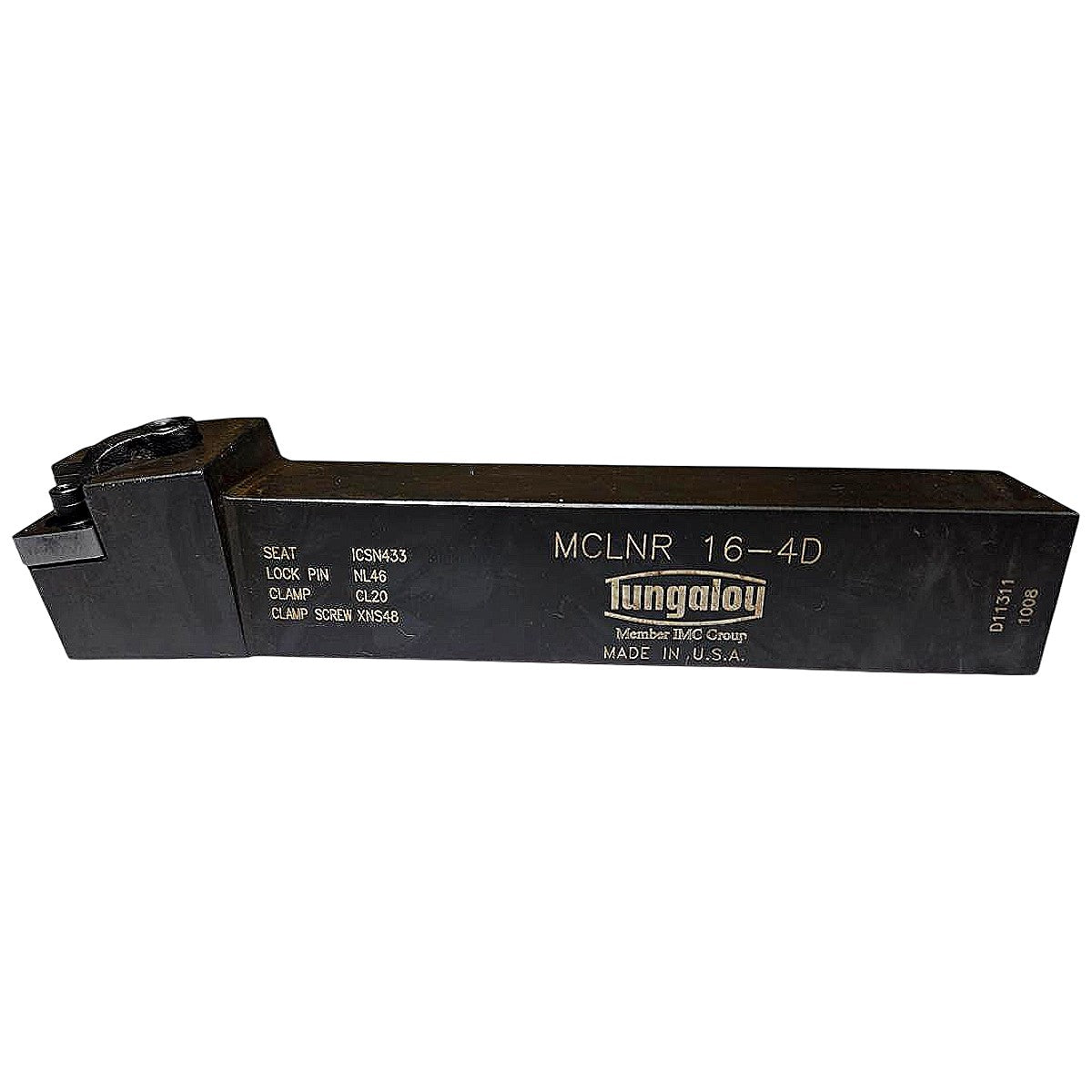

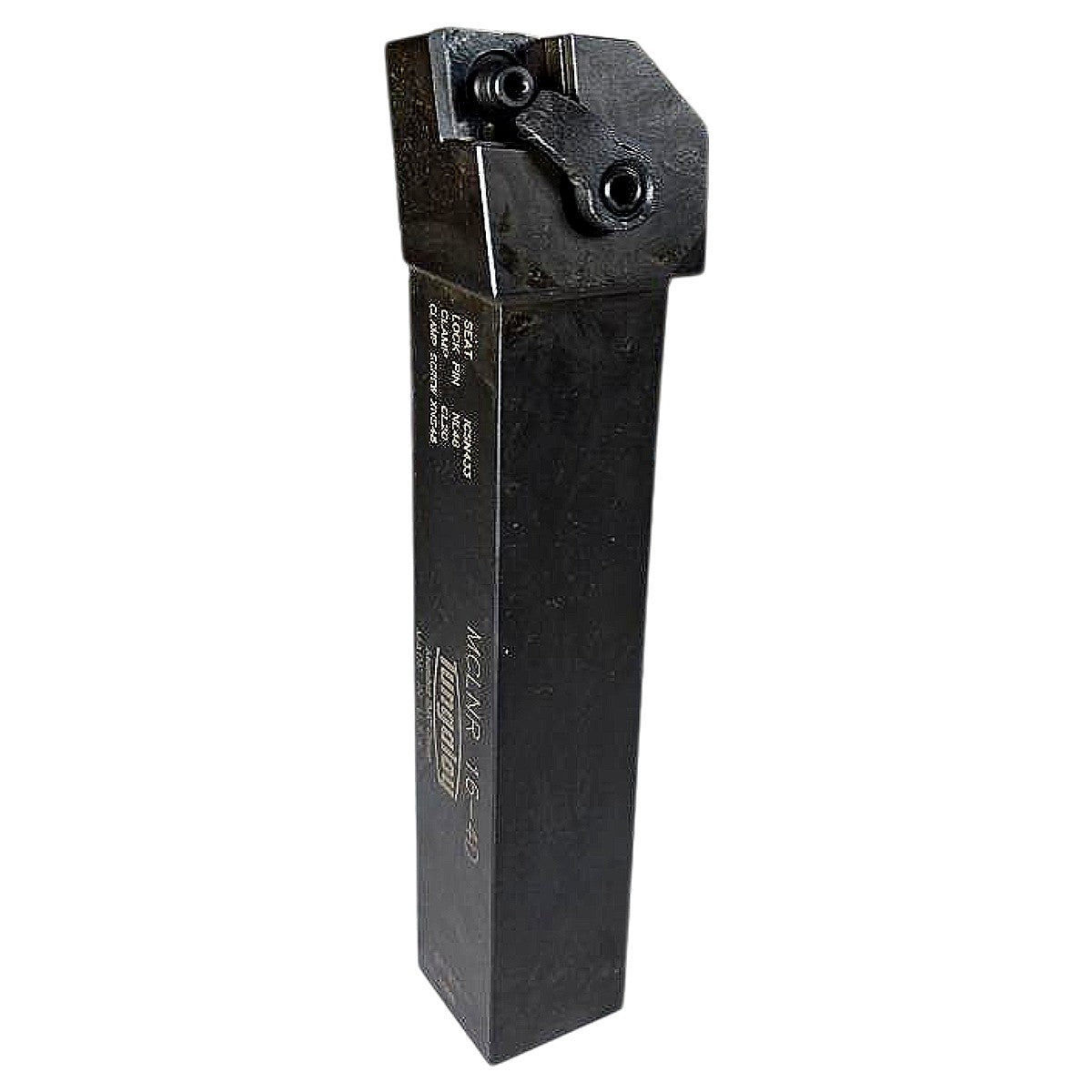

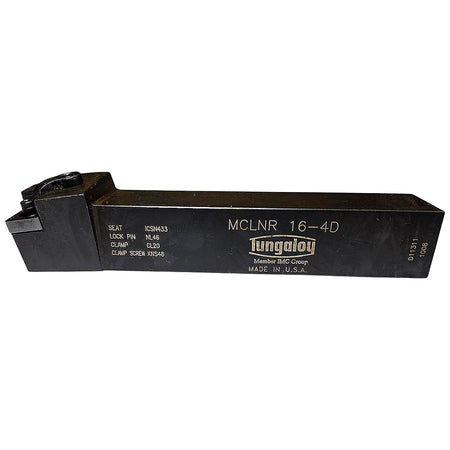

The Tungaloy MCLNR164D (Tungaloy item no. 6674317) is a new, right-hand external turning toolholder in the MCLNR/L series, designed to accept CNMG 432 (CNMG120408) negative-rake 80° diamond-shaped inserts with a 5° clearance angle. Per the ISO toolholder designation: M = clamp/pin clamping style, C = CNMG insert shape (80° rhombic), L = 95° lead angle (setting angle), N = 0° normal clearance, R = right-hand cutting direction, 16 = 1 in × 1 in square shank cross-section, 4 = 4 in overhang/length designation, D = CNMG 432 insert size IC. The holder is manufactured in the USA from alloy steel with a black-oxide finish and uses a top-clamp/lock-pin clamping system; mating hardware includes seat ICSN433, lock pin NL46, clamp CL20, and clamp screw XNS48, all of which are called out on the body. The 95° approach angle and rigid square shank make this holder well-suited for OD roughing and finishing on conventional and CNC lathes where straight longitudinal turning and light facing are performed.
Product Specifications
| Brand | Tungaloy |
| MPN | MCLNR164D |
| Item Number | 6674317 |
| Clamping Style | M – Top clamp w/ lock pin |
| Compatible Insert Shape | CNMG – 80° diamond (C) |
| Compatible Insert Size | CNMG 432 (CNMG120408) |
| Insert Clearance Angle | N – 0° (negative rake) |
| Cutting Direction | R – Right-hand |
| Shank Size | 1 in × 1 in square |
| Overall Length | 4 in (D length designation) |
| Approach / Lead Angle | 95° |
| Seat | ICSN433 |
| Lock Pin | NL46 |
| Clamp | CL20 |
| Clamp Screw | XNS48 |
| Country of Origin | USA |
| Condition | New |
