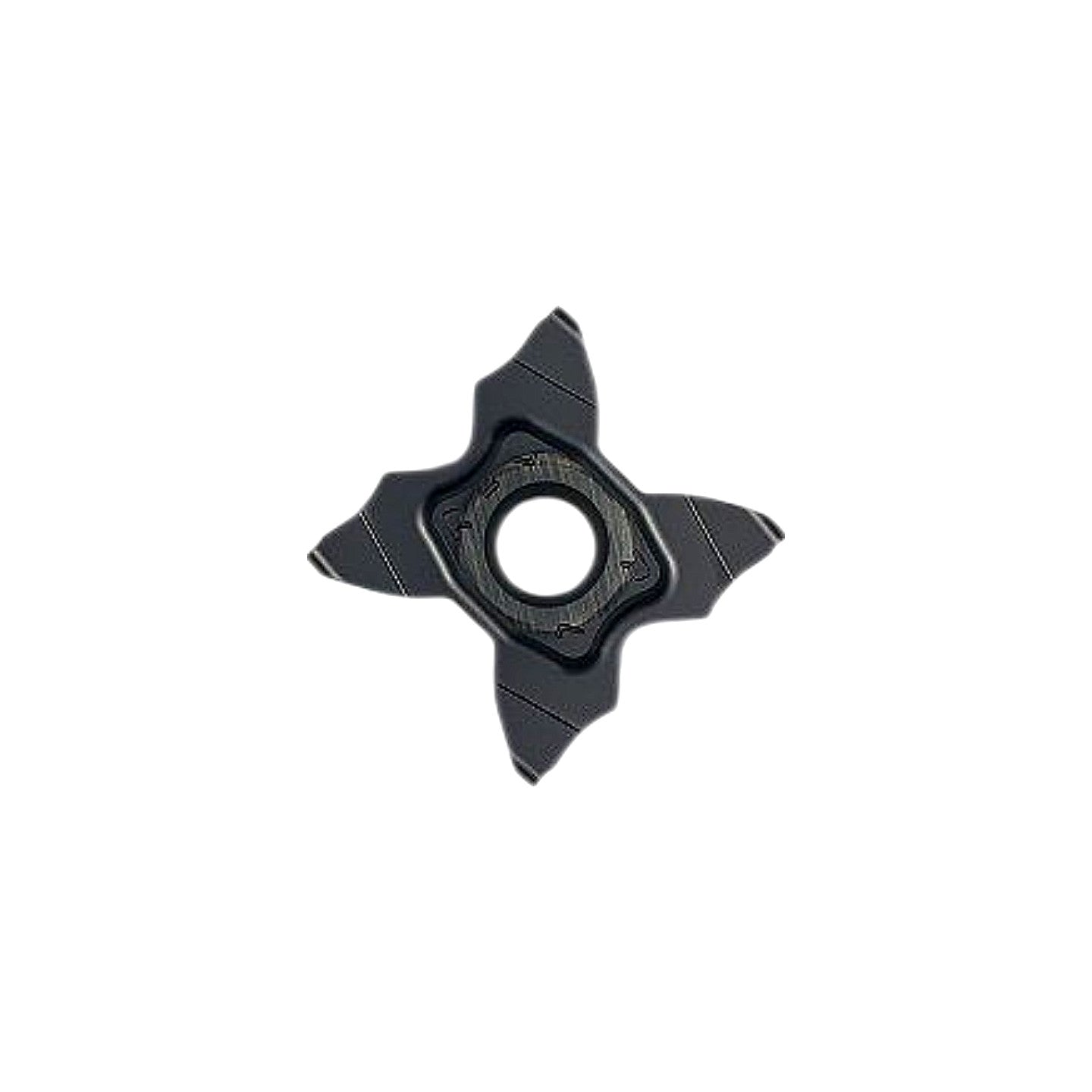

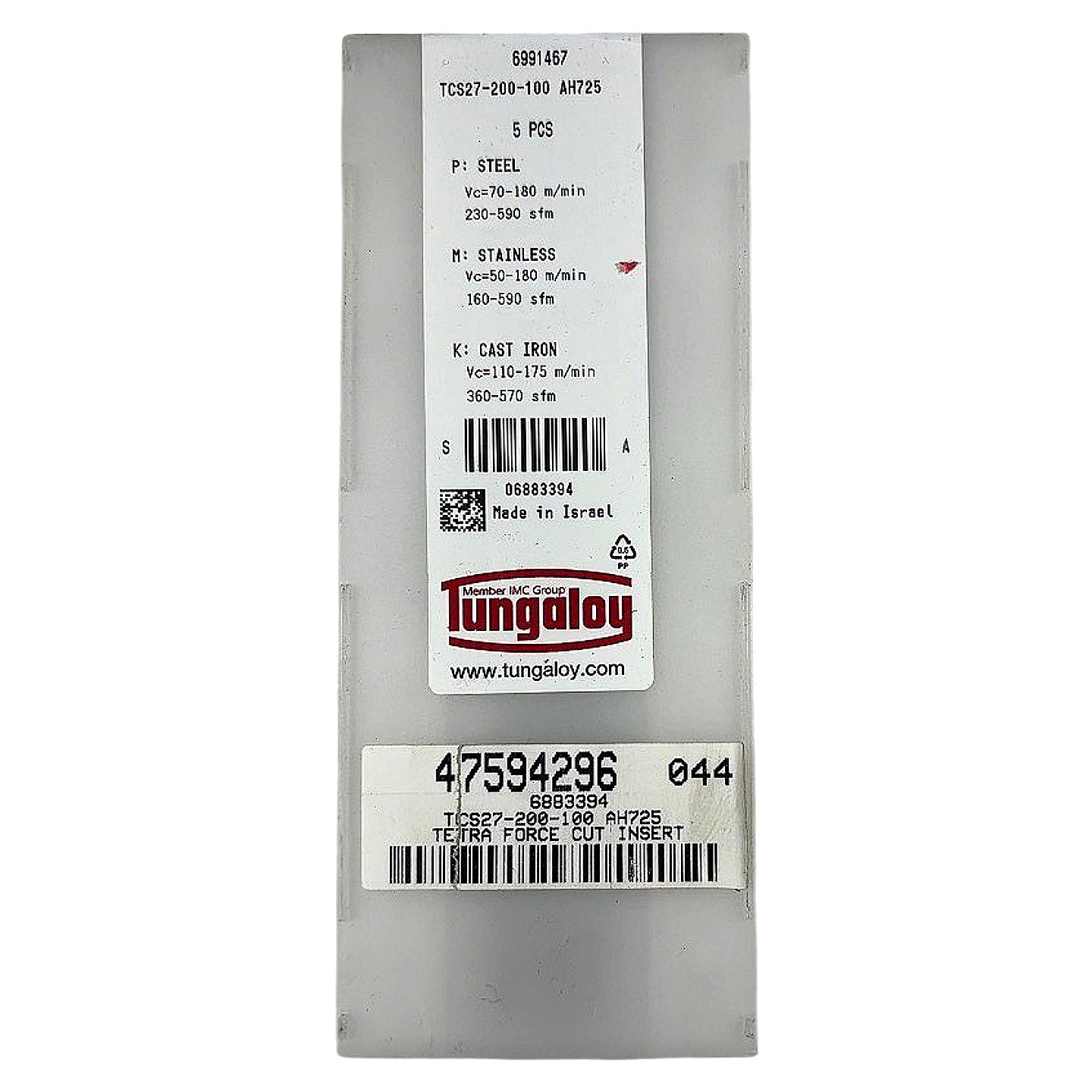

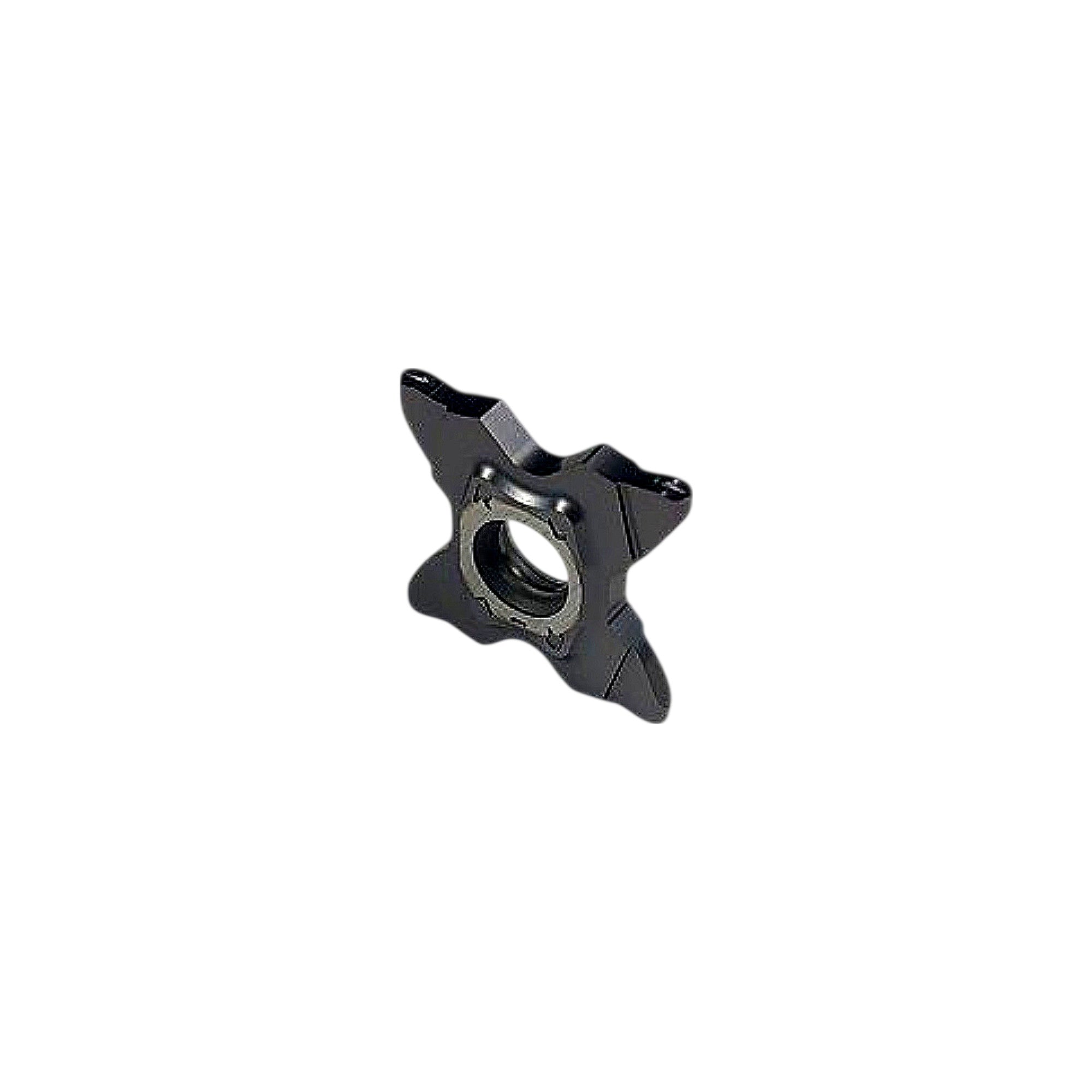

The Tungaloy TCS27-200-100 AH725 is a new, 4-cornered Tetra Force Cut carbide milling insert designed for high-efficiency cutting in steel, stainless steel, and cast iron. The MPN encodes a 27° lead angle, 2.00 mm cutting width, and 1.00 mm depth-of-cut capability; its distinctive 4-pointed star geometry with radial chip-groove pattern promotes aggressive chip splitting and reduced cutting forces in face and shoulder milling operations. Grade AH725 is a PVD TiAlN-based coated cemented carbide in Tungaloy's AH series, engineered for thermal resistance and wear resistance across ISO P (steel), M (stainless), and K (cast iron) workpiece material groups. Recommended cutting speeds per the factory label are Vc 70–180 m/min (230–590 sfm) for steel, Vc 50–180 m/min (160–590 sfm) for stainless, and Vc 110–175 m/min (360–570 sfm) for cast iron; the insert is made in Israel and carries Tungaloy part number 6991467. Sold as a factory-sealed pack of 5 inserts.
Product Specifications
| Brand | Tungaloy |
| MPN | TCS27-200-100 AH725 |
| Tungaloy Item # | 6991467 |
| Insert Series | Tetra Force Cut |
| Grade | AH725 |
| Coating | PVD TiAlN (AH725 series) |
| Insert Shape | 4-point star (square-based, 4 cutting corners) |
| Lead Angle | 27° |
| Cutting Width | 2.00 mm |
| Depth of Cut | 1.00 mm |
| Number of Cutting Edges | 4 |
| ISO Material Groups | P (Steel), M (Stainless), K (Cast Iron) |
| Vc – Steel | 70–180 m/min (230–590 sfm) |
| Vc – Stainless | 50–180 m/min (160–590 sfm) |
| Vc – Cast Iron | 110–175 m/min (360–570 sfm) |
| Country of Origin | Israel |

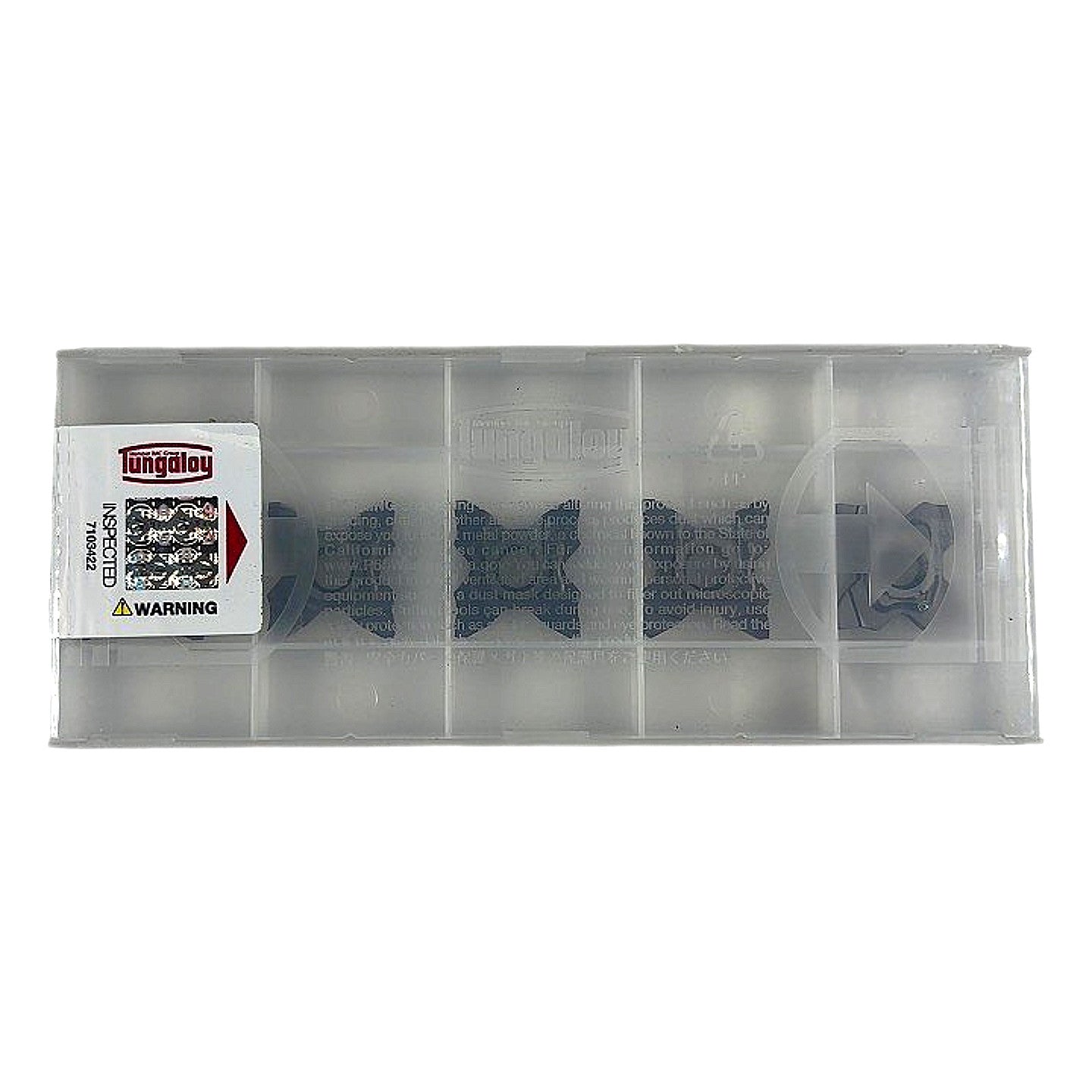

| Quantity per Pack | 5 pcs |
| Condition | New (factory sealed) |
