Tungaloy TXN06R400U0150A10 4in 10-Flute DO Feed Indexable Face Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

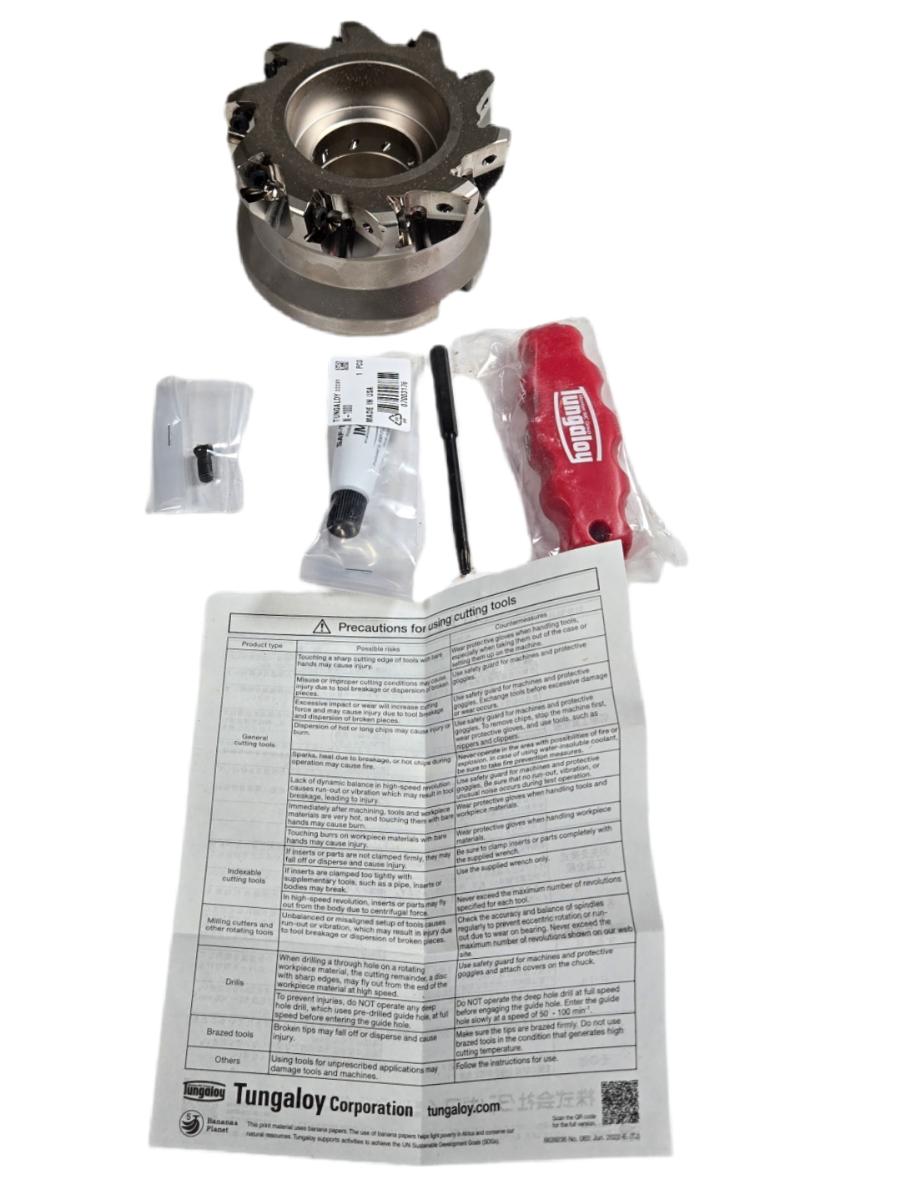

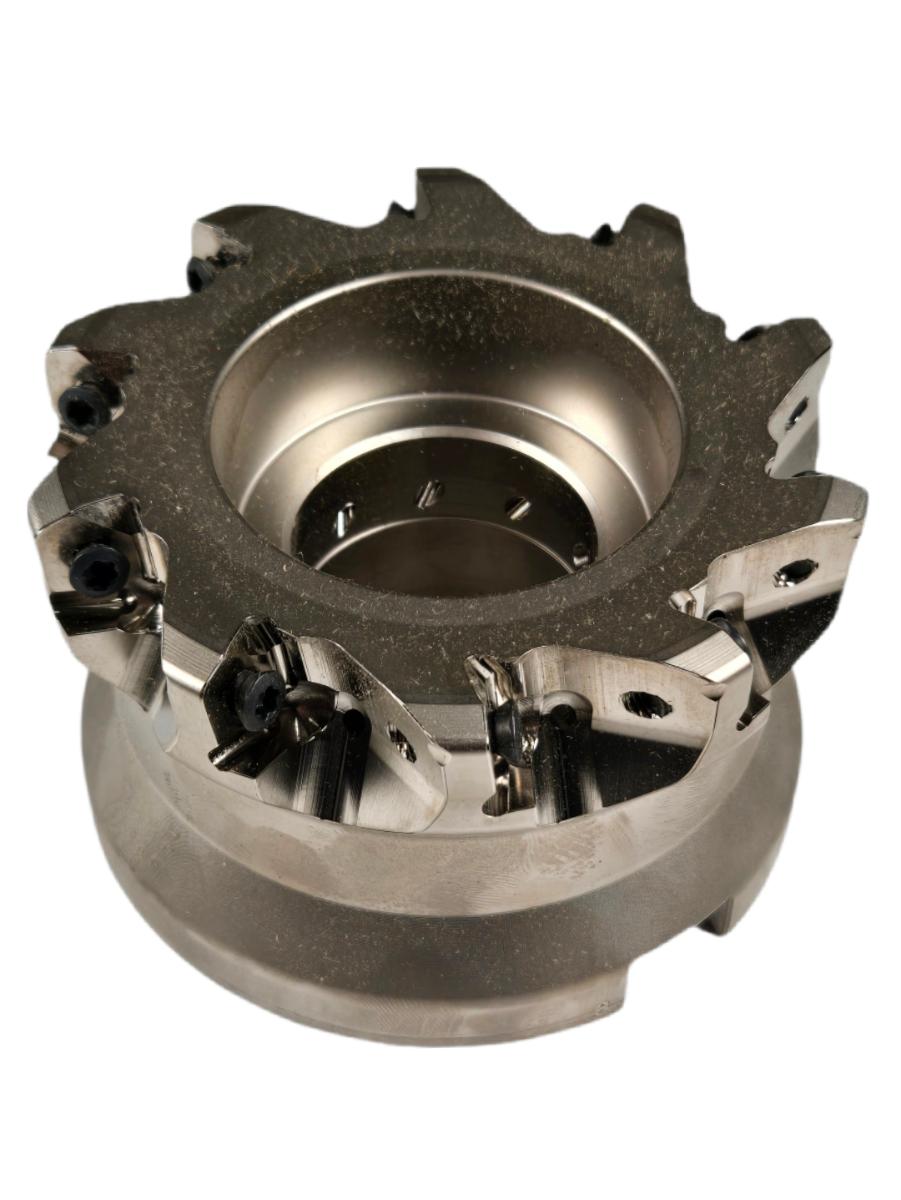

The Tungaloy TXN06R400U0150A10 (Tungaloy item 6710726) is a new-in-box DO Feed series indexable face mill from Tungaloy's high-feed milling platform, designed for aggressive face milling and high-feed roughing operations. The body is 4.00 in (100 mm) in diameter with a 1.50 in (38.1 mm) arbor bore, accommodates 10 inserts, and carries a 0° lead angle characteristic of DO Feed cutters that redirects cutting forces axially to enable maximum feed rates on lower-rigidity setups. Compatible inserts are from the XNMU/XNGU 06 series (DO Feed hexagonal double-sided inserts), and the cutter body is manufactured in Japan to Tungaloy's precision standards. Included in the box are the cutter body, spare torx clamping screws, anti-seize lubricant, a Torx-L key, and Tungaloy's standard safety instruction sheet.
Product Specifications
| Brand | Tungaloy |
| MPN | TXN06R400U0150A10 |
| Tungaloy Item # | 6710726 |
| Series | DO Feed |
| Cutter Diameter | 4.00 in (100 mm) |
| Arbor Bore Diameter | 1.50 in (38.1 mm) |
| Number of Flutes / Inserts | 10 |
| Insert Size Designation | 06 (XNMU/XNGU 06 series) |
| Lead Angle | 0° (high-feed / axial force design) |
| Hand of Cut | Right-hand |
| Country of Manufacture | Japan |
| Condition | New in box |
| Included Accessories | Spare screws, anti-seize, Torx-L key |
