Tungaloy UTE-0096-2.593UPTAA 9746043 15mm Indexable Gun Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

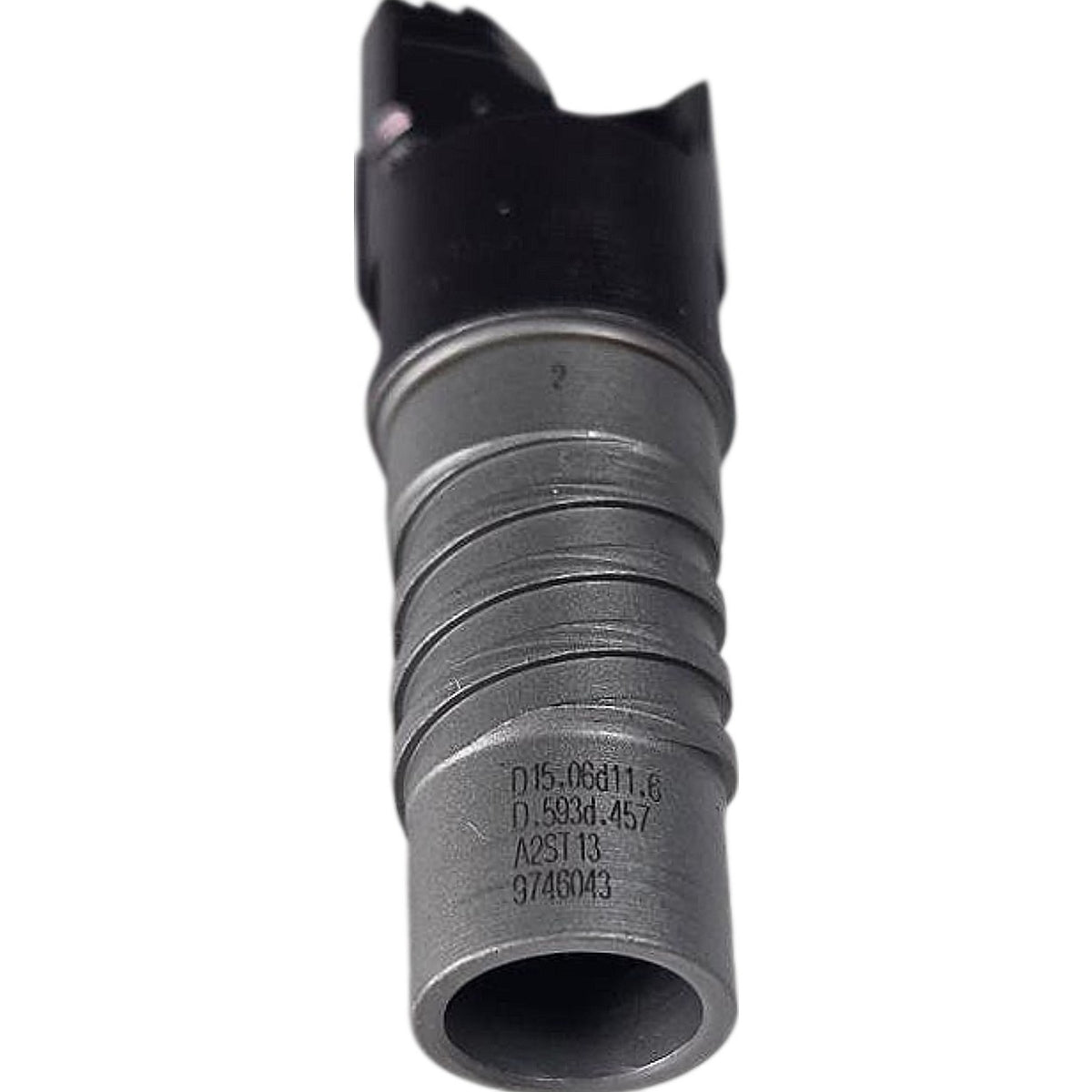

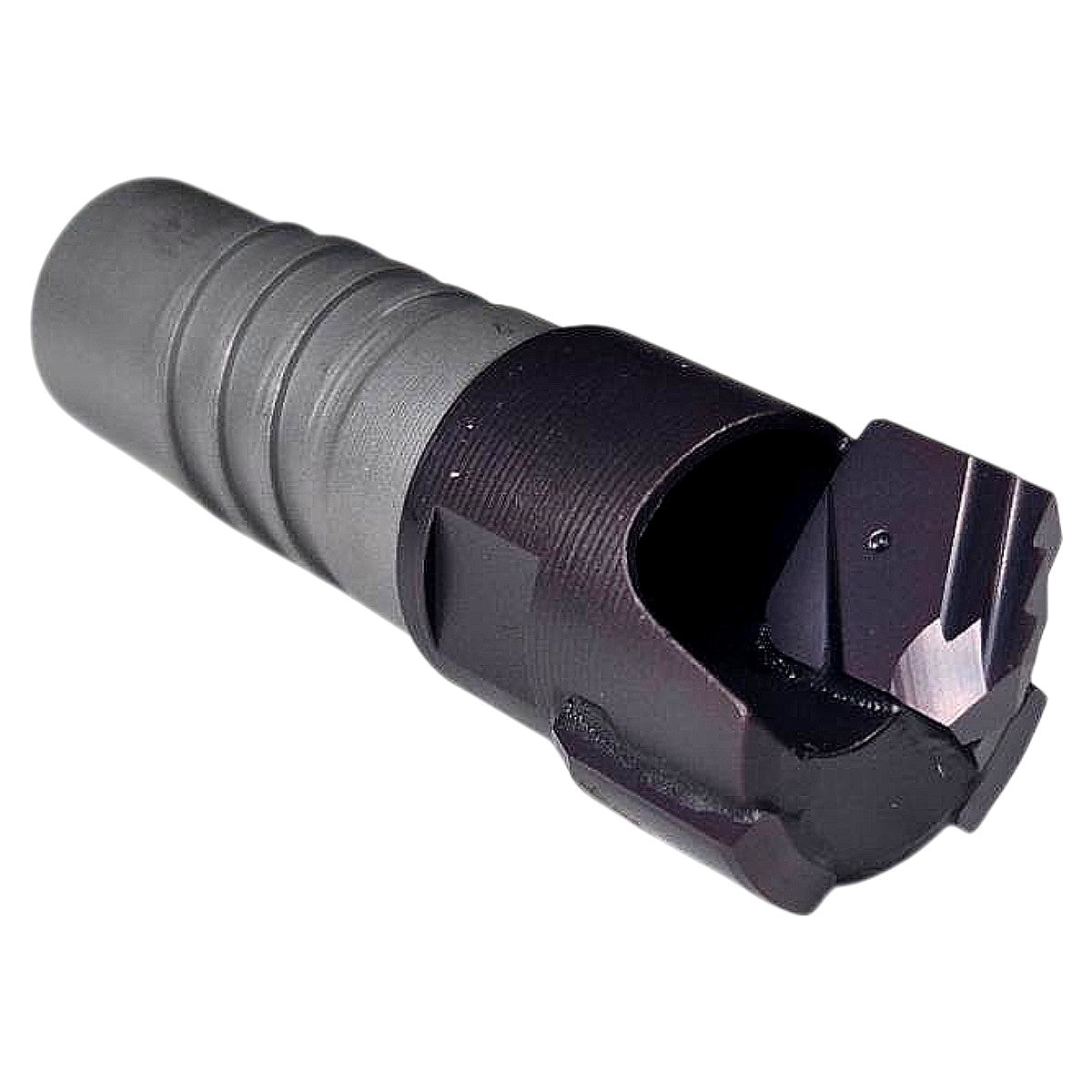

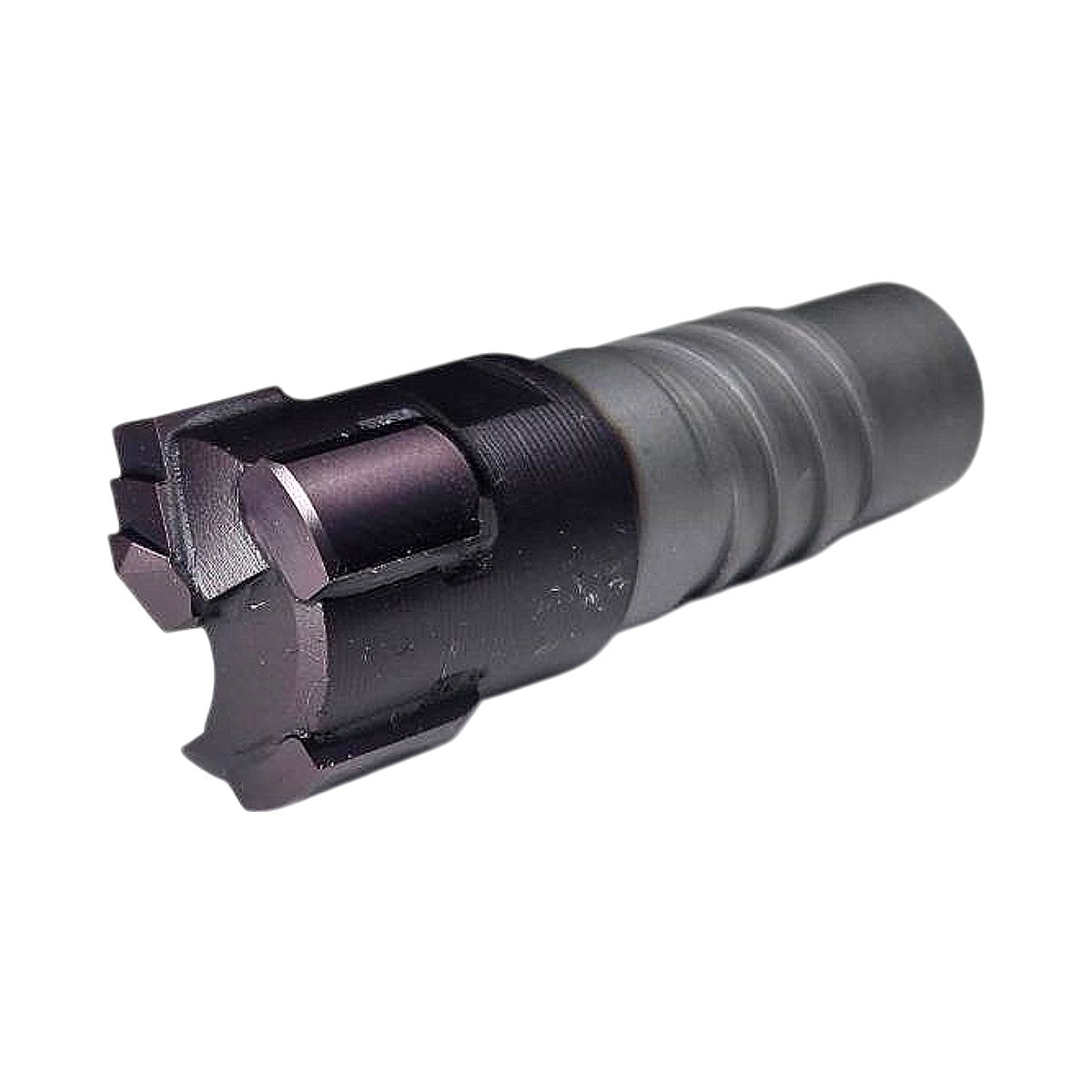

The Tungaloy UTE-0096-2.593UPTAA (catalog number 9746043) is a new, indexable-insert gun drill from Tungaloy's U-Drill / deep-hole drilling line, manufactured in Japan. The body markings read "D15.00d11.6 / D.593d.457 / A2ST13," confirming a nominal cutting diameter of 15.00 mm (0.593 in), a coolant-through shank bore of 11.6 mm (0.457 in), and a body designation of A2ST13 indicating a straight-shank, twin-flute, through-coolant design consistent with Tungaloy's TungDrill Ultra series. The drill accepts Tungaloy's SOMT/WOMT-series PVD-coated carbide inserts seated in two pockets—one central and one peripheral—visible in the photos, allowing quick indexing without removing the body from the machine. Designed for single-pass deep-hole drilling operations in steel, cast iron, and stainless steel on machining centers and CNC lathes with through-spindle coolant capability, this drill delivers consistent hole quality and high metal-removal rates without the cycle-time penalty of dedicated gun-drilling machines.
Product Specifications
| Brand | Tungaloy |
| Part Number (MPN) | UTE-0096-2.593UPTAA |
| Catalog / Item Number | 9746043 |
| Cutting Diameter (metric) | 15.00 mm |
| Cutting Diameter (inch) | 0.593 in |
| Shank / Body Bore Diameter (metric) | 11.6 mm |
| Shank / Body Bore Diameter (inch) | 0.457 in |
| Body Designation | A2ST13 |
| Number of Insert Pockets | 2 (1 central, 1 peripheral) |
| Coolant | Through-coolant (internal) |
| Shank Style | Straight shank |
| Flute Style | Twin-flute (straight) |
| Drill Type | Indexable gun drill (deep-hole) |
| Country of Origin | Japan |
| Condition | New |
