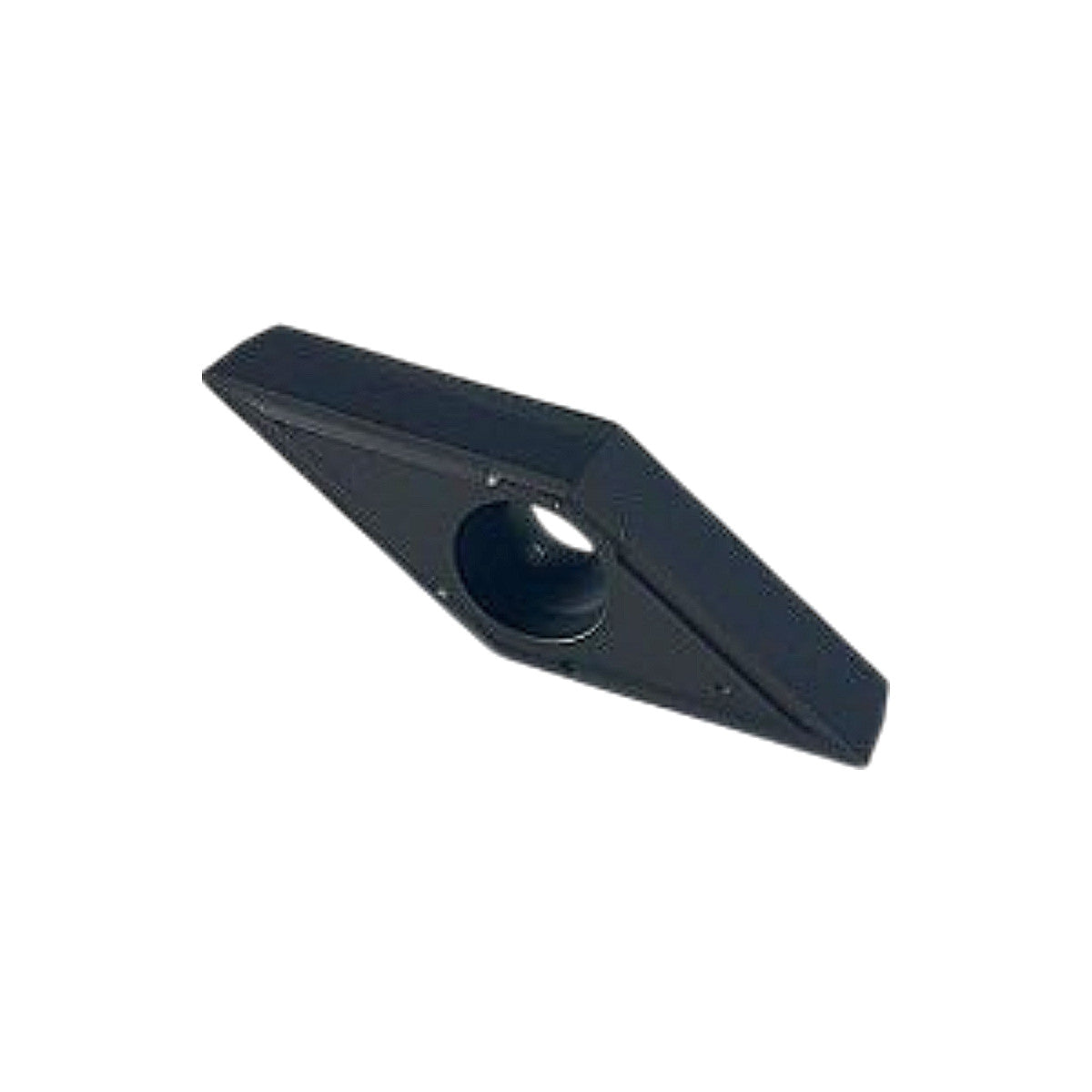

Tungaloy VBMT160404-CM T515 35° Diamond Carbide Turning Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

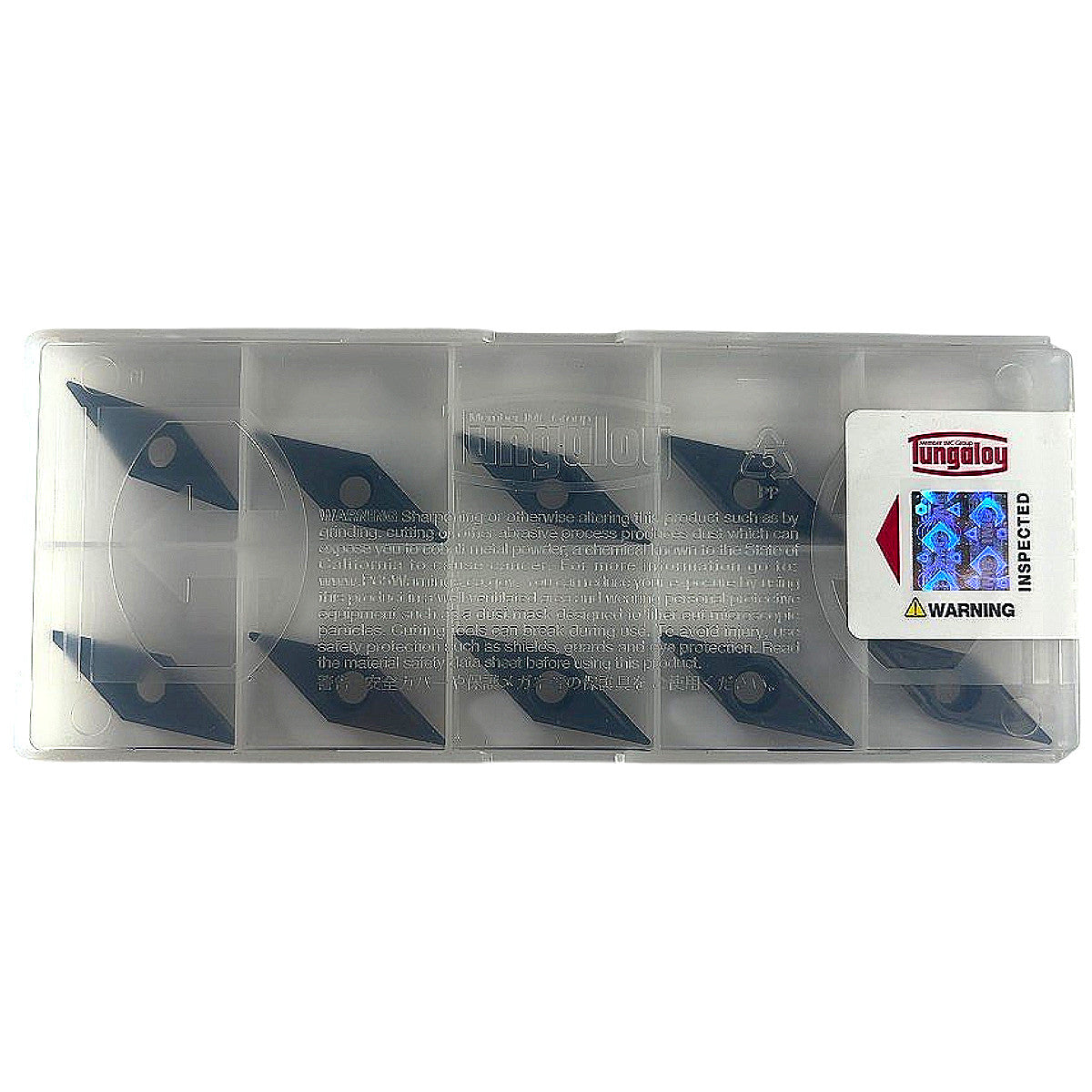

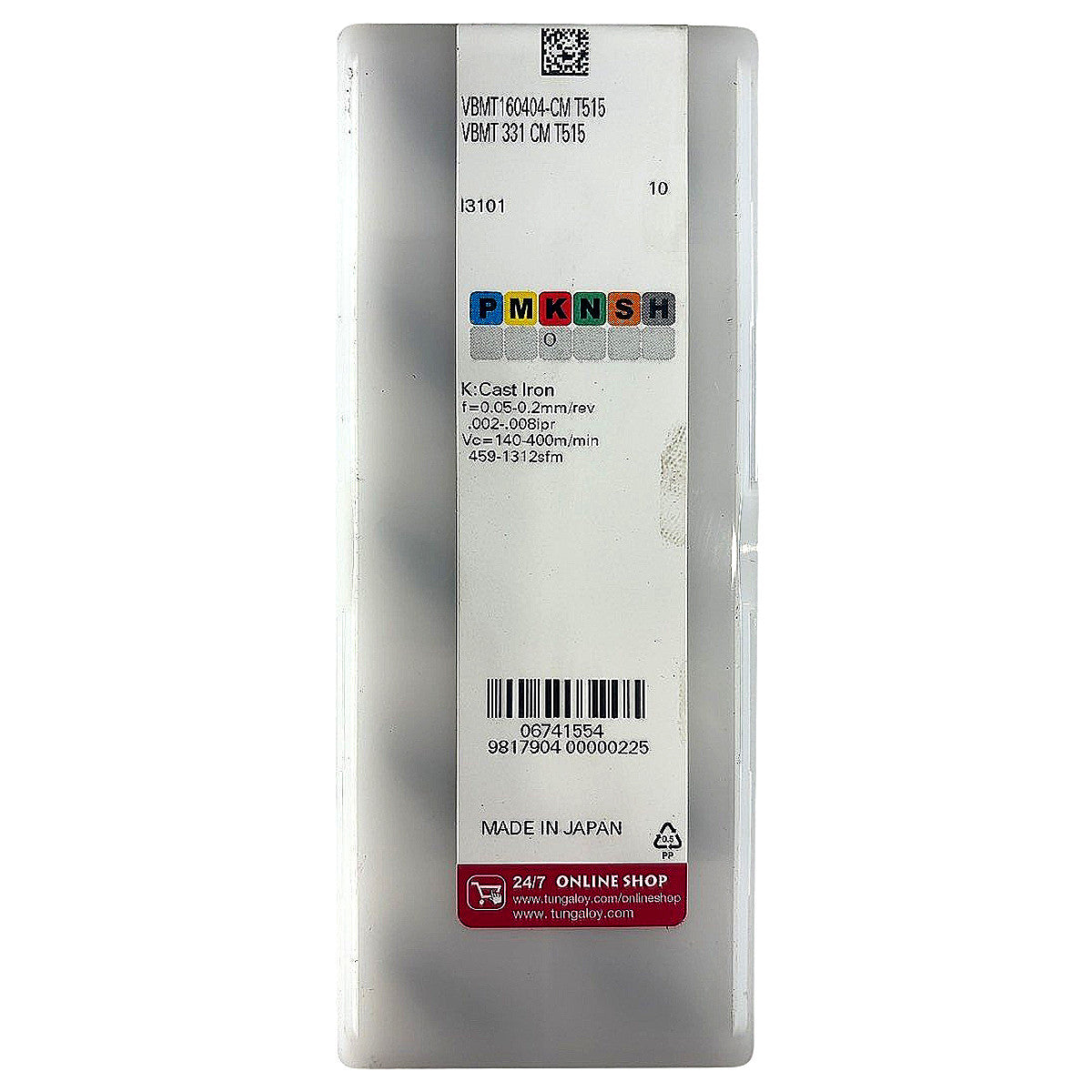

The Tungaloy VBMT160404-CM T515 is a new, factory-sealed 10-piece box of ISO-coded negative-rake 35° diamond (V-shape) carbide turning inserts, manufactured in Japan. Decoding the ISO designation: V = 35° diamond shape, B = 5° clearance angle, M = ±0.08/±0.20 mm tolerance class, T = countersunk hole with chipbreaker on one face, 16 = 16 mm inscribed circle, 04 = 4.76 mm thickness, 04 = 0.4 mm nose radius, CM = Tungaloy's curved-edge medium chipbreaker geometry optimized for light-to-medium finishing cuts. The T515 grade is a PVD-coated (TiAlN-based) cemented carbide designated primarily for cast iron (ISO K) machining, with a recommended cutting speed of 140–400 m/min (459–1312 SFM) and feed rate of 0.05–0.2 mm/rev (0.002–0.008 IPR) as confirmed on the package label. These inserts are compatible with VBMT-style toolholders using a 16 mm IC insert seat (e.g., Tungaloy SVJBL/R, SVVCL/R series) and are suited for finish to semi-finish turning of cast iron components where tight tolerances and smooth surface finish are required.
Product Specifications
| Brand | Tungaloy |
| MPN | VBMT160404-CM T515 |
| ISO Alternate Designation | VBMT 331 CM T515 |
| Insert Shape | 35° Diamond (V) |
| Clearance Angle | 5° (B) |
| Tolerance Class | M (±0.08 mm IC, ±0.20 mm thickness) |
| Fixing / Chipbreaker Type | T – countersunk hole, one-sided chipbreaker |
| Inscribed Circle (IC) | 16 mm (0.630 in) |
| Insert Thickness | 4.76 mm (0.1875 in) |
| Nose Radius | 0.4 mm (1/64 in) |
| Chipbreaker | CM (curved medium, light-to-medium finishing) |
| Grade | T515 |
| Coating | PVD TiAlN-based |
| ISO Material Group | K (Cast Iron) |
| Cutting Speed (Vc) | 140–400 m/min (459–1312 SFM) |
| Feed Rate | 0.05–0.2 mm/rev (0.002–0.008 IPR) |
| Country of Origin | Japan |
| Quantity per Box | 10 |
| Condition | New |
