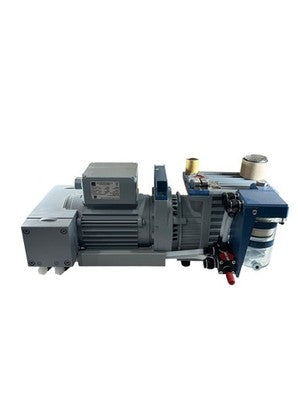

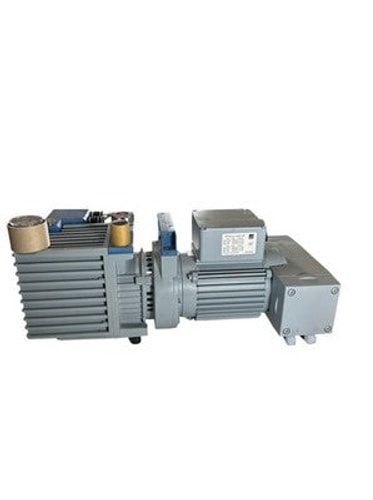

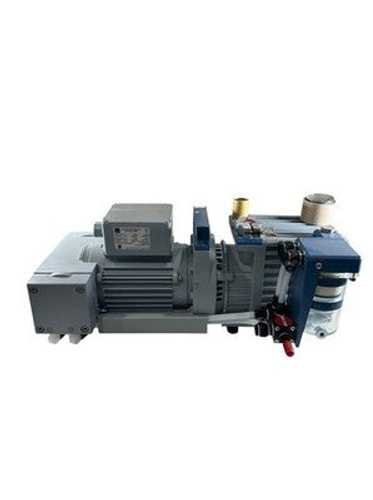

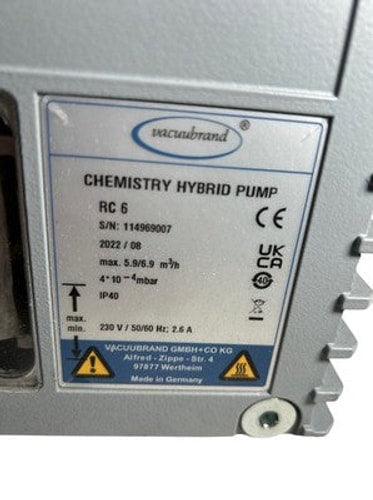

Vacuubrand BrandTech Chemistry-HYBRID Vacuum Pump RC6 100-120V/50-60Hz
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Ultimate Vacuum with Gas Ballast | 1 x 10-2 mbar / 0.75 x 10-2 torr |

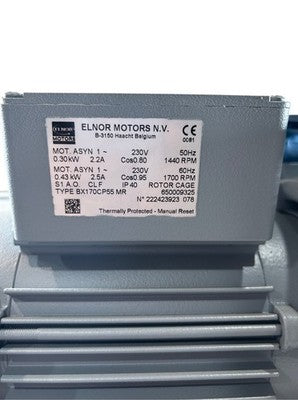

| Rater Motor Power | 0.3 kW |
| Dimensuion H in mm | 226 mm |
| Max. Pumping Speed 60 Hz | 4 x 10-4 mbar |
| Rate Motor Speed at 50/60 Hz | 1500/1800 min-1 |
| MPN | RC 6 |
| Water Vapor Tolerance with Gas Ballast | 40 mbar |
| Number of Stages | 2+2 |
| Oil Capacity (B-Oil) max | 0.50 |
| Unit Type | Unit |
| Dimension L in mm | 526 mm |
| Lower Ambient Temperature (operation) | 12 C |
| Unit Quantity | 1 |
| Max Back Pressure (abs.) | 1.1 bar |
| Dimension B in mm | 302 mm |
| Number of Heads | 2 |
| Outlet Connection | Hose Nozzle DN 8-10 mm |
| Oil Capacity (B-Oil) min. | 0.34 |
| Ultimate Vacuum | 2 x 10-3 mbar / 1.5 x 10-3 torr |
| Inlet Connection | Small Flange KF DN 16 |
| Weight | 60 lbs |
| Brand | Vacuubrand |
| Upper Ambient Temperature (Storage) | 60 degrees C |
| Noise in dBA at 50 Hz or 1500 rpm/62% | 50 dBa |
| Type | Vacuum |
| Protection Class IEC 60529 | IP 40 |
| Max. Pumping Speed 50 Hz | 5.9 m3/h |
| Upper Ambient Temperature (operation) | 40 degrees C |
| Lower Ambient Temperature (Storage) | -10 Degrees C |
