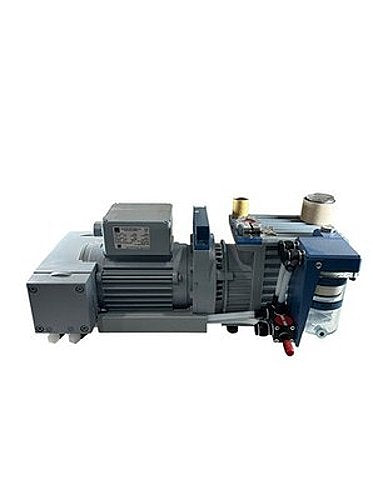

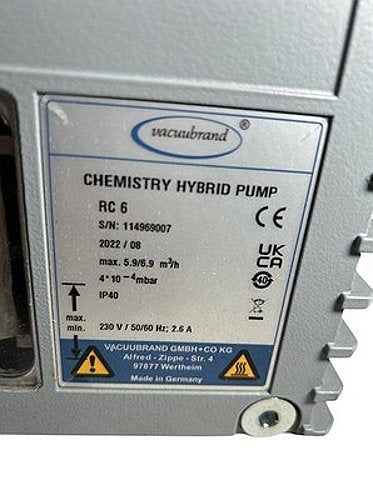

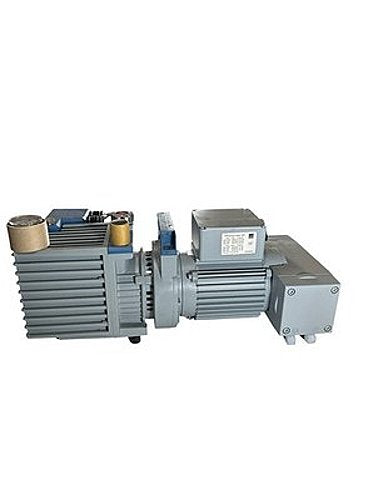

The Vacuubrand RC 6 is a new Chemistry-HYBRID vacuum pump (S/N 114969007, manufactured 2022/08) combining a dry diaphragm pre-stage with a rotary vane final stage to achieve a ultimate vacuum of 4×10⁻⁴ mbar — making it suitable for demanding laboratory applications including rotary evaporation, vacuum distillation, filtration, drying, and concentration of aggressive chemical vapors. The pump delivers a maximum pumping speed of 5.9/6.9 m³/h (50/60 Hz) and is rated IP40, powered at 230V/50-60Hz drawing 2.6A; the integrated Elnor Motors N.V. (Belgium) motor (Type BX170CP55 MR) is a single-phase asynchronous cage-rotor unit rated 0.30 kW at 1440 RPM (50 Hz) / 0.43 kW at 1700 RPM (60 Hz), thermally protected with manual reset. Manufactured by VACUUBRAND GmbH & Co KG in Wertheim, Germany, the RC 6 ships complete with operator manual, a bottle of rotary vane pump oil, power cord, and fitting accessories; its PTFE-lined diaphragm head resists chemical attack, allowing use with corrosive solvents without oil contamination of the process stream.
Product Specifications
| Brand | Vacuubrand (VACUUBRAND GmbH & Co KG) |
| Model | RC 6 |
| Serial Number | 114969007 |
| Manufacture Date | 2022/08 |
| Pump Type | Chemistry-HYBRID (diaphragm + rotary vane) |
| Ultimate Vacuum | 4×10⁻⁴ mbar |
| Max Pumping Speed (50 Hz) | 5.9 m³/h |
| Max Pumping Speed (60 Hz) | 6.9 m³/h |
| Input Voltage | 230 V / 50-60 Hz |
| Input Current | 2.6 A |

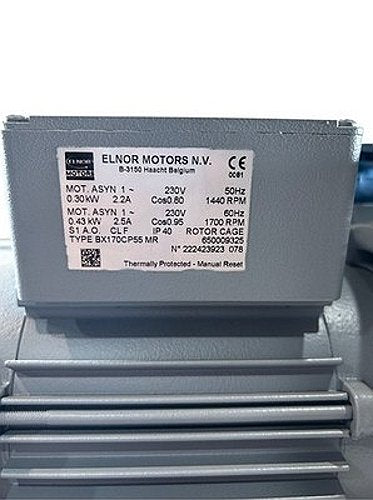

| Motor Brand | Elnor Motors N.V., Haacht Belgium |
| Motor Type | BX170CP55 MR, single-phase, asynchronous, rotor cage |
| Motor Power (50 Hz) | 0.30 kW |
| Motor Power (60 Hz) | 0.43 kW |
| Motor Speed (50 Hz) | 1440 RPM |
| Motor Speed (60 Hz) | 1700 RPM |
| Motor Current (50 Hz) | 2.2 A |
| Motor Current (60 Hz) | 2.5 A |
| Motor Power Factor (50 Hz) | Cos 0.80 |
| Motor Power Factor (60 Hz) | Cos 0.95 |
| Motor Thermal Protection | Thermally protected, manual reset |
| IP Rating | IP40 |
| Duty Cycle | S1 A/O CLF (continuous) |
| Origin | Made in Germany |
| Condition | New |
| Certifications | CE, UKCA |

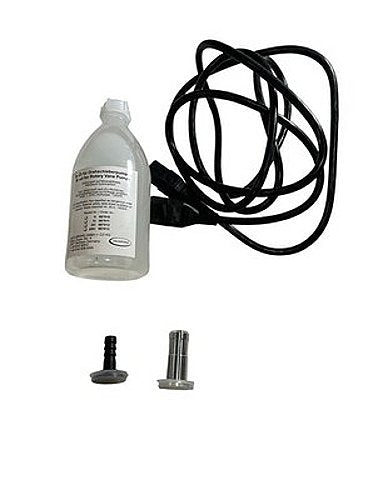

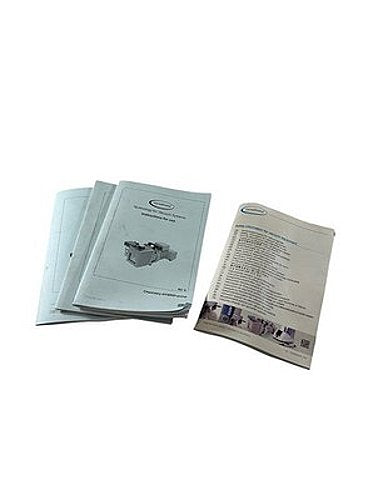

| Includes | Manual, power cord, pump oil, fittings |
