Val-Matic 2004/1A00A 4in 150 PSI AWWA Flanged Butterfly Valve
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

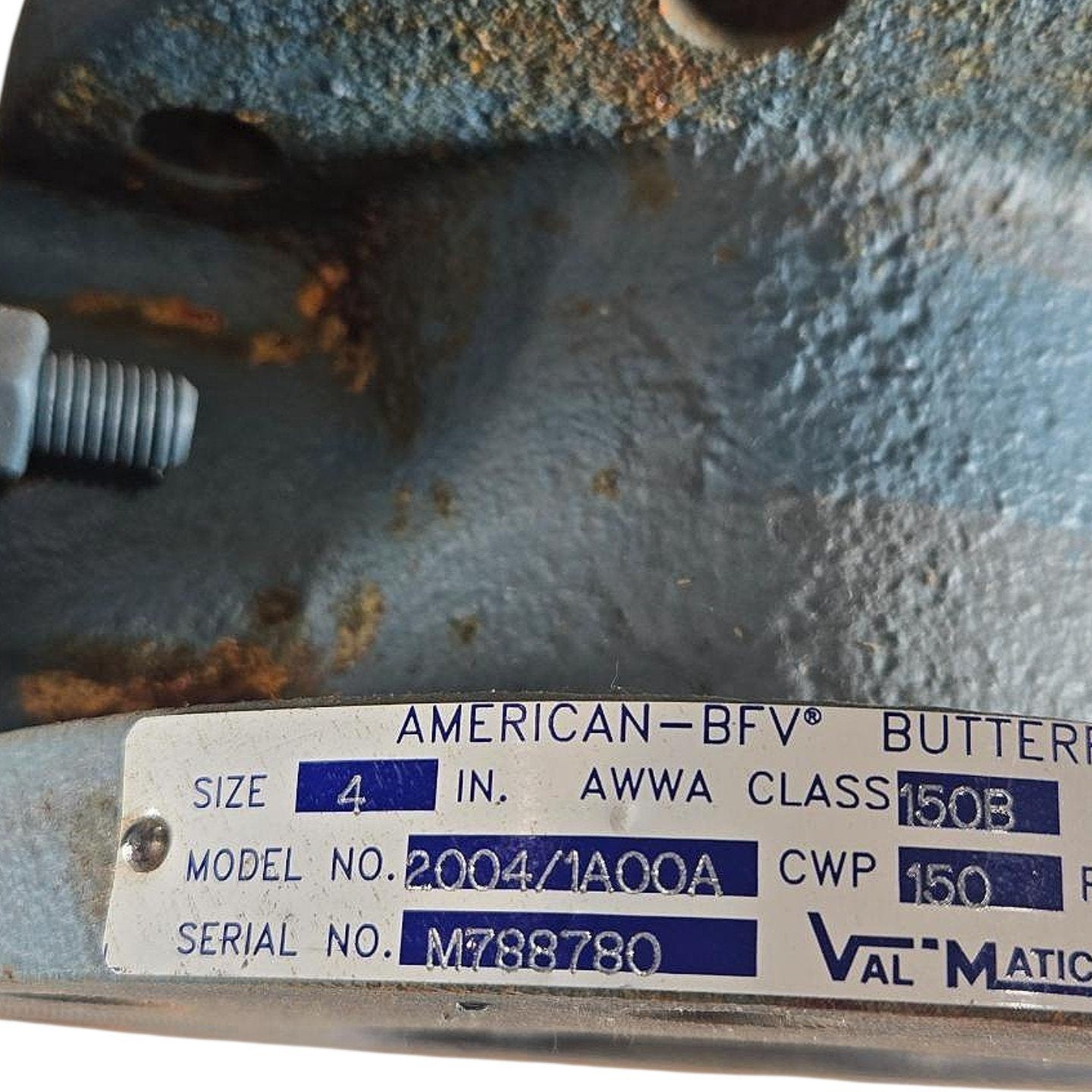

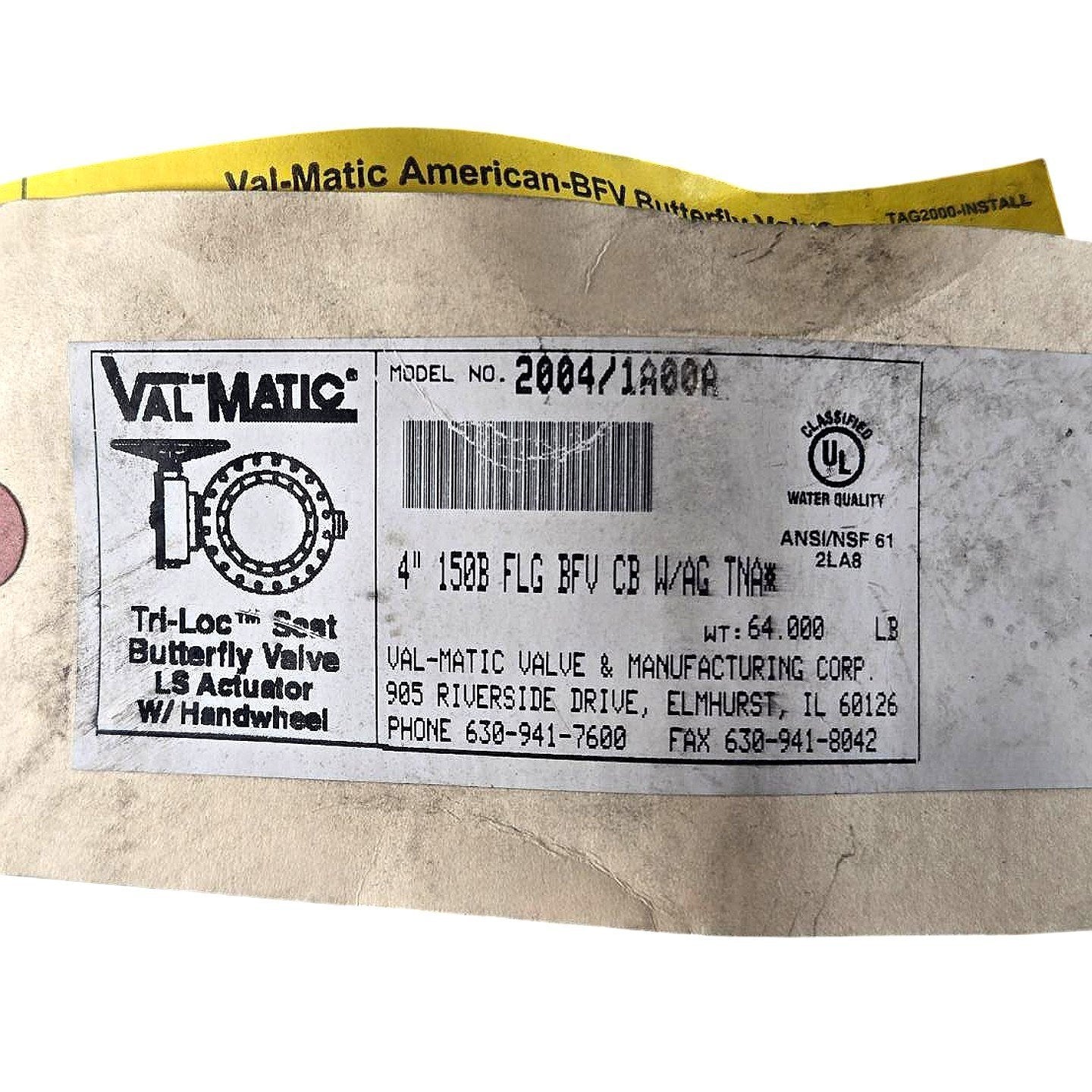

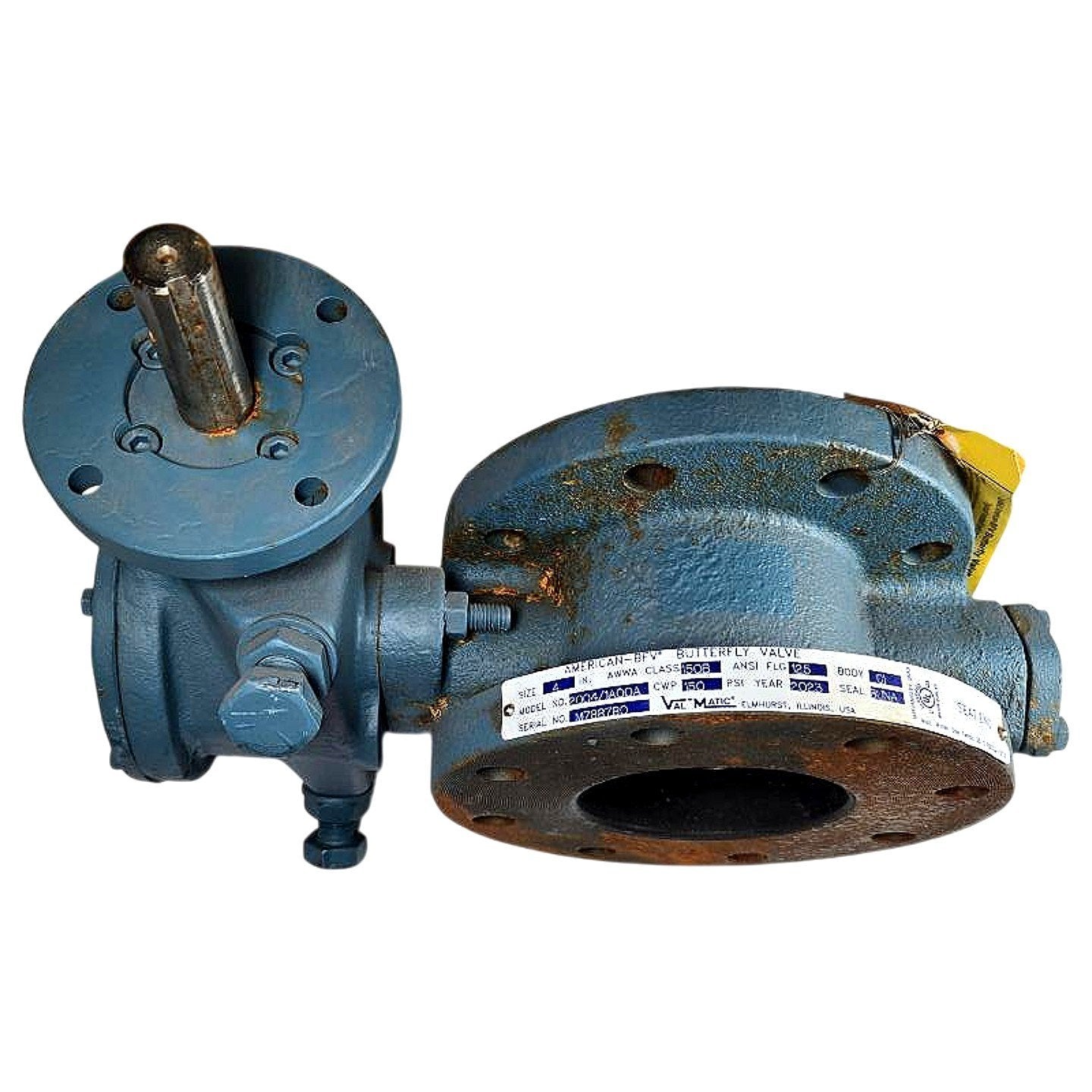

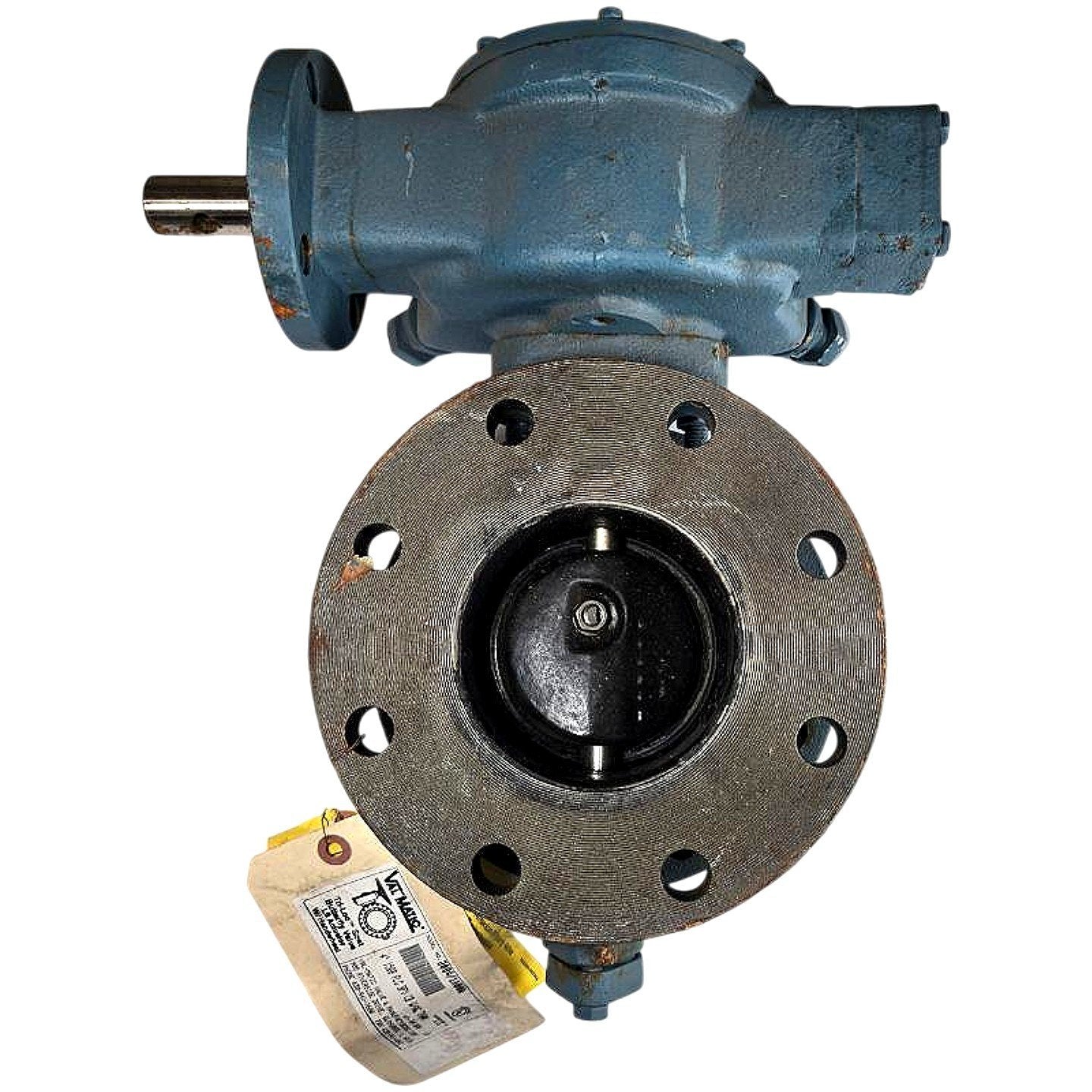

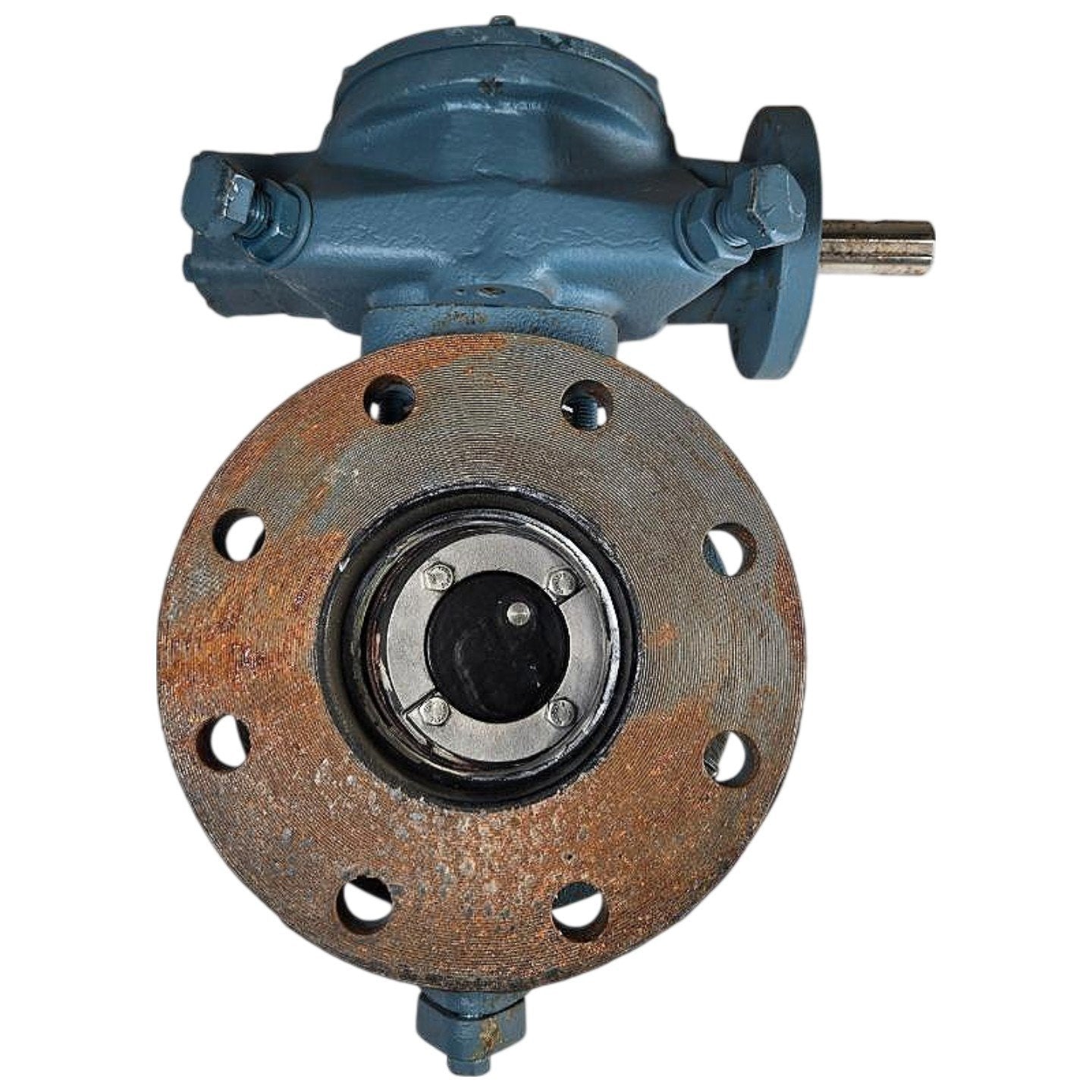

This is a Val-Matic American-BFV Series 4-inch flanged butterfly valve, model 2004/1A00A, serial M788780, manufactured in 2023 at Val-Matic Valve & Manufacturing Corp., Elmhurst, Illinois. The valve is built to AWWA Class 150B with ANSI/ASME Class 125 flange drilling, rated 150 PSI CWP, and features a Tri-Loc seat design with a cast iron body and an LS (linear/worm gear) actuator with handwheel for manual quarter-turn operation. It carries UL Classification for Water Quality and is compliant with ANSI/NSF 61, making it suitable for potable water, wastewater, and municipal waterworks distribution applications. The tag description reads '4" 150B FLG BFV CB W/AG TNA' confirming cast iron body (CB), worm gear actuator (AG), and Tri-Loc seat; the unit is new — other condition, showing surface rust on the flange face and minor cosmetic wear consistent with storage, with the valve disc and internal seat appearing uninstalled and intact. Shipping weight is stated on the tag as 64 lbs.
Product Specifications
| Brand | Val-Matic |
| Model Number | 2004/1A00A |
| Serial Number | M788780 |
| Valve Type | Butterfly Valve |
| Series | American-BFV |
| Pipe Size | 4 in |
| AWWA Class | 150B |
| ANSI Flange Class | 125 |
| CWP Rating | 150 PSI |
| End Connection | Flanged |
| Body Material | Cast Iron |
| Seat Design | Tri-Loc |
| Actuator Type | LS Worm Gear w/ Handwheel |
| Operation | Manual Quarter-Turn |
| Certifications | UL Water Quality, ANSI/NSF 61 |
| Manufacturer Location | Elmhurst, IL, USA |
| Year of Manufacture | 2023 |
| Weight | 64 lb |
| Condition | New — other (surface rust on flange, cosmetic wear) |
