Valenite G-TB-175 LH 7T02 SD-2 1-3/4in Indexable Boring Bar
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

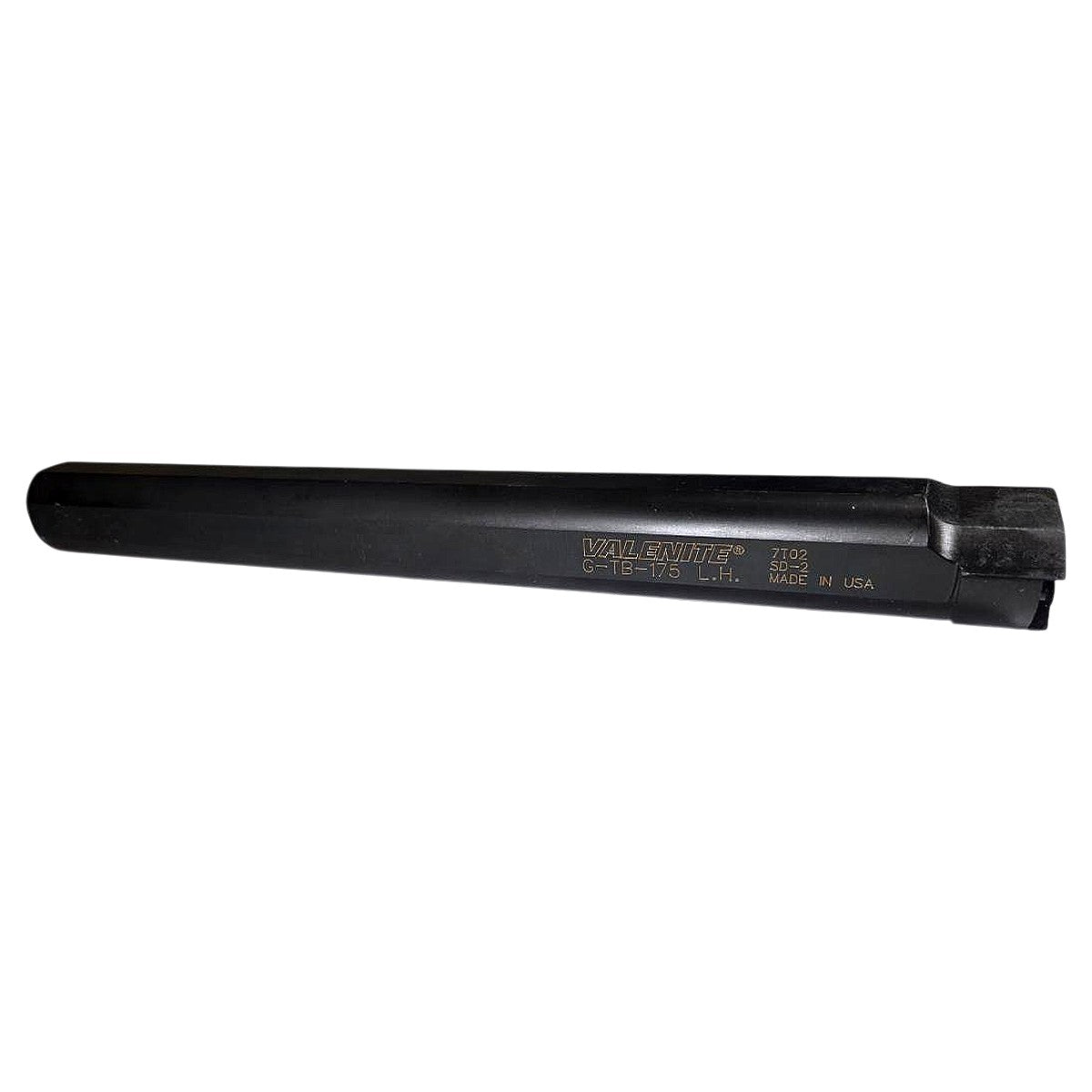

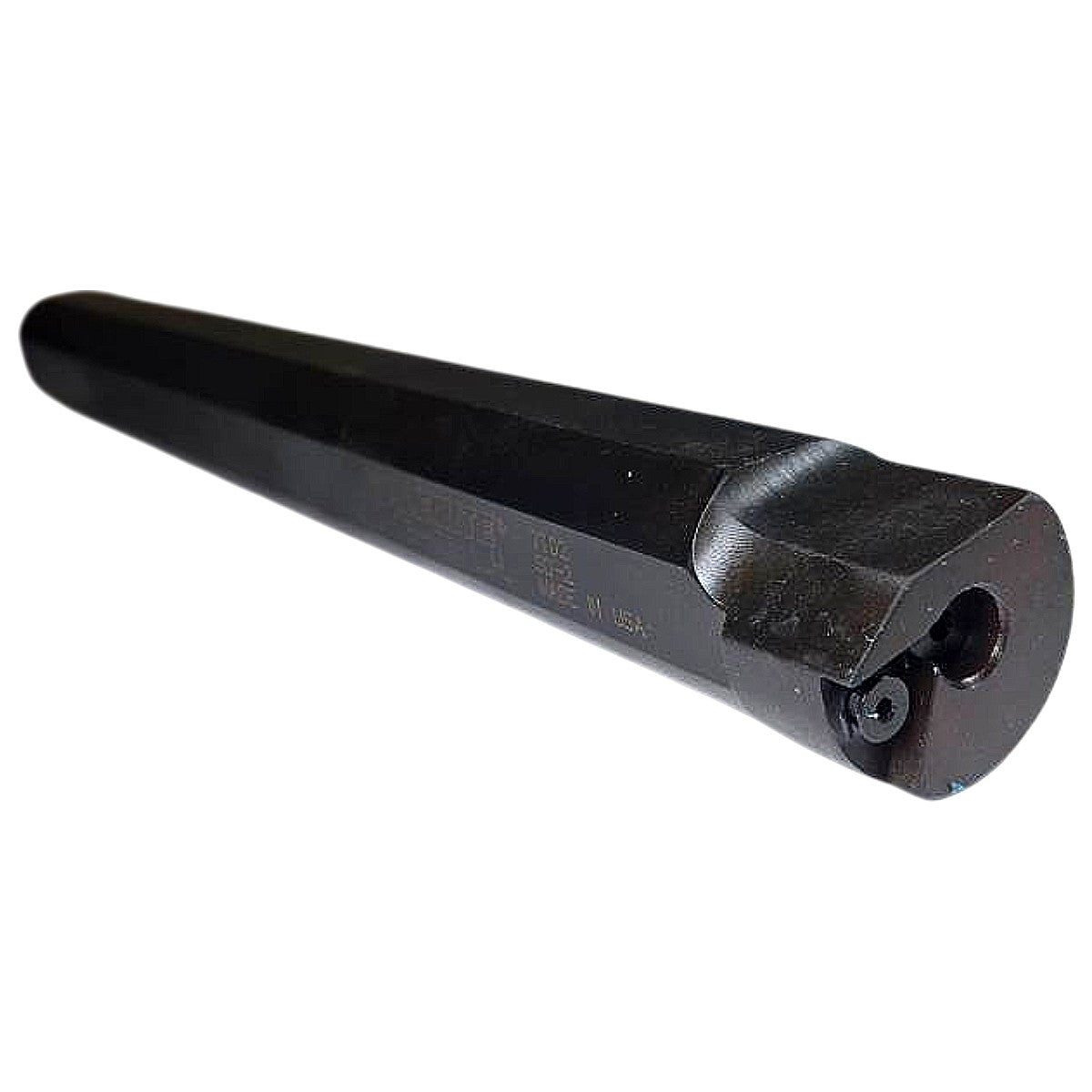

The Valenite G-TB-175 L.H. is a new, solid-steel indexable boring bar designed for left-hand internal turning and boring operations on CNC and manual lathes. The "G-TB" prefix denotes Valenite's G-series through-bore toolholder family; "175" indicates a 1-3/4 in (44.45 mm) shank diameter; "L.H." specifies left-hand cutting orientation, meaning the tool cuts when feeding right-to-left (away from the chuck). The insert seat designation SD-2, combined with the 7T02 insert grade code stamped on the shank, confirms this bar accepts SD-style (diamond-shaped, 55° point angle) negative-rake inserts in Valenite's 7T02 carbide grade — a general-purpose uncoated or lightly treated grade suited for steel and cast iron boring. The black oxide-finished alloy steel body provides rigidity for deep-reach internal diameters, and the through-coolant-capable design (visible center hole at the cutting end) enables direct coolant delivery to the cutting zone, reducing heat and extending insert life in production boring applications. Made in USA.
Product Specifications
| Brand | Valenite |
| MPN | G-TB-175 L.H. |
| Insert Grade | 7T02 |
| Insert Seat Style | SD-2 |
| Shank Diameter | 1-3/4 in (44.45 mm) |
| Hand of Cut | Left-Hand (L.H.) |
| Toolholder Series | G-TB (Valenite G-Series Through-Bore) |
| Insert Shape | SD — 55° diamond, negative rake |
| Coolant | Through-coolant capable (center hole) |
| Body Material | Alloy steel, black oxide finish |
| Country of Origin | USA |
| Condition | New |
