Value Collection 317-0321 1/2R x 2-1/4 x 7/8in HSS Convex Milling Cutter

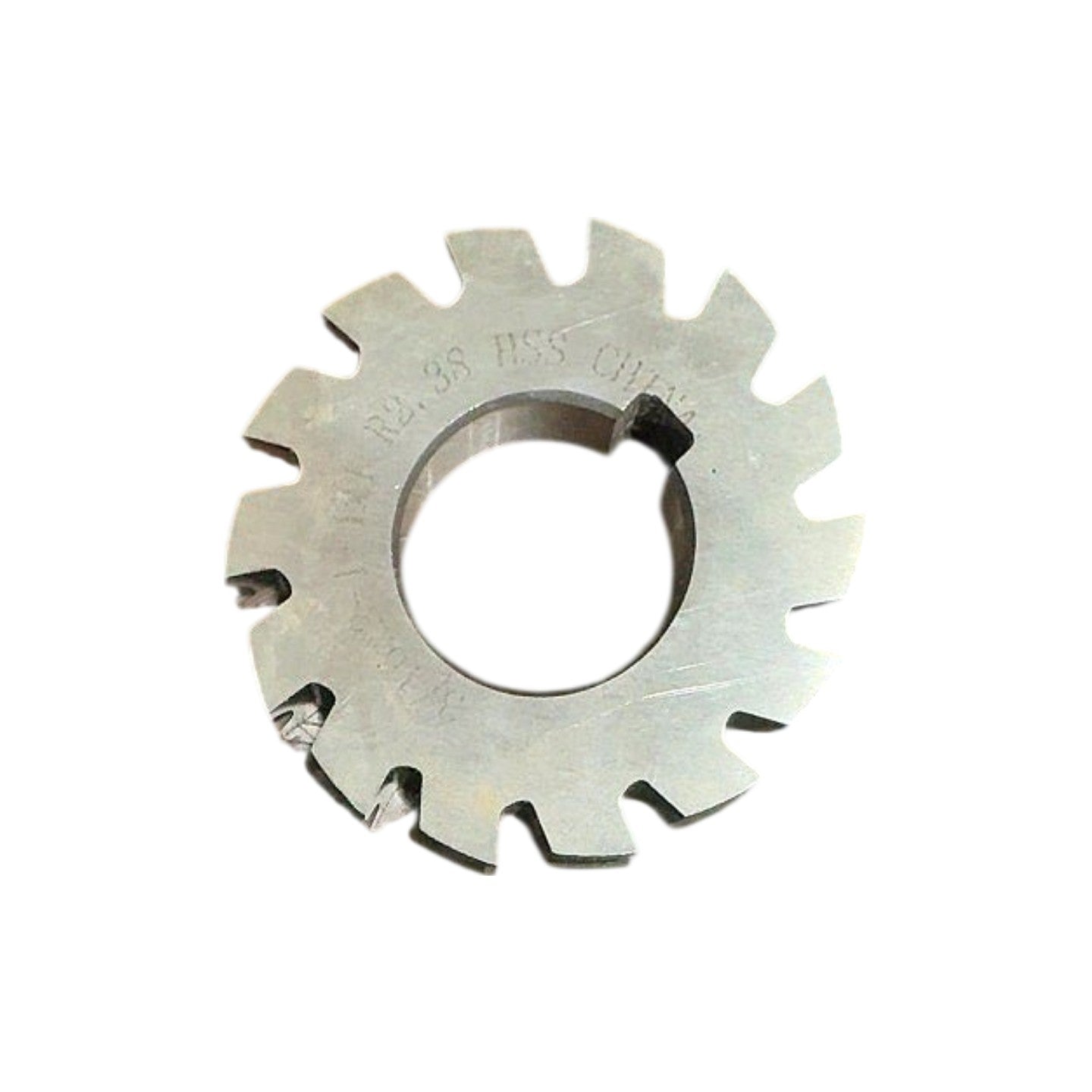

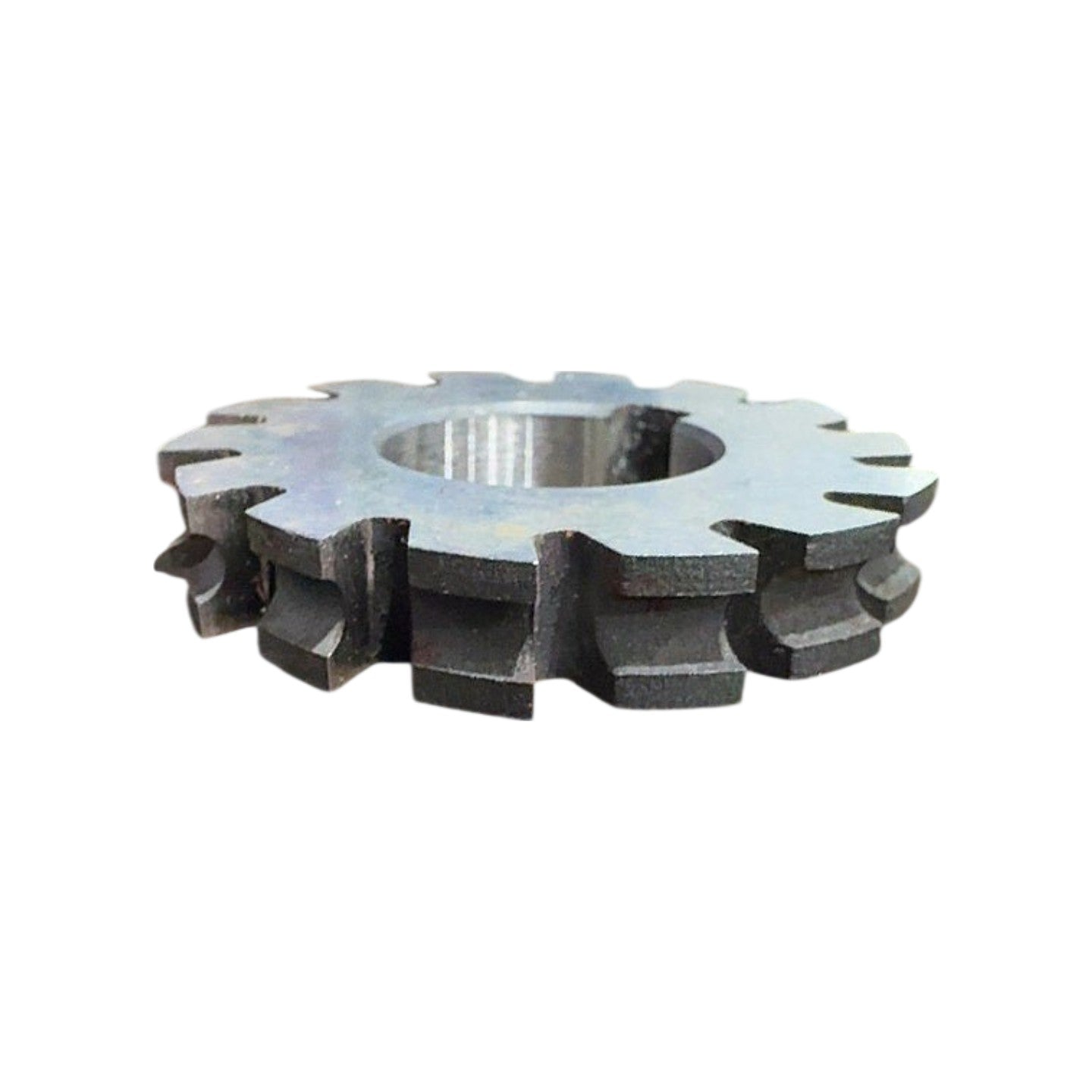

This is a new Value Collection (MSC part 03170321, catalog # 317-0321) HSS convex radius milling cutter with a 1/2 in radius profile, 2-1/4 in outer diameter, 1/4 in width, and 7/8 in arbor hole diameter. The second image confirms the cutter is marked "R2.38 HSS CHINA," where R2.38 corresponds to the 1/2 in (12.7 mm ≈ R6.35 mm — noting the marking likely reads the radius in a local convention) ground in high-speed steel for form milling convex radii on mating concave features. Convex milling cutters of this type are used on horizontal milling machine arbors to produce precise rounded convex profiles on workpieces in tool-and-die, fixture-making, and general metalworking applications. The arbor-mount design with a 7/8 in bore accepts standard milling machine arbors; a keyway visible in the second photo provides positive drive. Made in China to standard inch dimensions.

Product Specifications
