Vermont Gage 9/16-18 UNF-2A GO PD .5250 Adjustable Thread Ring Gage
Regular price
$53.15
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

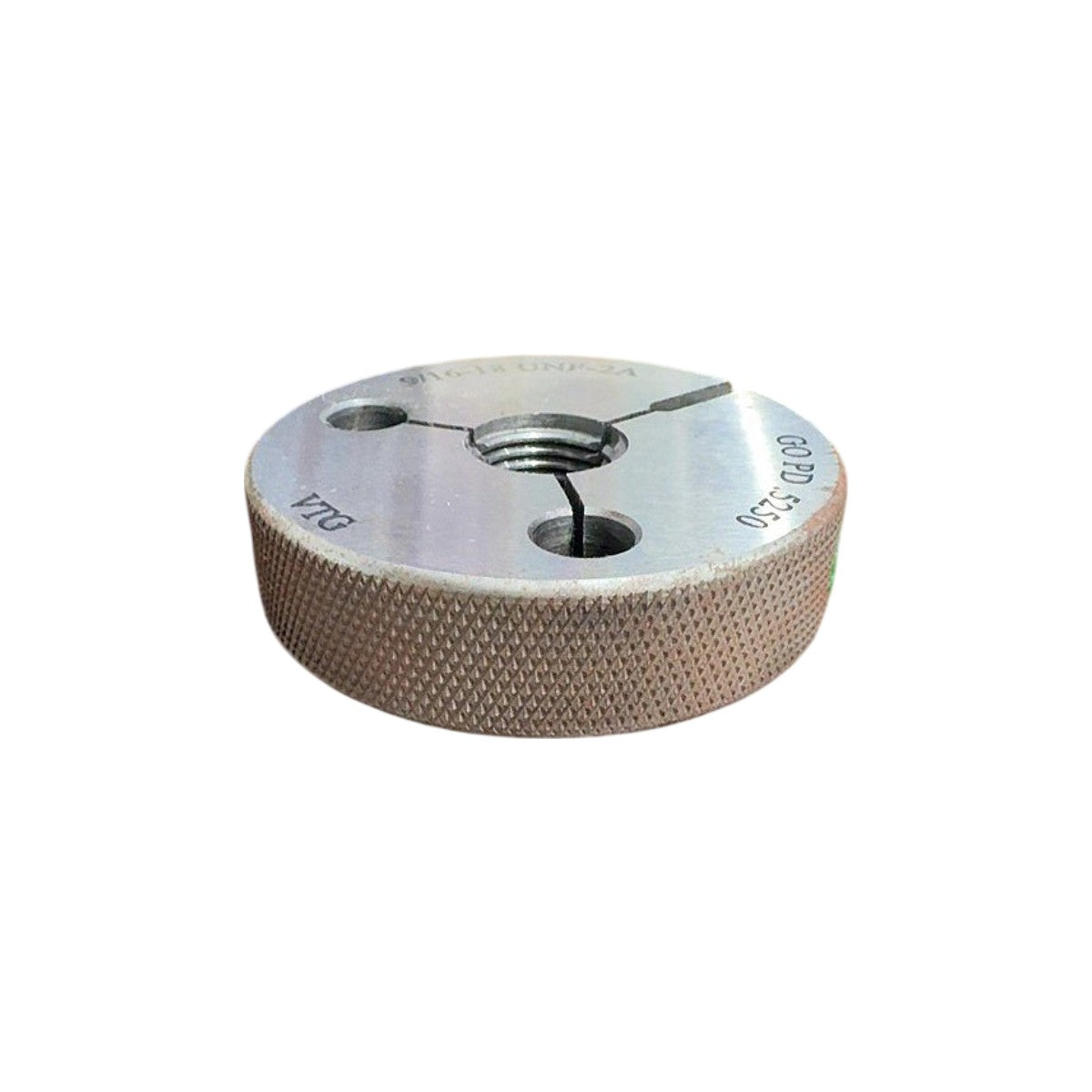

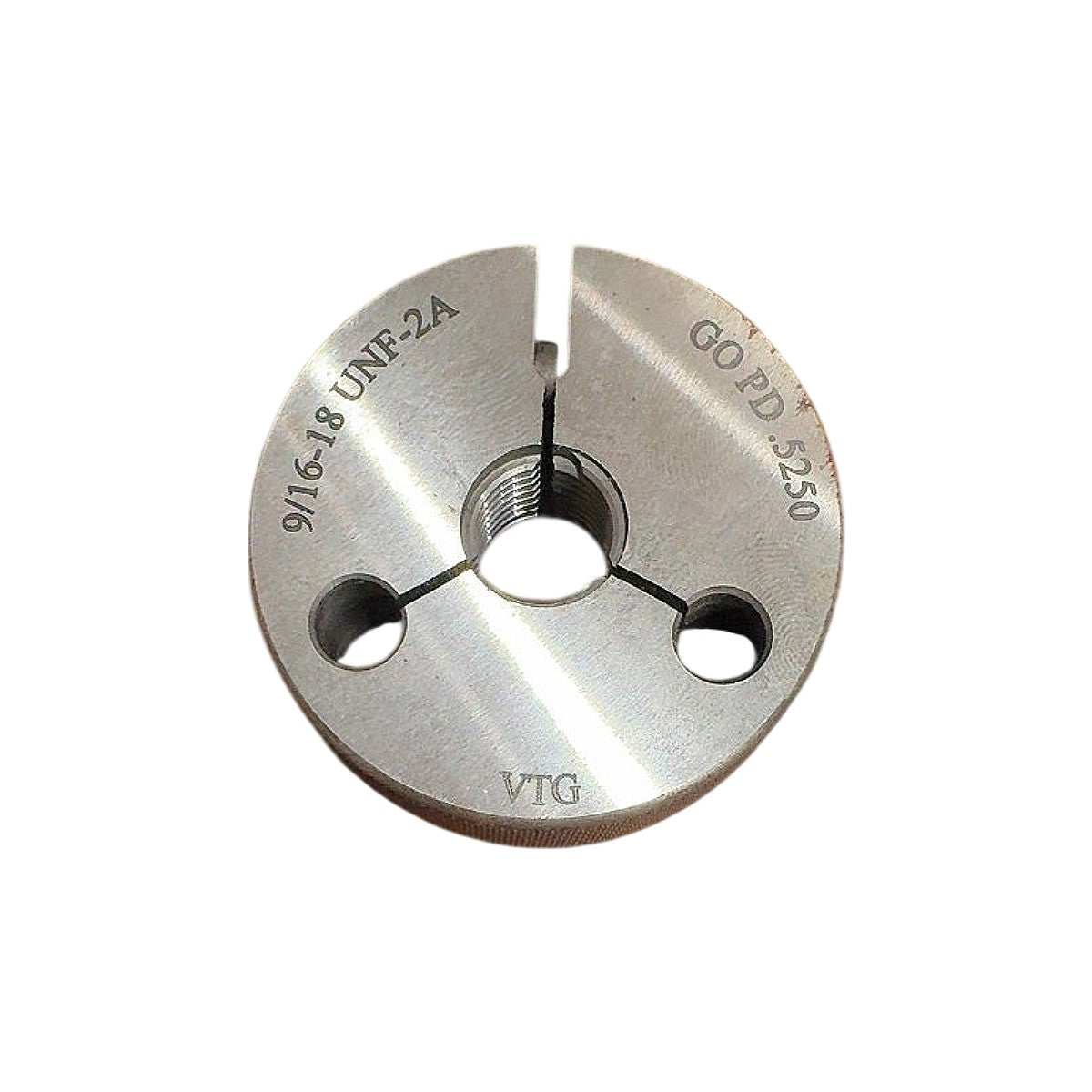

This Vermont Gage GO thread ring gage is marked 9/16-18 UNF-2A with a GO pitch diameter of .5250 in, used to check that external Unified National Fine threads meet the Class 2A pitch diameter limit. The gage is a split, adjustable-style ring with a single slit and two adjustment holes at 120 degrees, and a knurled outer rim for hand gripping during inspection. It is engraved with the thread size, class, GO designation and PD value on the face. Offered in new condition.
Product Specifications
| Brand | Vermont Gage |
| Thread Size | 9/16-18 |
| Thread Series | UNF |
| Thread Class | 2A |
| Gage Type | GO Thread Ring Gage |
| Pitch Diameter | 0.5250 in |
| Threads Per Inch | 18 TPI |
| Thread Type | External (checks male threads) |
| Thread Direction | Right Hand |
| Style | Adjustable, Split Ring |
| Outer Surface | Knurled |
| Unit System | Inch |
| Nominal Diameter | 9/16 in |
| Material | Steel |
