Versamatic E2AA6X660C-ATEX 2in Cast Iron ATEX Certified AODD Pump

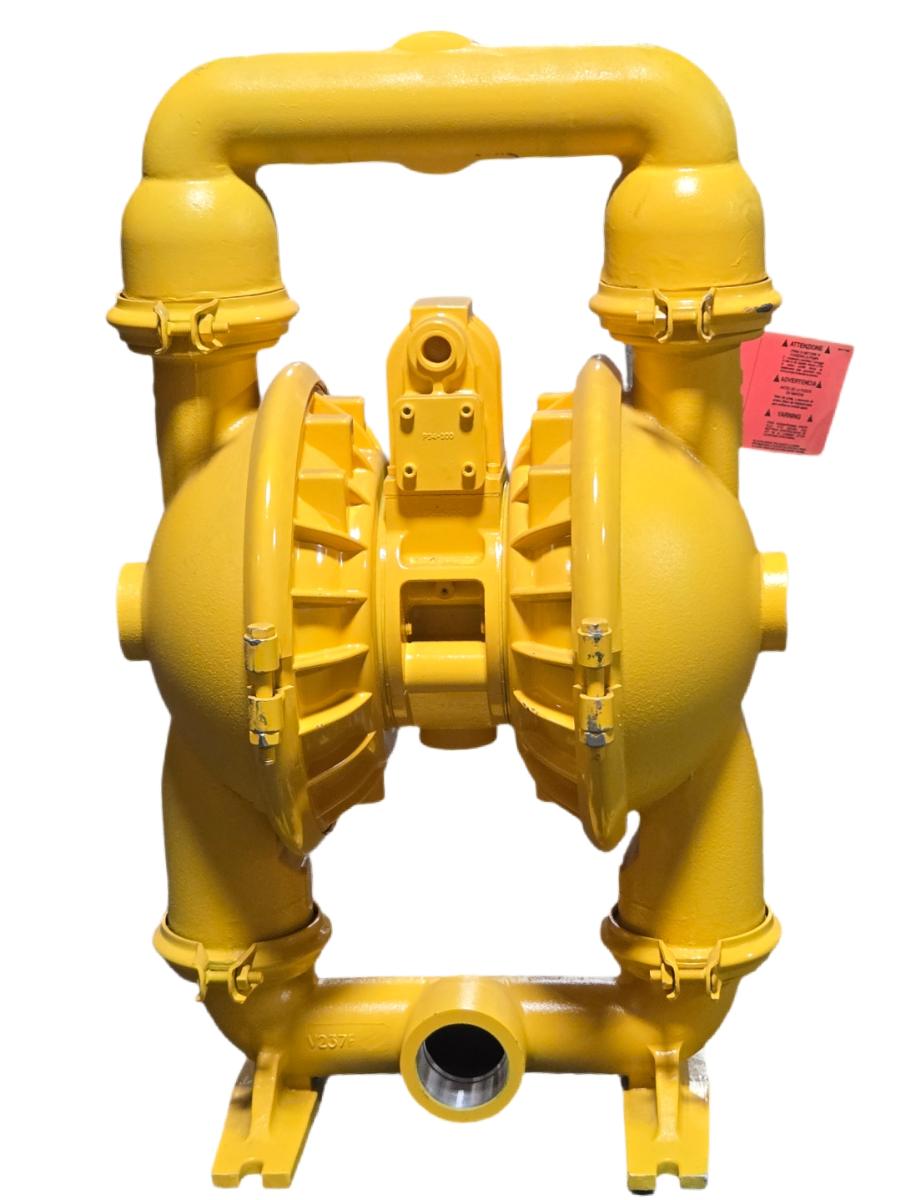

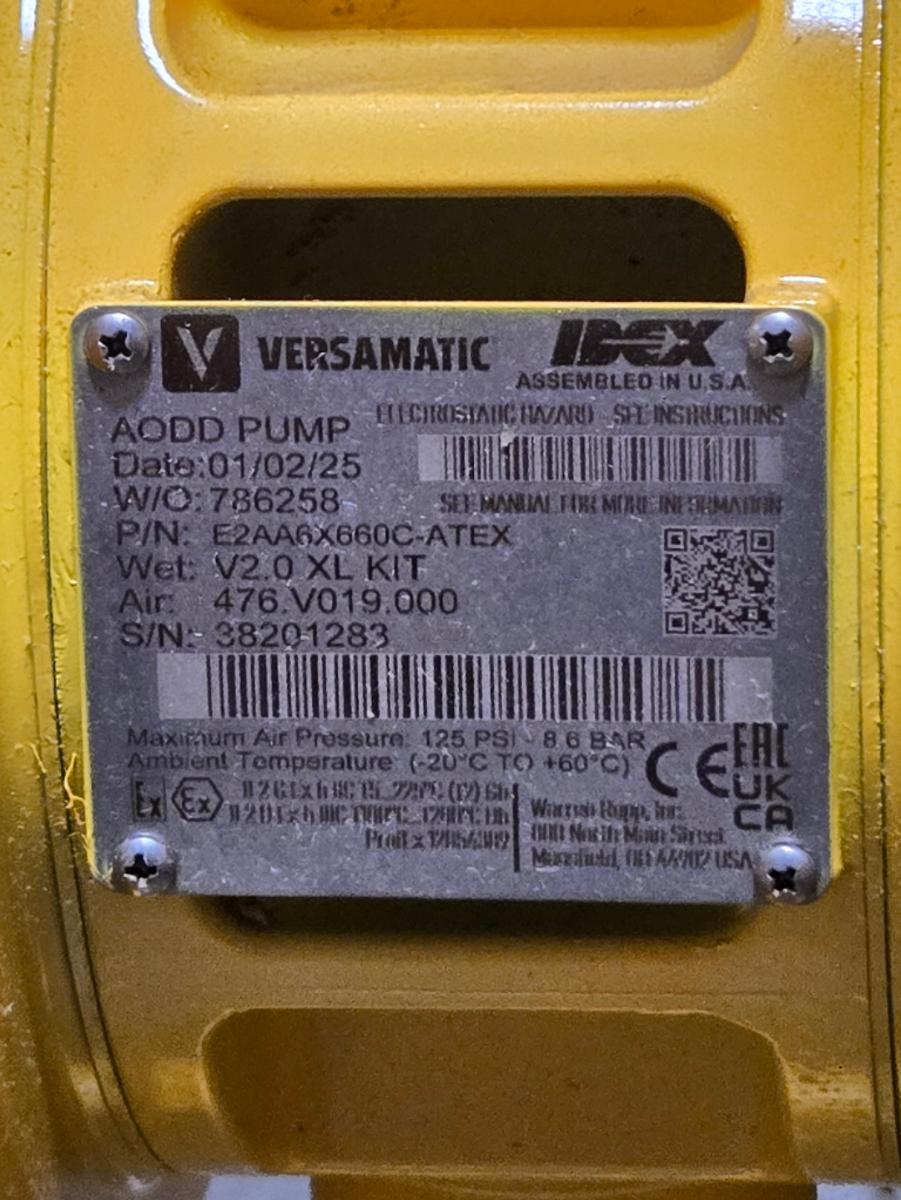

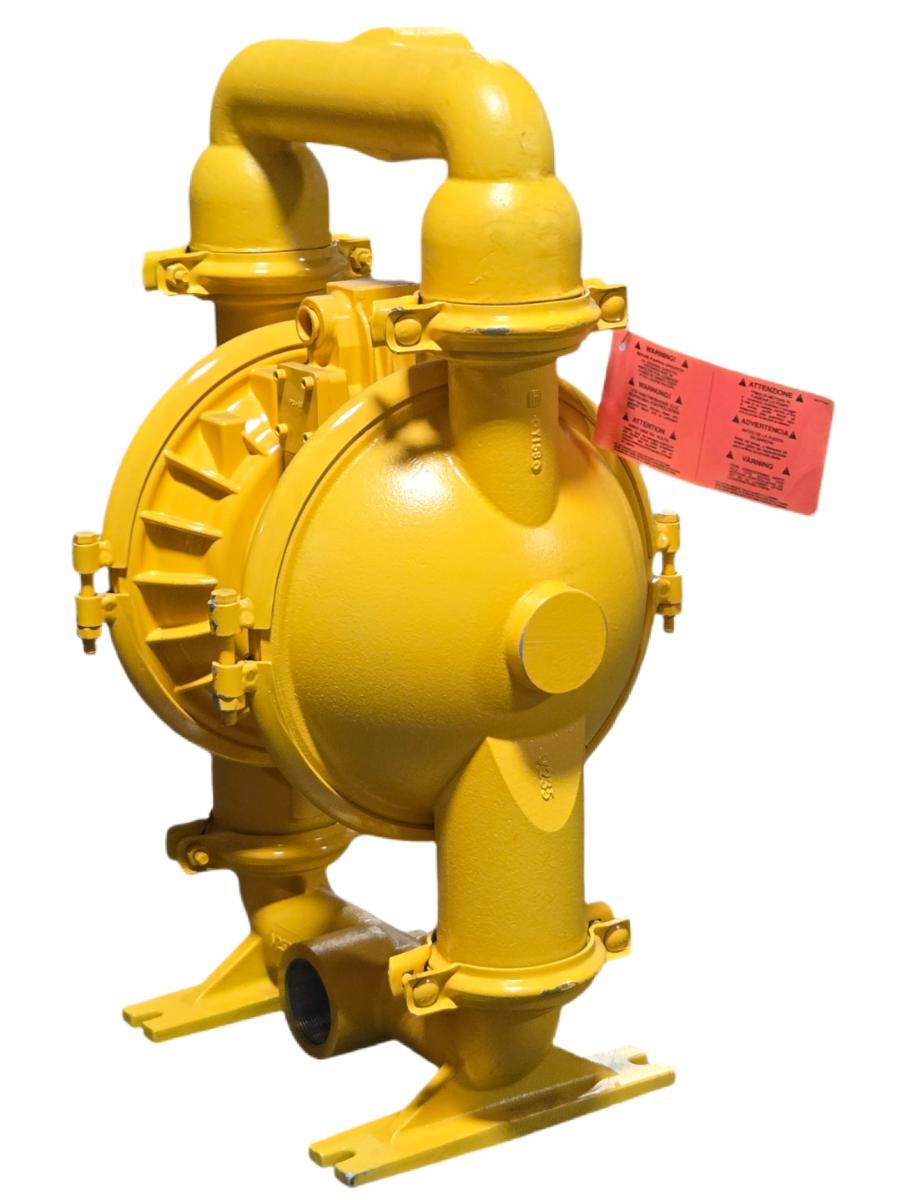

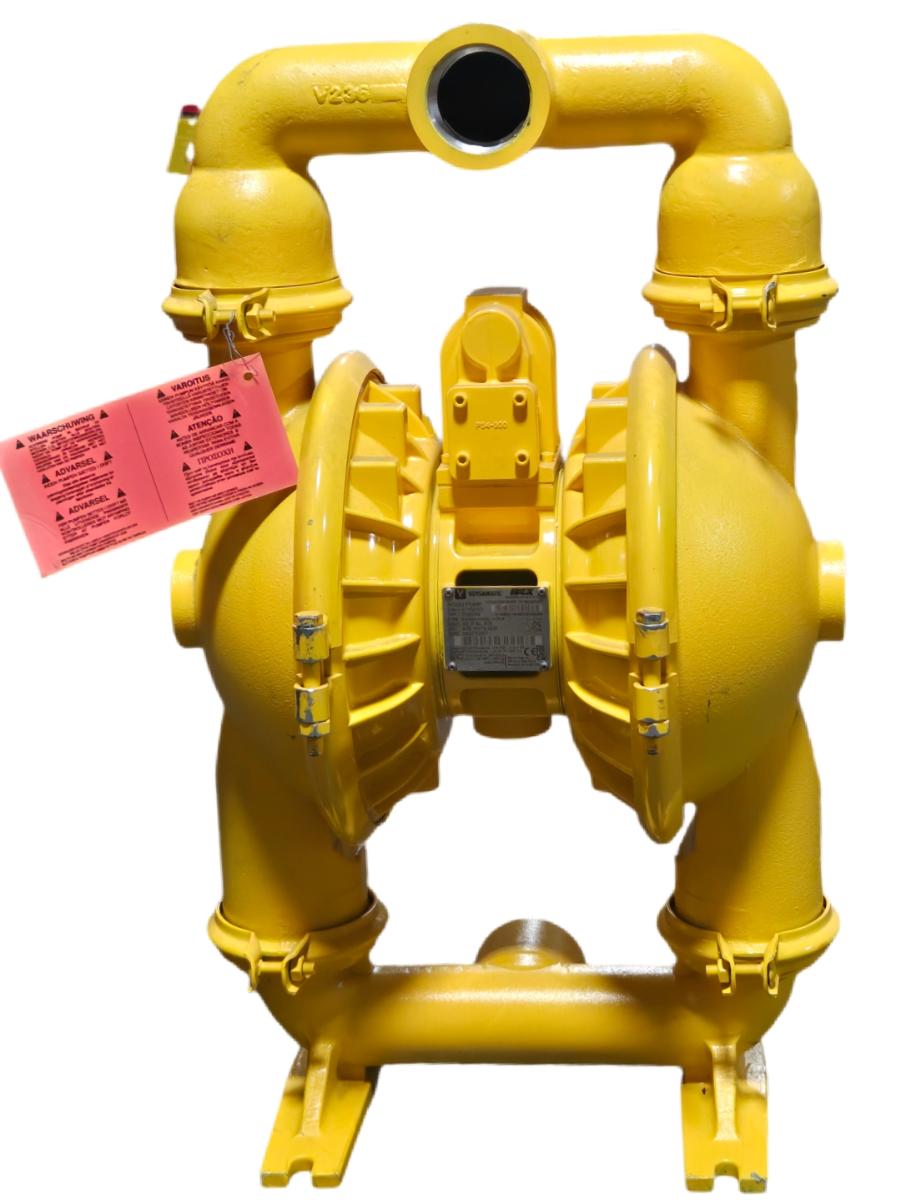

The Versamatic E2AA6X660C-ATEX (S/N 38201283, W/O 786258, dated 01/02/25) is a new, USA-assembled 2-inch air-operated double diaphragm (AODD) pump manufactured by Warren Rupp / IDEX Corporation, rated for a maximum air inlet pressure of 125 PSI (8.6 BAR) and an ambient temperature range of -20°C to +60°C. The pump carries full ATEX and UKCA/EAC certification for use in explosive atmospheres, with Ex markings confirming II 2G Ex h IIC T5/T6 and II 2D Ex h IIIC T80°C/T120°C ratings suitable for hazardous-area applications involving flammable liquids, solvents, paints, chemicals, and similar media. The wet-end kit is specified as V2.0 XL KIT and the air section part number is 476.V019.000; the part number suffix breakdown indicates cast iron wetted body (E2), aluminum air section (AA), 2-inch port size (6), and PTFE/santoprene or equivalent diaphragm/valve configuration (660C), with the -ATEX suffix confirming the hazardous-location air valve assembly. This pump is equipped with a flanged discharge manifold visible in photos, clamp-band diaphragm chamber construction, and integral mounting feet, making it suitable for paint booths, chemical transfer, oil and fuel transfer, and other ATEX Zone 1/Zone 21 classified environments.

Product Specifications
