Victaulic A3F3BFQ006 1 NPT K5.6 200F QR Pendent FireLock Flex Sprinkler Drop PK5

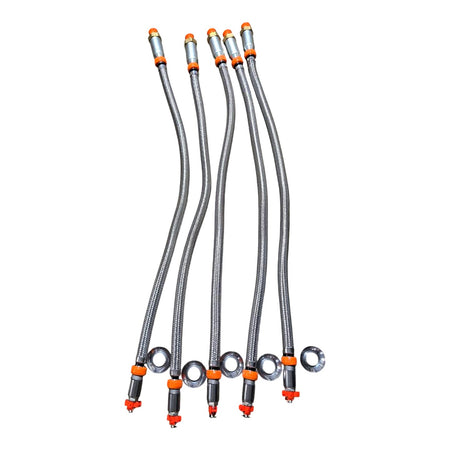

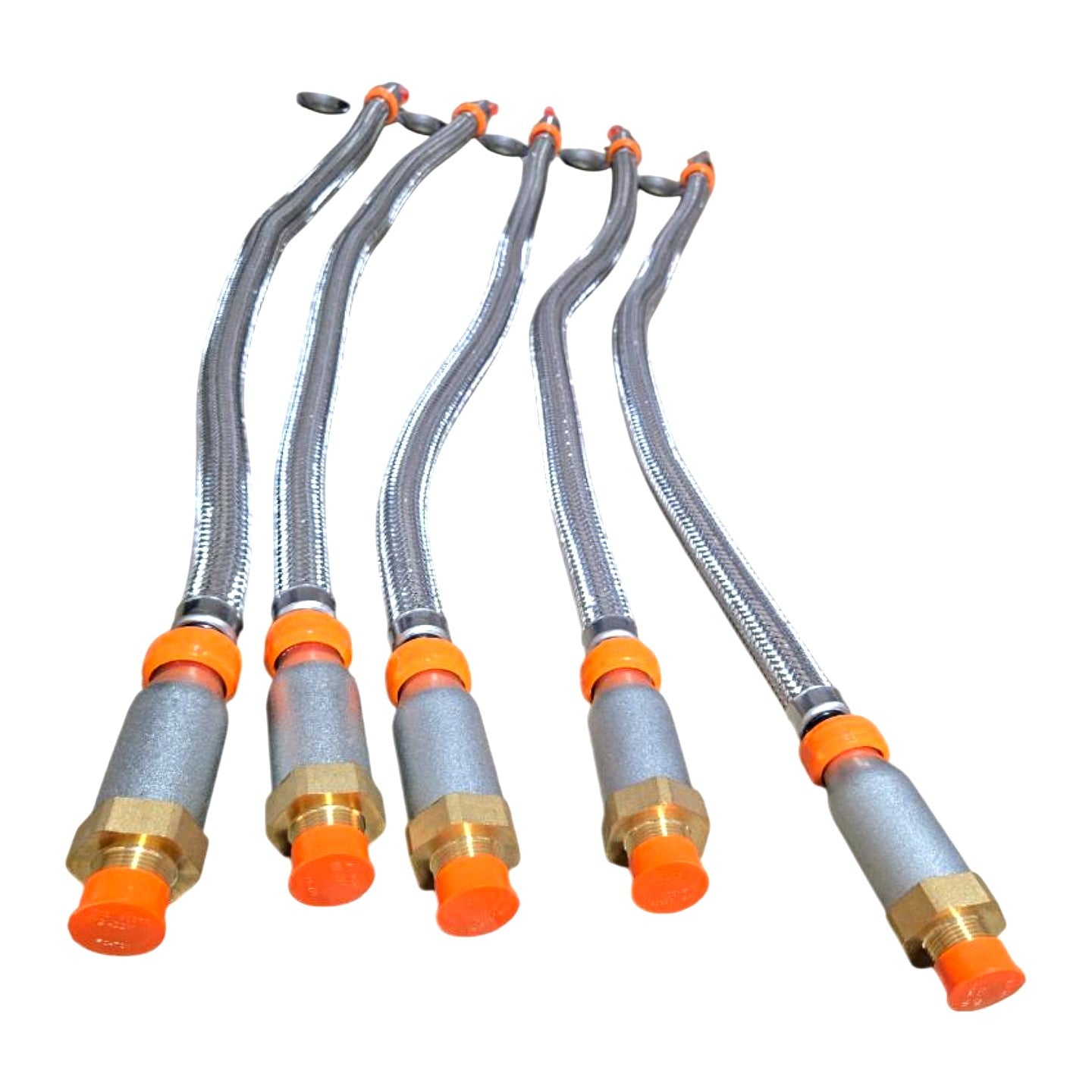

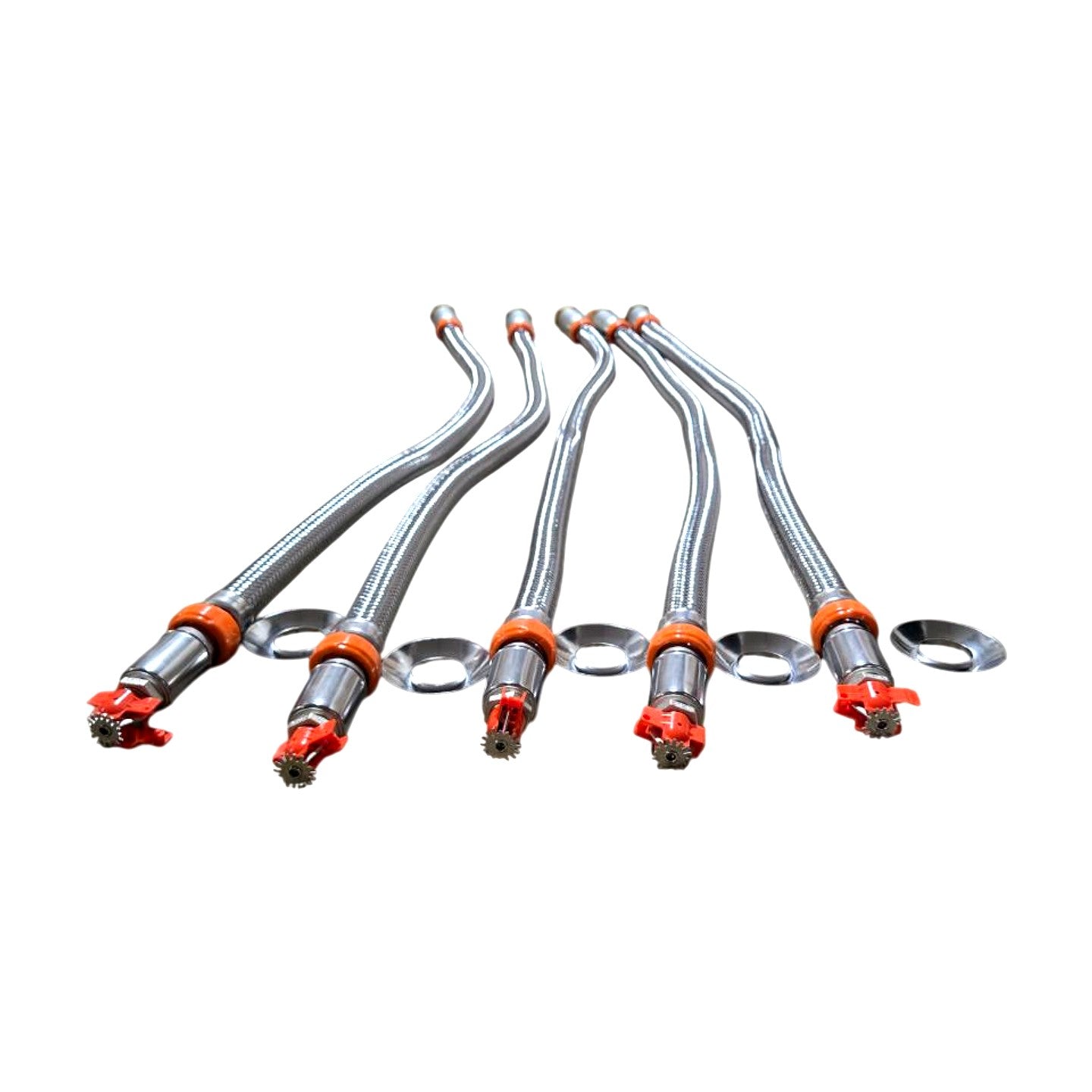

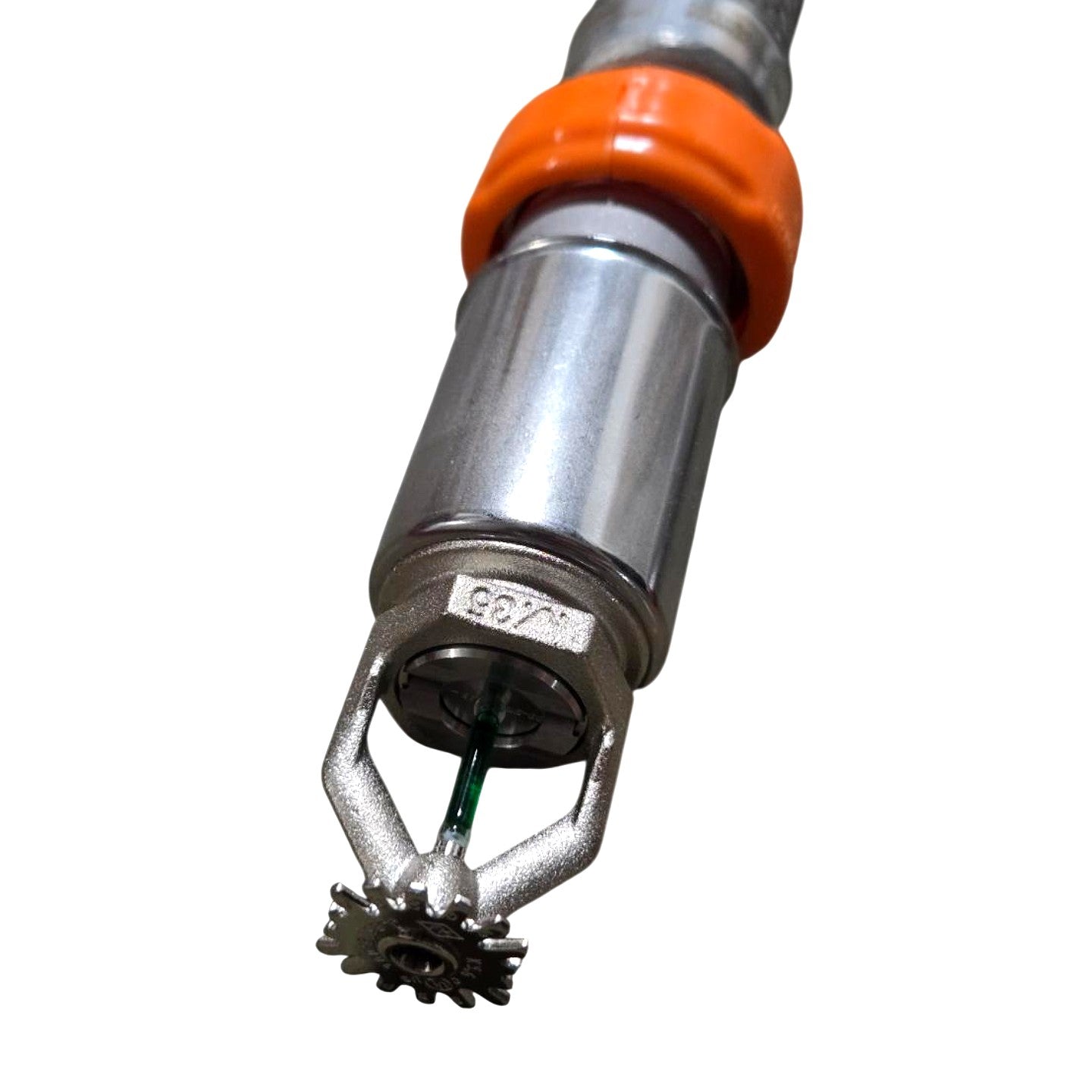

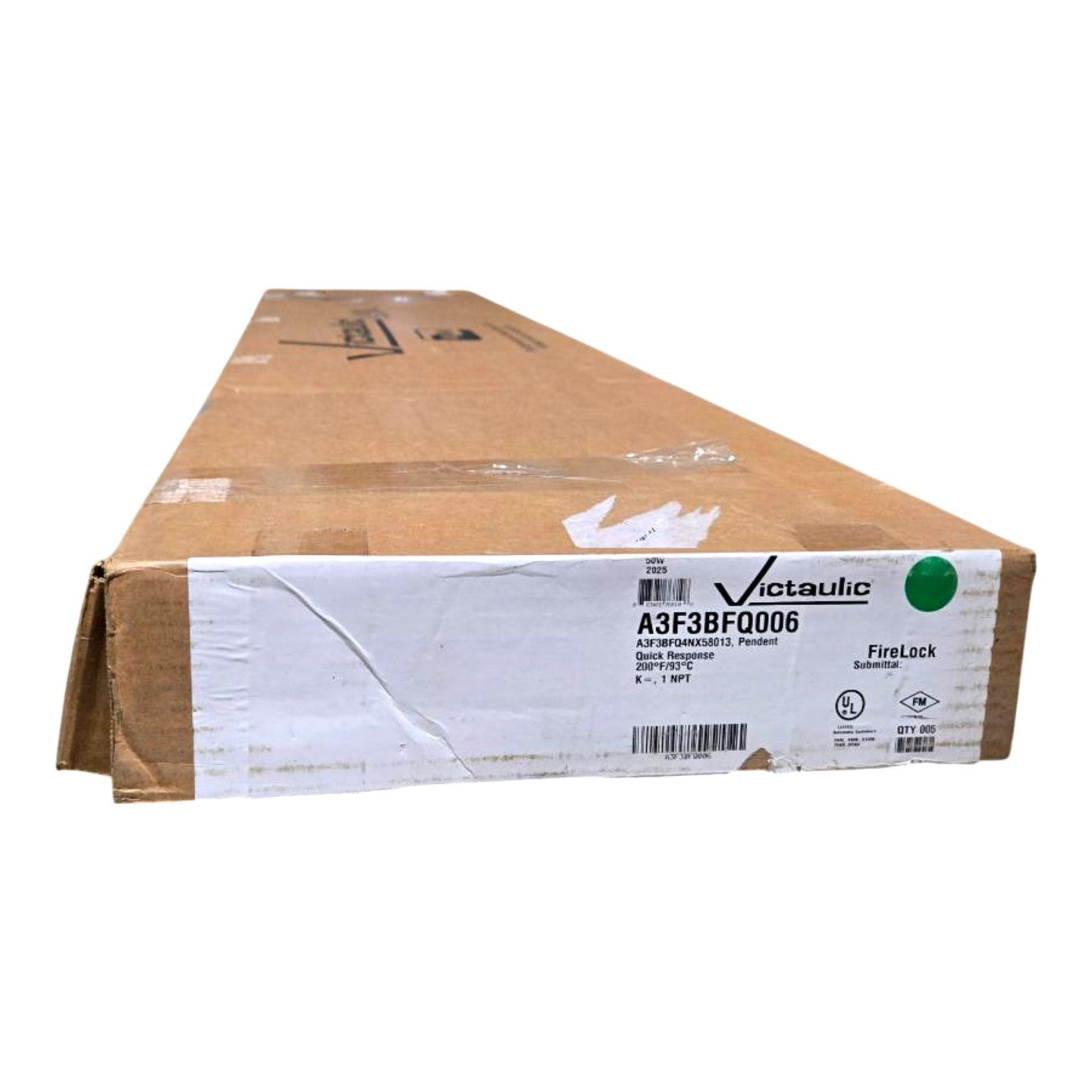

This is a new factory box of 5 Victaulic FireLock A3F3BFQ006 flexible sprinkler drop assemblies, each consisting of a stainless-steel braided corrugated flexible hose with a quick-response pendent sprinkler head pre-installed at the outlet end. The box label confirms part number A3F3BFQ006 (full configuration code A3F3BFQ04NX58013), pendent orientation, Quick Response thermal response rating, 200°F/93°C temperature rating, K=5.6, and 1 NPT male connection on the supply end. Each assembly features an eye-ring escutcheon plate, an orange-coded O-ring seal collar at the hose-to-sprinkler junction, and a brass male NPT threaded inlet fitting with an orange plastic thread-protection cap; the sprinkler heads display a green bulb confirming the 200°F/93°C temperature rating per NFPA 13 color-coding standards. These assemblies are UL Listed and FM Approved as shown on the carton label, and are designed for use in concealed-space or exposed wet-pipe and dry-pipe fire sprinkler systems where rigid drop piping is impractical, connecting from a fixed branch-line fitting directly to the pendent sprinkler head with flexible routing.

Product Specifications
