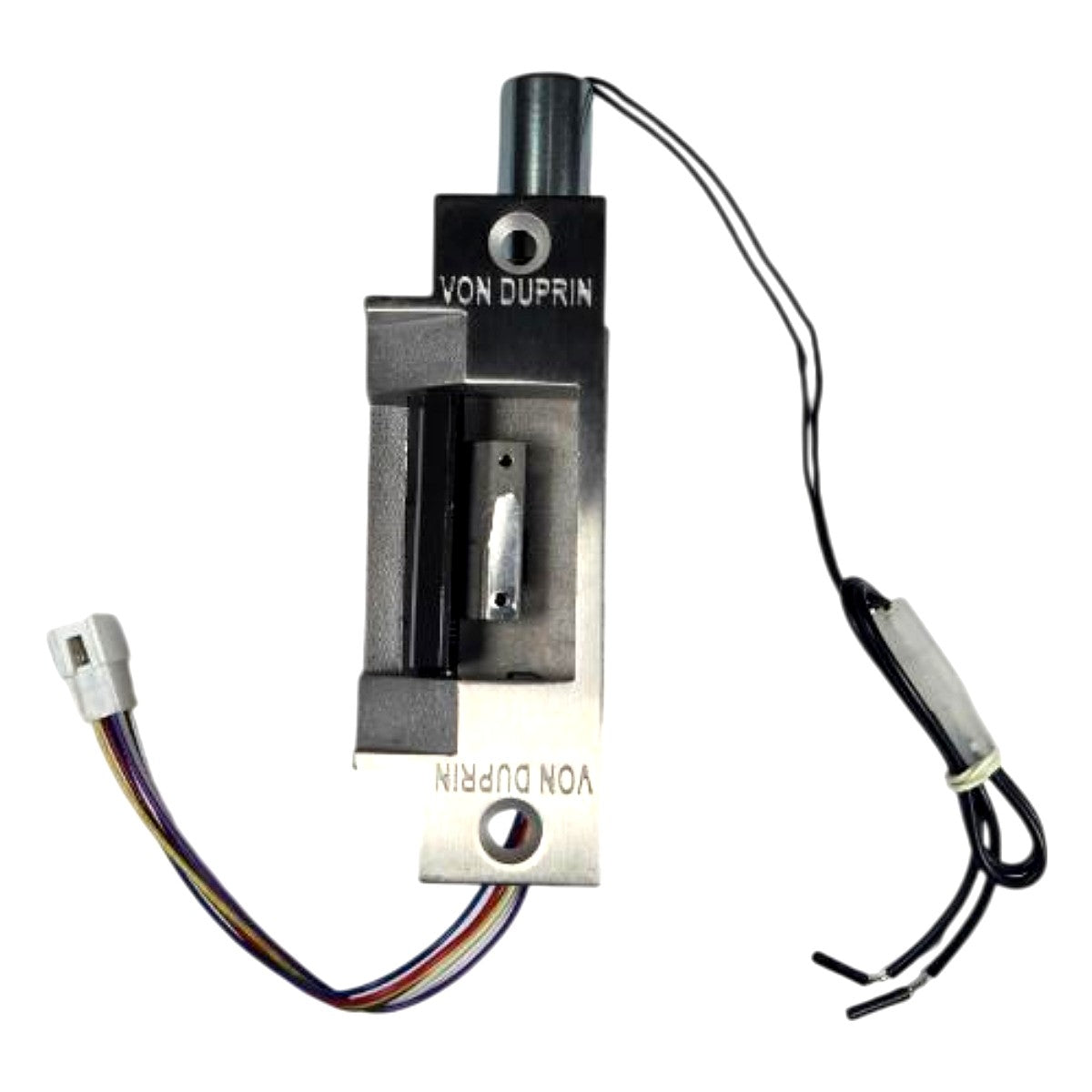

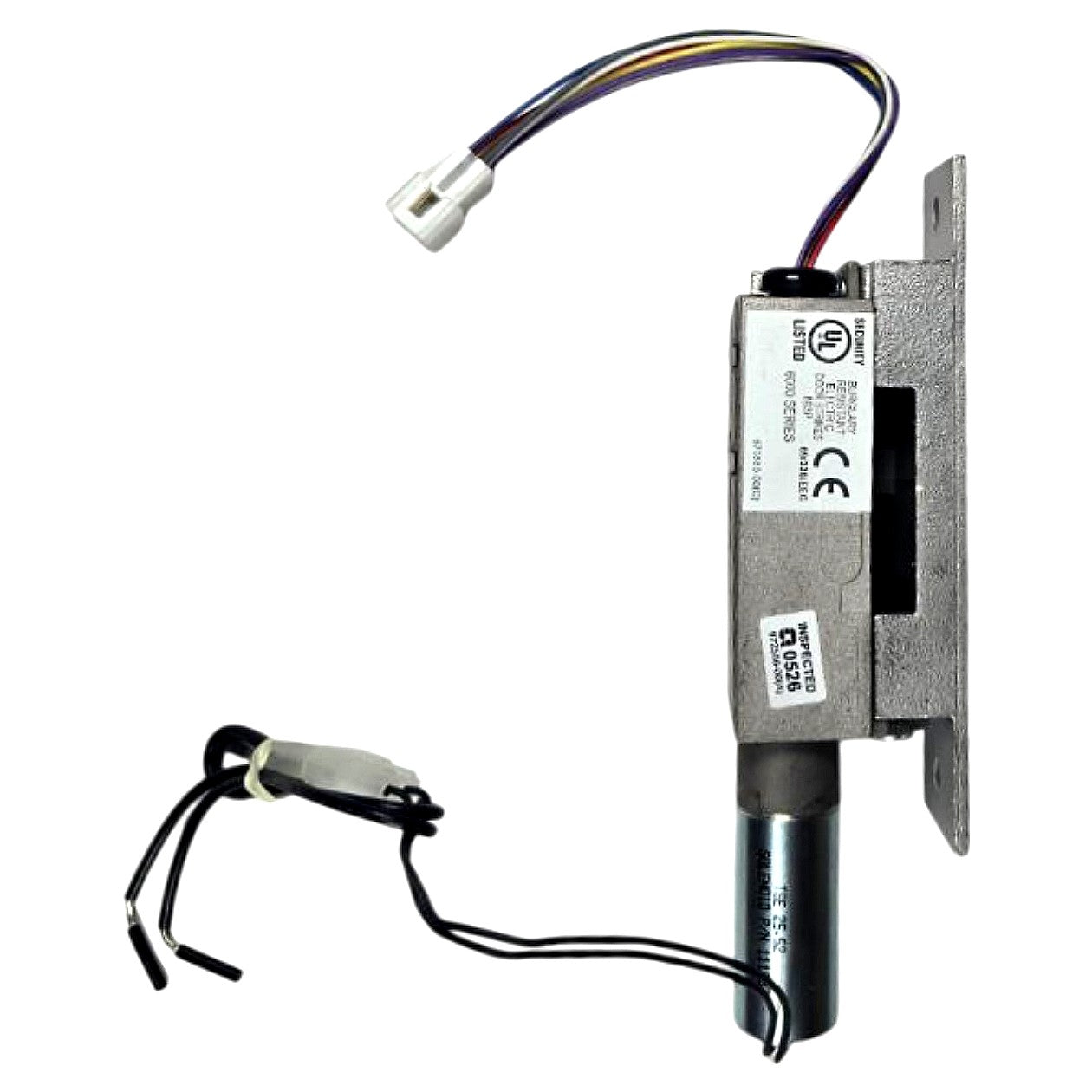

Von Duprin 6211 24V US32D FS DS CON Cylindrical/Mortise Electric Door Strike

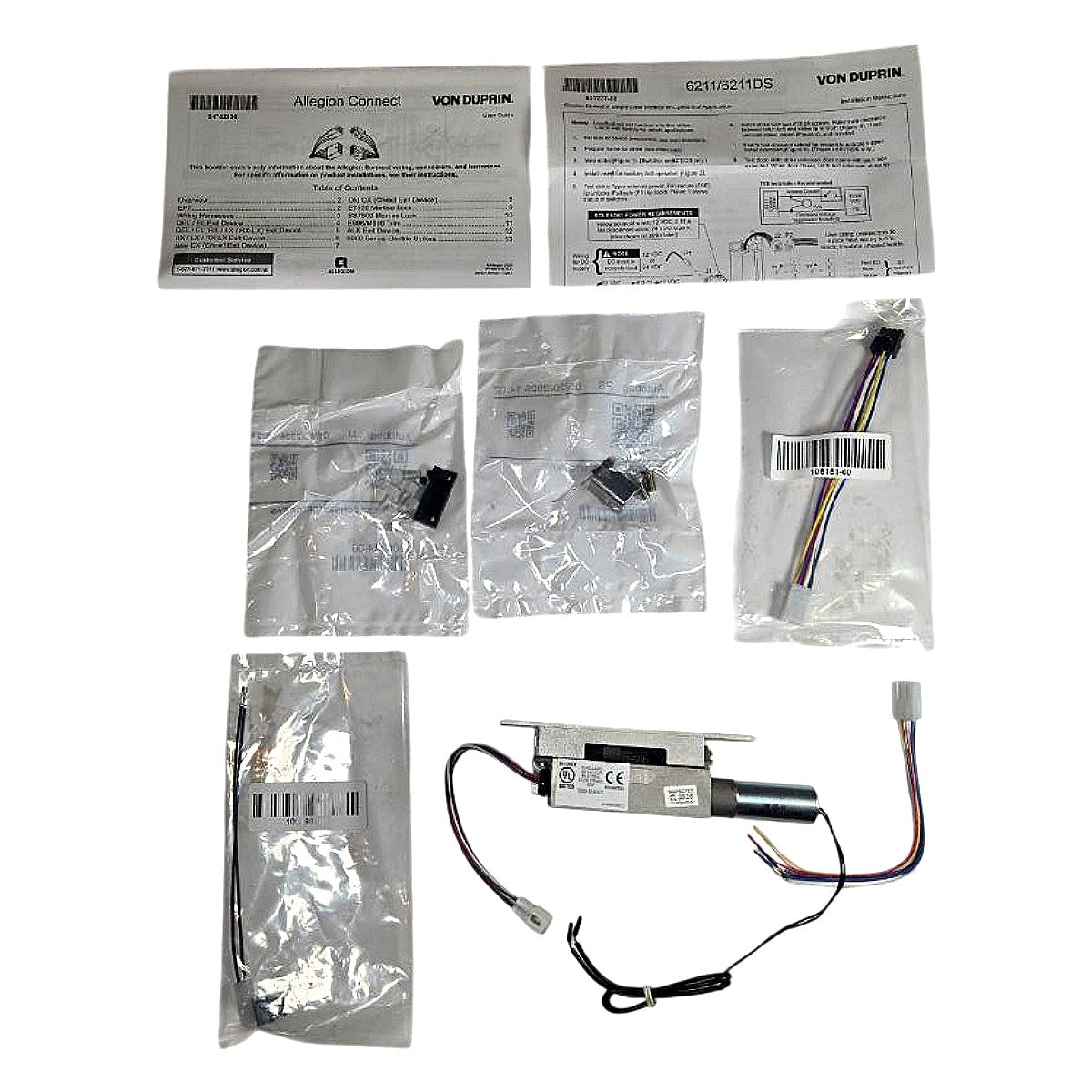

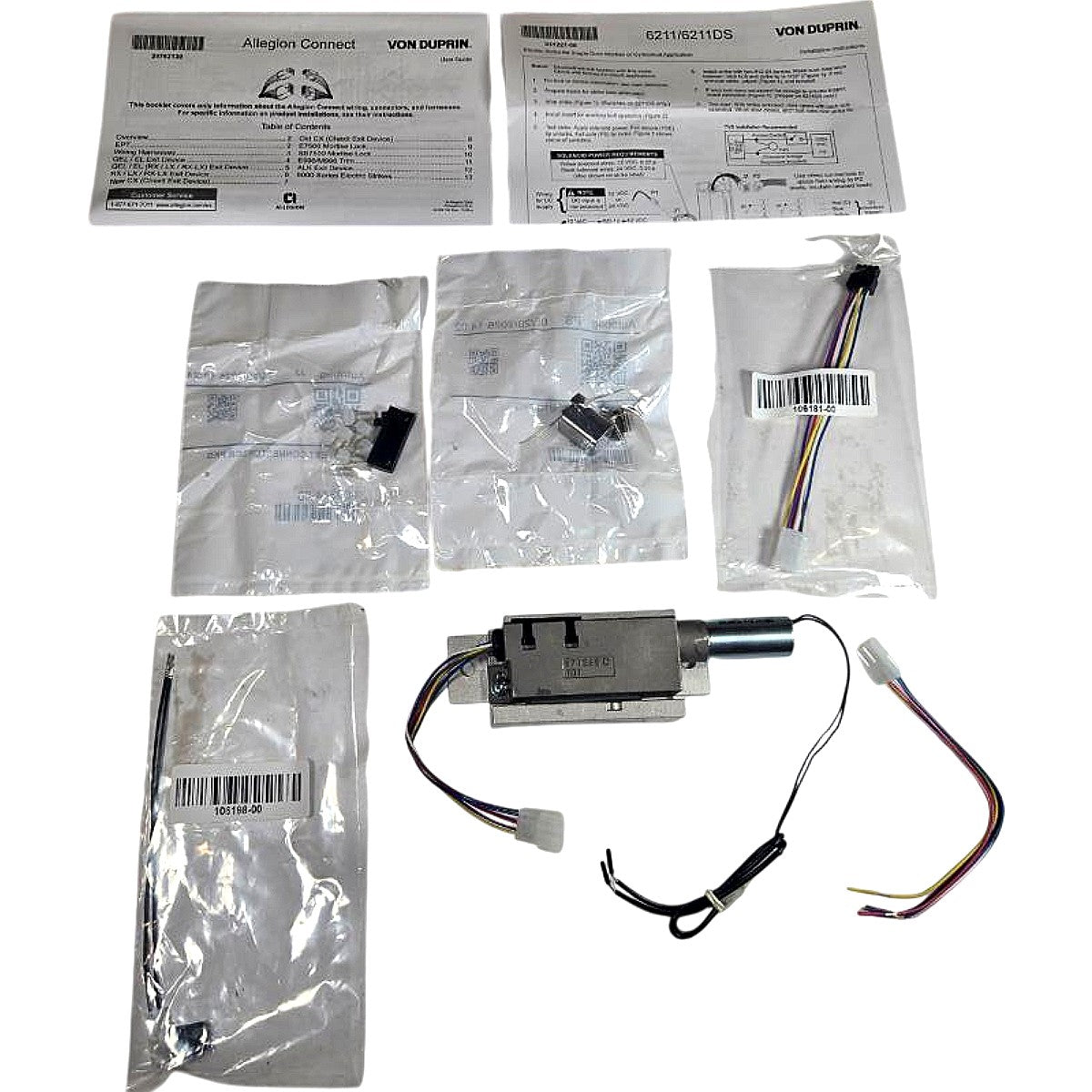

The Von Duprin 6211-US32D-24VDC-FS-DS-CON is a new, UL-listed electric strike from Allegion's 6000 Series, designed for use with cylindrical and mortise latchbolts in commercial door hardware applications. The full part number decodes as follows: 6211 = electric strike for cylindrical/mortise applications with a standard 1-1/4 in wide x 4-7/8 in tall faceplate; 24V = 24VDC operating voltage; US32D = satin stainless steel finish (BHMA 630); FS = fail safe (lock releases when power is removed); DS = dual voltage / dual speed solenoid; CON = includes Allegion Connect wiring harness kit for integration with Von Duprin panic hardware. The unit includes the electric strike body, multi-color wiring harness with connector (part 108181-00), suppression diode assembly (part 105198-00), two micro-switches in individual poly bags, and both the Allegion Connect User Guide and 6211/6211DS installation instruction sheets. The 6211 series accepts standard 5/8 in deadlocking latchbolts and is compatible with Von Duprin 22, 33/35, 98/99, and QEL series exit devices, as well as cylindrical and mortise locksets using standard latch projections; the CON suffix confirms it ships with the full Allegion Connect connector kit required for direct plug-in to compatible Von Duprin electrical exit hardware.

Product Specifications
